Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-FG60335JACAP FILM 3.3UF 600VDC RADIAL |
2,975 | 1.38 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 3.3 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.374 W (31.50mm x 9.50mm) | 0.728 (18.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|

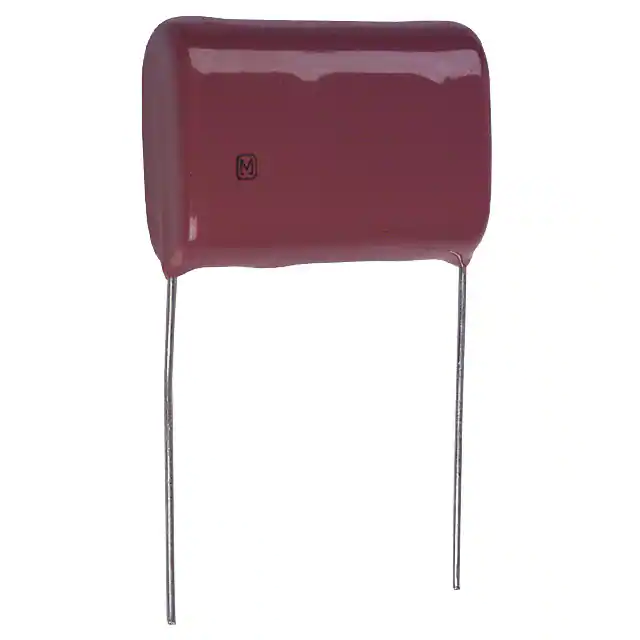

ECQ-E2825JFWCAP FILM 8.2UF 5% 250VDC RADIAL |
3,648 | 1.38 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 8.2 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.563 W (31.00mm x 14.30mm) | 1.122 (28.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
|
ECQ-E2825JFBCAP FILM 8.2UF 5% 250VDC RADIAL |
3,520 | 1.38 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 8.2 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.563 W (31.00mm x 14.30mm) | 1.122 (28.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
ECW-F6304RHLCAP FILM 0.3UF 3% 630VDC RADIAL |
2,655 | 1.38 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-F(L) | Active | 0.3 µF | ±3% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807 L x 0.429 W (20.50mm x 10.90mm) | 0.874 (22.20mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
ECW-F4135HLCAP FILM 1.3UF 3% 400VDC RADIAL |
2,715 | 1.38 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 1.3 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.504 W (28.00mm x 12.80mm) | 0.831 (21.10mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
|
|
ECW-F4244HLBCAP FILM 0.24UF 3% 400VDC RADIAL |
2,643 | 1.38 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.24 µF | ±3% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.327 W (18.00mm x 8.30mm) | 0.709 (18.00mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECW-F6394JLBCAP FILM 0.39UF 5% 630VDC RADIAL |
2,108 | 1.38 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.39 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807 L x 0.488 W (20.50mm x 12.40mm) | 0.945 (24.00mm) | PC Pins | 0.492 (12.50mm) | High Frequency, Switching | - |
|
ECQ-E2475JBBCAP FILM 4.7UF 5% 250VDC RADIAL |
2,721 | 1.38 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 4.7 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.819 L x 0.469 W (20.80mm x 11.90mm) | 1.024 (26.00mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
|
ECW-FG80225JACAP FILM 2.2UF 800VDC RADIAL |
2,420 | 1.39 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 2.2 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.413 W (31.50mm x 10.50mm) | 0.846 (21.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
ECW-H16123HVBCAP FILM 0.012UF 3% 1.6KVDC RAD |
3,639 | 1.39 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.012 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906 L x 0.354 W (23.00mm x 9.00mm) | 0.866 (22.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECW-H16133HVBCAP FILM 0.013UF 3% 1.6KVDC RAD |
3,781 | 1.39 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.013 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906 L x 0.354 W (23.00mm x 9.00mm) | 0.886 (22.50mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECW-H16113HVBCAP FILM 0.011UF 3% 1.6KVDC RAD |
3,985 | 1.39 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.011 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906 L x 0.335 W (23.00mm x 8.50mm) | 0.866 (22.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECW-H16153HVBCAP FILM 0.015UF 3% 1.6KVDC RAD |
2,583 | 1.39 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.015 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906 L x 0.374 W (23.00mm x 9.50mm) | 0.906 (23.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECW-H16163HVBCAP FILM 0.016UF 3% 1.6KVDC RAD |
2,959 | 1.39 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.016 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906 L x 0.394 W (23.00mm x 10.00mm) | 0.925 (23.50mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECW-H16183HVBCAP FILM 0.018UF 3% 1.6KVDC RAD |
3,049 | 1.39 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.018 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906 L x 0.413 W (23.00mm x 10.50mm) | 0.965 (24.50mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECW-F4334RJBCAP FILM 0.33UF 5% 400VDC RADIAL |
2,734 | 1.39 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-F(B) | Active | 0.33 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 0.787 L x 0.453 W (20.00mm x 11.50mm) | 0.906 (23.00mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-F4564JLBCAP FILM 0.56UF 5% 400VDC RADIAL |
3,852 | 1.40 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.56 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807 L x 0.421 W (20.50mm x 10.70mm) | 0.878 (22.30mm) | PC Pins | 0.492 (12.50mm) | High Frequency, Switching | - |
|
|
ECW-F4274HLBCAP FILM 0.27UF 3% 400VDC RADIAL |
2,508 | 1.40 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.27 µF | ±3% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.346 W (18.00mm x 8.80mm) | 0.724 (18.40mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECW-F6434JLBCAP FILM 0.43UF 5% 630VDC RADIAL |
2,986 | 1.40 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.43 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807 L x 0.512 W (20.50mm x 13.00mm) | 0.965 (24.50mm) | PC Pins | 0.492 (12.50mm) | High Frequency, Switching | - |
|
|
ECW-FD2J395KBCAP FILM 3.9UF 10% 630VDC RADIAL |
3,405 | 1.40 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 3.9 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.996 L x 0.654 W (25.30mm x 16.60mm) | 1.067 (27.10mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
