Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-F6204HLBCAP FILM 0.2UF 3% 630VDC RADIAL |
2,740 | 1.51 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.2 µF | ±3% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.406 W (18.00mm x 10.30mm) | 0.776 (19.70mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECW-F6624JLBCAP FILM 0.62UF 5% 630VDC RADIAL |
3,687 | 1.51 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.62 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.476 W (28.00mm x 12.10mm) | 0.933 (23.70mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
|
ECW-F4754JLBCAP FILM 0.75UF 5% 400VDC RADIAL |
2,347 | 1.51 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.75 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807 L x 0.484 W (20.50mm x 12.30mm) | 0.949 (24.10mm) | PC Pins | 0.492 (12.50mm) | High Frequency, Switching | - |
|
|
ECW-F4394HLBCAP FILM 0.39UF 3% 400VDC RADIAL |
2,676 | 1.51 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.39 µF | ±3% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.406 W (18.00mm x 10.30mm) | 0.791 (20.10mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |

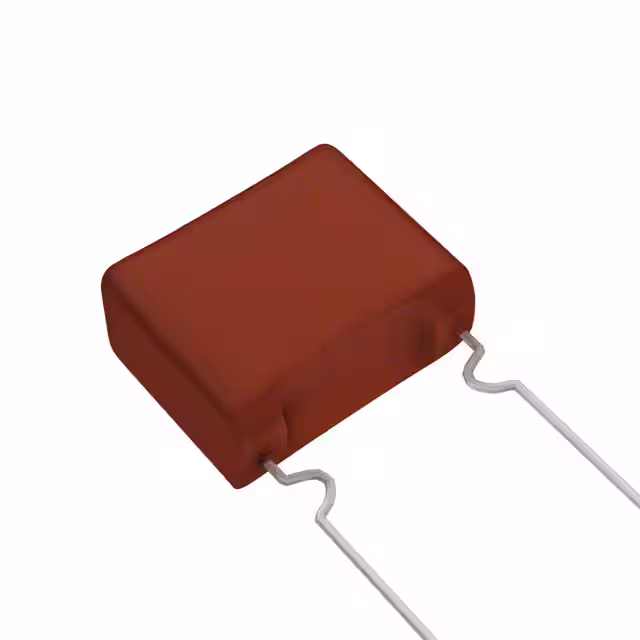

 Series Style B 18x11.jpg)
|
ECW-F2185RHACAP FILM 1.8UF 3% 250VDC RADIAL |
3,282 | 1.51 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-F(A) | Active | 1.8 µF | ±3% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.740 L x 0.449 W (18.80mm x 11.40mm) | 0.709 (18.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECW-H16203RHVCAP FILM 0.02UF 3% 1.6KVDC RAD |
2,514 | 1.51 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-H(V) | Active | 0.02 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906 L x 0.433 W (23.00mm x 11.00mm) | 0.984 (25.00mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-FD2J475KCCAP FILM 4.7UF 10% 630VDC RADIAL |
3,687 | 1.51 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 4.7 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.996 L x 0.720 W (25.30mm x 18.30mm) | 1.000 (25.40mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECW-H12433JVCAP FILM 0.043UF 5% 1.25KVDC RAD |
3,448 | 1.51 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.043 µF | ±5% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906 L x 0.433 W (23.00mm x 11.00mm) | 0.846 (21.50mm) | PC Pins | 0.787 (20.00mm) | High Frequency, Switching | - |
|
|
ECW-F6224HLBCAP FILM 0.22UF 3% 630VDC RADIAL |
2,748 | 1.52 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.22 µF | ±3% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.425 W (18.00mm x 10.80mm) | 0.807 (20.50mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECW-F4684RJLCAP FILM 0.68UF 5% 400VDC RADIAL |
2,835 | 1.52 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-F(L) | Active | 0.68 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807 L x 0.465 W (20.50mm x 11.80mm) | 0.925 (23.50mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-H12433JVBCAP FILM 0.043UF 5% 1.25KVDC RAD |
3,925 | 1.52 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.043 µF | ±5% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906 L x 0.433 W (23.00mm x 11.00mm) | 0.984 (25.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECW-H12393JVBCAP FILM 0.039UF 5% 1.25KVDC RAD |
3,743 | 1.52 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.039 µF | ±5% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906 L x 0.413 W (23.00mm x 10.50mm) | 0.965 (24.50mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECW-F6244HLBCAP FILM 0.24UF 3% 630VDC RADIAL |
3,469 | 1.52 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.24 µF | ±3% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.441 W (18.00mm x 11.20mm) | 0.823 (20.90mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECQ-E1565JFBCAP FILM 5.6UF 5% 100VDC RADIAL |
3,264 | 1.53 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 5.6 µF | ±5% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | - | - | PC Pins | - | General Purpose | - |
|
|
ECQ-E1565JFWCAP FILM 5.6UF 5% 100VDC RADIAL |
3,595 | 1.53 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 5.6 µF | ±5% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | - | - | PC Pins | - | General Purpose | - |
|
|
ECW-F6273RJLCAP FILM 0.027UF 5% 630VDC RAD |
3,960 | 1.53 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-F(L) | Active | 0.027 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.260 W (13.00mm x 6.60mm) | 0.571 (14.50mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
ECQ-E1825KFBCAP FILM 8.2UF 10% 100VDC RADIAL |
2,724 | 1.53 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 8.2 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.394 W (26.00mm x 10.00mm) | 0.984 (25.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
ECQ-E1825KFWCAP FILM 8.2UF 10% 100VDC RADIAL |
2,335 | 1.53 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 8.2 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.394 W (26.00mm x 10.00mm) | 0.984 (25.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
ECW-H16203JVCAP FILM 0.02UF 5% 1.6KVDC RAD |
3,550 | 1.54 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.02 µF | ±5% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906 L x 0.433 W (23.00mm x 11.00mm) | 0.846 (21.50mm) | PC Pins | 0.787 (20.00mm) | High Frequency, Switching | - |
|
ECW-FG70225JACAP FILM 2.2UF 700VDC RADIAL |
3,976 | 1.54 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 2.2 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.472 W (31.50mm x 12.00mm) | 0.984 (25.00mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
