Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-F4165JLBCAP FILM 1.6UF 5% 400VDC RADIAL |
2,469 | 1.90 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 1.6 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.559 W (28.00mm x 14.20mm) | 1.032 (26.20mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
|
ECW-F4105HLBCAP FILM 1UF 3% 400VDC RADIAL |
2,869 | 1.90 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 1 µF | ±3% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906 L x 0.512 W (23.00mm x 13.00mm) | 0.976 (24.80mm) | PC Pins | 0.492 (12.50mm) | High Frequency, Switching | - |
|
|
ECW-F6754HLBCAP FILM 0.75UF 3% 630VDC RADIAL |
2,938 | 1.90 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.75 µF | ±3% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.524 W (28.00mm x 13.30mm) | 0.980 (24.90mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
|
ECW-F6135JLBCAP FILM 1.3UF 5% 630VDC RADIAL |
2,082 | 1.90 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 1.3 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.693 W (28.00mm x 17.60mm) | 1.157 (29.40mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
|
ECW-FD2J475JBCAP FILM 4.7UF 5% 630VDC RADIAL |
2,211 | 1.91 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 4.7 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.996 L x 0.720 W (25.30mm x 18.30mm) | 1.138 (28.90mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECW-FD2J475JQCAP FILM 4.7UF 5% 630VDC RADIAL |
2,327 | 1.91 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 4.7 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.996 L x 0.720 W (25.30mm x 18.30mm) | 1.217 (30.90mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECW-FD2J475JCCAP FILM 4.7UF 5% 630VDC RADIAL |
3,002 | 1.91 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 4.7 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.996 L x 0.720 W (25.30mm x 18.30mm) | 1.000 (25.40mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-E2475RKBCAP FILM 4.7UF 10% 250VDC RADIAL |
2,735 | 1.91 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECQ-E(B) | Active | 4.7 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.819 L x 0.469 W (20.80mm x 11.90mm) | 1.024 (26.00mm) | PC Pins | 0.689 (17.50mm) | General Purpose | - |
|
|
ECW-H12913JVCAP FILM 0.091UF 5% 1.25KVDC RAD |
3,372 | 1.92 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.091 µF | ±5% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.571 W (28.00mm x 14.50mm) | 0.965 (24.50mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
|
ECW-FG60685JACAP FILM 6.8UF 600VDC RADIAL |
2,000 | 1.92 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 6.8 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.472 W (31.50mm x 12.00mm) | 0.984 (25.00mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
ECW-FG60505JACAP FILM 5UF 600VDC RADIAL |
3,645 | 1.92 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 5 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.472 W (31.50mm x 12.00mm) | 0.984 (25.00mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|

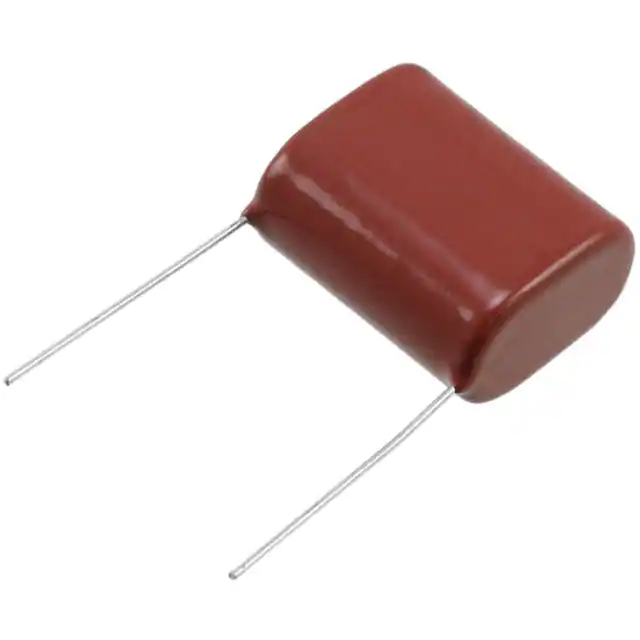

ECQ-E2106JFBCAP FILM 10UF 5% 250VDC RADIAL |
3,844 | 1.93 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 10 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.626 W (31.00mm x 15.90mm) | 1.213 (30.80mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
|
ECQ-E2106JFWCAP FILM 10UF 5% 250VDC RADIAL |
2,959 | 1.93 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 10 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.626 W (31.00mm x 15.90mm) | 1.213 (30.80mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
|
ECQ-E6225JFBCAP FILM 2.2UF 5% 630VDC RADIAL |
3,823 | 1.93 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 2.2 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.768 W (31.00mm x 19.50mm) | 1.339 (34.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
|
ECQ-E6225JFWCAP FILM 2.2UF 5% 630VDC RADIAL |
3,198 | 1.93 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 2.2 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.768 W (31.00mm x 19.50mm) | 1.339 (34.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
|
ECW-H12913JVBCAP FILM 0.091UF 5% 1.25KVDC RAD |
2,521 | 1.93 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.091 µF | ±5% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.571 W (28.00mm x 14.50mm) | 1.102 (28.00mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
|
ECW-H12823JVBCAP FILM 0.082UF 5% 1.25KVDC RAD |
3,010 | 1.93 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.082 µF | ±5% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.551 W (28.00mm x 14.00mm) | 1.083 (27.50mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
 Series Straight 23x11.jpg)
|
ECW-F2275HACAP FILM 2.7UF 3% 250VDC RADIAL |
2,717 | 1.93 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 2.7 µF | ±3% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937 L x 0.449 W (23.80mm x 11.40mm) | 0.736 (18.70mm) | PC Pins | 0.787 (20.00mm) | High Frequency, Switching | - |
 Series Style D 23x11.jpg)
|
ECW-F2275HAQCAP FILM 2.7UF 3% 250VDC RADIAL |
2,372 | 1.93 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 2.7 µF | ±3% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937 L x 0.449 W (23.80mm x 11.40mm) | 1.012 (25.70mm) | PC Pins | 0.787 (20.00mm) | High Frequency, Switching | - |
 Series Style B 23x11.jpg)
|
ECW-F2275HABCAP FILM 2.7UF 3% 250VDC RADIAL |
3,706 | 1.93 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 2.7 µF | ±3% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937 L x 0.449 W (23.80mm x 11.40mm) | 0.933 (23.70mm) | PC Pins | 0.492 (12.50mm) | High Frequency, Switching | - |
