Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Series Style D 23x11.jpg)
|
ECW-F2335JAQCAP FILM 3.3UF 5% 250VDC RADIAL |
3,060 | 1.98 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 3.3 µF | ±5% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937 L x 0.492 W (23.80mm x 12.50mm) | 1.055 (26.80mm) | PC Pins | 0.787 (20.00mm) | High Frequency, Switching | - |
 Series Style B 23x11.jpg)
|
ECW-F2335JABCAP FILM 3.3UF 5% 250VDC RADIAL |
2,288 | 1.98 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 3.3 µF | ±5% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937 L x 0.492 W (23.80mm x 12.50mm) | 0.976 (24.80mm) | PC Pins | 0.492 (12.50mm) | High Frequency, Switching | - |
|
ECW-FG60565JACAP FILM 5.6UF 600VDC RADIAL |
2,934 | 2.00 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 5.6 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.472 W (31.50mm x 12.00mm) | 0.984 (25.00mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
ECW-H12753HVCAP FILM 0.075UF 3% 1.25KVDC RAD |
2,397 | 2.00 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.075 µF | ±3% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.531 W (28.00mm x 13.50mm) | 0.925 (23.50mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
|
|
ECW-H12683HVCAP FILM 0.068UF 3% 1.25KVDC RAD |
3,323 | 2.00 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.068 µF | ±3% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.492 W (28.00mm x 12.50mm) | 0.906 (23.00mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
|
|
ECW-H12683HVBCAP FILM 0.068UF 3% 1.25KVDC RAD |
2,349 | 2.01 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.068 µF | ±3% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.492 W (28.00mm x 12.50mm) | 1.043 (26.50mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
|
ECW-H12753HVBCAP FILM 0.075UF 3% 1.25KVDC RAD |
3,645 | 2.01 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.075 µF | ±3% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.531 W (28.00mm x 13.50mm) | 1.063 (27.00mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
|
ECW-F4125HLBCAP FILM 1.2UF 3% 400VDC RADIAL |
2,589 | 2.01 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 1.2 µF | ±3% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.484 W (28.00mm x 12.30mm) | 0.949 (24.10mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
|
ECW-F6914HLBCAP FILM 0.91UF 3% 630VDC RADIAL |
3,431 | 2.01 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.91 µF | ±3% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.575 W (28.00mm x 14.60mm) | 1.032 (26.20mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
|
ECW-H12104JVBCAP FILM 0.1UF 5% 1.25KVDC RAD |
2,623 | 2.03 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.1 µF | ±5% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.610 W (28.00mm x 15.50mm) | 1.142 (29.00mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
|
ECW-F4205JLBCAP FILM 2UF 5% 400VDC RADIAL |
3,415 | 2.06 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 2 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.630 W (28.00mm x 16.00mm) | 1.106 (28.10mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
|
ECW-F4135HLBCAP FILM 1.3UF 3% 400VDC RADIAL |
3,026 | 2.08 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 1.3 µF | ±3% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.504 W (28.00mm x 12.80mm) | 0.969 (24.60mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
|
ECW-F6105HLBCAP FILM 1UF 3% 630VDC RADIAL |
3,999 | 2.08 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 1 µF | ±3% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.610 W (28.00mm x 15.50mm) | 1.075 (27.30mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|

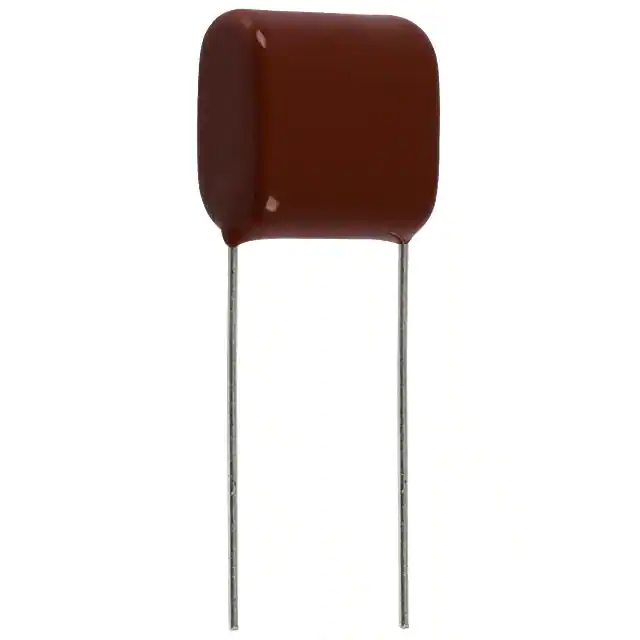

ECQ-E2475RJBCAP FILM 4.7UF 5% 250VDC RADIAL |
3,236 | 2.10 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECQ-E(B) | Active | 4.7 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.819 L x 0.469 W (20.80mm x 11.90mm) | 1.024 (26.00mm) | PC Pins | 0.689 (17.50mm) | General Purpose | - |
|
|
ECW-H12913HVCAP FILM 0.091UF 3% 1.25KVDC RAD |
2,042 | 2.11 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.091 µF | ±3% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.571 W (28.00mm x 14.50mm) | 0.965 (24.50mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
|
|
ECW-H12823HVCAP FILM 0.082UF 3% 1.25KVDC RAD |
3,551 | 2.11 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.082 µF | ±3% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.551 W (28.00mm x 14.00mm) | 0.945 (24.00mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
|
|
ECW-FG70305KACAP FILM 3.0UF 700VDC RADIAL |
2,379 | 2.12 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 3 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.531 W (31.50mm x 13.50mm) | 1.142 (29.00mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
ECW-H12913HVBCAP FILM 0.091UF 3% 1.25KVDC RAD |
2,487 | 2.12 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.091 µF | ±3% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.571 W (28.00mm x 14.50mm) | 1.102 (28.00mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
|
ECW-H12823HVBCAP FILM 0.082UF 3% 1.25KVDC RAD |
2,119 | 2.12 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.082 µF | ±3% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.551 W (28.00mm x 14.00mm) | 1.083 (27.50mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
|
ECW-H16243HVCAP FILM 0.024UF 3% 1.6KVDC RAD |
3,085 | 2.15 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.024 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.394 W (28.00mm x 10.00mm) | 0.787 (20.00mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
