Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E1684JFCAP FILM 0.68UF 5% 100VDC RADIAL |
876 | 1.08 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.68 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.236 W (12.00mm x 6.00mm) | 0.508 (12.90mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
 Series.jpg)
|
ECW-FE2W335KCAP FILM 3.3UF 10% 450VDC RADIAL |
375 | 1.08 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 3.3 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.394 W (26.00mm x 10.00mm) | 0.669 (17.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-E2155JFCAP FILM 1.5UF 5% 250VDC RADIAL |
875 | 1.09 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1.5 µF | ±5% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.354 W (18.50mm x 9.00mm) | 0.701 (17.80mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
ECW-FD2J684JCAP FILM 0.68UF 5% 630VDC RADIAL |
437 | 1.09 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.68 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701 L x 0.366 W (17.80mm x 9.30mm) | 0.618 (15.70mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-H8333HACAP FILM 0.033UF 3% 800VDC RAD |
900 | 1.11 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(A) | Active | 0.033 µF | ±3% | 283V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.618 L x 0.331 W (15.70mm x 8.40mm) | 0.563 (14.30mm) | PC Pins | 0.492 (12.50mm) | High Frequency, Switching | - |
 Series Style B 8-W.jpg)
|
ECW-F2W394JAQCAP FILM 0.39UF 5% 450VDC RADIAL |
300 | 1.11 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.39 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.319 W (13.00mm x 8.10mm) | 0.736 (18.70mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECW-FE2J105JCAP FILM 1UF 5% 630VDC RADIAL |
420 | 1.13 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 1 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.394 W (26.00mm x 10.00mm) | 0.669 (17.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECW-H12472JVCAP FILM 4700PF 5% 1.25KVDC RAD |
918 | 1.14 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 4700 pF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.236 W (18.00mm x 6.00mm) | 0.571 (14.50mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
 Series Style D 18x7.jpg)
|
ECW-F2684JAQCAP FILM 0.68UF 5% 250VDC RADIAL |
300 | 1.15 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.68 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.713 L x 0.291 W (18.10mm x 7.40mm) | 0.807 (20.50mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
ECQ-E4564JFCAP FILM 0.56UF 5% 400VDC RADIAL |
261 | 1.15 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.56 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.256 W (26.00mm x 6.50mm) | 0.669 (17.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
ECW-HC3F392JDCAP FILM 3900PF 5% 3KVDC RADIAL |
352 | 1.16 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(C) | Active | 3900 pF | ±5% | 1060V (1.06kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.016 L x 0.295 W (25.80mm x 7.50mm) | 0.480 (12.20mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
ECW-FE2W225P8CAP FILM 2.2UF 5% 450VDC RADIAL |
330 | 1.16 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 2.2 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.433 W (31.00mm x 11.00mm) | 0.846 (21.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-FD2J125KCAP FILM 1.2UF 10% 630VDC RADIAL |
328 | 1.16 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 1.2 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.996 L x 0.362 W (25.30mm x 9.20mm) | 0.622 (15.80mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECW-H12182JVCAP FILM 1800PF 5% 1.25KVDC RAD |
482 | 1.17 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 1800 pF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.276 W (18.00mm x 7.00mm) | 0.610 (15.50mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECW-H12152JVCAP FILM 1500PF 5% 1.25KVDC RAD |
461 | 1.17 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 1500 pF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.256 W (18.00mm x 6.50mm) | 0.591 (15.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
ECQ-E6274JFCAP FILM 0.27UF 5% 630VDC RADIAL |
138 | 1.18 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.27 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.276 W (26.00mm x 7.00mm) | 0.689 (17.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|

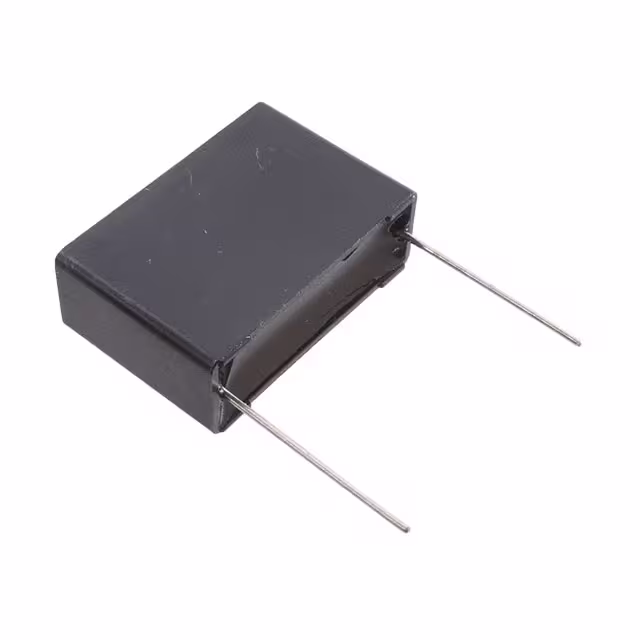

ECW-FE2W225Q8CAP FILM 2.2UF 10% 450VDC RADIAL |
108 | 1.18 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 2.2 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.433 W (31.00mm x 11.00mm) | 0.846 (21.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECW-H12562JVCAP FILM 5600PF 5% 1.25KVDC RAD |
312 | 1.19 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 5600 pF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.256 W (18.00mm x 6.50mm) | 0.591 (15.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|

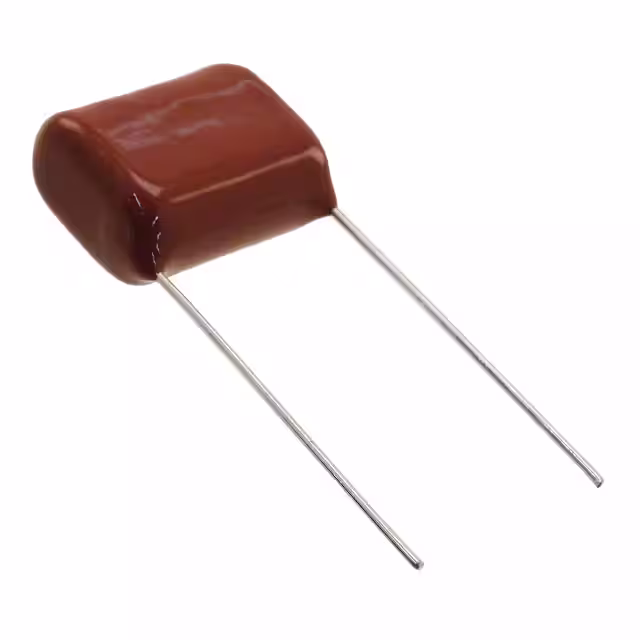

ECW-HA3C393JCAP FILM 0.039UF 5% 1.6KVDC RAD |
501 | 1.20 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(A) | Active | 0.039 µF | ±5% | 700V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.811 L x 0.476 W (20.60mm x 12.10mm) | 0.709 (18.00mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
ECQ-E2185JBCAP FILM 1.8UF 5% 250VDC RADIAL |
815 | 1.22 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 1.8 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.819 L x 0.299 W (20.80mm x 7.60mm) | 0.614 (15.60mm) | PC Pins | 0.689 (17.50mm) | General Purpose | - |
