Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

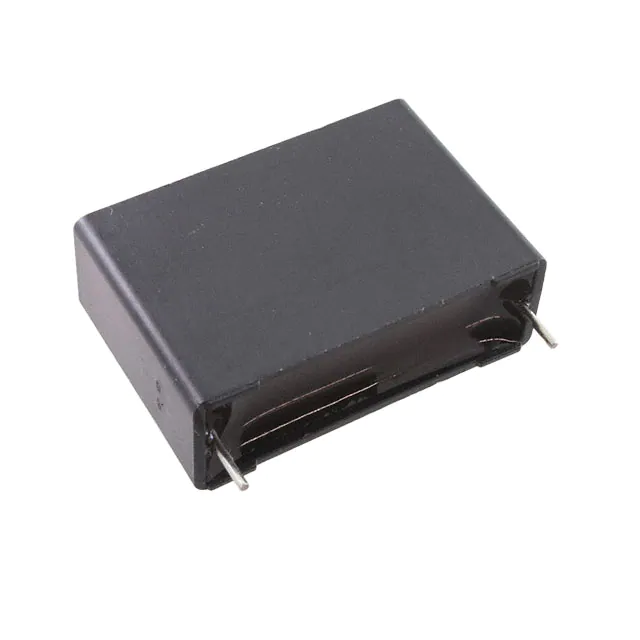

ECW-FE2W225PLCAP FILM 2.2UF 5% 450VDC RADIAL |
267 | 1.22 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 2.2 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.433 W (31.00mm x 11.00mm) | 0.846 (21.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
 Series Straight 26x11.jpg)
|
ECW-FA2J125JCAP FILM 1.2UF 5% 630VDC RADIAL |
320 | 1.26 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 1.2 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.476 W (26.00mm x 12.10mm) | 0.677 (17.20mm) | PC Pins | 0.886 (22.50mm) | High Frequency, Switching | - |
|
ECQ-E6334JFCAP FILM 0.33UF 5% 630VDC RADIAL |
809 | 1.28 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.33 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.307 W (26.00mm x 7.80mm) | 0.709 (18.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
ECW-HC3F822JDCAP FILM 8200PF 5% 3KVDC RADIAL |
320 | 1.31 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(C) | Active | 8200 pF | ±5% | 1060V (1.06kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.016 L x 0.295 W (25.80mm x 7.50mm) | 0.602 (15.30mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
-Series.jpg)
|
ECW-FD2W395KCAP FILM 3.9UF 10% 450VDC RADIAL |
497 | 1.33 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 3.9 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.996 L x 0.421 W (25.30mm x 10.70mm) | 0.606 (15.40mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-FE2W335P5CAP FILM 3.3UF 5% 450VDC RADIAL |
286 | 1.34 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 3.3 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.512 W (31.00mm x 13.00mm) | 0.925 (23.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-UAAF125MCAP FILM 1.2UF 20% 275VAC RADIAL |
145 | 1.35 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 1.2 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220 L x 0.472 W (31.00mm x 12.00mm) | 0.886 (22.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
ECW-F4433JLCAP FILM 0.043UF 5% 400VDC RAD |
639 | 1.36 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.043 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.236 W (12.50mm x 6.00mm) | 0.406 (10.30mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECQ-UAAF125KCAP FILM 1.2UF 10% 275VAC RADIAL |
250 | 1.38 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 1.2 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220 L x 0.472 W (31.00mm x 12.00mm) | 0.886 (22.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
ECQ-E6394JFCAP FILM 0.39UF 5% 630VDC RADIAL |
184 | 1.41 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.39 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.335 W (26.00mm x 8.50mm) | 0.744 (18.90mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|

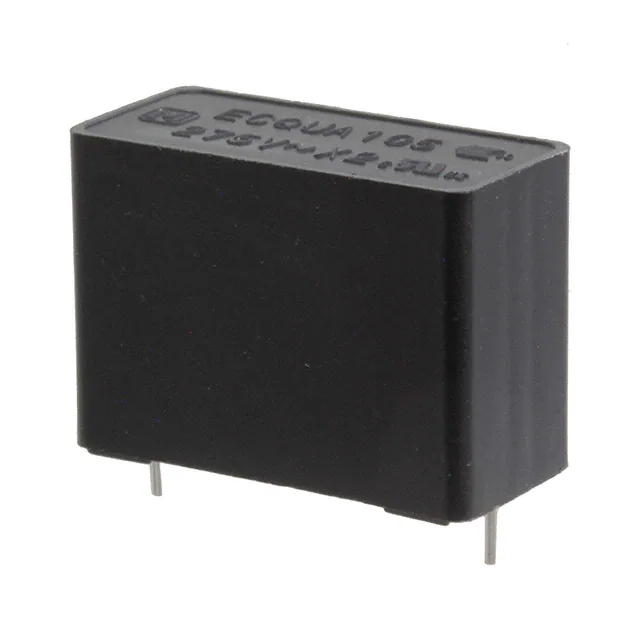

ECQ-UAAF105SACAP FILM 1UF 20% 275VAC RAD |
899 | 1.42 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 1 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.472 W (26.00mm x 12.00mm) | 0.768 (19.50mm) | PC Pins | 0.886 (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
|
ECW-F6123JLCAP FILM 0.012UF 5% 630VDC RAD |
414 | 1.43 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.012 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.217 W (12.50mm x 5.50mm) | 0.386 (9.80mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECW-F6113JLCAP FILM 0.011UF 5% 630VDC RAD |
314 | 1.43 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.011 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.213 W (12.50mm x 5.40mm) | 0.382 (9.70mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECW-F6153JLCAP FILM 0.015UF 5% 630VDC RAD |
200 | 1.43 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.015 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.232 W (12.50mm x 5.90mm) | 0.402 (10.20mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECW-F6133JLCAP FILM 0.013UF 5% 630VDC RAD |
140 | 1.43 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.013 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.220 W (12.50mm x 5.60mm) | 0.394 (10.00mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECQ-E1475KFCAP FILM 4.7UF 10% 100VDC RADIAL |
523 | 1.48 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 4.7 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.295 W (26.00mm x 7.50mm) | 0.709 (18.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
|
ECW-F4303JLCAP FILM 0.03UF 5% 400VDC RADIAL |
147 | 1.48 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.03 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.252 W (12.50mm x 6.40mm) | 0.425 (10.80mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
ECQ-UAAF105TACAP FILM 1UF 10% 275VAC RAD |
600 | 1.49 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 1 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.472 W (26.00mm x 12.00mm) | 0.768 (19.50mm) | PC Pins | 0.886 (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
ECQ-E2275JBCAP FILM 2.7UF 5% 250VDC RADIAL |
677 | 1.51 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 2.7 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.819 L x 0.366 W (20.80mm x 9.30mm) | 0.697 (17.70mm) | PC Pins | 0.689 (17.50mm) | General Purpose | - |
|
|
ECW-F6243JLCAP FILM 0.024UF 5% 630VDC RAD |
784 | 1.57 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.024 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.252 W (12.50mm x 6.40mm) | 0.421 (10.70mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
