Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Series Style Straight 18x7.jpg)
|
ECW-F2W564JACAP FILM 0.56UF 5% 450VDC RADIAL |
548 | 1.10 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.56 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.713 L x 0.276 W (18.10mm x 7.00mm) | 0.512 (13.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
ECW-FE2W225QLCAP FILM 2.2UF 10% 450VDC RADIAL |
400 | 1.11 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 2.2 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.433 W (31.00mm x 11.00mm) | 0.846 (21.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-UAAF684TACAP FILM 0.68UF 10% 275VAC RAD |
1,000 | 1.12 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.68 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.394 W (26.00mm x 10.00mm) | 0.689 (17.50mm) | PC Pins | 0.886 (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
ECW-FE2J155P5CAP FILM 1.5UF 5% 630VDC RADIAL |
375 | 1.49 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 1.5 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.433 W (31.00mm x 11.00mm) | 0.846 (21.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
 Series.jpg)
|
ECW-FE2J155JCAP FILM 1.5UF 5% 630VDC RADIAL |
414 | 1.50 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 1.5 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.472 W (26.00mm x 12.00mm) | 0.748 (19.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-E2225JBCAP FILM 2.2UF 5% 250VDC RADIAL |
1,000 | 1.53 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 2.2 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.819 L x 0.331 W (20.80mm x 8.40mm) | 0.654 (16.60mm) | PC Pins | 0.689 (17.50mm) | General Purpose | - |
|
ECW-FE2J105P5CAP FILM 1UF 5% 630VDC RADIAL |
798 | 1.12 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 1 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.354 W (31.00mm x 9.00mm) | 0.768 (19.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECW-FG2J105KCAP FILM 1UF 10% 630VDC RADIAL |
797 | 1.14 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 1 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.374 W (31.50mm x 9.50mm) | 0.728 (18.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
ECW-FG2J105QACAP FILM 1UF 10% 630VDC RADIAL |
698 | 1.14 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 1 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.063 L x 0.413 W (27.00mm x 10.50mm) | 0.768 (19.50mm) | PC Pins | 0.886 (22.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
ECW-FG2J105P1CAP FILM 1UF 5% 630VDC RADIAL |
800 | 1.18 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 1 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.063 L x 0.413 W (27.00mm x 10.50mm) | 0.768 (19.50mm) | PC Pins | 0.886 (22.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
ECW-FE2J105PDCAP FILM 1UF 5% 630VDC RADIAL |
707 | 1.18 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 1 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.354 W (31.00mm x 9.00mm) | 0.768 (19.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECW-FG2J105KACAP FILM 1UF 10% 630VDC RADIAL |
628 | 1.20 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 1 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.374 W (31.50mm x 9.50mm) | 0.728 (18.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
ECQ-UAAF105S1CAP FILM 1UF 20% 275VAC RAD |
2,021 | 1.23 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 1 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.472 W (26.00mm x 12.00mm) | 0.768 (19.50mm) | PC Pins | 0.886 (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
|
ECW-FG2J105JCAP FILM 1UF 5% 630VDC RADIAL |
734 | 1.24 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 1 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.374 W (31.50mm x 9.50mm) | 0.728 (18.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
ECW-H8473HACAP FILM 0.047UF 3% 800VDC RAD |
830 | 1.27 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(A) | Active | 0.047 µF | ±3% | 283V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.618 L x 0.382 W (15.70mm x 9.70mm) | 0.614 (15.60mm) | PC Pins | 0.492 (12.50mm) | High Frequency, Switching | - |
|
ECQ-E1185KFCAP FILM 1.8UF 10% 100VDC RADIAL |
1,000 | 1.30 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1.8 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.256 W (18.50mm x 6.50mm) | 0.606 (15.40mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|

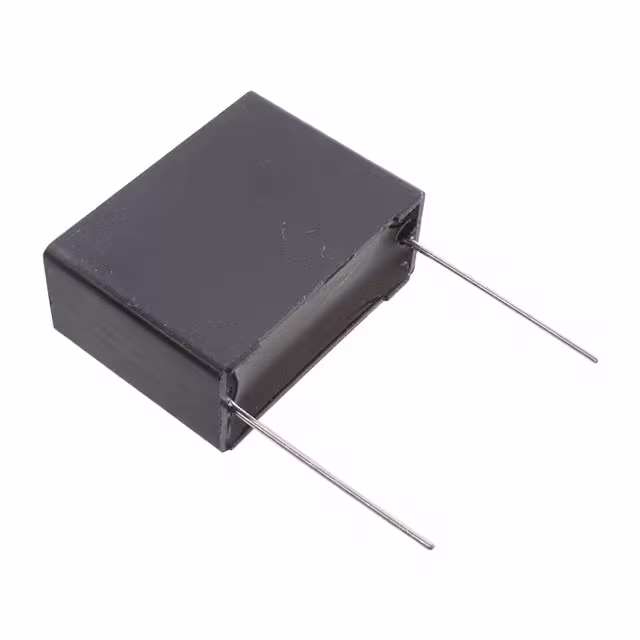

ECW-FE2W335PDCAP FILM 3.3UF 5% 450VDC RADIAL |
293 | 1.30 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 3.3 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.512 W (31.00mm x 13.00mm) | 0.925 (23.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECH-U1154JCVCAP FILM 0.15UF 5% 100VDC 2825 |
1,000 | 3.17 |
RFQ |
Datasheet |
2825 (7163 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(C) | Active | 0.15 µF | ±5% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.280 L x 0.248 W (7.10mm x 6.30mm) | 0.146 (3.70mm) | Solder Pads | - | General Purpose | - |
|
|
ECW-FG2J105JACAP FILM 1UF 5% 630VDC RADIAL |
697 | 1.31 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 1 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.374 W (31.50mm x 9.50mm) | 0.728 (18.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
ECW-FE2W335Q5CAP FILM 3.3UF 10% 450VDC RADIAL |
340 | 1.34 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 3.3 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.512 W (31.00mm x 13.00mm) | 0.925 (23.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
