Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-FG2J225JCAP FILM 2.2UF 5% 630VDC RADIAL |
310 | 2.00 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 2.2 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.472 W (31.50mm x 12.00mm) | 0.984 (25.00mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
ECW-F6823JLCAP FILM 0.082UF 5% 630VDC RAD |
131 | 2.00 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.082 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610 L x 0.315 W (15.50mm x 8.00mm) | 0.547 (13.90mm) | PC Pins | 0.492 (12.50mm) | High Frequency, Switching | - |
|

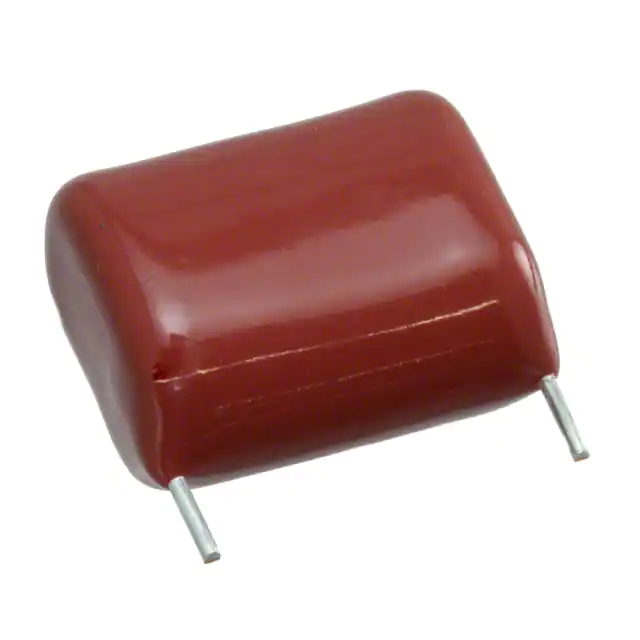

ECW-H6214HCCCAP FILM 0.21UF 3% 630VDC RADIAL |
998 | 2.01 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(C) | Active | 0.21 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815 L x 0.488 W (20.70mm x 12.40mm) | 0.736 (18.70mm) | PC Pins | 0.689 (17.50mm) | General Purpose | - |
|
ECW-F6114JLCAP FILM 0.11UF 5% 630VDC RADIAL |
694 | 2.01 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.11 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.315 W (18.00mm x 8.00mm) | 0.547 (13.90mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECW-HC3B803JACAP FILM 0.08UF 5% 1.25KVDC RAD |
555 | 2.01 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(C) | Active | 0.08 µF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815 L x 0.472 W (20.70mm x 12.00mm) | 0.807 (20.50mm) | PC Pins | 0.689 (17.50mm) | General Purpose | - |
|
|
ECW-FG2J225QACAP FILM 2.2UF 10% 630VDC RADIAL |
350 | 2.01 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 2.2 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.063 L x 0.610 W (27.00mm x 15.50mm) | 0.965 (24.50mm) | PC Pins | 0.886 (22.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
ECW-F4394JLCAP FILM 0.39UF 5% 400VDC RADIAL |
871 | 2.02 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.39 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.406 W (18.00mm x 10.30mm) | 0.654 (16.60mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|

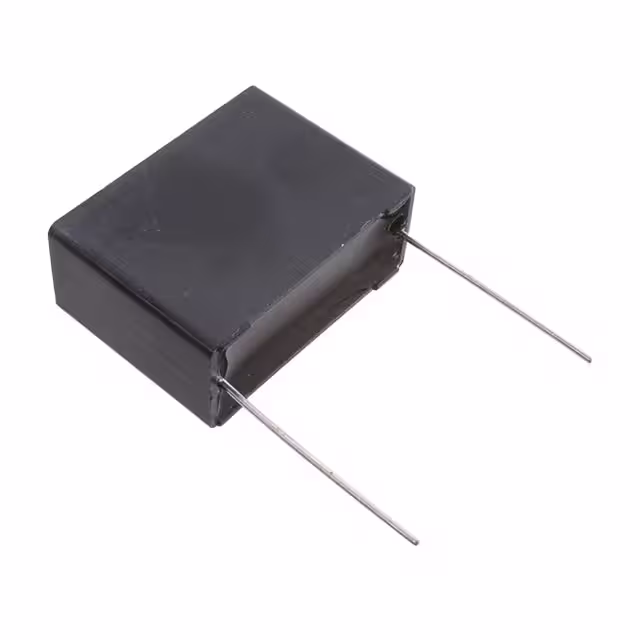

ECW-FE2J225P5CAP FILM 2.2UF 5% 630VDC RADIAL |
790 | 2.02 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 2.2 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.512 W (31.00mm x 13.00mm) | 0.925 (23.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-FG70155KCAP FILM 1.5UF 700VDC RADIAL |
289 | 2.02 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 1.5 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.413 W (31.50mm x 10.50mm) | 0.846 (21.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
ECW-F6623HLCAP FILM 0.062UF 3% 630VDC RAD |
117 | 2.07 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.062 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610 L x 0.280 W (15.50mm x 7.10mm) | 0.512 (13.00mm) | PC Pins | 0.492 (12.50mm) | High Frequency, Switching | - |
 Series Straight 18x10.jpg)
|
ECW-F2155JACAP FILM 1.5UF 5% 250VDC RADIAL |
1,000 | 2.08 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 1.5 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.740 L x 0.413 W (18.80mm x 10.50mm) | 0.673 (17.10mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECW-F4434JLCAP FILM 0.43UF 5% 400VDC RADIAL |
638 | 2.08 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.43 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.421 W (18.00mm x 10.70mm) | 0.673 (17.10mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECW-HC3B114JACAP FILM 0.11UF 5% 1.25KVDC RAD |
475 | 2.08 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(C) | Active | 0.11 µF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815 L x 0.559 W (20.70mm x 14.20mm) | 0.898 (22.80mm) | PC Pins | 0.689 (17.50mm) | General Purpose | - |
|
|
ECW-FG70155JCAP FILM 1.5UF 700VDC RADIAL |
230 | 2.08 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 1.5 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.413 W (31.50mm x 10.50mm) | 0.846 (21.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
ECQ-E4155JFCAP FILM 1.5UF 5% 400VDC RADIAL |
800 | 2.09 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1.5 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.374 W (31.00mm x 9.50mm) | 0.787 (20.00mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
|
ECW-FG2J225JACAP FILM 2.2UF 5% 630VDC RADIAL |
475 | 2.10 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 2.2 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.472 W (31.50mm x 12.00mm) | 0.984 (25.00mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
ECW-F4274JBCAP FILM 0.27UF 5% 400VDC RADIAL |
365 | 2.10 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(B) | Active | 0.27 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 0.787 L x 0.413 W (20.00mm x 10.50mm) | 0.728 (18.50mm) | PC Pins | 0.669 (17.00mm) | High Frequency, Switching | - |
|
ECW-F6274JLCAP FILM 0.27UF 5% 630VDC RADIAL |
900 | 2.11 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.27 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807 L x 0.409 W (20.50mm x 10.40mm) | 0.717 (18.20mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
|
ECW-HC3B124JACAP FILM 0.12UF 5% 1.25KVDC RAD |
383 | 2.18 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(C) | Active | 0.12 µF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815 L x 0.587 W (20.70mm x 14.90mm) | 0.921 (23.40mm) | PC Pins | 0.689 (17.50mm) | General Purpose | - |
 Series Straight 18x11.jpg)
|
ECW-F2185JACAP FILM 1.8UF 5% 250VDC RADIAL |
114 | 2.18 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 1.8 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.740 L x 0.449 W (18.80mm x 11.40mm) | 0.709 (18.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
