Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
216LC5500K5PM8CAP FILM 21UF 10% 500VAC CHAS MT |
3,180 | 285.97 |
RFQ |
Datasheet |
Nonstandard | Bulk | LC5 | Active | 21 µF | ±10% | 500V | - | Polypropylene (PP) | 0.4 mOhms | -40°C ~ 85°C | Chassis Mount | 3.937 L x 3.937 W (100.00mm x 100.00mm) | 2.146 (54.50mm) | Threaded, Female | - | Conduction Cooled; High Pulse, DV/DT | - |
|
|
305LC5750K5PM8CAP FILM 3UF 10% 750VAC CHAS MT |
3,163 | 285.97 |
RFQ |
Datasheet |
Nonstandard | Bulk | LC5 | Active | 3 µF | ±10% | 750V | - | Polypropylene (PP) | 1.1 mOhms | -40°C ~ 85°C | Chassis Mount | 3.937 L x 3.937 W (100.00mm x 100.00mm) | 2.146 (54.50mm) | Threaded, Female | - | Conduction Cooled; High Pulse, DV/DT | - |
|
333MSR400KCAP FILM 0.03UF 10% 400VDC RAD |
725 | 0.50 |
RFQ |
Datasheet |
Radial | Bulk | MSR | Active | 0.03 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.512 L x 0.256 W (13.00mm x 6.50mm) | 0.413 (10.50mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
|
473MSR102KCAP FILM 0.047UF 10% 1KVDC RAD |
800 | 0.78 |
RFQ |
Datasheet |
Radial | Bulk | MSR | Active | 0.047 µF | ±10% | 250V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.063 L x 0.354 W (27.00mm x 9.00mm) | 0.551 (14.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
154MWR250KCAP FILM 0.15UF 10% 250VDC AXIAL |
588 | 0.96 |
RFQ |
Datasheet |
Axial | Bulk | MWR | Active | 0.15 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.276 Dia x 0.551 L (7.00mm x 14.00mm) | - | PC Pins | - | General Purpose | - |
|
154MPR630KCAP FILM 0.15UF 10% 630VDC RAD |
483 | 0.99 |
RFQ |
Datasheet |
Radial | Bulk | MPR | Active | 0.15 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | 1.179 Ohms | -55°C ~ 105°C | Through Hole | 1.024 L x 0.433 W (26.00mm x 11.00mm) | 0.669 (17.00mm) | PC Pins | 0.886 (22.50mm) | DC Link, DC Filtering | - |
|
105MKP275KECAP FILM 1UF 10% 310VAC RADIAL |
982 | 1.10 |
RFQ |
Datasheet |
Radial | Bulk | MKP | Active | 1 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.433 W (18.00mm x 11.00mm) | 0.740 (18.80mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
|
102MWR630KCAP FILM 1000PF 10% 630VDC AXIAL |
665 | 1.14 |
RFQ |
Datasheet |
Axial | Bulk | MWR | Active | 1000 pF | ±10% | 220V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.217 Dia x 0.453 L (5.50mm x 11.50mm) | - | PC Pins | - | General Purpose | - |
|
|
222MWR630KCAP FILM 2200PF 10% 630VDC AXIAL |
398 | 1.14 |
RFQ |
Datasheet |
Axial | Bulk | MWR | Active | 2200 pF | ±10% | 220V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.217 Dia x 0.453 L (5.50mm x 11.50mm) | - | PC Pins | - | General Purpose | - |
|
|
224MWR630KCAP FILM 0.22UF 10% 630VDC AXIAL |
352 | 1.35 |
RFQ |
Datasheet |
Axial | Bulk | MWR | Active | 0.22 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 Dia x 1.063 L (12.50mm x 27.00mm) | - | PC Pins | - | General Purpose | - |
|
|
154MWR630KCAP FILM 0.15UF 10% 630VDC AXIAL |
696 | 1.38 |
RFQ |
Datasheet |
Axial | Bulk | MWR | Active | 0.15 µF | ±10% | 220V | 630V | Polyester, Metallized | 9.431 Ohms | -40°C ~ 105°C | Through Hole | 0.413 Dia x 1.142 L (10.50mm x 29.00mm) | - | PC Pins | - | General Purpose | - |
|
|
225MWR100KCAP FILM 2.2UF 10% 100VDC AXIAL |
283 | 2.00 |
RFQ |
Datasheet |
Axial | Bulk | MWR | Active | 2.2 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 Dia x 1.142 L (12.00mm x 29.00mm) | - | PC Pins | - | General Purpose | - |
|
|
334MWR630KCAP FILM 0.33UF 10% 630VDC AXIAL |
203 | 2.63 |
RFQ |
Datasheet |
Axial | Bulk | MWR | Active | 0.33 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.531 Dia x 1.339 L (13.50mm x 34.00mm) | - | PC Pins | - | General Purpose | - |
|
|
155MWR630KCAP FILM 1.5UF 10% 630VDC AXIAL |
100 | 4.59 |
RFQ |
Datasheet |
Axial | Bulk | MWR | Active | 1.5 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.043 Dia x 1.339 L (26.50mm x 34.00mm) | - | PC Pins | - | General Purpose | - |
|
506PHC250KCAP FILM 50UF 10% 250VDC AXIAL |
3,760 | 26.88 |
RFQ |
Datasheet |
Axial | Bulk | PHC | Active | 50 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | 3.5 mOhms | -40°C ~ 85°C | Through Hole | 1.457 Dia x 2.323 L (37.00mm x 59.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - |
|
105MKP275KG4CAP FILM 1UF 10% 310VAC RADIAL |
740 | 1.19 |
RFQ |
Datasheet |
Radial | Bulk | MKP | Active | 1 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.394 W (26.00mm x 10.00mm) | 0.748 (19.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|

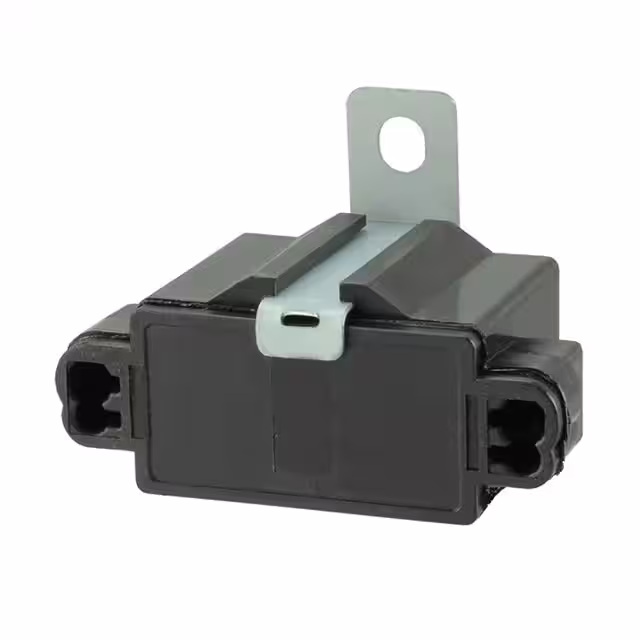

605QPC250KB8A5LCAP FILM 6UF 10% 250VAC CHAS MT |
153 | 2.55 |
RFQ |
Datasheet |
Rectangular Box | Bulk | QPC | Obsolete | 6 µF | ±10% | 250V | - | Polyester, Metallized | - | -25°C ~ 70°C | Chassis Mount | 1.811 L x 0.512 W (46.00mm x 13.00mm) | 0.965 (24.50mm) | Screwless - Push-In Spring | - | Motor Run | - |
|
605QPC250KB8A5CLCAP FILM 6UF 10% 250VAC CHAS MT |
152 | 2.55 |
RFQ |
Datasheet |
Rectangular Box | Bulk | QPC | Obsolete | 6 µF | ±10% | 250V | - | Polyester, Metallized | - | -25°C ~ 70°C | Chassis Mount | 1.811 L x 0.512 W (46.00mm x 13.00mm) | 0.965 (24.50mm) | Screwless - Push-In Spring | - | Motor Run | - |
|
564PMB122KSP2CAP FILM 0.56UF 1.2KVDC CHAS MT |
2,835 | 14.80 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 0.56 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 0.965 W (42.50mm x 24.50mm) | 1.083 (27.50mm) | Screw Terminals | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - |
|
223MMR400KCAP FILM 0.022UF 10% 400VDC RAD |
3,739 | 0.45 |
RFQ |
Datasheet |
Radial | Bulk | MMR | Active | 0.022 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.413 L x 0.197 W (10.50mm x 5.00mm) | 0.335 (8.50mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
