Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
684MMR400KCAP FILM 0.68UF 10% 400VDC RAD |
2,676 | 1.09 |
RFQ |
Datasheet |
Radial | Bulk | MMR | Active | 0.68 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.295 W (26.00mm x 7.50mm) | 0.669 (17.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
564MKP275KGCAP FILM 0.56UF 10% 310VAC RAD |
2,197 | 1.54 |
RFQ |
Datasheet |
Radial | Bulk | MKP | Active | 0.56 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.276 W (26.00mm x 7.00mm) | 0.563 (14.30mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
MPX155K305HCAP FILM 1.5UF 10% 305VAC RAD |
3,509 | 1.76 |
RFQ |
Datasheet |
Radial | Tray | MPX | Active | 1.5 µF | ±10% | 305V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260 L x 0.512 W (32.00mm x 13.00mm) | 0.984 (25.00mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
224PPA850KCAP FILM 0.22UF 10% 850VDC AXIAL |
2,457 | 5.13 |
RFQ |
Datasheet |
Axial | Bulk | PPA | Active | 0.22 µF | ±10% | 500V | 850V | Polypropylene (PP), Metallized | 6.6 mOhms | -55°C ~ 85°C | Through Hole | 0.689 Dia x 1.142 L (17.50mm x 29.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - |
|
|
MPX156K305NCAP FILM 15UF 10% 305VAC RAD |
3,822 | 7.58 |
RFQ |
Datasheet |
Radial | Tray | MPX | Active | 15 µF | ±10% | 305V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.673 L x 1.181 W (42.50mm x 30.00mm) | 1.791 (45.50mm) | PC Pins | 1.476 (37.50mm) | EMI, RFI Suppression | X2 |
.JPG)
|
155PPB630KCAP FILM 1.5UF 10% 630VDC RADIAL |
3,836 | 10.34 |
RFQ |
Datasheet |
Radial | Bulk | PPB | Active | 1.5 µF | ±10% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.673 L x 1.102 W (42.50mm x 28.00mm) | 1.457 (37.00mm) | PC Pins | 1.476 (37.50mm) | Commutation; High Pulse, DV/DT; Snubber | - |
|
105PMB122KSP1CAP FILM 1UF 10% 1.2KVDC CHAS MT |
3,348 | 15.89 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 1 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 1.319 W (42.50mm x 33.50mm) | 1.398 (35.50mm) | - | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - |
|

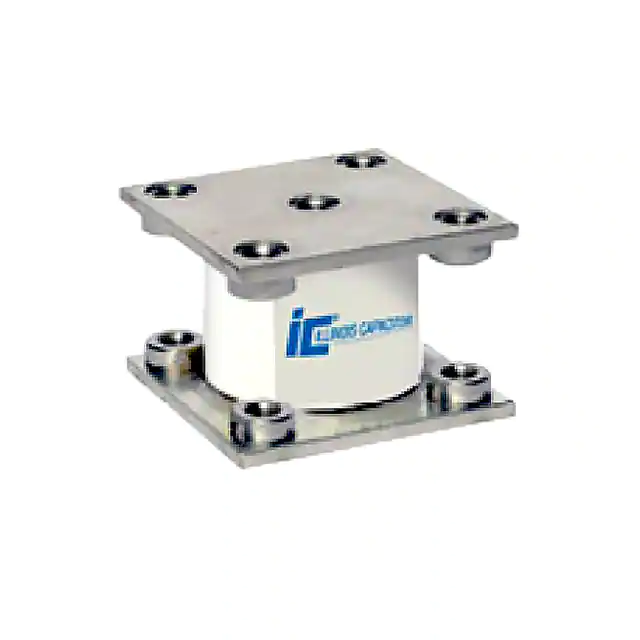

664LC2600K5HM6CAP FILM 0.66UF 600VAC CHAS MT |
3,157 | 127.59 |
RFQ |
Datasheet |
Nonstandard | Bulk | LC2 | Active | 0.66 µF | ±10% | 600V | - | Polypropylene (PP) | 0.8 mOhms | -40°C ~ 85°C | Chassis Mount | 1.969 L x 1.969 W (50.00mm x 50.00mm) | 1.339 (34.00mm) | Threaded, Female | - | Conduction Cooled; High Pulse, DV/DT | - |
|

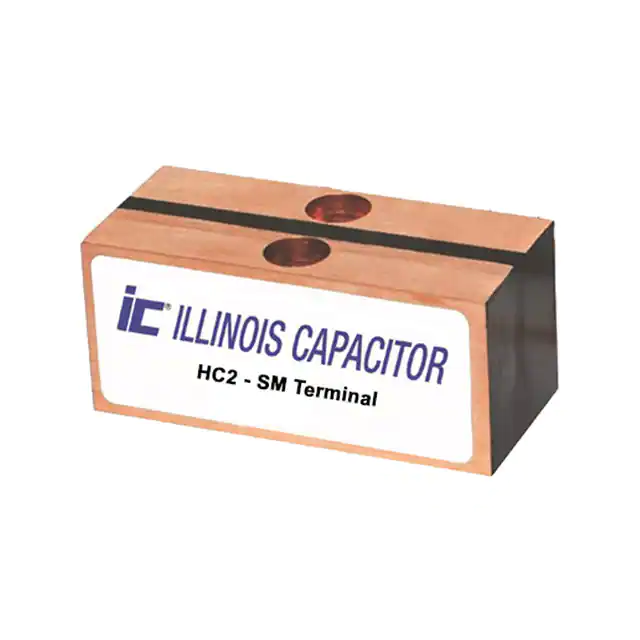

125HC2600K2SM6CAP FILM 1.2UF 10% 600VAC CHASS |
3,542 | 153.98 |
RFQ |
Datasheet |
Nonstandard | Bulk | HC2 | Active | 1.2 µF | ±10% | 600V | - | Polypropylene (PP) | 0.4 mOhms | -40°C ~ 85°C | Chassis Mount | 2.677 L x 1.189 W (68.00mm x 30.20mm) | 1.201 (30.50mm) | Threaded, Female | - | Conduction Cooled; High Pulse, DV/DT | - |
|
|
664HC2700K2SM6CAP FILM 0.66UF 10% 700VAC CHASS |
3,824 | 153.98 |
RFQ |
Datasheet |
Nonstandard | Bulk | HC2 | Active | 0.66 µF | ±10% | 700V | - | Polypropylene (PP) | 0.4 mOhms | -40°C ~ 85°C | Chassis Mount | 2.677 L x 1.189 W (68.00mm x 30.20mm) | 1.201 (30.50mm) | Threaded, Female | - | Conduction Cooled; High Pulse, DV/DT | - |
|

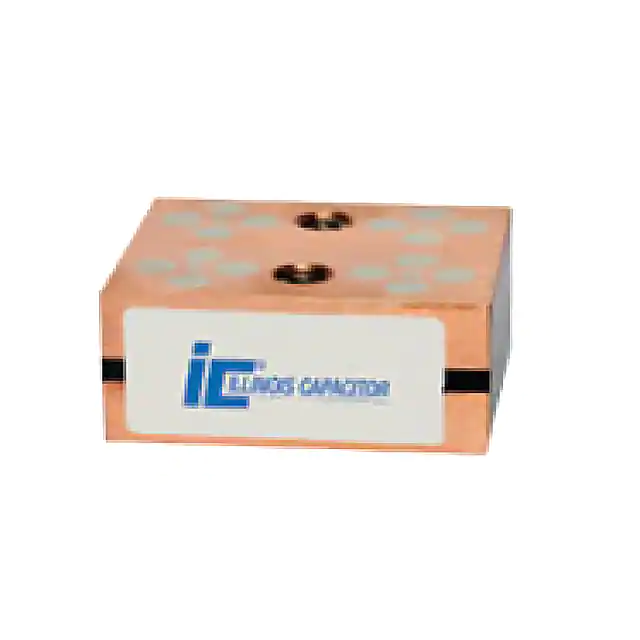

105HC3600K2EM8CAP FILM 1UF 10% 600VAC CHAS MT |
3,776 | 234.64 |
RFQ |
Datasheet |
Nonstandard | Bulk | HC3 | Active | 1 µF | ±10% | 600V | - | Polypropylene (PP) | 0.5 mOhms | -40°C ~ 85°C | Chassis Mount | 2.205 L x 1.189 W (56.00mm x 30.20mm) | 2.618 (66.50mm) | Threaded, Female | - | Conduction Cooled; High Pulse, DV/DT | - |
|

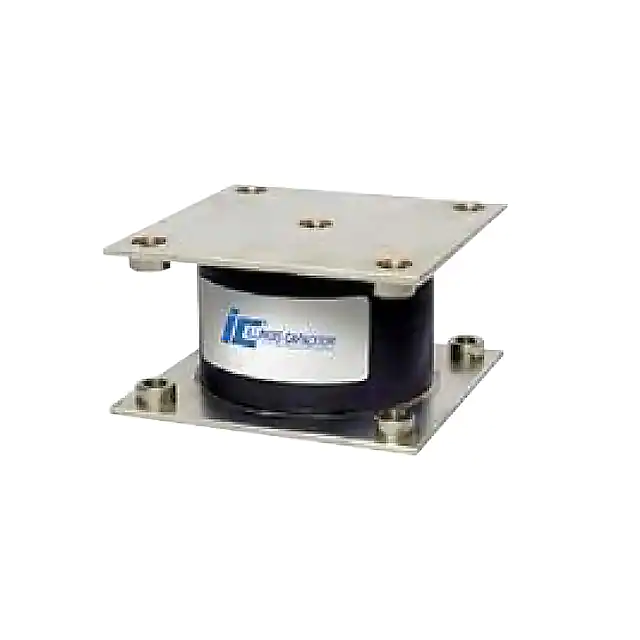

635LC5700K5PM8CAP FILM 6.3UF 700VAC CHAS MT |
3,878 | 285.97 |
RFQ |
Datasheet |
Nonstandard | Bulk | LC5 | Active | 6.3 µF | ±10% | 700V | - | Polypropylene (PP) | 0.8 mOhms | -40°C ~ 85°C | Chassis Mount | 3.937 L x 3.937 W (100.00mm x 100.00mm) | 2.146 (54.50mm) | Threaded, Female | - | Conduction Cooled; High Pulse, DV/DT | - |
|

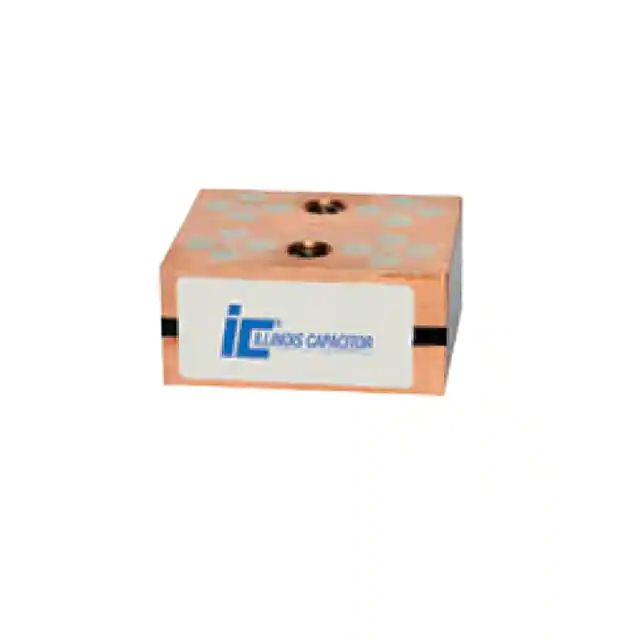

664HC6800K2EM8CAP FILM 0.66UF 800VAC CHAS MT |
3,467 | 340.45 |
RFQ |
Datasheet |
Nonstandard | Bulk | HC6 | Active | 0.66 µF | ±10% | 800V | - | Polypropylene (PP) | 0.8 mOhms | -40°C ~ 85°C | Chassis Mount | 2.205 L x 2.598 W (56.00mm x 66.00mm) | 1.193 (30.30mm) | Threaded, Female | - | Conduction Cooled; High Pulse, DV/DT | - |
|

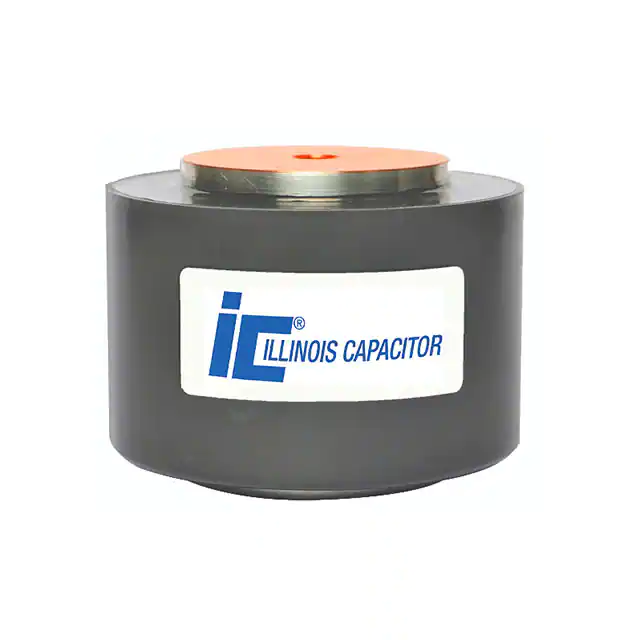

106HC5700KRCAP FILM 10UF 10% 700VAC AXIAL |
3,699 | 418.46 |
RFQ |
Datasheet |
Axial, Can - Screw Terminals | Bulk | HC5 | Active | 10 µF | ±10% | 700V | - | Polypropylene (PP) | 0.6 mOhms | -40°C ~ 85°C | Chassis Mount | 3.740 Dia (95.00mm) | 2.819 (71.60mm) | Threaded, Female | - | Conduction Cooled; High Pulse, DV/DT | - |
|
334MSR400KCAP FILM 0.33UF 10% 400VDC RAD |
3,680 | 0.84 |
RFQ |
Datasheet |
Radial | Bulk | MSR | Active | 0.33 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.886 L x 0.354 W (22.50mm x 9.00mm) | 0.591 (15.00mm) | PC Pins | 0.787 (20.00mm) | General Purpose | - |
|
223MPR630KCAP FILM 0.022UF 10% 630VDC RAD |
2,097 | 1.12 |
RFQ |
Datasheet |
Radial | Bulk | MPR | Active | 0.022 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512 L x 0.335 W (13.00mm x 8.50mm) | 0.492 (12.50mm) | PC Pins | 0.394 (10.00mm) | DC Link, DC Filtering | - |
|
822MPW400KCAP FILM 8200PF 10% 400VDC AXIAL |
3,678 | 1.40 |
RFQ |
Datasheet |
Axial | Bulk | MPW | Active | 8200 pF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.256 Dia x 0.571 L (6.50mm x 14.50mm) | - | PC Pins | - | DC Link, DC Filtering | - |
|
|
334MPW160KCAP FILM 0.33UF 10% 160VDC AXIAL |
2,241 | 1.43 |
RFQ |
Datasheet |
Axial | Bulk | MPW | Active | 0.33 µF | ±10% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.335 Dia x 0.807 L (8.50mm x 20.50mm) | - | PC Pins | - | DC Link, DC Filtering | - |
|
334MWR102KCAP FILM 0.33UF 10% 1KVDC AXIAL |
3,717 | 4.39 |
RFQ |
Datasheet |
Axial | Bulk | MWR | Active | 0.33 µF | ±10% | 250V | 1000V (1kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.669 Dia x 1.339 L (17.00mm x 34.00mm) | - | PC Pins | - | General Purpose | - |
|
405PHC250KCAP FILM 4UF 10% 250VDC AXIAL |
2,648 | 5.00 |
RFQ |
Datasheet |
Axial | Bulk | PHC | Active | 4 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | 3.8 mOhms | -40°C ~ 85°C | Through Hole | 0.669 Dia x 1.339 L (17.00mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - |
