Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4GADUC4500AA0JCAP FILM 5UF 5% 250VDC AXIAL |
3,179 | 5.69 |
RFQ |
Datasheet |
Axial | Box | C4G | Active | 5 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 5.4 mOhms | -40°C ~ 85°C | Through Hole | 0.669 Dia x 1.299 L (17.00mm x 33.00mm) | - | PC Pins | - | High Frequency, Switching | - |
|
R76TR34704030JCAP FILM 0.47UF 5% 1.6KVDC RAD |
2,512 | 4.99 |
RFQ |
Datasheet |
Radial | Tray | R76 | Active | 0.47 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260 L x 0.866 W (32.00mm x 22.00mm) | 1.461 (37.10mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|
MMK22.5106J63D15L4TRAYCAP FILM 10UF 5% 63VDC RAD |
2,931 | 5.00 |
RFQ |
Datasheet |
Radial | Tray | MMK | Active | 10 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 1.024 L x 0.354 W (26.00mm x 9.00mm) | 0.728 (18.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
|
R76TR33304030JCAP FILM 0.33UF 5% 1.6KVDC RAD |
3,120 | 5.15 |
RFQ |
Datasheet |
Radial | Tray | R76 | Active | 0.33 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260 L x 0.709 W (32.00mm x 18.00mm) | 1.303 (33.10mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|
PHE845VZ6470MR30L2CAP FILM 0.47UF 20% 1.5KVDC RAD |
3,043 | 6.26 |
RFQ |
Datasheet |
Radial | Tray | PHE845 | Active | 0.47 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240 L x 0.827 W (31.50mm x 21.00mm) | 1.181 (30.00mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X1 |
|
R60GR5330AA00KCAP FILM 33UF 10% 160VDC RADIAL |
2,312 | 7.18 |
RFQ |
Datasheet |
Radial | Bulk | R60 | Active | 33 µF | ±10% | 90V | 160V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260 L x 0.551 W (32.00mm x 14.00mm) | 1.106 (28.10mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
PHE844RF7100MR06L2CAP FILM 1UF 20% 1KVDC RADIAL |
2,117 | 7.21 |
RFQ |
Datasheet |
Radial | Tray | PHE844 | Active | 1 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240 L x 0.827 W (31.50mm x 21.00mm) | 1.181 (30.00mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X1 |
|
C4AQQBW5200A3LJCAP FILM 20UF 5% 1.1KVDC RADIAL |
3,649 | 7.31 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 20 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 3.9 mOhms | -40°C ~ 105°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.780 (45.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
PHE426HR8100JR06L2CAP FILM 10UF 5% 250VDC RADIAL |
2,933 | 8.18 |
RFQ |
Datasheet |
Radial | Box | PHE426 | Active | 10 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614 L x 0.650 W (41.00mm x 16.50mm) | 1.260 (32.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
C4AQCBW5400A3LJCAP FILM 40UF 5% 650VDC RADIAL |
3,094 | 8.70 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 40 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 105°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.780 (45.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
C4AQLBU5250A12KCAP FILM 25UF 10% 500VDC RADIAL |
2,673 | 8.92 |
RFQ |
Datasheet |
Radial | Bulk | C4AQ | Active | 25 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 4.5 mOhms | -40°C ~ 105°C | Through Hole | 1.240 L x 0.866 W (31.50mm x 22.00mm) | 1.465 (37.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
C4AQLBW5400A3FKCAP FILM 40UF 10% 500VDC RADIAL |
2,081 | 9.09 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 40 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 3.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654 L x 0.787 W (42.00mm x 20.00mm) | 1.583 (40.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
C4AQQBW5300A3MJCAP FILM 30UF 5% 1.1KVDC RADIAL |
2,386 | 9.29 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 30 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 5.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.783 (45.30mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
PHE845VW7100MR30L2CAP FILM 1UF 20% 1.5KVDC RADIAL |
3,689 | 9.37 |
RFQ |
Datasheet |
Radial | Tray | PHE845 | Active | 1 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.614 L x 0.827 W (41.00mm x 21.00mm) | 1.496 (38.00mm) | PC Pins | 1.476 (37.50mm) | EMI, RFI Suppression | X1 |
|
R60IW52205040KCAP FILM 22UF 10% 250VDC RADIAL |
3,363 | 9.88 |
RFQ |
Datasheet |
Radial | Bulk | R60 | Active | 22 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634 L x 0.630 W (41.50mm x 16.00mm) | 1.126 (28.60mm) | PC Pins | 1.476 (37.50mm) | General Purpose | - |
|
|
C4AQLBW5700A3LKCAP FILM 70UF 10% 500VDC RADIAL |
2,701 | 10.51 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 70 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 2.1 mOhms | -40°C ~ 105°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.780 (45.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
C4AQLBW5500A3JKCAP FILM 50UF 10% 500VDC RADIAL |
2,628 | 11.18 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 50 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 105°C | Through Hole | 1.654 L x 1.102 W (42.00mm x 28.00mm) | 1.465 (37.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|

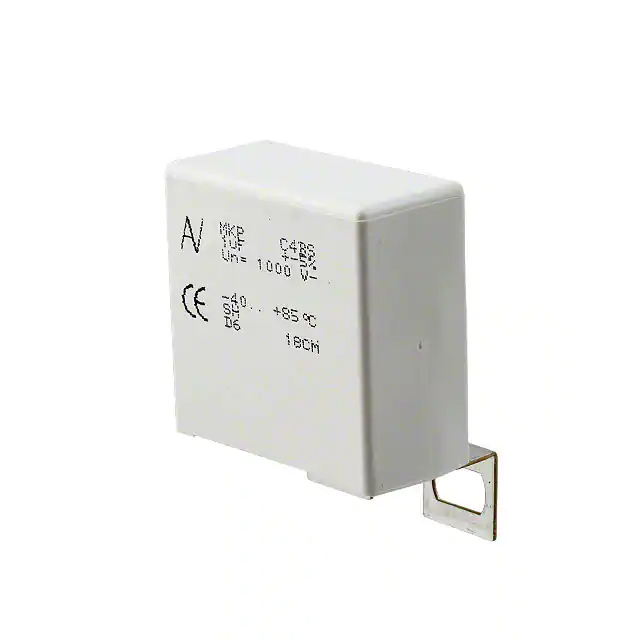

C4BSNBX4100ZAFJCAP FILM 1UF 5% 1KVDC SCREW |
3,041 | 11.95 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 1 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.575 (40.00mm) | Screw Terminals | 1.004 (25.50mm) | DC Link, DC Filtering; Snubber | - |
|

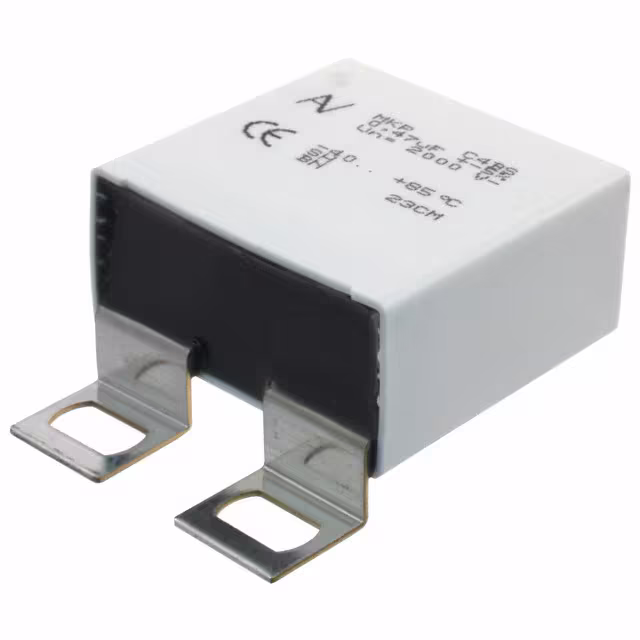

C4BSWBX3470ZAFJCAP FILM 0.47UF 5% 2KVDC SCREW |
3,319 | 11.95 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 0.47 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 5.1 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.575 (40.00mm) | Screw Terminals | 1.004 (25.50mm) | DC Link, DC Filtering; Snubber | - |
|
C4BSTBX3470ZAFJCAP FILM 0.47UF 5% 1.6KVDC SCREW |
3,473 | 11.95 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 0.47 µF | ±5% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Chassis Mount | - | - | Screw Terminals | - | DC Link, DC Filtering; Snubber | - |
