Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQSBU4300A11JCAP FILM 3UF 5% 1.5KVDC RADIAL |
3,844 | 3.18 |
RFQ |
Datasheet |
Radial | Bulk | C4AQ | Active | 3 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 9.7 mOhms | -40°C ~ 105°C | Through Hole | 1.240 L x 0.748 W (31.50mm x 19.00mm) | 1.150 (29.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|

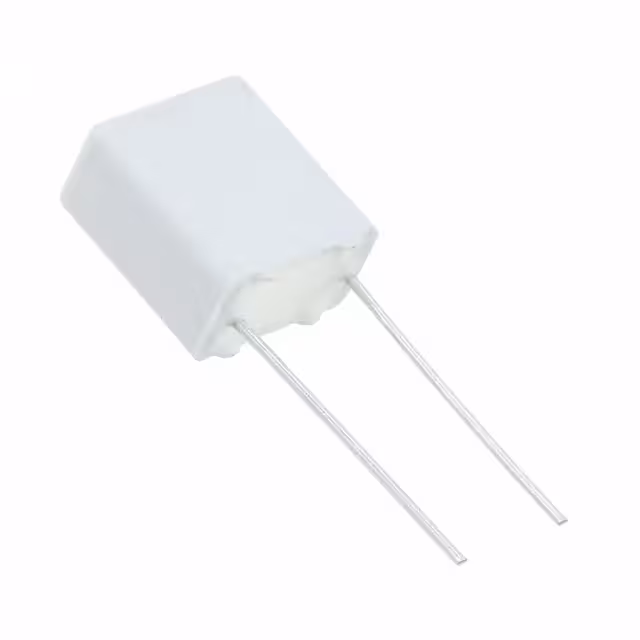

SMR7.5474J100K04L16.5CBULKCAP FILM 0.47UF 5% 100VDC RADIAL |
3,328 | 3.21 |
RFQ |
Datasheet |
Radial | Bulk | SMR | Active | 0.47 µF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.413 L x 0.236 W (10.50mm x 6.00mm) | 0.472 (12.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
R413R34704000MCAP FILM 0.47UF 20% 1KVDC RADIAL |
3,551 | 3.25 |
RFQ |
Datasheet |
Radial | Tray | R41 | Active | 0.47 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260 L x 0.709 W (32.00mm x 18.00mm) | 1.299 (33.00mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X1, Y2 |
|
PHE840MZ7100MF11R06L2CAP FILM 1UF 20% 760VDC RADIAL |
2,750 | 3.62 |
RFQ |
Datasheet |
Radial | Bulk | PHE840M | Active | 1 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240 L x 0.413 W (31.50mm x 10.50mm) | 0.807 (20.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
R46KR447050M2KCAP FILM 4.7UF 10% 560VDC RADIAL |
2,319 | 3.74 |
RFQ |
Datasheet |
Radial | Bulk | R46 | Active | 4.7 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260 L x 0.709 W (32.00mm x 18.00mm) | 1.303 (33.10mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
PHE845VF6220MR06L2CAP FILM 0.22UF 20% 1.5KVDC RAD |
3,638 | 3.80 |
RFQ |
Datasheet |
Radial | Box | PHE845 | Active | 0.22 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240 L x 0.531 W (31.50mm x 13.50mm) | 0.906 (23.00mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X1 |
|
|
C4AQLBU5100A1XKCAP FILM 10UF 10% 500VDC RADIAL |
3,250 | 3.83 |
RFQ |
Datasheet |
Radial | Bulk | C4AQ | Active | 10 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 8.1 mOhms | -40°C ~ 105°C | Through Hole | 1.240 L x 0.512 W (31.50mm x 13.00mm) | 0.992 (25.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
C4AQQBU4500A11JCAP FILM 5UF 5% 1.1KVDC RADIAL |
2,550 | 3.84 |
RFQ |
Datasheet |
Radial | Bulk | C4AQ | Active | 5 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 9.1 mOhms | -40°C ~ 105°C | Through Hole | 1.240 L x 0.748 W (31.50mm x 19.00mm) | 1.150 (29.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
R75UR32204040JCAP FILM 0.22UF 5% 2KVDC RADIAL |
3,002 | 3.93 |
RFQ |
Datasheet |
Radial | Tray | R75 | Active | 0.22 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260 L x 0.551 W (32.00mm x 14.00mm) | 1.106 (28.10mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|
MMK22.5106K100D19L4TRAYCAP FILM 10UF 10% 100VDC RADIAL |
2,896 | 4.01 |
RFQ |
Datasheet |
Radial | Tray | MMK | Active | 10 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 1.024 L x 0.610 W (26.00mm x 15.50mm) | 0.965 (24.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
R60IR51005040KCAP FILM 10UF 10% 250VDC RADIAL |
3,020 | 4.04 |
RFQ |
Datasheet |
Radial | Bulk | R60 | Active | 10 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260 L x 0.512 W (32.00mm x 13.00mm) | 0.870 (22.10mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
|
C4AQCBU5100A11JCAP FILM 10UF 5% 650VDC RADIAL |
2,895 | 4.06 |
RFQ |
Datasheet |
Radial | Bulk | C4AQ | Active | 10 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 6.8 mOhms | -40°C ~ 105°C | Through Hole | 1.240 L x 0.748 W (31.50mm x 19.00mm) | 1.150 (29.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
C4AQIBU4800A11JCAP FILM 8UF 5% 800VDC RADIAL |
3,089 | 4.20 |
RFQ |
Datasheet |
Radial | Bulk | C4AQ | Active | 8 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 7.3 mOhms | -40°C ~ 105°C | Through Hole | 1.240 L x 0.748 W (31.50mm x 19.00mm) | 1.150 (29.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
C4AQJBU5100M11JCAP FILM 10UF 5% 700VDC RADIAL |
2,427 | 4.46 |
RFQ |
Datasheet |
Radial | Bulk | C4AQ-M | Active | 10 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 6.8 mOhms | -55°C ~ 105°C | Through Hole | 1.240 L x 0.748 W (31.50mm x 19.00mm) | 1.150 (29.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|

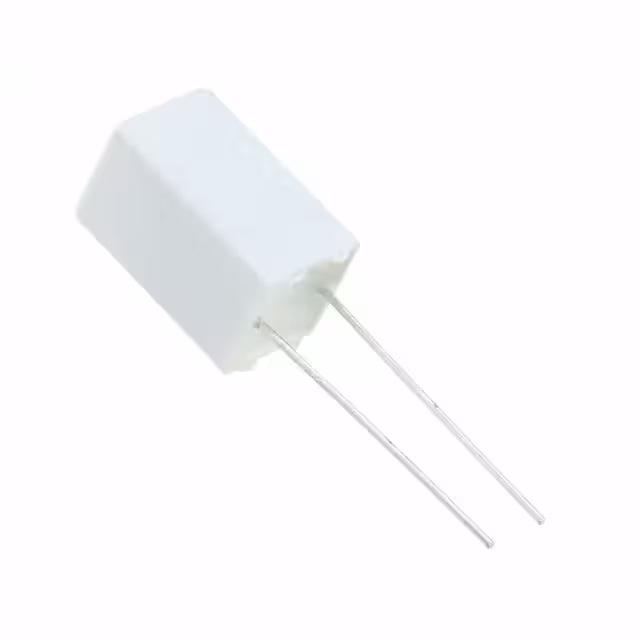

SMR5105J50J06L16.5CBULKCAP FILM 1UF 5% 50VDC RADIAL |
2,506 | 4.49 |
RFQ |
Datasheet |
Radial | Bulk | SMR | Active | 1 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283 L x 0.283 W (7.20mm x 7.20mm) | 0.512 (13.00mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
|
C4AQLBU5150A11KCAP FILM 15UF 10% 500VDC RADIAL |
3,248 | 4.50 |
RFQ |
Datasheet |
Radial | Bulk | C4AQ | Active | 15 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | 1.240 L x 0.748 W (31.50mm x 19.00mm) | 1.150 (29.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
C4CAPUC3150AA0JCAP FILM 0.15UF 5% 1.2KVDC AXIAL |
2,724 | 4.53 |
RFQ |
Datasheet |
Axial | Bulk | C4C | Active | 0.15 µF | ±5% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 9.2 mOhms | -40°C ~ 85°C | Through Hole | 0.689 Dia x 1.299 L (17.50mm x 33.00mm) | - | PC Pins | - | Snubber | - |
|
F861FN335M310ZCAP FILM 3.3UF 20% 630VDC RADIAL |
3,829 | 4.55 |
RFQ |
Datasheet |
Radial | Bulk,Box | F861 | Active | 3.3 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.551 W (31.50mm x 14.00mm) | 1.102 (28.00mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
PHE844RF6470MR06L2CAP FILM 0.47UF 20% 1KVDC RADIAL |
3,202 | 4.65 |
RFQ |
Datasheet |
Radial | Tray | PHE844 | Active | 0.47 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240 L x 0.571 W (31.50mm x 14.50mm) | 0.965 (24.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X1 |
|
R76UR3100SE30KCAP FILM 0.1UF 10% 2KVDC RADIAL |
2,328 | 4.74 |
RFQ |
Datasheet |
Radial | Bulk | R76 | Active | 0.1 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260 L x 0.551 W (32.00mm x 14.00mm) | 1.102 (28.00mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - |
