Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R75PR415050H3JCAP FILM 1.5UF 5% 630VDC RADIAL |
2,010 | 3.35 |
RFQ |
Datasheet |
Radial | Tray | R75H | Active | 1.5 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 10.6 mOhms | -55°C ~ 125°C | Through Hole | 1.260 L x 0.551 W (32.00mm x 14.00mm) | 1.106 (28.10mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
C4AQQLU4480A19JCAP FILM 4.8UF 5% 1.1KVDC RADIAL |
2,598 | 3.38 |
RFQ |
Datasheet |
Radial | Bulk | C4AQ | Active | 4.8 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 9 mOhms | -55°C ~ 105°C | Through Hole | 1.260 L x 1.220 W (32.00mm x 31.00mm) | 0.756 (19.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
PHE840MF6470MF11R06L2CAP FILM 0.47UF 20% 760VDC RAD |
2,780 | 3.39 |
RFQ |
Datasheet |
Radial | Bulk | PHE840M | Active | 0.47 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240 L x 0.413 W (31.50mm x 10.50mm) | 0.807 (20.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
R463W447050M2MCAP FILM 4.7UF 20% 630VDC RAD |
2,418 | 3.47 |
RFQ |
Datasheet |
Radial | Bulk | R46 | Active | 4.7 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634 L x 0.630 W (41.50mm x 16.00mm) | 1.126 (28.60mm) | PC Pins | 1.476 (37.50mm) | EMI, RFI Suppression | X2 |
|
PHE840EZ7220MF14R06L2CAP FILM 2.2UF 20% 760VDC RAD |
3,457 | 3.61 |
RFQ |
Datasheet |
Radial | Bulk | PHE840E | Active | 2.2 µF | ±20% | 300V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240 L x 0.689 W (31.50mm x 17.50mm) | 1.102 (28.00mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
PME271MD6220KR30CAP FILM 0.22UF 10% 630VDC RAD |
2,087 | 3.62 |
RFQ |
Datasheet |
Radial | Bulk | PME271M | Active | 0.22 µF | ±10% | 275V | 630V | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.063 L x 0.394 W (27.00mm x 10.00mm) | 0.748 (19.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
C276CC24500AA1JCAP FILM 5UF 5% 470VAC RADIAL |
2,063 | 3.62 |
RFQ |
Datasheet |
Radial, Can | Bulk | C276 | Active | 5 µF | ±5% | 470V | - | Polypropylene (PP) | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984 Dia (25.00mm) | 2.362 (60.00mm) | Quick Connect, Disconnect | 0.394 (10.00mm) | Motor Run; Motor Start | - |
|
R463R447040M2MCAP FILM 4.7UF 20% 630VDC RAD |
2,907 | 3.67 |
RFQ |
Datasheet |
Radial | Bulk | R46 | Active | 4.7 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260 L x 0.709 W (32.00mm x 18.00mm) | 1.303 (33.10mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
R474R36805001KCAP FILM 0.68UF 10% 1KVDC RADIAL |
152 | 3.69 |
RFQ |
Datasheet |
Radial | Tray | R47 | Active | 0.68 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260 L x 0.551 W (32.00mm x 14.00mm) | 1.106 (28.10mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|

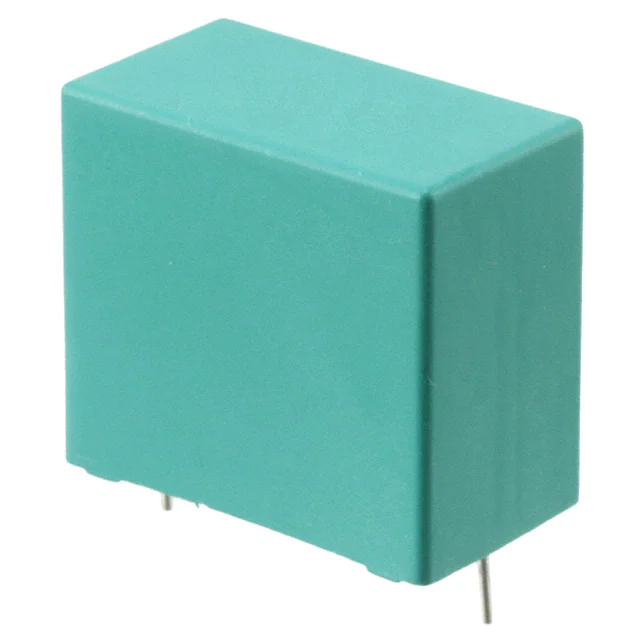

PHE850EF6470MF14R06L2CAP FILM 0.47UF 20% 1.25KVDC RAD |
3,109 | 3.77 |
RFQ |
Datasheet |
Radial | Bulk | PHE850 | Active | 0.47 µF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240 L x 0.689 W (31.50mm x 17.50mm) | 1.102 (28.00mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | Y2 |
|
PHE450KF6470JR06L2CAP FILM 0.47UF 5% 400VDC RADIAL |
3,949 | 3.79 |
RFQ |
Datasheet |
Radial | Tray | PHE450 | Active | 0.47 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240 L x 0.413 W (31.50mm x 10.50mm) | 0.807 (20.50mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching | - |
|

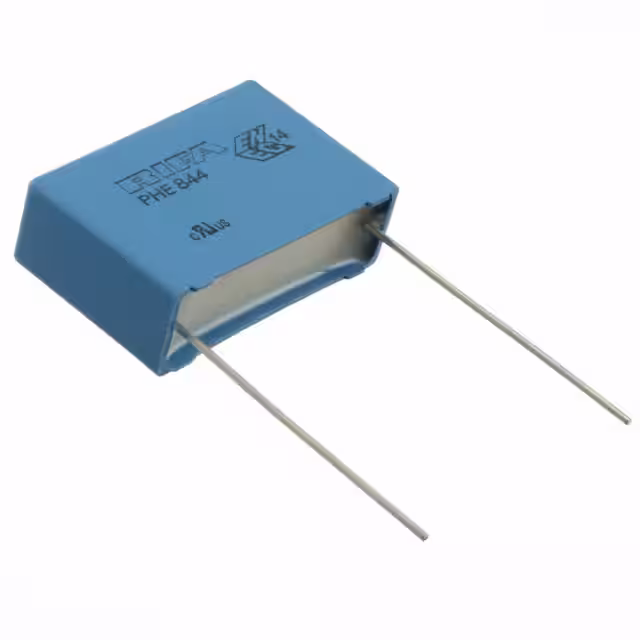

PHE844RF6220MR30L2CAP FILM 0.22UF 20% 1KVDC RADIAL |
3,971 | 3.82 |
RFQ |
Datasheet |
Radial | Tray | PHE844 | Active | 0.22 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240 L x 0.413 W (31.50mm x 10.50mm) | 0.807 (20.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X1 |
|
C4AQQLW4500A33JCAP FILM 5UF 5% 1.1KVDC RADIAL |
2,285 | 3.86 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 5 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 14.7 mOhms | -55°C ~ 105°C | Through Hole | 1.634 L x 0.945 W (41.50mm x 24.00mm) | 0.756 (19.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
PHE450MF6220JR06L2CAP FILM 0.22UF 5% 630VDC RADIAL |
2,220 | 3.90 |
RFQ |
Datasheet |
Radial | Tray | PHE450 | Active | 0.22 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240 L x 0.413 W (31.50mm x 10.50mm) | 0.807 (20.50mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching | - |
|
F862FY475K310ZV054CAP FILM 4.7UF 10% 630VDC RADIAL |
2,247 | 3.90 |
RFQ |
Datasheet |
Radial | Bulk | F862 | Active | 4.7 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.866 W (31.50mm x 22.00mm) | 1.457 (37.00mm) | PC Pins | 1.083 (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|

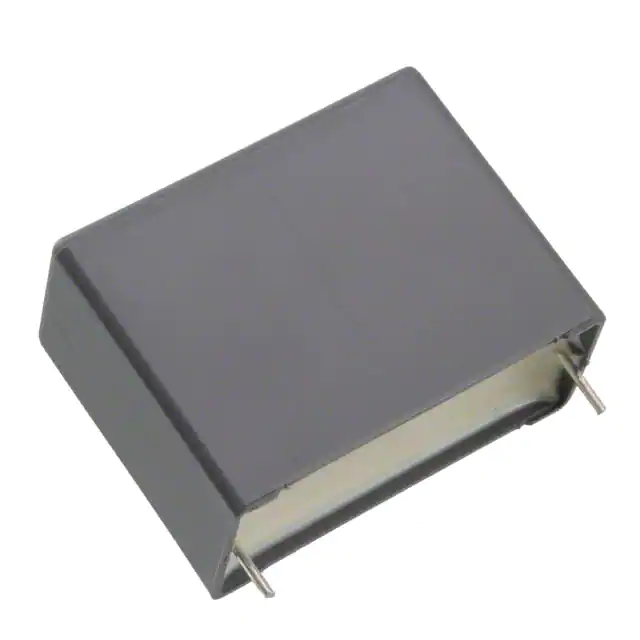

R463W447000M1MCAP FILM 4.7UF 20% 630VDC RADIAL |
2,111 | 3.93 |
RFQ |
Datasheet |
Radial | Bulk | R46 | Active | 4.7 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634 L x 0.748 W (41.50mm x 19.00mm) | 1.264 (32.10mm) | PC Pins | 1.476 (37.50mm) | EMI, RFI Suppression | X2 |
|
|
PHE450RF6100JR06L2CAP FILM 0.1UF 5% 1.6KVDC RADIAL |
3,387 | 3.98 |
RFQ |
Datasheet |
Radial | Bulk | PHE450 | Active | 0.1 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240 L x 0.413 W (31.50mm x 10.50mm) | 0.807 (20.50mm) | PC Pins | 1.240 (31.50mm) | High Frequency, Switching | - |
|
F863RL475K310ALW0LCAP FILM 4.7UF 10% 310VAC RADIAL |
3,122 | 3.99 |
RFQ |
Datasheet |
Radial | Bulk | F863 | Active | 4.7 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634 L x 0.748 W (41.50mm x 19.00mm) | 1.264 (32.10mm) | PC Pins | 1.476 (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
|
R463W447050M1KCAP FILM 4.7UF 10% 630VDC RAD |
3,956 | 4.01 |
RFQ |
Datasheet |
Radial | Tray | R46 | Active | 4.7 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634 L x 0.748 W (41.50mm x 19.00mm) | 1.264 (32.10mm) | PC Pins | 1.476 (37.50mm) | EMI, RFI Suppression | X2 |
|
|
C4AQILW4800A33JCAP FILM 8UF 5% 800VDC RADIAL |
3,110 | 4.03 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 8 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 11.4 mOhms | -55°C ~ 105°C | Through Hole | 1.634 L x 0.945 W (41.50mm x 24.00mm) | 0.756 (19.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
