Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

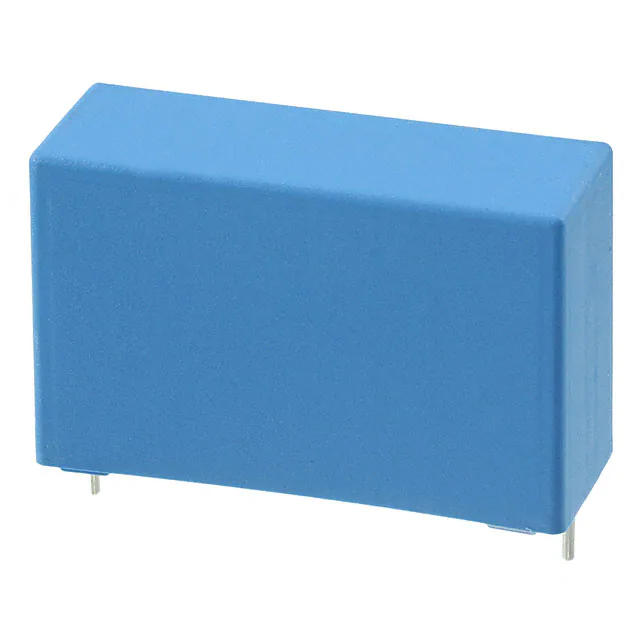

PHE844RR7100MR06L2CAP FILM 1UF 20% 1KVDC RADIAL |
3,210 | 6.25 |
RFQ |
Datasheet |
Radial | Tray | PHE844 | Active | 1 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.614 L x 0.610 W (41.00mm x 15.50mm) | 1.024 (26.00mm) | PC Pins | 1.476 (37.50mm) | EMI, RFI Suppression | X1 |
|

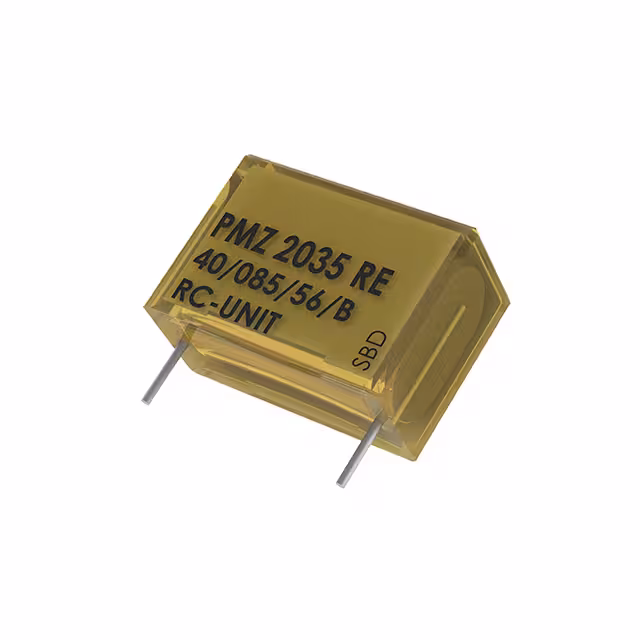

PMZ2035RE6100K150R30CAP FILM 0.1UF 10% 1KVDC RADIAL |
2,292 | 6.26 |
RFQ |
Datasheet |
Radial | Box | PMZ2035 | Active | 0.1 µF | ±10% | 440V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 85°C | Through Hole | 1.201 L x 0.476 W (30.50mm x 12.10mm) | 0.748 (19.00mm) | PC Pins | 1.000 (25.40mm) | EMI, RFI Suppression | X1 |
|
C4CAWUD3220AA1JCAP FILM 0.22UF 5% 2KVDC AXIAL |
3,829 | 6.28 |
RFQ |
Datasheet |
Axial | Bulk | C4C | Active | 0.22 µF | ±5% | 630V | 2000V (2kV) | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 85°C | Through Hole | 0.925 Dia x 1.732 L (23.50mm x 44.00mm) | - | PC Pins | - | Snubber | - |
|
C4ATFBW5100A3FJCAP FILM 10UF 5% 400VDC RADIAL |
3,611 | 10.29 |
RFQ |
Datasheet |
Radial | Bulk | C4AT | Active | 10 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 3.3 mOhms | -40°C ~ 85°C | Through Hole | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.575 (40.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
C4AF1BW5245A3OKCAP FILM 24.5UF 10% 250VAC RAD |
3,856 | 10.35 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AF | Active | 24.5 µF | ±10% | 250V | - | Polypropylene (PP), Metallized | 1.2 mOhms | -55°C ~ 105°C | Through Hole | 1.654 L x 1.378 W (42.00mm x 35.00mm) | 1.976 (50.20mm) | PC Pins | 1.476 (37.50mm) | Automotive | AEC-Q200 |
|
C4AEOBU4800A12JCAP FILM 8UF 5% 900VDC RADIAL |
3,114 | 6.57 |
RFQ |
Datasheet |
Radial | Bulk | C4AE | Active | 8 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 6.6 mOhms | -40°C ~ 85°C | Through Hole | 1.240 L x 0.866 W (31.50mm x 22.00mm) | 1.465 (37.20mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
878BF34400AA4JCAP FILM 4UF 5% 470VAC RADIAL |
3,524 | 6.82 |
RFQ |
Datasheet |
Radial, Can | Bulk | C87 | Active | 4 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378 Dia (35.00mm) | 1.969 (50.00mm) | Quick Connect - 0.250 (6.3mm) | 0.528 (13.40mm) | Motor Run | - |
|
C4GAFUD5100AA1JCAP FILM 10UF 5% 400VDC AXIAL |
3,862 | 6.87 |
RFQ |
Datasheet |
Axial | Bulk | C4G | Active | 10 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 2.7 mOhms | -40°C ~ 85°C | Through Hole | 1.181 Dia x 1.732 L (30.00mm x 44.00mm) | - | PC Pins | - | High Frequency, Switching | - |
|
R76TR347050H3JCAP FILM 0.47UF 5% 1.6KVDC RAD |
2,080 | 6.98 |
RFQ |
Datasheet |
Radial | Bulk | R76H | Active | 0.47 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 125°C | Through Hole | 1.260 L x 0.866 W (32.00mm x 22.00mm) | 1.461 (37.10mm) | PC Pins | - | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
R60DR52204030KCAP FILM 22UF 10% 63VDC RADIAL |
2,811 | 7.32 |
RFQ |
Datasheet |
Radial | Bulk | R60 | Active | 22 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260 L x 0.512 W (32.00mm x 13.00mm) | 0.870 (22.10mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
|
C4AF3BW4470A3JKCAP FILM 4.7UF 10% 400VAC RADIAL |
2,504 | 7.50 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AF | Active | 4.7 µF | ±10% | 400V | - | Polypropylene (PP), Metallized | 2.3 mOhms | -55°C ~ 105°C | Through Hole | 1.654 L x 1.102 W (42.00mm x 28.00mm) | 1.465 (37.20mm) | PC Pins | 1.476 (37.50mm) | Automotive | AEC-Q200 |
|
|
C4CAWUD3330AA1JCAP FILM 0.33UF 5% 2KVDC AXIAL |
3,339 | 7.60 |
RFQ |
Datasheet |
Axial | Bulk | C4C | Active | 0.33 µF | ±5% | 630V | 2000V (2kV) | Polypropylene (PP), Metallized | 5.9 mOhms | -40°C ~ 85°C | Through Hole | 1.122 Dia x 1.732 L (28.50mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - |
|
PHE450MR7150JR06L2CAP FILM 1.5UF 5% 630VDC RADIAL |
3,698 | 7.77 |
RFQ |
Datasheet |
Radial | Box | PHE450 | Active | 1.5 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614 L x 0.650 W (41.00mm x 16.50mm) | 1.260 (32.00mm) | PC Pins | 1.476 (37.50mm) | High Frequency, Switching | - |
|
|
C4CAYUD3150AA1JCAP FILM 0.15UF 5% 3KVDC AXIAL |
2,294 | 7.77 |
RFQ |
Datasheet |
Axial | Bulk | C4C | Active | 0.15 µF | ±5% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 9.2 mOhms | -40°C ~ 85°C | Through Hole | 1.260 Dia x 1.732 L (32.00mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - |
|
C284ACA4400AL0JCAP FILM 4UF 5% 470VAC RADIAL |
2,391 | 7.81 |
RFQ |
Datasheet |
Radial, Can | Bulk | C284 | Active | 4 µF | ±5% | 470V | - | Polypropylene (PP) | - | -25°C ~ 85°C | Chassis Mount | 1.181 Dia (30.00mm) | 2.244 (57.00mm) | Wire Leads | - | Motor Run | - |
|
R60IW5220AA30KCAP FILM 22UF 10% 250VDC RADIAL |
3,534 | 7.89 |
RFQ |
Datasheet |
Radial | Box | R60 | Active | 22 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.634 L x 0.630 W (41.50mm x 16.00mm) | 1.126 (28.60mm) | PC Pins | 1.476 (37.50mm) | Automotive | AEC-Q200 |
|
R75RW412050H4JCAP FILM 1.2UF 5% 1.25KVDC RAD |
3,825 | 7.98 |
RFQ |
Datasheet |
Radial | Tray | R75H | Active | 1.2 µF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 125°C | Through Hole | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.579 (40.10mm) | PC Pins | 1.476 (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
|
C4GAHUD5100AA3JCAP FILM 10UF 5% 600VDC AXIAL |
3,637 | 8.02 |
RFQ |
Datasheet |
Axial | Bulk | C4G | Active | 10 µF | ±5% | 330V | 600V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 85°C | Through Hole | 1.358 Dia x 2.283 L (34.50mm x 58.00mm) | - | PC Pins | - | High Frequency, Switching | - |
|
|
C4CAWUD3560AA3JCAP FILM 0.56UF 5% 2KVDC AXIAL |
3,646 | 8.97 |
RFQ |
Datasheet |
Axial | Bulk | C4C | Active | 0.56 µF | ±5% | 630V | 2000V (2kV) | Polypropylene (PP), Metallized | 6.1 mOhms | -40°C ~ 85°C | Through Hole | 1.142 Dia x 2.283 L (29.00mm x 58.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - |
|

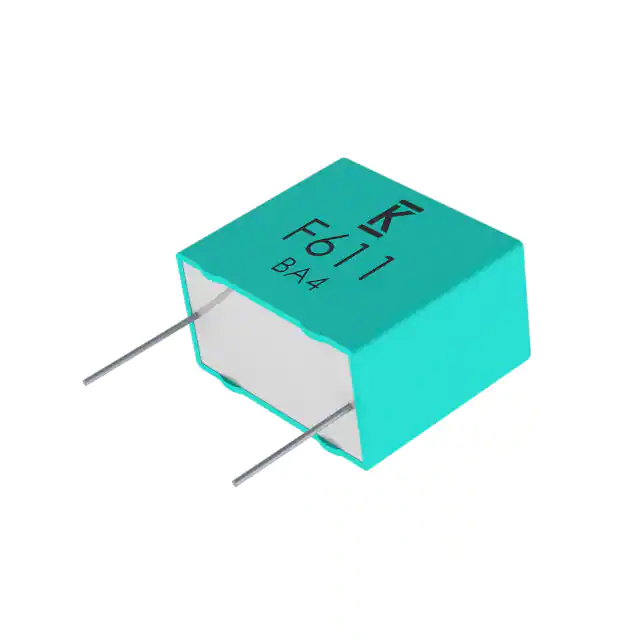

F611DY226K100ZLH0JCAP FILM 22UF 10% 100VDC RADIAL |
2,594 | 9.27 |
RFQ |
Datasheet |
Radial | Box | F611 | Active | 22 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.610 W (26.00mm x 15.50mm) | 0.965 (24.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
