Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQIBW5150A3FJCAP FILM 15UF 5% 800VDC RADIAL |
3,353 | 9.99 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 15 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 6.2 mOhms | -40°C ~ 105°C | Through Hole | 1.654 L x 0.787 W (42.00mm x 20.00mm) | 1.583 (40.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
C4AF9BW5170A3OKCAP FILM 17UF 10% 310VAC RADIAL |
3,948 | 10.27 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AF | Active | 17 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | 1.5 mOhms | -55°C ~ 105°C | Through Hole | 1.654 L x 1.378 W (42.00mm x 35.00mm) | 1.976 (50.20mm) | PC Pins | 1.476 (37.50mm) | Automotive | AEC-Q200 |
|
|
C4AF1BW5220A3OKCAP FILM 22UF 10% 250VAC RADIAL |
2,436 | 10.43 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AF | Active | 22 µF | ±10% | 250V | - | Polypropylene (PP), Metallized | 1.4 mOhms | -55°C ~ 105°C | Through Hole | 1.654 L x 1.378 W (42.00mm x 35.00mm) | 1.976 (50.20mm) | PC Pins | 1.476 (37.50mm) | Automotive | AEC-Q200 |
|
C4AEQBW4800A3FJCAP FILM 8UF 5% 1.1KVDC RADIAL |
3,210 | 10.54 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AE | Active | 8 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 7.9 mOhms | -40°C ~ 85°C | Through Hole | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.583 (40.20mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
R75TW412050H3JCAP FILM 1.2UF 5% 1.6KVDC RADIAL |
2,085 | 10.63 |
RFQ |
Datasheet |
Radial | Tray | R75H | Active | 1.2 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 125°C | Through Hole | 1.634 L x 0.945 W (41.50mm x 24.00mm) | 1.736 (44.10mm) | PC Pins | 1.476 (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
C4BSWBX3100ZBFJCAP FILM 0.1UF 5% 2KVDC SCREW |
2,632 | 10.83 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 0.1 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 23.3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.575 (40.00mm) | Screw Terminals | 0.866 (22.00mm) | DC Link, DC Filtering; Snubber | - |
|
F611DY336K063ZLH0JCAP FILM 33UF 10% 63VDC RADIAL |
2,781 | 10.91 |
RFQ |
Datasheet |
Radial | Box | F611 | Active | 33 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.610 W (26.00mm x 15.50mm) | 0.965 (24.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
|
C4AQIBW5200A3JJCAP FILM 20UF 5% 800VDC RADIAL |
3,263 | 10.97 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 20 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 4.7 mOhms | -40°C ~ 105°C | Through Hole | 1.654 L x 1.102 W (42.00mm x 28.00mm) | 1.465 (37.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|

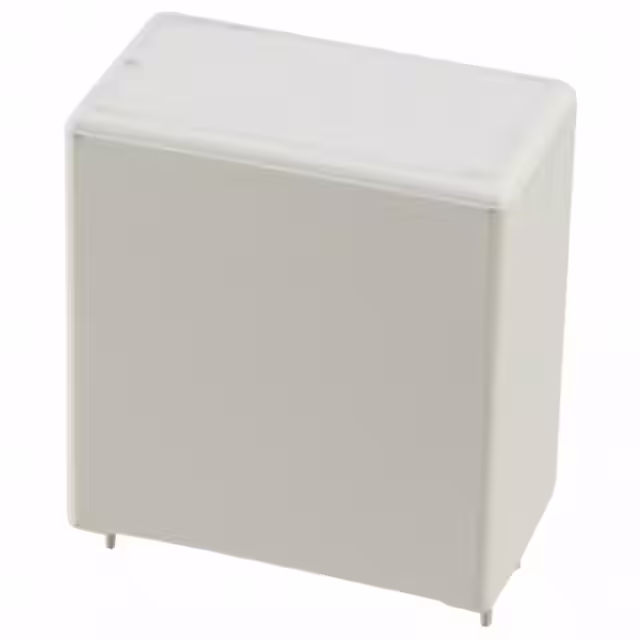

4AEOBW5160A3HJCAP FILM 16UF 5% 900VDC RADIAL |
2,678 | 11.12 |
RFQ |
Datasheet |
Radial | Bulk | C4AE | Active | 16 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 4.9 mOhms | -40°C ~ 85°C | Through Hole | 1.634 L x 0.945 W (41.50mm x 24.00mm) | 1.732 (44.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
|
C4AQCBW5550A3MJCAP FILM 55UF 5% 650VDC RADIAL |
2,872 | 11.91 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 55 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 4.1 mOhms | -40°C ~ 105°C | Through Hole | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.783 (45.30mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
C4AEJBW5150A3FJCAP FILM 15UF 5% 700VDC RADIAL |
2,676 | 11.95 |
RFQ |
Datasheet |
Radial | Bulk | C4AE | Active | 15 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 6.3 mOhms | -40°C ~ 85°C | Through Hole | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.583 (40.20mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
C4AEQBW5120A3LJCAP FILM 12UF 5% 1.1KVDC RADIAL |
3,837 | 12.80 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AE | Active | 12 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 85°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.772 (45.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
|
C4AF1BW5330A3NKCAP FILM 33UF 10% 250VAC RADIAL |
3,457 | 12.83 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AF | Active | 33 µF | ±10% | 250V | - | Polypropylene (PP), Metallized | 1.7 mOhms | -55°C ~ 105°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.980 (50.30mm) | PC Pins | 2.067 (52.50mm) | Automotive | AEC-Q200 |
|
|
C4AF9BW5220A3NKCAP FILM 22UF 10% 310VAC RADIAL |
3,507 | 12.83 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AF | Active | 22 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | 2.1 mOhms | -55°C ~ 105°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.980 (50.30mm) | PC Pins | 2.067 (52.50mm) | Automotive | AEC-Q200 |
|
|
C4AEHBW5200A3FJCAP FILM 20UF 5% 600VDC RADIAL |
3,161 | 12.84 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AE | Active | 20 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 85°C | Through Hole | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.583 (40.20mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|

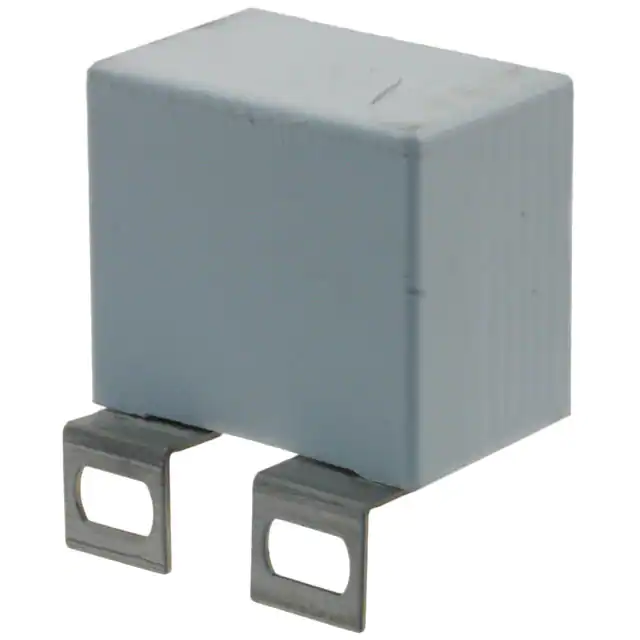

C4BSPBX4120ZAJJCAP FILM 1.2UF 5% 1.2KVDC SCREW |
3,284 | 13.25 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 1.2 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 1.102 W (42.50mm x 28.00mm) | 1.457 (37.00mm) | Screw Terminals | 1.004 (25.50mm) | DC Link, DC Filtering; Snubber | - |
|

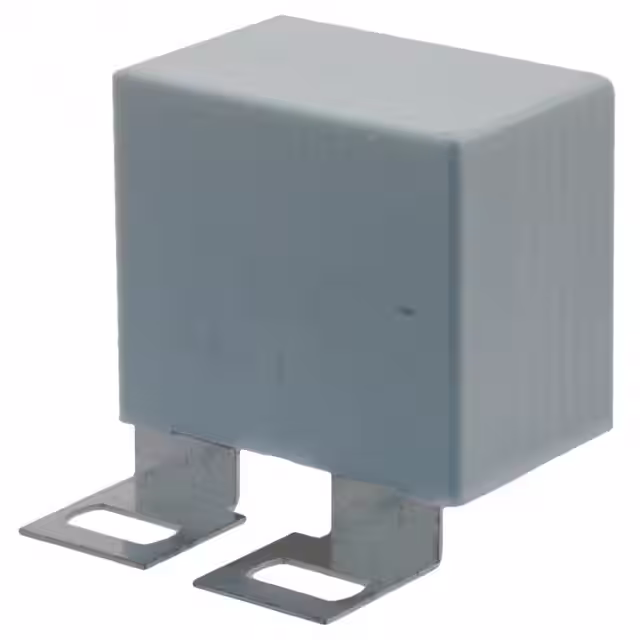

C4BSPBX4120ZBJJCAP FILM 1.2UF 5% 1.2KVDC SCREW |
2,937 | 13.25 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 1.2 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 1.102 W (42.50mm x 28.00mm) | 1.457 (37.00mm) | Screw Terminals | 0.866 (22.00mm) | DC Link, DC Filtering; Snubber | - |
|

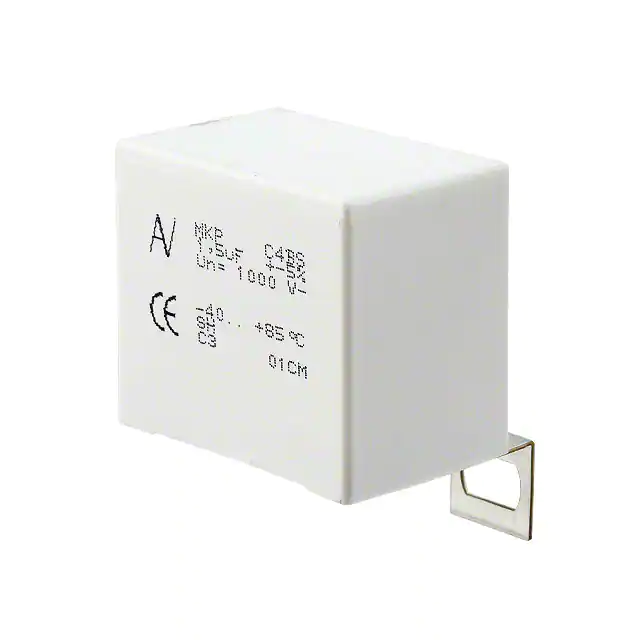

C4BSNBX4150ZAJJCAP FILM 1.5UF 5% 1KVDC SCREW |
2,835 | 13.29 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 1.5 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 1.102 W (42.50mm x 28.00mm) | 1.457 (37.00mm) | Screw Terminals | 1.004 (25.50mm) | DC Link, DC Filtering; Snubber | - |
|
C276CC35500AA0JCAP FILM 50UF 5% 470VAC RADIAL |
2,769 | 13.32 |
RFQ |
Datasheet |
Radial, Can | Bulk | C276 | Active | 50 µF | ±5% | 470V | - | Polypropylene (PP) | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.969 Dia (50.00mm) | 4.803 (122.00mm) | Quick Connect - 0.250 (6.3mm) | 0.528 (13.40mm) | Motor Run; Motor Start | - |
|
C870CG35800AA2JCAP FILM 80UF 5% 470VAC RADIAL |
2,217 | 20.64 |
RFQ |
Datasheet |
Radial, Can | Bulk | C87 | Active | 80 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.969 Dia (50.00mm) | 5.315 (135.00mm) | Quick Connect - 0.250 (6.3mm) | 0.528 (13.40mm) | Motor Run | - |
