Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PHE820MR7220MR06L2CAP FILM 2.2UF 20% 760VDC RADIAL |
2,613 | 5.95 |
RFQ |
Datasheet |
Radial | Bag | PHE820M | Active | 2.2 µF | ±20% | 275V | 760V | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 1.614 L x 0.748 W (41.00mm x 19.00mm) | 1.417 (36.00mm) | PC Pins | 1.476 (37.50mm) | EMI, RFI Suppression | X2 |
|
R71MW5220AA00KCAP FILM 22UF 10% 420VDC RADIAL |
2,658 | 5.95 |
RFQ |
Datasheet |
Radial | Bulk | R71 | Active | 22 µF | ±10% | 220V | 420V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634 L x 1.181 W (41.50mm x 30.00mm) | 1.776 (45.10mm) | PC Pins | 1.476 (37.50mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - |
|
C4GAFUC4500ZA1JCAP FILM 5UF 5% 250VAC AXIAL |
2,063 | 6.03 |
RFQ |
Datasheet |
Axial | Bulk | C4G | Active | 5 µF | ±5% | 250V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | - | - | PC Pins | - | High Frequency, Switching | - |
|
C4AULBW5350M3JKFILM, RADIAL, METALLIZED POLYPRO |
2,463 | 6.08 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AU | Active | 35 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 3.2 mOhms | -55°C ~ 105°C | Through Hole | 1.654 L x 1.102 W (42.00mm x 28.00mm) | 1.496 (38.00mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
C4AQQBW5120P3LJCAP FILM 12UF 5% 1.1KVDC RADIAL |
3,253 | 6.22 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ-P | Active | 12 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 5.8 mOhms | -55°C ~ 125°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.780 (45.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|

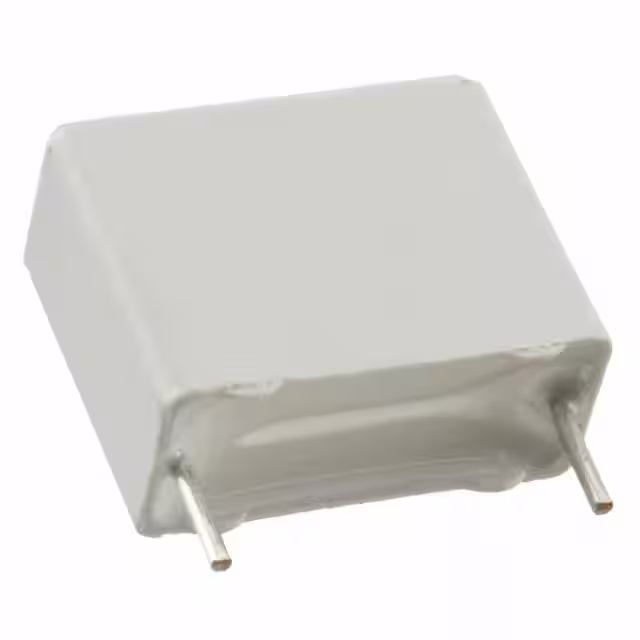

SMR15225K63B12L4BULKCAP FILM 2.2UF 10% 63VDC RADIAL |
3,949 | 6.35 |
RFQ |
Datasheet |
Radial | Bulk | SMR | Active | 2.2 µF | ±10% | 40V | 63V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.709 L x 0.315 W (18.00mm x 8.00mm) | 0.591 (15.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
R53BW51005000KCAP FILM 10UF 10% 800VDC RADIAL |
3,935 | 6.53 |
RFQ |
Datasheet |
Radial | Tray | R53B | Active | 10 µF | ±10% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.783 (45.30mm) | PC Pins | 1.476 (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
|
C4AUNBW5220M3PJFILM, RADIAL, METALLIZED POLYPRO |
3,326 | 6.56 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AU | Active | 22 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 3.1 mOhms | -55°C ~ 105°C | Through Hole | 1.654 L x 1.299 W (42.00mm x 33.00mm) | 1.929 (49.00mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
C4AQHLW5300P38KCAP FILM 30UF 10% 600VDC RADIAL |
2,271 | 6.63 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ-P | Active | 30 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 125°C | Through Hole | 1.654 L x 1.693 W (42.00mm x 43.00mm) | 0.992 (25.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
R53BW447050S0MCAP FILM 4.7UF 20% 800VDC RADIAL |
3,854 | 6.65 |
RFQ |
Datasheet |
Radial | Tray | R53B | Active | 4.7 µF | ±20% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.654 L x 0.787 W (42.00mm x 20.00mm) | 1.587 (40.30mm) | PC Pins | 1.476 (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
C4CAWUC3220AA1JCAP FILM 0.22UF 5% 630VAC AXIAL |
3,072 | 6.70 |
RFQ |
Datasheet |
Axial | Bulk | C4C | Active | 0.22 µF | ±5% | 630V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | - | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - |
|
C4ASYBW3100A3EJCAP FILM 0.1UF 5% 3KVDC RADIAL |
2,982 | 6.74 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AS | Active | 0.1 µF | ±5% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 10.5 mOhms | -40°C ~ 85°C | Through Hole | 1.260 L x 0.709 W (32.00mm x 18.00mm) | 1.299 (33.00mm) | PC Pins | 1.083 (27.50mm) | Snubber | - |
|
|
C4AUOBW5270M3PJFILM, RADIAL, METALLIZED POLYPRO |
3,520 | 6.98 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AU | Active | 27 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 2.9 mOhms | -55°C ~ 105°C | Through Hole | 1.654 L x 1.299 W (42.00mm x 33.00mm) | 1.929 (49.00mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
C4AQGLW5360P36KCAP FILM 36UF 10% 450VDC RADIAL |
2,521 | 6.98 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ-P | Active | 36 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 4.1 mOhms | -55°C ~ 125°C | Through Hole | 1.654 L x 1.378 W (42.00mm x 35.00mm) | 0.953 (24.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
C4AQJBW5300P3LJCAP FILM 30UF 5% 700VDC RADIAL |
2,043 | 7.04 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ-P | Active | 30 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 3.5 mOhms | -55°C ~ 125°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.780 (45.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
R53BW456050S0MCAP FILM 5.6UF 20% 800VDC RADIAL |
2,654 | 7.04 |
RFQ |
Datasheet |
Radial | Tray | R53B | Active | 5.6 µF | ±20% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.654 L x 0.787 W (42.00mm x 20.00mm) | 1.587 (40.30mm) | PC Pins | 1.476 (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
|
C4ASYBW3150A3GJCAP FILM 0.15UF 5% 3KVDC RADIAL |
3,141 | 7.05 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AS | Active | 0.15 µF | ±5% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 7.2 mOhms | -40°C ~ 85°C | Through Hole | 1.260 L x 0.866 W (32.00mm x 22.00mm) | 1.457 (37.00mm) | PC Pins | 1.083 (27.50mm) | Snubber | - |
|
|
C4ASNBW3470A3EJCAP FILM 0.47UF 5% 1KVDC RADIAL |
3,743 | 7.13 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AS | Active | 0.47 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 4.1 mOhms | -40°C ~ 85°C | Through Hole | 1.260 L x 0.709 W (32.00mm x 18.00mm) | 1.299 (33.00mm) | PC Pins | 1.083 (27.50mm) | Snubber | - |
|
R76QW412050H3JCAP FILM 1.2UF 5% 1KVDC RADIAL |
3,290 | 7.15 |
RFQ |
Datasheet |
Radial | Tray | R76 | Active | 1.2 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 3.2 mOhms | -55°C ~ 125°C | Through Hole | 1.634 L x 0.945 W (41.50mm x 24.00mm) | 1.736 (44.10mm) | PC Pins | 1.476 (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
|
C4AUJBW5400M3LJFILM, RADIAL, METALLIZED POLYPRO |
3,223 | 7.17 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AU | Active | 40 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 2.5 mOhms | -55°C ~ 105°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.811 (46.00mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
