Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4ATJBU4100A10JCAP FILM 1UF 5% 700VDC RADIAL |
2,959 | 8.69 |
RFQ |
Datasheet |
Radial | Bulk | C4AT | Active | 1 µF | ±5% | 400V | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | - | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - |
|
C4AULBW5600M3LKFILM, RADIAL, METALLIZED POLYPRO |
2,359 | 9.37 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AU | Active | 60 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 2.1 mOhms | -55°C ~ 105°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.811 (46.00mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
C4ATHBW4220A30JCAP FILM 2.2UF 5% 600VDC RADIAL |
2,535 | 9.43 |
RFQ |
Datasheet |
Radial | Bulk | C4AT | Active | 2.2 µF | ±5% | 350V | 600V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.260 L x 0.709 W (32.00mm x 18.00mm) | 1.299 (33.00mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
R53BY51500000KCAP FILM 15UF 10% 800VDC RADIAL |
3,708 | 8.82 |
RFQ |
Datasheet |
Radial | Tray | R53B | Active | 15 µF | ±10% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.819 (46.20mm) | PC Pins | 2.067 (52.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|

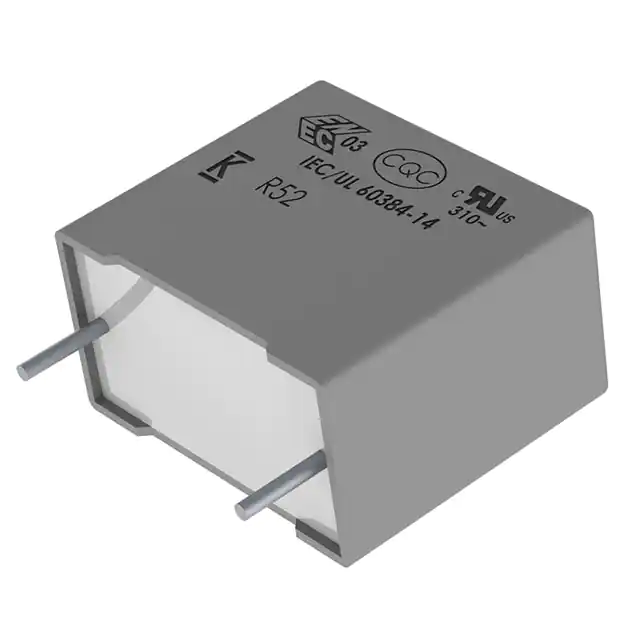

R523W522050P0KCAP FILM 22UF 10% 630VDC RADIAL |
2,935 | 8.83 |
RFQ |
Datasheet |
Radial | Tray | R52 | Active | 22 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634 L x 1.181 W (41.50mm x 30.00mm) | 1.776 (45.10mm) | PC Pins | 1.476 (37.50mm) | Automotive | AEC-Q200, X2 |
|
C4BSMBX4100ZAFJCAP FILM 1UF 5% 850VDC SCREW |
2,953 | 8.93 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 1 µF | ±5% | 550V | 850V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.575 (40.00mm) | Screw Terminals | 1.004 (25.50mm) | DC Link, DC Filtering; Snubber | - |
|
|
R53BW482050S0MCAP FILM 8.2UF 20% 800VDC RADIAL |
2,111 | 8.95 |
RFQ |
Datasheet |
Radial | Tray | R53B | Active | 8.2 µF | ±20% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.654 L x 0.945 W (42.00mm x 24.00mm) | 1.744 (44.30mm) | PC Pins | 1.476 (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|

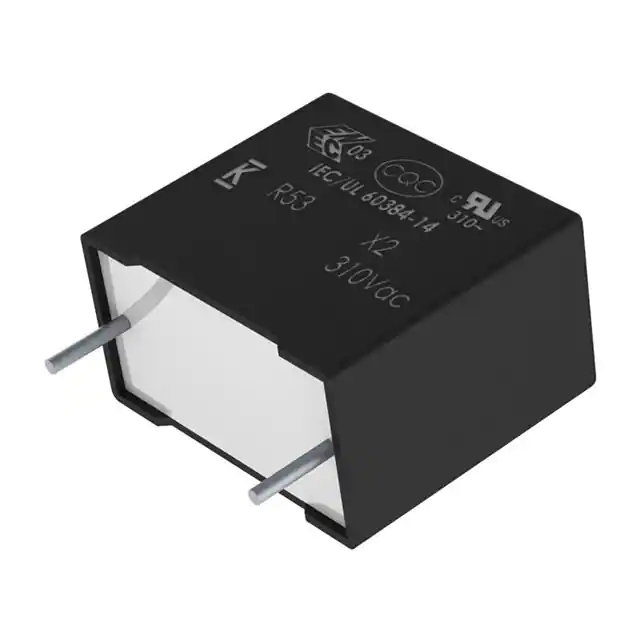

R533W520050P0KCAP FILM 20UF 10% 630VDC RADIAL |
3,696 | 8.99 |
RFQ |
Datasheet |
Radial | Bulk | R53 | Active | 20 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.783 (45.30mm) | PC Pins | 1.476 (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
|
C4AUJBW5560M3MJFILM, RADIAL, METALLIZED POLYPRO |
2,146 | 9.02 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AU | Active | 56 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 105°C | Through Hole | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.819 (46.20mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
C4AUNBW5360M3NJFILM, RADIAL, METALLIZED POLYPRO |
3,643 | 9.07 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AU | Active | 36 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 4.4 mOhms | -55°C ~ 105°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 2.016 (51.20mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
R75RW418050H2JCAP FILM 1.8UF 5% 1.25KVDC RAD |
2,327 | 9.52 |
RFQ |
Datasheet |
Radial | Tray | R75H | Active | 1.8 µF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 2.7 mOhms | -55°C ~ 125°C | Through Hole | 1.634 L x 1.181 W (41.50mm x 30.00mm) | 1.776 (45.10mm) | PC Pins | 1.476 (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
|
R53BY51800000KCAP FILM 18UF 10% 800VDC RADIAL |
2,323 | 9.63 |
RFQ |
Datasheet |
Radial | Tray | R53B | Active | 18 µF | ±10% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 2.016 (51.20mm) | PC Pins | 2.067 (52.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
C4AF7BW5100A3OKCAP FILM 10UF 10% 700VDC RADIAL |
2,635 | 9.65 |
RFQ |
Datasheet |
Radial - 4 Leads | Box | C4AF | Active | 10 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | 2.2 mOhms | -55°C ~ 105°C | Through Hole | 1.654 L x 1.378 W (42.00mm x 35.00mm) | 1.976 (50.20mm) | PC Pins | 1.476 (37.50mm) | Automotive | AEC-Q200 |
|
|
R53BY52000000KCAP FILM 20UF 10% 800VDC RADIAL |
3,525 | 9.87 |
RFQ |
Datasheet |
Radial | Tray | R53B | Active | 20 µF | ±10% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 2.016 (51.20mm) | PC Pins | 2.067 (52.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
C4AQHBW5500P3OJCAP FILM 50UF 5% 600VDC RADIAL |
2,558 | 9.98 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ-P | Active | 50 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 2.5 mOhms | -55°C ~ 125°C | Through Hole | 1.654 L x 1.378 W (42.00mm x 35.00mm) | 1.976 (50.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
R53BW510050S0MCAP FILM 10UF 20% 800VDC RADIAL |
2,591 | 10.45 |
RFQ |
Datasheet |
Radial | Tray | R53B | Active | 10 µF | ±20% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.783 (45.30mm) | PC Pins | 1.476 (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
|
C4AQQBW5270P3NJCAP FILM 27UF 5% 1.1KVDC RADIAL |
3,191 | 10.50 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ-P | Active | 27 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 5.4 mOhms | -55°C ~ 125°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.980 (50.30mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
C4BTMBX4500ZALJCAP FILM 5UF 5% 850VDC SCREW |
2,936 | 11.14 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BT | Active | 5 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 2.2 mOhms | -40°C ~ 85°C | Chassis Mount | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.772 (45.00mm) | Screw Terminals | 1.004 (25.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
|
C4AQJBW5600P3NJCAP FILM 60UF 5% 700VDC RADIAL |
2,045 | 11.63 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ-P | Active | 60 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 3.6 mOhms | -55°C ~ 125°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.980 (50.30mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
C4AUJBW5700M3NJFILM, RADIAL, METALLIZED POLYPRO |
3,808 | 11.95 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AU | Active | 70 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 3.3 mOhms | -55°C ~ 105°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 2.016 (51.20mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
