Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R75QD0470Z330JCAP FILM 470PF 5% 1KVDC RADIAL |
127 | 0.83 |
RFQ |
Datasheet |
Radial | Bulk | R75 | Active | 470 pF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394 L x 0.118 W (10.00mm x 3.00mm) | 0.319 (8.10mm) | PC Pins | 0.295 (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
R76UI02204000JCAP FILM 220PF 5% 2KVDC RADIAL |
116 | 0.91 |
RFQ |
Datasheet |
Radial | Bulk | R76 | Active | 220 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.437 (11.10mm) | PC Pins | 0.591 (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
SMR5223J50J01L16.5CBULKCAP FILM 0.022UF 5% 50VDC RADIAL |
677 | 0.95 |
RFQ |
Datasheet |
Radial | Bulk | SMR | Active | 0.022 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
R60DF4220506AKCAP FILM 2.2UF 10% 63VDC RADIAL |
771 | 0.98 |
RFQ |
Datasheet |
Radial | Bulk | R60 | Active | 2.2 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512 L x 0.197 W (13.00mm x 5.00mm) | 0.437 (11.10mm) | PC Pins | 0.394 (10.00mm) | Automotive | AEC-Q200 |
|
PHE426HJ6220JR05CAP FILM 0.22UF 5% 250VDC RADIAL |
612 | 1.01 |
RFQ |
Datasheet |
Radial | Box | PHE426 | Active | 0.22 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.283 W (7.20mm x 7.20mm) | 0.512 (13.00mm) | PC Pins | 0.197 (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
SMR5473J50J01L16.5CBULKCAP FILM 0.047UF 5% 50VDC RADIAL |
913 | 1.14 |
RFQ |
Datasheet |
Radial | Bulk | SMR | Active | 0.047 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
R76QI31205050JFILM, RADIAL, PULSE, DOUBLE META |
115 | 1.14 |
RFQ |
Datasheet |
Radial | Bulk | R76 | Active | 0.12 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 13 mOhms | -55°C ~ 110°C | Through Hole | 0.709 L x 0.433 W (18.00mm x 11.00mm) | 0.752 (19.10mm) | PC Pins | 0.591 (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
PFR5101J100J11L4BULKCAP FILM 100PF 5% 100VDC RADIAL |
282 | 1.15 |
RFQ |
Datasheet |
Radial | Bulk | PFR | Active | 100 pF | ±5% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.177 W (7.20mm x 4.50mm) | 0.236 (6.00mm) | PC Pins | 0.197 (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|
|
PFR5101J63J11L4BULKCAP FILM 100PF 5% 63VDC RADIAL |
417 | 1.16 |
RFQ |
Datasheet |
Radial | Bulk | PFR | Active | 100 pF | ±5% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.177 W (7.20mm x 4.50mm) | 0.236 (6.00mm) | PC Pins | 0.197 (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|
|
PFR5151J630J11L4BULKCAP FILM 150PF 5% 630VDC RADIAL |
930 | 1.17 |
RFQ |
Datasheet |
Radial | Bulk | PFR | Active | 150 pF | ±5% | 250V | 630V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.177 W (7.20mm x 4.50mm) | 0.236 (6.00mm) | PC Pins | 0.197 (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|
|
PFR5681J63J11L4BULKCAP FILM 680PF 5% 63VDC RADIAL |
150 | 1.22 |
RFQ |
Datasheet |
Radial | Bulk | PFR | Active | 680 pF | ±5% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.177 W (7.20mm x 4.50mm) | 0.236 (6.00mm) | PC Pins | 0.197 (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|
R46KN410040P0MCAP FILM 1UF 20% 560VDC RADIAL |
645 | 1.23 |
RFQ |
Datasheet |
Radial | Bulk | R46 | Active | 1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043 L x 0.394 W (26.50mm x 10.00mm) | 0.732 (18.60mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
PFR5472F63J11L4BULKCAP FILM 4700PF 1% 63VDC RADIAL |
597 | 1.45 |
RFQ |
Datasheet |
Radial | Box | PFR | Active | 4700 pF | ±1% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.177 W (7.20mm x 4.50mm) | 0.236 (6.00mm) | PC Pins | 0.197 (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|
SMR5104J100J03L16.5CBULKCAP FILM 0.1UF 5% 100VDC RADIAL |
632 | 1.47 |
RFQ |
Datasheet |
Radial | Bulk | SMR | Active | 0.1 µF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283 L x 0.177 W (7.20mm x 4.50mm) | 0.354 (9.00mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
C4AQPBU4110M1WJCAP FILM 1.1UF 5% 1.2KVDC RADIAL |
738 | 1.89 |
RFQ |
Datasheet |
Radial | Bulk | C4AQ-M | Active | 1.1 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 29.1 mOhms | -55°C ~ 105°C | Through Hole | 1.240 L x 0.433 W (31.50mm x 11.00mm) | 0.795 (20.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
R75TR31004040JCAP FILM 0.1UF 5% 1.6KVDC RADIAL |
425 | 1.95 |
RFQ |
Datasheet |
Radial | Bulk | R75 | Active | 0.1 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260 L x 0.433 W (32.00mm x 11.00mm) | - | PC Pins | 1.083 (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|

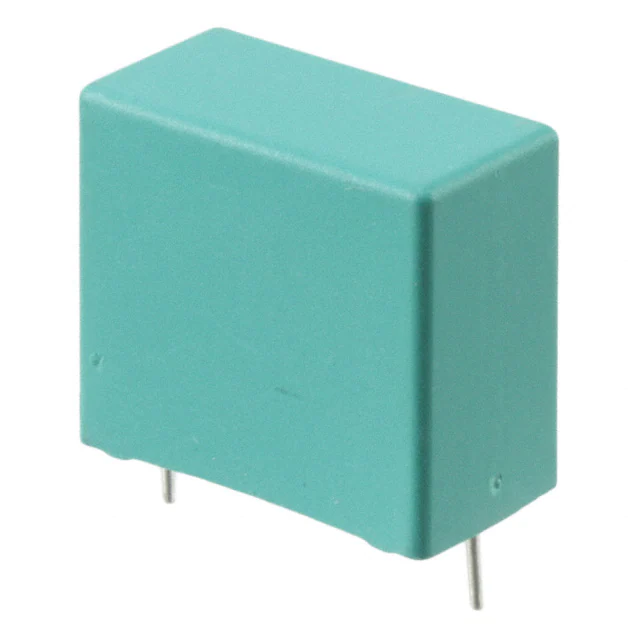

PHE850ED6220MD20R06L2CAP FILM 0.22UF 20% 1.25KVDC RAD |
3,771 | 2.23 |
RFQ |
Datasheet |
Radial | Bulk | PHE850 | Active | 0.22 µF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024 L x 0.531 W (26.00mm x 13.50mm) | 0.906 (23.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | Y2 |
|
PME295RB4470MR30CAP FILM 4700PF 20% 1.5KVDC RAD |
106 | 2.54 |
RFQ |
Datasheet |
Radial | Bulk | PME295 | Active | 4700 pF | ±20% | 480V | 1500V (1.5kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.709 L x 0.335 W (18.00mm x 8.50mm) | 0.630 (16.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | Y1 |
|
F863FL225K310ZCAP FILM 2.2UF 10% 310VAC RADIAL |
2,878 | 2.57 |
RFQ |
Datasheet |
Radial | Bulk | F863 | Active | 2.2 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260 L x 0.512 W (32.00mm x 13.00mm) | 0.988 (25.10mm) | PC Pins | 1.083 (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
F43PN3250ZF01KCAP FILM 0.25UF 10% 630VDC RAD |
622 | 2.59 |
RFQ |
Datasheet |
Radial | Box | F43 | Active | 0.25 µF | ±10% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043 L x 0.433 W (26.50mm x 11.00mm) | 0.791 (20.10mm) | PC Pins | 0.886 (22.50mm) | Snubber | - |
