Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R46KI26800001KCAP FILM 0.068UF 10% 560VDC RAD |
894 | 0.56 |
RFQ |
Datasheet |
Radial | Bulk | R46 | Active | 0.068 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.437 (11.10mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
R75UI139050H3JCAP FILM 3900PF 5% 2KVDC RADIAL |
452 | 0.56 |
RFQ |
Datasheet |
Radial | Bulk | R75H | Active | 3900 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 204 mOhms | -55°C ~ 125°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.437 (11.10mm) | PC Pins | 0.591 (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
|
R75PF156050H0JCAP FILM 5600PF 5% 630VDC RADIAL |
184 | 0.56 |
RFQ |
Datasheet |
Radial | Bulk | R75H | Active | 5600 pF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 142.1 mOhms | -55°C ~ 125°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | 0.358 (9.10mm) | PC Pins | 0.394 (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
MMK5224K63J01L4BULKCAP FILM 0.22UF 10% 63VDC RADIAL |
669 | 0.57 |
RFQ |
Datasheet |
Radial | Bulk | MMK | Active | 0.22 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
MMK5224J63J01L4BULKCAP FILM 0.22UF 5% 63VDC RADIAL |
171 | 0.57 |
RFQ |
Datasheet |
Radial | Box | MMK | Active | 0.22 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
R82DC4100AA60JCAP FILM 1UF 5% 63VDC RADIAL |
257 | 0.60 |
RFQ |
Datasheet |
Radial | Bulk | R82 | Active | 1 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.197 W (7.20mm x 5.00mm) | 0.398 (10.10mm) | PC Pins | 0.197 (5.00mm) | Automotive | AEC-Q200 |
|
R82IC3220Z360KCAP FILM 0.22UF 10% 250VDC RAD |
824 | 0.61 |
RFQ |
Datasheet |
Radial | Bulk | R82 | Active | 0.22 µF | ±10% | 140V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.236 W (7.20mm x 6.00mm) | 0.437 (11.10mm) | PC Pins | 0.197 (5.00mm) | Automotive | AEC-Q200 |
|
PHE450PK3680JR05CAP FILM 680PF 5% 1KVDC RADIAL |
741 | 0.63 |
RFQ |
Datasheet |
Radial | Bag | PHE450 | Active | 680 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394 L x 0.157 W (10.00mm x 4.00mm) | 0.315 (8.00mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
R75PF2220AA30JCAP FILM 0.022UF 5% 630VDC RAD |
261 | 0.63 |
RFQ |
Datasheet |
Radial | Bulk | R75 | Active | 0.022 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512 L x 0.236 W (13.00mm x 6.00mm) | 0.476 (12.10mm) | PC Pins | 0.394 (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
|
PHE450KK3330JR05CAP FILM 330PF 5% 400VDC RADIAL |
134 | 0.63 |
RFQ |
Datasheet |
Radial | Box | PHE450 | Active | 330 pF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394 L x 0.157 W (10.00mm x 4.00mm) | 0.315 (8.00mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
R75TI210050H3JCAP FILM 10000PF 5% 1.6KVDC RAD |
710 | 0.64 |
RFQ |
Datasheet |
Radial | Bulk | R75H | Active | 10000 pF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 79.6 mOhms | -55°C ~ 125°C | Through Hole | 0.709 L x 0.236 W (18.00mm x 6.00mm) | 0.476 (12.10mm) | PC Pins | 0.591 (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
F861AG563K310ACAP FILM 0.056UF 10% 310VAC RAD |
624 | 0.64 |
RFQ |
Datasheet |
Radial | Bulk | F861 | Active | 0.056 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | 0.354 (9.00mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression | X2 |
|
R76QF139050H3JCAP FILM 3900PF 5% 1KVDC RAD |
602 | 0.64 |
RFQ |
Datasheet |
Radial | Bulk | R76 | Active | 3900 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 490 mOhms | -55°C ~ 125°C | Through Hole | 0.512 L x 0.197 W (13.00mm x 5.00mm) | 0.437 (11.10mm) | PC Pins | 0.394 (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
|
R76UI112050H3JCAP FILM 1200PF 5% 2KVDC RAD |
859 | 0.65 |
RFQ |
Datasheet |
Radial | Bulk | R76 | Active | 1200 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 1.592 Ohms | -55°C ~ 125°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.437 (11.10mm) | PC Pins | 0.591 (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
R474F14705001KCAP FILM 4700PF 10% 1KVDC RADIAL |
794 | 0.65 |
RFQ |
Datasheet |
Radial | Bulk | R47 | Active | 4700 pF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | 0.358 (9.10mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression | X1 |
|
R46KF215040H1MCAP FILM 0.015UF 20% 560VDC RAD |
399 | 0.65 |
RFQ |
Datasheet |
Radial | Bulk | R46 | Active | 0.015 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.512 L x 0.197 W (13.00mm x 5.00mm) | 0.437 (11.10mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression | X2 |
|

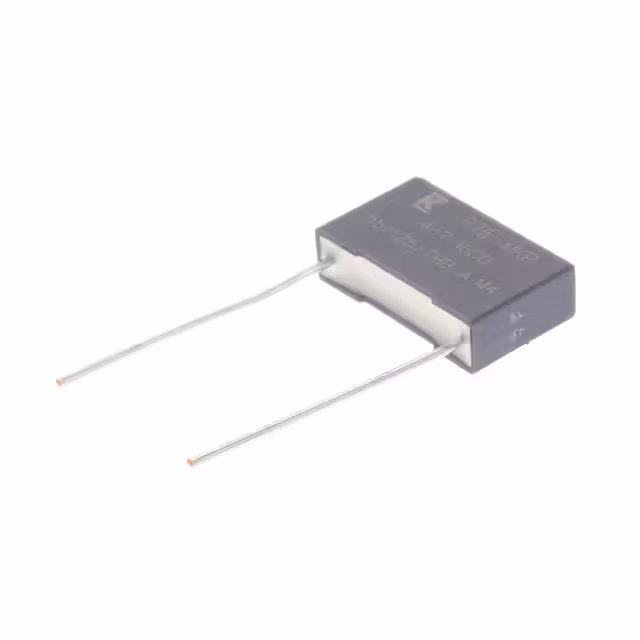

R76TI147050H3JCAP FILM 4700PF 5% 1.6KVDC RAD |
270 | 0.65 |
RFQ |
Datasheet |
Radial | Bulk | R76H | Active | 4700 pF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 135 mOhms | -55°C ~ 125°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.437 (11.10mm) | PC Pins | - | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
|
R76QI212050H3JCAP FILM 0.012UF 5% 1KVDC RAD |
648 | 0.66 |
RFQ |
Datasheet |
Radial | Bulk | R76 | Active | 0.012 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 159 mOhms | -55°C ~ 125°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.437 (11.10mm) | PC Pins | 0.591 (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
R60IF3100506AKCAP FILM 0.1UF 10% 250VDC RADIAL |
586 | 0.66 |
RFQ |
Datasheet |
Radial | Bulk | R60 | Active | 0.1 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | 0.358 (9.10mm) | PC Pins | 0.394 (10.00mm) | Automotive | AEC-Q200 |
|
R46KF268040P0MCAP FILM 0.068UF 20% 560VDC RAD |
472 | 0.66 |
RFQ |
Datasheet |
Radial | Bulk | R46 | Active | 0.068 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512 L x 0.197 W (13.00mm x 5.00mm) | 0.437 (11.10mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression | X2 |
