Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PHE844RF6330MR06L2CAP FILM 0.33UF 20% 1KVDC RADIAL |
3,030 | 3.98 |
RFQ |
Datasheet |
Radial | Tray | PHE844 | Active | 0.33 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240 L x 0.531 W (31.50mm x 13.50mm) | 0.906 (23.00mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X1 |
|
R76TR318050H4JCAP FILM 0.18UF 5% 1.6KVDC RAD |
3,668 | 4.00 |
RFQ |
Datasheet |
Radial | Tray | R76 | Active | 0.18 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 18 mOhms | -55°C ~ 125°C | Through Hole | 1.260 L x 0.551 W (32.00mm x 14.00mm) | 1.106 (28.10mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
R75MR44704030JCAP FILM 4.7UF 5% 400VDC RADIAL |
3,174 | 4.51 |
RFQ |
Datasheet |
Radial | Tray | R75 | Active | 4.7 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260 L x 0.866 W (32.00mm x 22.00mm) | 1.461 (37.10mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|
PHE450PF6330JR06L2CAP FILM 0.33UF 5% 1KVDC RADIAL |
3,687 | 4.67 |
RFQ |
Datasheet |
Radial | Tray | PHE450 | Active | 0.33 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240 L x 0.453 W (31.50mm x 11.50mm) | 0.886 (22.50mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching | - |
|
C4AQSBW4600A3FJCAP FILM 6UF 5% 1.5KVDC RADIAL |
3,771 | 4.87 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 6 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 105°C | Through Hole | 1.654 L x 0.787 W (42.00mm x 20.00mm) | 1.583 (40.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
C4AF9BU4470A12KCAP FILM 4.7UF 10% 310VAC RADIAL |
3,947 | 4.91 |
RFQ |
Datasheet |
Radial | Bulk | C4AF | Active | 4.7 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | 4.3 mOhms | -55°C ~ 105°C | Through Hole | 1.240 L x 0.866 W (31.50mm x 22.00mm) | 1.465 (37.20mm) | PC Pins | 1.083 (27.50mm) | Automotive | AEC-Q200 |
|
C4CAPUC3220AA0JCAP FILM 0.22UF 5% 500VAC AXIAL |
100 | 5.37 |
RFQ |
Datasheet |
Axial | Bulk | C4C | Active | 0.22 µF | ±5% | 500V | - | Polypropylene (PP), Metallized | 6.8 mOhms | -40°C ~ 85°C | Through Hole | 0.807 Dia x 1.299 L (20.50mm x 33.00mm) | - | PC Pins | - | Snubber | - |
|
274AA24600AA0JCAP FILM 6UF 5% 470VAC RADIAL |
3,717 | 5.95 |
RFQ |
Datasheet |
Radial, Can | Bulk | C274 | Active | 6 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | - | - | Quick Connect - 0.250 (6.3mm) | - | Motor Run; Motor Start | - |
|
R60QW42205030KCAP FILM 2.2UF 10% 1KVDC RADIAL |
3,099 | 6.53 |
RFQ |
Datasheet |
Radial | Bulk | R60 | Active | 2.2 µF | ±10% | 250V | 1000V (1kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.579 (40.10mm) | PC Pins | 1.476 (37.50mm) | General Purpose | - |
|
C274ACF4200LF0JCAP FILM 2UF 5% 470VAC RADIAL |
2,759 | 6.62 |
RFQ |
Datasheet |
Radial, Can | Bulk | C274 | Active | 2 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984 Dia (25.00mm) | 2.244 (57.00mm) | Wire Leads | - | Motor Run; Motor Start | - |
|
C4AQCLW5300A38KCAP FILM 30UF 10% 650VDC RADIAL |
2,363 | 7.90 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 30 µF | ±10% | - | 650V | Polypropylene (PP), Metallized | 3.6 mOhms | -55°C ~ 105°C | Through Hole | 1.654 L x 1.693 W (42.00mm x 43.00mm) | 0.992 (25.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
C4ATGBW4330A3EJCAP FILM 3.3UF 5% 450VDC RADIAL |
2,356 | 9.20 |
RFQ |
Datasheet |
Radial | Bulk | C4AT | Active | 3.3 µF | ±5% | 275V | 450V | Polypropylene (PP), Metallized | 2.9 mOhms | -40°C ~ 85°C | Through Hole | 1.260 L x 0.709 W (32.00mm x 18.00mm) | 1.299 (33.00mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
|
C274ACF5100SA0JCAP FILM 10UF 5% 470VAC RADIAL |
2,310 | 10.15 |
RFQ |
Datasheet |
Radial, Can | Bulk | C274 | Active | 10 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | - | - | Wire Leads | - | Motor Run; Motor Start | - |
|
C870CF35400AA0JCAP FILM 40UF 5% 470VAC RADIAL |
2,267 | 11.44 |
RFQ |
Datasheet |
Radial, Can | Bulk | C87 | Active | 40 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772 Dia (45.00mm) | 3.937 (100.00mm) | Quick Connect - 0.250 (6.3mm) | 0.528 (13.40mm) | Motor Run | - |
|
C4BSWBX3330ZAFJCAP FILM 0.33UF 5% 2KVDC SCREW |
3,600 | 11.57 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 0.33 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 7.2 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.575 (40.00mm) | Screw Terminals | 1.004 (25.50mm) | DC Link, DC Filtering; Snubber | - |
|

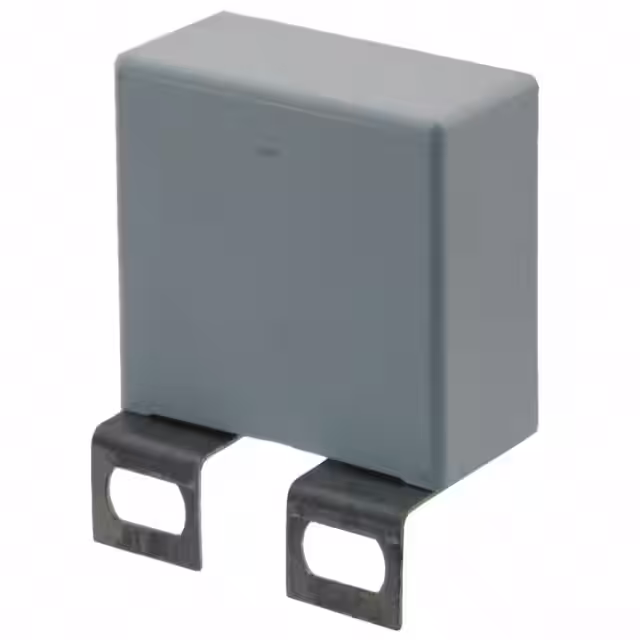

C4BSPBX3470ZAFJCAP FILM 0.47UF 5% 1.2KVDC SCREW |
2,431 | 11.57 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 0.47 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 6.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.575 (40.00mm) | Screw Terminals | 1.004 (25.50mm) | DC Link, DC Filtering; Snubber | - |
|
C4BTHBX4500ZAFJCAP FILM 5UF 5% 600VDC SCREW |
3,503 | 12.92 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BT | Active | 5 µF | ±5% | 330V | 600V | Polypropylene (PP), Metallized | 2.9 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.575 (40.00mm) | Screw Terminals | 1.004 (25.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
|
C4AQIBW5550A3NJCAP FILM 55UF 5% 800VDC RADIAL |
3,850 | 13.40 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 55 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 3.6 mOhms | -40°C ~ 105°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.980 (50.30mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
C4AF1EW5470A3AKCAP FILM 47UF 10% 500VDC RADIAL |
3,076 | 17.33 |
RFQ |
Datasheet |
Radial - 4 Leads | Box | C4AF | Active | 47 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 2.8 mOhms | -55°C ~ 105°C | Through Hole | 2.264 L x 1.772 W (57.50mm x 45.00mm) | 2.217 (56.30mm) | PC Pins | 2.067 (52.50mm) | Automotive | AEC-Q200 |
|
|
C4ATFBW5400A3NJCAP FILM 40UF 5% 400VDC RADIAL |
3,357 | 17.88 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AT | Active | 40 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 1.4 mOhms | -40°C ~ 85°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.969 (50.00mm) | PC Pins | 2.067 (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
