Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4BSWBX3470ZGFJCAP FILM 0.47UF 5% 2KVDC SCREW |
2,317 | 24.08 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 0.47 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 5.1 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.575 (40.00mm) | Screw Terminals | 0.866 (22.00mm) | DC Link, DC Filtering; Snubber | - |
|
|
C4BSPBX4120ZB0JCAP FILM 1.2UF 5% 1.2KVDC SCREW |
2,222 | 25.68 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 1.2 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 1.102 W (42.50mm x 28.00mm) | 1.457 (37.00mm) | Screw Terminals | 0.866 (22.00mm) | DC Link, DC Filtering; Snubber | - |
|
C4AEHBW5750A3NJCAP FILM 75UF 5% 600VDC RADIAL |
2,204 | 28.81 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AE | Active | 75 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 3.1 mOhms | -40°C ~ 85°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.969 (50.00mm) | PC Pins | 2.067 (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|

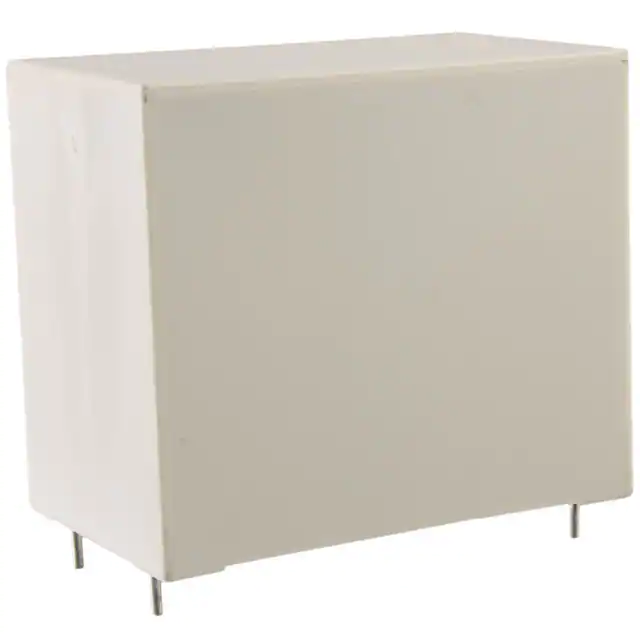

C4AEGBW6100H3NJCAP FILM 100UF 5% 450VDC RADIAL |
3,743 | 33.44 |
RFQ |
Datasheet |
Radial | Bulk | C4AE | Active | 100 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.969 (50.00mm) | PC Pins | 2.067 (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
C44APFP4200ZD0JCAP FILM 2UF 5% 1.2KVDC RADIAL |
3,179 | 35.46 |
RFQ |
Datasheet |
Radial, Can | Bulk | C44A | Active | 2 µF | ±5% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 1.772 Dia (45.00mm) | 3.228 (82.00mm) | Threaded, Male | 0.878 (22.30mm) | General Purpose | - |
|
C44UVGT5900M81KCAP FILM 90UF 10% 1.8KVDC RADIAL |
3,365 | 61.01 |
RFQ |
Datasheet |
Radial, Can | Bulk | C44U-M | Active | 90 µF | ±10% | - | 1800V (1.8kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346 Dia (85.00mm) | 4.055 (103.00mm) | Threaded, Female | 1.260 (32.00mm) | DC Link, DC Filtering | - |
|
|
C44UUGT6220M83KCAP FILM 220UF 10% 1.3KVDC RAD |
2,774 | 62.65 |
RFQ |
Datasheet |
Radial, Can | Bulk | C44U-M | Active | 220 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346 Dia (85.00mm) | 5.039 (128.00mm) | Threaded, Female | 1.260 (32.00mm) | DC Link, DC Filtering | - |
|
|
C44USGT6200M85KCAP FILM 200UF 10% 1.5KVDC RAD |
2,766 | 64.90 |
RFQ |
Datasheet |
Radial, Can | Bulk | C44U-M | Active | 200 µF | ±10% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 3.8 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346 Dia (85.00mm) | 5.827 (148.00mm) | Threaded, Female | 1.260 (32.00mm) | DC Link, DC Filtering | - |
|
C4DEIPQ5680A8TKCAP FILM 68UF 10% 800VDC RADIAL |
2,600 | 74.66 |
RFQ |
Datasheet |
Radial, Can | Bulk | C4DE | Active | 68 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 0.7 mOhms | -40°C ~ 85°C | Chassis Mount | 3.307 Dia (84.00mm) | 2.598 (66.00mm) | Threaded, Male | 1.772 (45.00mm) | DC Link, DC Filtering | - |
|
|
C44USGT6145M82KCAP FILM 145UF 10% 1.5KVDC RAD |
3,491 | 82.05 |
RFQ |
Datasheet |
Radial, Can | Bulk | C44U-M | Active | 145 µF | ±10% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 2.9 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346 Dia (85.00mm) | 4.646 (118.00mm) | Threaded, Female | 1.260 (32.00mm) | DC Link, DC Filtering | - |
|
|
C44UHGT6650M81KCAP FILM 650UF 10% 600VDC RADIAL |
2,974 | 83.67 |
RFQ |
Datasheet |
Radial, Can | Bulk | C44U-M | Active | 650 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 1.2 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346 Dia (85.00mm) | 4.055 (103.00mm) | Threaded, Female | 1.260 (32.00mm) | DC Link, DC Filtering | - |
|
|
C44UUGT6400M51KCAP FILM 400UF 10% 1.3KVDC RAD |
3,963 | 91.11 |
RFQ |
Datasheet |
Radial, Can | Bulk | C44U-M | Active | 400 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 1.7 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 4.567 Dia (116.00mm) | 5.433 (138.00mm) | Threaded, Female | 1.969 (50.00mm) | DC Link, DC Filtering | - |
|
|
C44UHGT7130M86KCAP FILM 1300UF 10% 600VDC RAD |
2,926 | 117.39 |
RFQ |
Datasheet |
Radial, Can | Bulk | C44U-M | Active | 1300 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 1.1 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346 Dia (85.00mm) | 7.165 (182.00mm) | Threaded, Female | 1.260 (32.00mm) | DC Link, DC Filtering | - |
|
|
C44UHGT6900M83KCAP FILM 900UF 10% 600VDC RADIAL |
3,839 | 171.46 |
RFQ |
Datasheet |
Radial, Can | Bulk | C44U-M | Active | 900 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 1.6 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346 Dia (85.00mm) | 5.039 (128.00mm) | Threaded, Female | 1.260 (32.00mm) | DC Link, DC Filtering | - |
|
|
C44UQGT7140M54KCAP FILM 1400UF 10% 1.1KVDC RAD |
3,690 | 177.60 |
RFQ |
Datasheet |
Radial, Can | Bulk | C44U-M | Active | 1400 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 1.6 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 4.567 Dia (116.00mm) | 10.945 (278.00mm) | Threaded, Female | 1.969 (50.00mm) | DC Link, DC Filtering | - |
|
R82EC1220AA50KCAP FILM 2200PF 10% 100VDC RAD |
736 | 0.29 |
RFQ |
Datasheet |
Radial | Bulk | R82 | Active | 2200 pF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.260 (6.60mm) | PC Pins | 0.197 (5.00mm) | Automotive | AEC-Q200 |
|
|
R82DC3150AA60KCAP FILM 0.15UF 10% 63VDC RAD |
868 | 0.30 |
RFQ |
Datasheet |
Radial | Bulk | R82 | Active | 0.15 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.260 (6.60mm) | PC Pins | 0.197 (5.00mm) | Automotive | AEC-Q200 |
|
|
R82EC1100Z350KCAP FILM 1000PF 10% 100VDC RAD |
639 | 0.38 |
RFQ |
Datasheet |
Radial | Bulk | R82 | Active | 1000 pF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.260 (6.60mm) | PC Pins | 0.197 (5.00mm) | Automotive | AEC-Q200 |
|
|
R82EC2680Z360JCAP FILM 0.068UF 5% 100VDC RAD |
266 | 0.45 |
RFQ |
Datasheet |
Radial | Bulk | R82 | Active | 0.068 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.260 (6.60mm) | PC Pins | 0.197 (5.00mm) | Automotive | AEC-Q200 |
|
|
R82MC1220Z350KCAP FILM 2200PF 10% 400VDC RAD |
114 | 0.45 |
RFQ |
Datasheet |
Radial | Bulk | R82 | Active | 2200 pF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.260 (6.60mm) | PC Pins | 0.197 (5.00mm) | Automotive | AEC-Q200 |
