Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
940C10W1P5K-FCAP FILM 1.5UF 10% 1KVDC AXIAL |
258 | 15.31 |
RFQ |
Datasheet |
Axial | Bulk | 940C | Active | 1.5 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 105°C | Through Hole | 1.220 Dia x 1.811 L (31.00mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
Z26S6028M50NCAP FILM 28UF 3% 600VAC RADIAL |
196 | 16.32 |
RFQ |
Datasheet |
Radial, Can | Bulk | - | Active | 28 µF | ±3% | 600V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount | 2.500 Dia (63.50mm) | 3.750 (95.25mm) | Quick Connect, Disconnect | - | General Purpose | - |
|
FCP0603C272J-K1CAP FILM 2700PF 5% 16VDC 0603 |
8,000 | 0.75 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | FCP | Active | 2700 pF | ±5% | - | 16V | Polyphenylene Sulfide (PPS) | - | -55°C ~ 125°C | Surface Mount | 0.063 L x 0.032 W (1.60mm x 0.81mm) | 0.033 (0.85mm) | Solder Pads | - | High Frequency, Switching | - |
|
|
FCP0805H101J-J1CAP FILM 100PF 5% 50VDC 0805 |
3,000 | 0.23 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR) | FCP | Active | 100 pF | ±5% | - | 50V | Polyphenylene Sulfide (PPS) | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.043 (1.09mm) | Solder Pads | - | High Frequency, Switching | - |
|
FCP1206H472G-H1CAP FILM 4700PF 2% 50VDC 1206 |
3,000 | 0.89 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | FCP | Active | 4700 pF | ±2% | - | 50V | Polyphenylene Sulfide (PPS) | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.043 (1.09mm) | Solder Pads | - | High Frequency, Switching | - |
|
|
FCP1206C273J-H2CAP FILM 0.027UF 5% 16VDC 1206 |
6,000 | 1.01 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | FCP | Active | 0.027 µF | ±5% | - | 16V | Polyphenylene Sulfide (PPS) | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.051 (1.30mm) | Solder Pads | - | High Frequency, Switching | - |
|

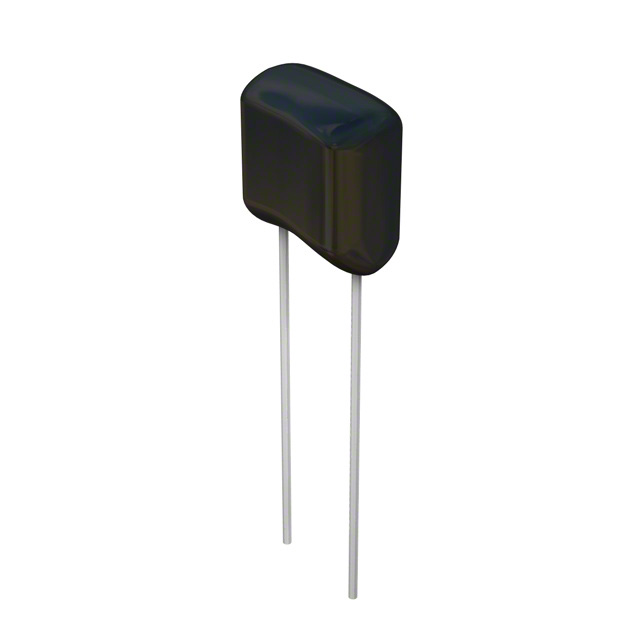

DME2S18K-FCAP FILM 0.018UF 10% 250VDC RAD |
4,785 | 0.95 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 0.018 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.406 L x 0.177 W (10.30mm x 4.50mm) | 0.295 (7.50mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
DME2S68K-FCAP FILM 0.068UF 10% 250VDC RAD |
3,000 | 1.04 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 0.068 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.406 L x 0.189 W (10.30mm x 4.80mm) | 0.311 (7.90mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
DME4S1K-FCAP FILM 10000PF 10% 400VDC RAD |
3,434 | 1.15 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 10000 pF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.406 L x 0.169 W (10.30mm x 4.30mm) | 0.291 (7.40mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
DME2P15K-FCAP FILM 0.15UF 10% 250VDC RAD |
3,000 | 1.19 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 0.15 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.406 L x 0.236 W (10.30mm x 6.00mm) | 0.484 (12.30mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|

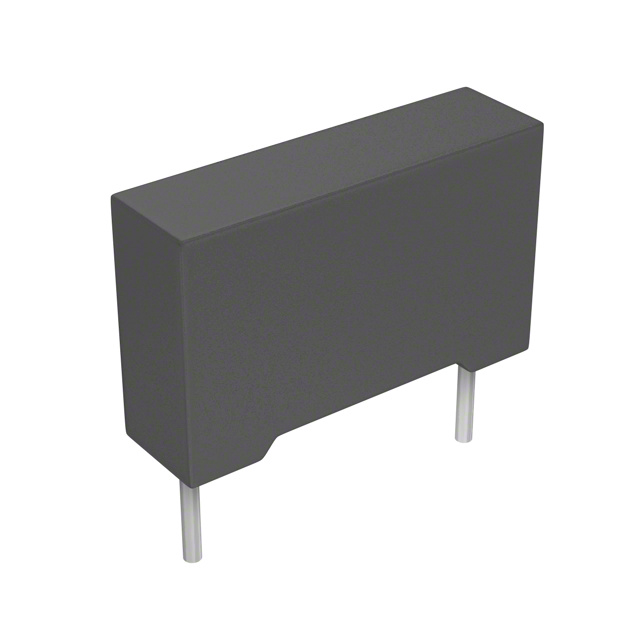

160683J250C-FCAP FILM 0.068UF 5% 250VDC RAD |
3,000 | 1.19 |
RFQ |
Datasheet |
Radial | Bulk | 160 | Active | 0.068 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | 0.374 (9.50mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
168152J100A-FCAP FILM 1500PF 5% 100VDC RADIAL |
3,921 | 1.42 |
RFQ |
Datasheet |
Radial | Bulk | 168 | Active | 1500 pF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
|
160473J250C-FCAP FILM 0.047UF 5% 250VDC RAD |
2,900 | 1.46 |
RFQ |
Datasheet |
Radial | Bulk | 160 | Active | 0.047 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | 0.374 (9.50mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|

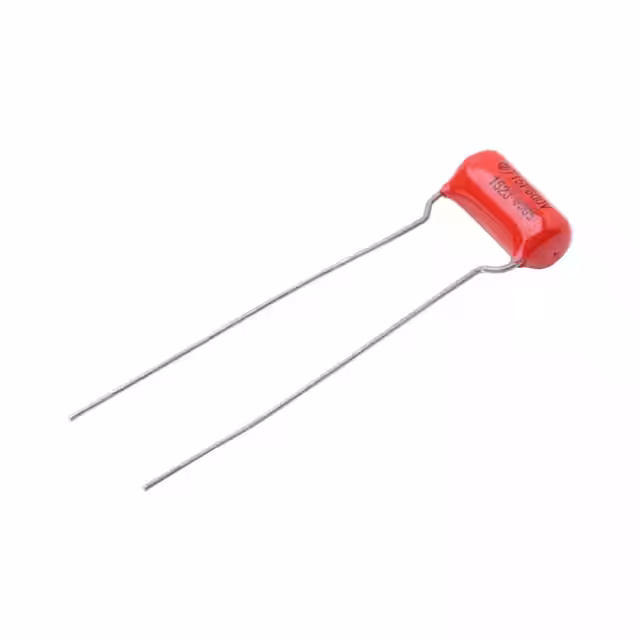

CP-OD715-0015-600VCAP FILM .0015UF 600V 715 SERIES |
186 | 1.48 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 1500 pF | - | - | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | - | - | PC Pins | - | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
160332K1000C-FCAP FILM 3300PF 10% 1KVDC RADIAL |
2,750 | 1.50 |
RFQ |
Datasheet |
Radial | Bulk | 160 | Active | 3300 pF | ±10% | 250V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | 0.374 (9.50mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|

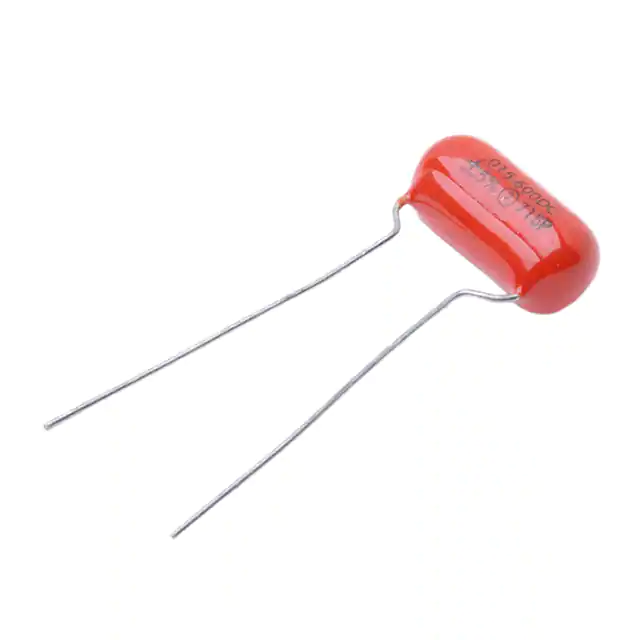

CP-OD715-015-600VCAP FILM .015UF 600V 715 SERIES |
104 | 1.68 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.015 µF | - | - | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | - | - | PC Pins | - | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
160154K100C-FCAP FILM 0.15UF 10% 100VDC RAD |
6,500 | 1.77 |
RFQ |
Datasheet |
Radial | Bulk | 160 | Active | 0.15 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | 0.374 (9.50mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|

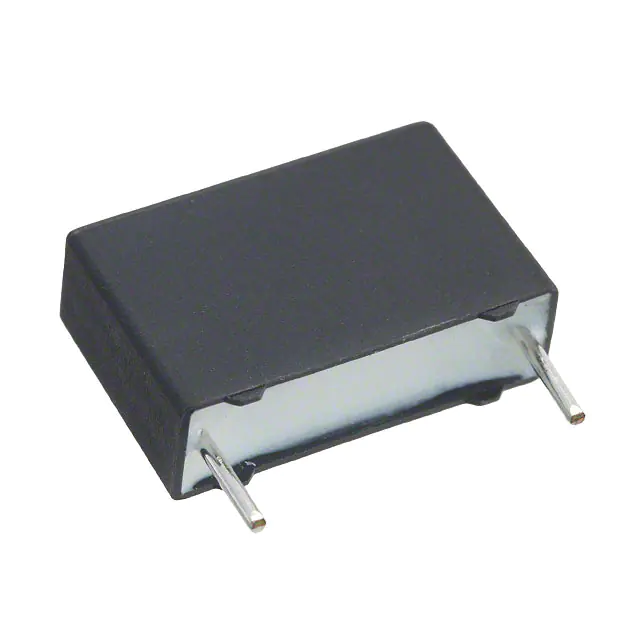

160104K400G-FCAP FILM 0.1UF 10% 400VDC RADIAL |
2,980 | 1.77 |
RFQ |
Datasheet |
Radial | Bulk | 160 | Active | 0.1 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.236 W (18.00mm x 6.00mm) | 0.472 (12.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
160224J250F-FCAP FILM 0.22UF 5% 250VDC RADIAL |
2,950 | 1.77 |
RFQ |
Datasheet |
Radial | Bulk | 160 | Active | 0.22 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.433 (11.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|

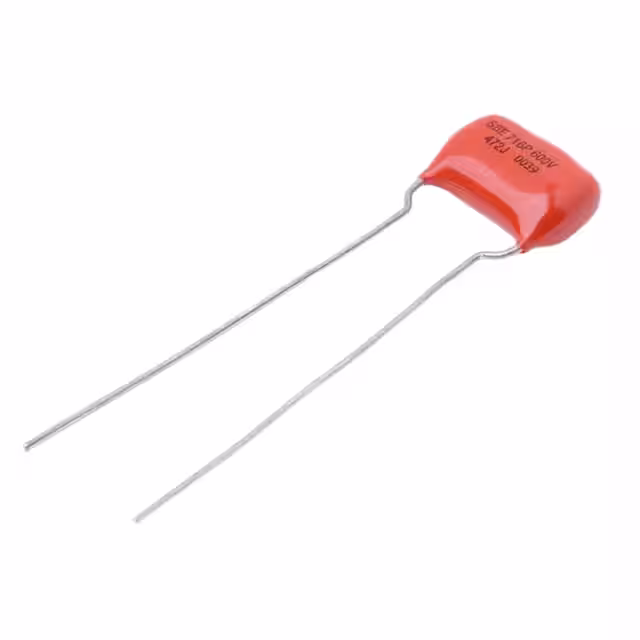

CP-OD716-0047-600VCAP FILM .0047UF 600V 716 SERIES |
112 | 1.78 |
RFQ |
Radial | Bulk | Orange Drop® 716P | Active | 4700 pF | - | - | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | - | - | PC Pins | - | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
