Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Z26S3770M50NCAP FILM 70UF -1% +5% 370VAC RAD |
3,321 | 16.97 |
RFQ |
Datasheet |
Radial, Can | Bulk | - | Active | 70 µF | -1%, +5% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount | 2.500 Dia (63.50mm) | 4.330 (109.98mm) | Quick Connect, Disconnect | - | General Purpose | - |
.JPG)
|
SFP37T30K284B-FCAP FILM 30UF 10% 370VAC RADIAL |
2,817 | 36.77 |
RFQ |
Datasheet |
Radial, Can | Bulk | SF | Active | 30 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 1.870 Dia (47.50mm), Lip | 2.960 (75.18mm) | Quick Connect, Disconnect | 0.810 (20.57mm) | Motor Run | - |
|

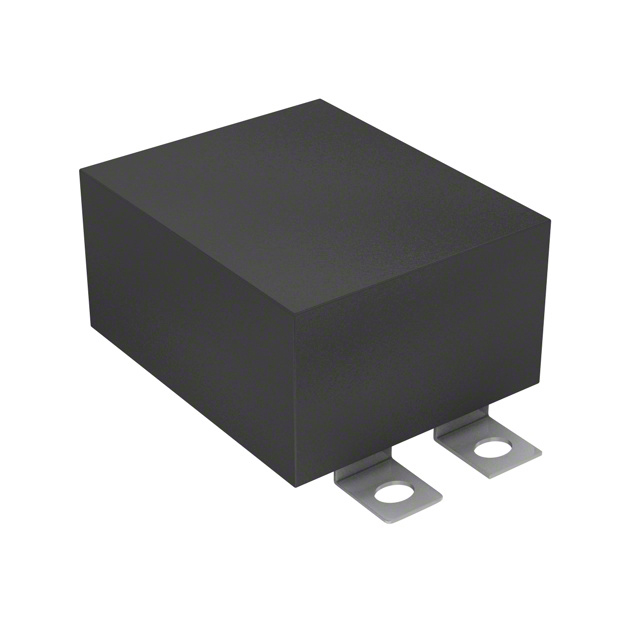

SCD305K122C3Z25-FCAP FILM 3UF 10% 1.2KVDC SCREW |
3,112 | 42.85 |
RFQ |
Datasheet |
Rectangular Box | Bulk | SCD | Active | 3 µF | ±10% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 85°C | Chassis Mount | 2.476 L x 3.000 W (62.90mm x 76.20mm) | 1.500 (38.10mm) | Screw Terminals | 1.000 (25.40mm) | Snubber | - |
|
SFT44T40K391B-FCAP FILM 40UF 10% 440VAC RADIAL |
3,923 | 43.27 |
RFQ |
Datasheet |
Radial, Can | Bulk | SF | Active | 40 µF | ±10% | 440V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.620 Dia (66.55mm), Lip | 4.030 (102.36mm) | Quick Connect, Disconnect | 0.810 (20.57mm) | Motor Run | - |
|

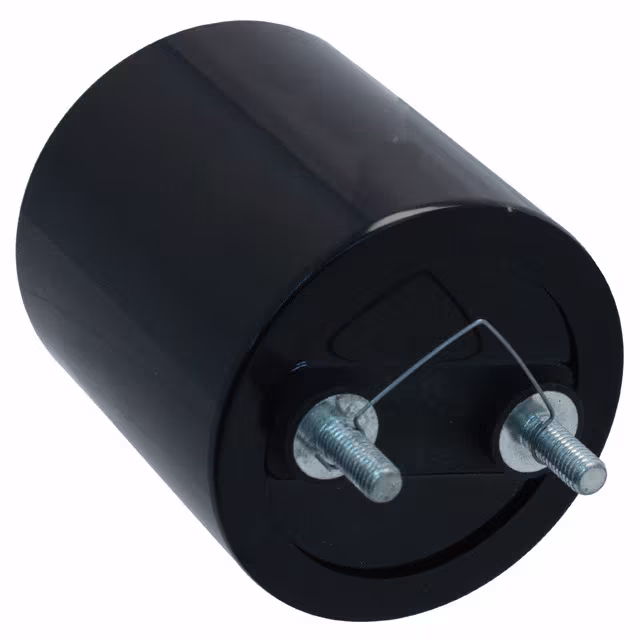

947C161K122CAMSCAP FILM 160UF 10% 1.2KVDC RAD |
2,017 | 78.97 |
RFQ |
Datasheet |
Radial, Can | Bulk | 947C | Active | 160 µF | ±10% | 230V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.1 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.543 Dia (90.00mm) | 3.898 (99.00mm) | Threaded, Male | 1.772 (45.00mm) | DC Link, DC Filtering | - |
|
947C211K122CBMSCAP FILM 210UF 10% 1.2KVDC RAD |
3,424 | 90.69 |
RFQ |
Datasheet |
Radial, Can | Bulk | 947C | Active | 210 µF | ±10% | 230V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.9 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.543 Dia (90.00mm) | 4.803 (122.00mm) | Threaded, Male | 1.772 (45.00mm) | DC Link, DC Filtering | - |
|
SCRN236R-FCAP FILM 5UF 10% 1KVPK RADIAL |
3,504 | 95.10 |
RFQ |
Datasheet |
Radial, Can | Bulk | SCR | Active | 5 µF | ±10% | 1000Vpk (1KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.690 L x 1.560 W (68.33mm x 39.62mm), Lip | 4.310 (109.47mm) | Threaded, Male | 1.250 (31.75mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - |
|
T10P5NR-FCAP FILM 0.5UF 10% 1KVDC RADIAL |
3,344 | 96.83 |
RFQ |
Datasheet |
Radial, Can | Bulk,Bulk | T | Active | 0.5 µF | ±10% | - | 1000V (1kV) | Paper, Metallized | - | -55°C ~ 105°C | Chassis Mount, Requires Holder/Bracket | 2.160 L x 1.310 W (54.86mm x 33.27mm), Lip | 2.190 (55.63mm) | Threaded, Male | 0.810 (20.57mm) | EMI, RFI Suppression | - |
|

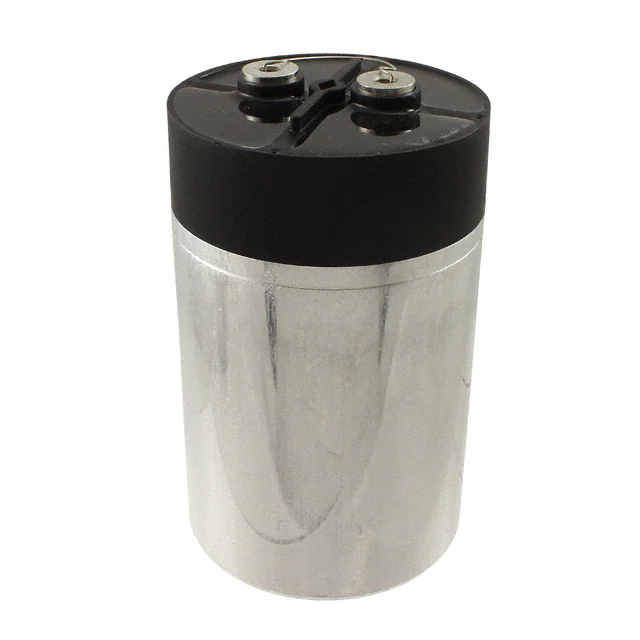

947D421K112AHGSNCAP FILM 420UF 10% 1.1KVDC RAD |
3,083 | 105.03 |
RFQ |
Datasheet |
Radial, Can | Bulk | 947D | Active | 420 µF | ±10% | 230V | 1100V (1.1kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 3.346 Dia (85.00mm) | 5.433 (138.00mm) | Threaded, Female | 1.260 (32.00mm) | DC Link, DC Filtering | - |
|
|

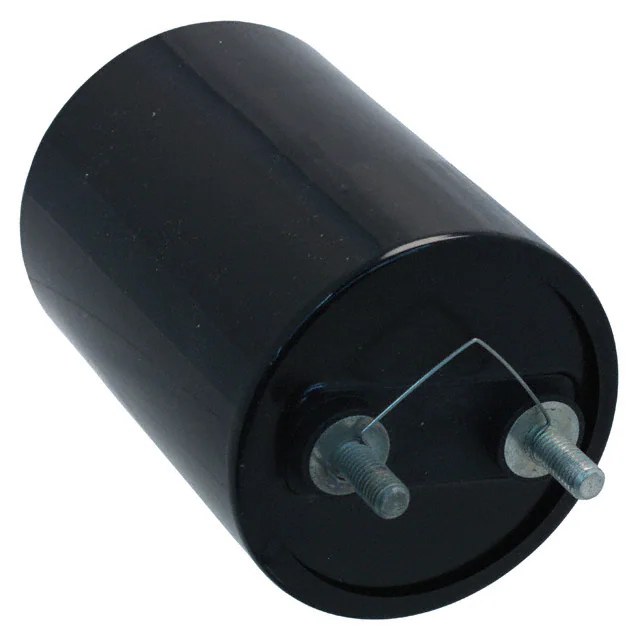

947C491K801CBMSCAP FILM 490UF 10% 800VDC RADIAL |
3,397 | 113.24 |
RFQ |
Datasheet |
Radial, Can | Bulk | 947C | Active | 490 µF | ±10% | 230V | 800V | Polypropylene (PP), Metallized | 2.6 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.543 Dia (90.00mm) | 4.803 (122.00mm) | Threaded, Male | 1.772 (45.00mm) | DC Link, DC Filtering | - |
|
947D941K112DLRSNCAP FILM 940UF 10% 1.1KVDC RAD |
2,484 | 170.97 |
RFQ |
Datasheet |
Radial, Can | Bulk | 947D | Active | 940 µF | ±10% | 230V | 1100V (1.1kV) | Polypropylene (PP), Metallized | 1.9 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 4.567 Dia (116.00mm) | 6.417 (163.00mm) | Threaded, Female | 1.969 (50.00mm) | DC Link, DC Filtering | - |
|

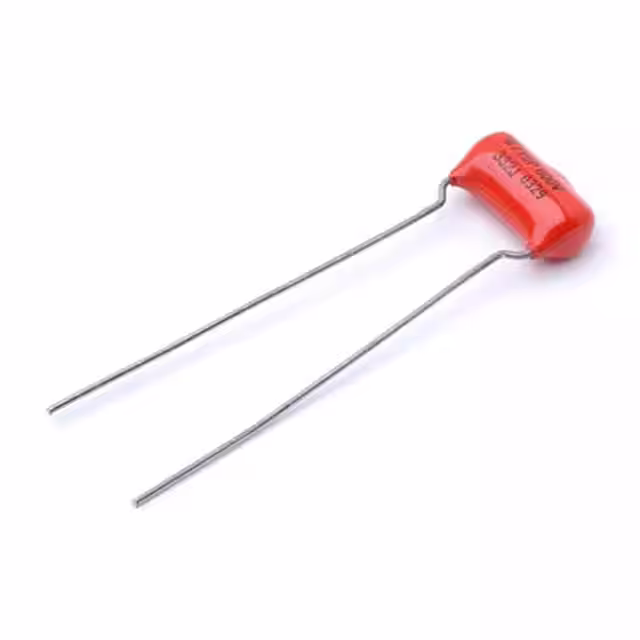

715P33296JCAP FILM .0033UF 600V |
3,535 | 0.63 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 3300 pF | - | - | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | - | - | PC Pins | - | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
715P47296JCAP FILM .0047UF 600V 715 SER |
2,529 | 0.70 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 4700 pF | - | - | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | - | - | PC Pins | - | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|

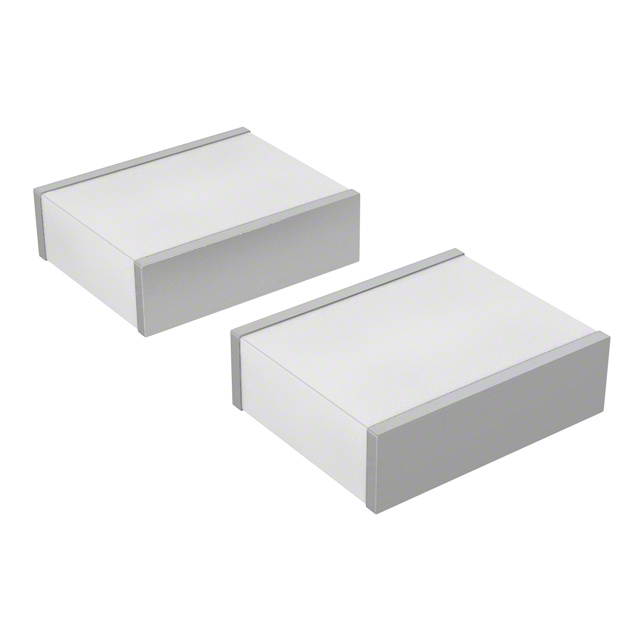

FCN2416A104K-D1CAP FILM 0.1UF 10% 100VDC 2416 |
2,995 | 2.50 |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT),Bulk | FCN | Active | 0.1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.189 L x 0.236 W (4.80mm x 6.00mm) | 0.083 (2.10mm) | Solder Pads | - | General Purpose | - |
|
RA4105K100-FACAP FILM 1UF 10% 100VDC RADIAL |
3,070 | 1.92 |
RFQ |
Datasheet |
Radial | Bulk | Angstor® RA | Active | 1 µF | ±10% | 80V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.449 L x 0.173 W (11.40mm x 4.40mm) | 0.283 (7.20mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching; High Pulse, DV/DT; EMI, RFI Suppression | - |
|

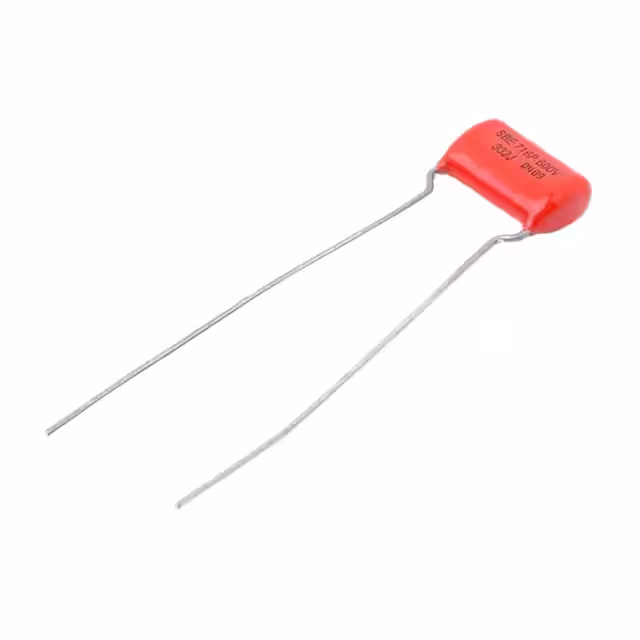

CP-OD716-0033-600VCAP FILM .0033UF 600V 716 SERIES |
3,020 | 1.12 |
RFQ |
Radial | Bulk | Orange Drop® 716P | Active | 3300 pF | - | - | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | - | - | PC Pins | - | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | |
|

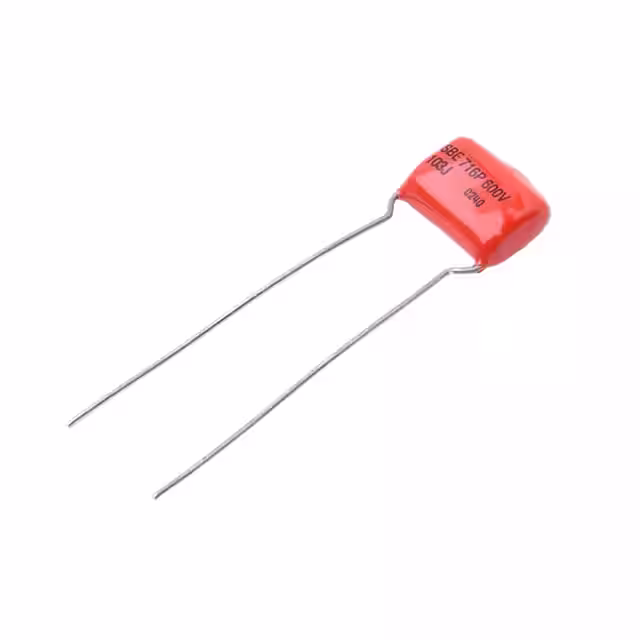

CP-OD716-010-600VCAP FILM .010UF 600V 716 SERIES |
2,494 | 1.25 |
RFQ |
Radial | Bulk | Orange Drop® 716P | Active | 10000 pF | - | - | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | - | - | PC Pins | - | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | |
|
167473J100A-FCAP FILM 0.047UF 5% 100VDC RAD |
2,203 | 1.30 |
RFQ |
Datasheet |
Radial | Bulk | 167 | Active | 0.047 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.413 L x 0.138 W (10.50mm x 3.50mm) | 0.276 (7.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|

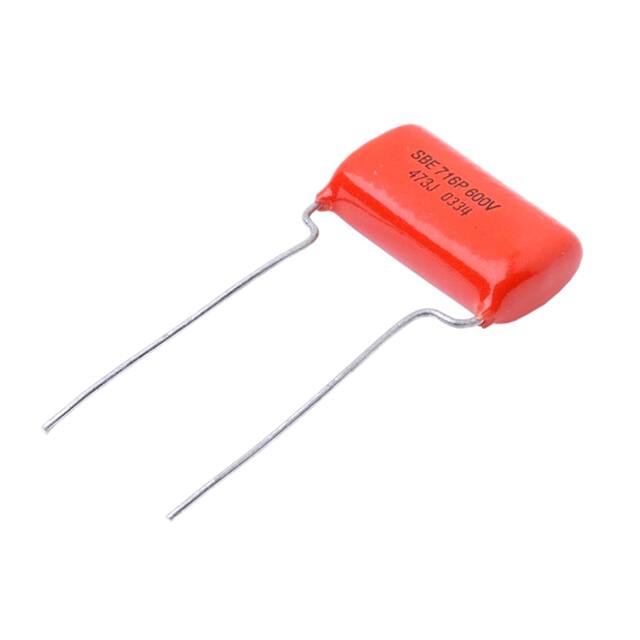

CP-OD716-047-600VCAP FILM .047UF 600V 716 SERIES |
2,724 | 1.98 |
RFQ |
Radial | Bulk | Orange Drop® 716P | Active | 0.047 µF | - | - | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | - | - | PC Pins | - | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | |
|

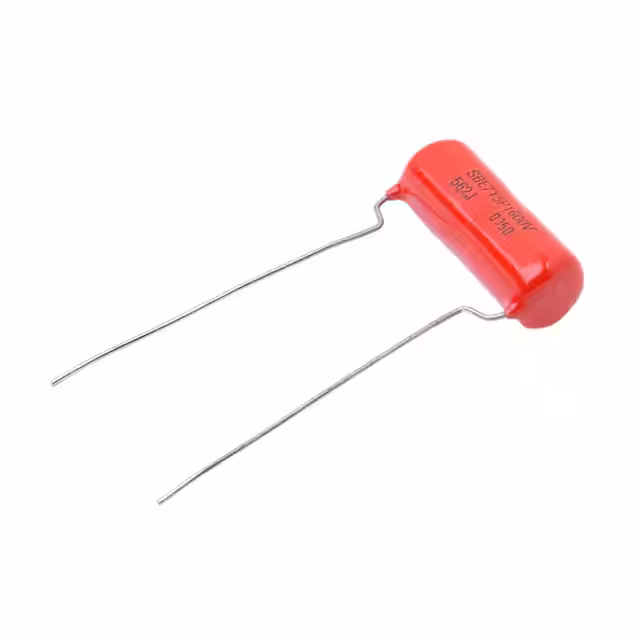

CP-OD715-056-1600VCAP FILM .0056UF 1600V ORG DROP |
3,048 | 2.25 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 5600 pF | - | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | - | - | PC Pins | - | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
