Cincon Electronics Co. LTD CHB200W12-72S48N

Name: CHB200W12-72S48N
Brand: Cincon Electronics Co. LTD
SKU: CHB200W12-72S48N
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Part No.:: CHB200W12-72S48N

Manufacturer:: Cincon Electronics Co. LTD

Category:: DC DC Converters

Package:: Half Brick

Datasheet:: CHB200W12-72S48N.pdf

Description:: DC DC CONVERTER 48V 200W

Quantity:: RFQ

Payment:

Shipping:

Product details

Package/Case:
Half Brick
Packaging:
Box
Series:
CHB200W12 (200W)
ProductStatus:
Active
Type:
Isolated Module
NumberofOutputs:
1
Voltage-Input(Min):
14V
Voltage-Input(Max):
160V
Voltage-Output1:
48V
Voltage-Output2:
-
Voltage-Output3:
-
Voltage-Output4:
-
Current-Output(Max):
4.2A
Power(Watts):
200 W
Voltage-Isolation:
3 kV
Applications:
ITE (Commercial), Railway
Features:
Remote On/Off, Remote Sense
OperatingTemperature:
-40°C ~ 100°C
Efficiency:
90%
MountingType:
Through Hole
Size/Dimension:
2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm)
ControlFeatures:
ApprovalAgency:
Category:
DC DC Converters
Datasheet:

CHB200W12-72S48N.pdf

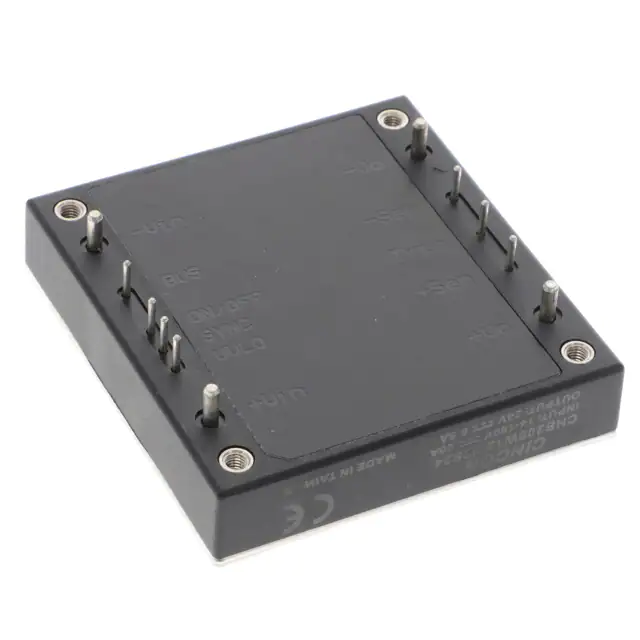

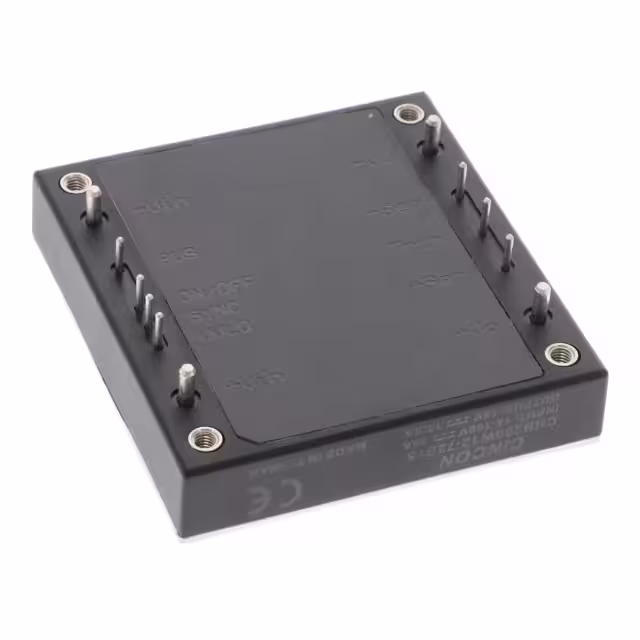

Part Number	CHB200W12-72S48N	CHB200W12-72S15N	CHB200W12-72S15	CHB200W12-72S24	CHB200W12-72S24N
Manufacturer	Cincon Electronics Co. LTD	Cincon Electronics Co. LTD	Cincon Electronics Co. LTD	Cincon Electronics Co. LTD	Cincon Electronics Co. LTD
Package/Case	Half Brick	Half Brick	Half Brick	Half Brick	Half Brick
Packaging	Box	Box	Box	Box	Box
Series	CHB200W12 (200W)	CHB200W12 (200W)	CHB200W12 (200W)	CHB200W12 (200W)	CHB200W12 (200W)
ProductStatus	Active	Active	Active	Active	Active
Type	Isolated Module	Isolated Module	Isolated Module	Isolated Module	Isolated Module
NumberofOutputs	1	1	1	1	1
Voltage-Input(Min)	14V	14V	14V	14V	14V
Voltage-Input(Max)	160V	160V	160V	160V	160V
Voltage-Output1	48V	48V	48V	48V	48V
Voltage-Output2	-	-	-	-	-
Voltage-Output3	-	-	-	-	-
Voltage-Output4	-	-	-	-	-
Current-Output(Max)	4.2A	4.2A	4.2A	4.2A	4.2A
Power(Watts)	200 W	200 W	200 W	200 W	200 W
Voltage-Isolation	3 kV	3 kV	3 kV	3 kV	3 kV
Applications	ITE (Commercial), Railway	ITE (Commercial), Railway	ITE (Commercial), Railway	ITE (Commercial), Railway	ITE (Commercial), Railway
Features	Remote On/Off, Remote Sense	Remote On/Off, Remote Sense	Remote On/Off, Remote Sense	Remote On/Off, Remote Sense	Remote On/Off, Remote Sense
OperatingTemperature	-40°C ~ 100°C	-40°C ~ 100°C	-40°C ~ 100°C	-40°C ~ 100°C	-40°C ~ 100°C
Efficiency	90%	90%	90%	90%	90%
MountingType	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Size/Dimension	2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm)	2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm)	2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm)	2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm)	2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm)
ControlFeatures
ApprovalAgency
