Trinamic Motion Control GmbH QSH6018-56-28-165

Name: QSH6018-56-28-165
Brand: Trinamic Motion Control GmbH
SKU: QSH6018-56-28-165
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Part No.:: QSH6018-56-28-165

Manufacturer:: Trinamic Motion Control GmbH

Category:: Stepper Motors

Package:

Datasheet:: QSH6018-56-28-165.pdf

Description:: STEP MOTOR HYBRID BIPOLAR 2.52V

Quantity:: RFQ

Payment:

Shipping:

Product details

Packaging:
Bulk
Series:
QMot QSH6018
ProductStatus:
Active
Type:
Hybrid
CoilType:
Bipolar
Voltage-Rated:
2.52VDC
CurrentRating(Amps):
2.8 A
StepsperRevolution:
200
StepAngle:
1.8°
Accuracy:
±5%
Torque-Holding(oz-in/mNm):
233.66 / 1650
Size/Dimension:
Square - 2.362 x 2.362 (60.00mm x 60.00mm)
NEMAFrameSize:
24
Diameter-Shaft:
0.315 (8.00mm)
Length-ShaftandBearing:
0.945 (24.00mm)
MountingHoleSpacing:
1.856 (47.14mm)
TerminationStyle:
Wire Leads
OperatingTemperature:
-20°C ~ 50°C
CoilResistance:
0.9 Ohms
Category:
Stepper Motors
Datasheet:

QSH6018-56-28-165.pdf

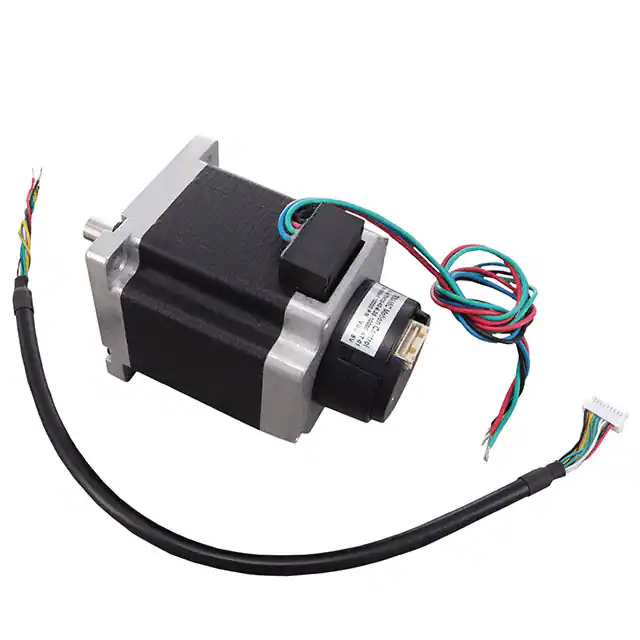

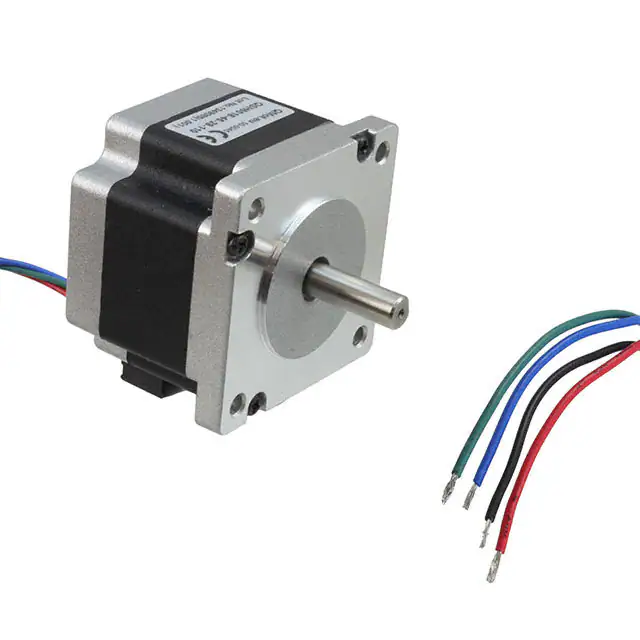

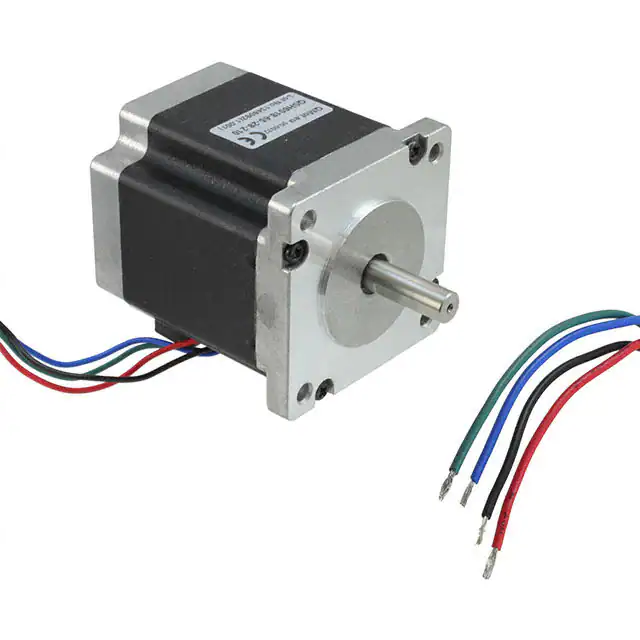

Part Number	QSH6018-56-28-165	QSH6018-86-28-310	QSH6018-65-28-210	QSH6018-45-28-110	QSH6018-65-28-210-10K
Manufacturer	Trinamic Motion Control GmbH	Trinamic Motion Control GmbH	Trinamic Motion Control GmbH	Trinamic Motion Control GmbH	Trinamic Motion Control GmbH
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Series	QMot QSH6018	QMot QSH6018	QMot QSH6018	QMot QSH6018	QMot QSH6018
ProductStatus	Active	Active	Active	Active	Active
Type	Hybrid	Hybrid	Hybrid	Hybrid	Hybrid
CoilType	Bipolar	Bipolar	Bipolar	Bipolar	Bipolar
Voltage-Rated	2.52VDC	2.52VDC	2.52VDC	2.52VDC	2.52VDC
CurrentRating(Amps)	2.8 A	2.8 A	2.8 A	2.8 A	2.8 A
StepsperRevolution	200	200	200	200	200
StepAngle	1.8°	1.8°	1.8°	1.8°	1.8°
Accuracy	±5%	±5%	±5%	±5%	±5%
Torque-Holding(oz-in/mNm)	233.66 / 1650	233.66 / 1650	233.66 / 1650	233.66 / 1650	233.66 / 1650
Size/Dimension	Square - 2.362 x 2.362 (60.00mm x 60.00mm)	Square - 2.362 x 2.362 (60.00mm x 60.00mm)	Square - 2.362 x 2.362 (60.00mm x 60.00mm)	Square - 2.362 x 2.362 (60.00mm x 60.00mm)	Square - 2.362 x 2.362 (60.00mm x 60.00mm)
NEMAFrameSize	24	24	24	24	24
Diameter-Shaft	0.315 (8.00mm)	0.315 (8.00mm)	0.315 (8.00mm)	0.315 (8.00mm)	0.315 (8.00mm)
Length-ShaftandBearing	0.945 (24.00mm)	0.945 (24.00mm)	0.945 (24.00mm)	0.945 (24.00mm)	0.945 (24.00mm)
MountingHoleSpacing	1.856 (47.14mm)	1.856 (47.14mm)	1.856 (47.14mm)	1.856 (47.14mm)	1.856 (47.14mm)
TerminationStyle	Wire Leads	Wire Leads	Wire Leads	Wire Leads	Wire Leads
OperatingTemperature	-20°C ~ 50°C	-20°C ~ 50°C	-20°C ~ 50°C	-20°C ~ 50°C	-20°C ~ 50°C
CoilResistance	0.9 Ohms	0.9 Ohms	0.9 Ohms	0.9 Ohms	0.9 Ohms
