Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECH-U1H561GB5CAP FILM 560PF 2% 50VDC 0805 |
2,597 | 0.94 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 560 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1H391GB5CAP FILM 390PF 2% 50VDC 0805 |
2,175 | 0.94 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 390 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
ECW-FD2W824J4CAP FILM 0.82UF 5% 450VDC RADIAL |
3,362 | 0.83 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | ECW-F(D) | Active | 0.82 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.283 W (17.50mm x 7.20mm) | 0.409 (10.40mm) | PC Pins | 0.295 (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-U2682KC9CAP FILM 6800PF 10% 250VDC 1913 |
3,448 | 1.08 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 6800 pF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.063 (1.60mm) | Solder Pads | - | General Purpose | - |
|
ECQ-E4393KFCAP FILM 0.039UF 10% 400VDC RAD |
3,578 | 0.43 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.039 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.193 W (12.00mm x 4.90mm) | 0.354 (9.00mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
ECQ-E2273KBCAP FILM 0.027UF 10% 250VDC RAD |
2,501 | 0.43 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.027 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.311 L x 0.169 W (7.90mm x 4.30mm) | 0.323 (8.20mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
|
ECW-U2152V16CAP FILM 1500PF 5% 250VDC 1913 |
2,039 | 1.21 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(V16) | Active | 1500 pF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.067 (1.70mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECW-U2153V16CAP FILM 0.015UF 5% 250VDC 1913 |
2,265 | 1.21 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(V16) | Active | 0.015 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.067 (1.70mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - |
|

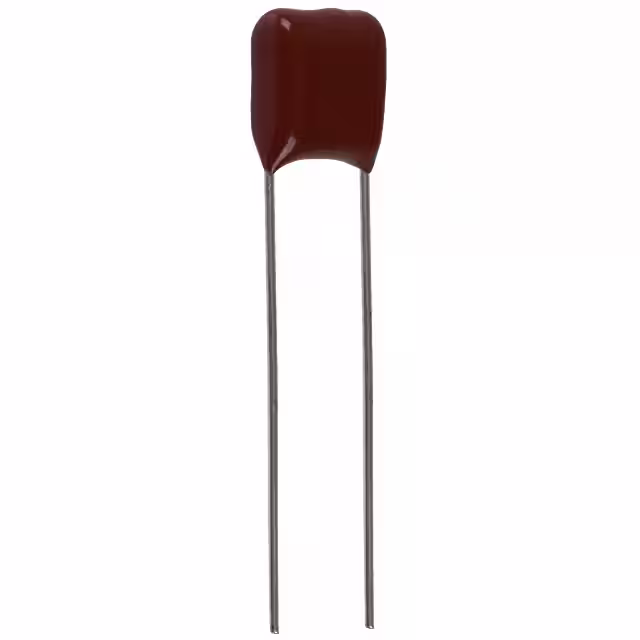

ECQ-E2184KBCAP FILM 0.18UF 10% 250VDC RAD |
2,219 | 0.50 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.18 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.197 W (10.30mm x 5.00mm) | 0.421 (10.70mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
ECH-U1H333GB5CAP FILM 0.033UF 2% 50VDC 1210 |
3,495 | 1.41 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 0.033 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.098 W (3.20mm x 2.50mm) | 0.087 (2.20mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1H393GB5CAP FILM 0.039UF 2% 50VDC 1210 |
3,281 | 1.48 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 0.039 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.098 W (3.20mm x 2.50mm) | 0.087 (2.20mm) | Solder Pads | - | General Purpose | - |
|
ECQ-E2683KFCAP FILM 0.068UF 10% 250VDC RAD |
2,292 | 0.55 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.068 µF | ±10% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.177 W (10.30mm x 4.50mm) | 0.335 (8.50mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
ECH-U1473GC9CAP FILM 0.047UF 2% 100VDC 2416 |
3,121 | 1.71 |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(C) | Active | 0.047 µF | ±2% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.102 (2.60mm) | Solder Pads | - | General Purpose | - |
 Series.jpg)
|
ECW-FE2J224KCAP FILM 0.22UF 10% 630VDC RAD |
3,022 | 0.75 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 0.22 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689 L x 0.276 W (17.50mm x 7.00mm) | 0.492 (12.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-E2564JBCAP FILM 0.56UF 5% 250VDC RADIAL |
2,117 | 0.76 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.56 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.484 L x 0.264 W (12.30mm x 6.70mm) | 0.508 (12.90mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
 Series Style Straight.jpg)
|
ECW-FA2J124JCAP FILM 0.12UF 5% 630VDC RADIAL |
2,593 | 0.66 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.12 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717 L x 0.217 W (18.20mm x 5.50mm) | 0.425 (10.80mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
ECQ-E4184KFCAP FILM 0.18UF 10% 400VDC RAD |
3,430 | 0.70 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.18 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.213 W (18.50mm x 5.40mm) | 0.532 (13.50mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
ECW-FE2J154JCAP FILM 0.15UF 5% 630VDC RADIAL |
3,093 | 0.72 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 0.15 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689 L x 0.236 W (17.50mm x 6.00mm) | 0.453 (11.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-UAAF154T1CAP FILM 0.15UF 10% 275VAC RAD |
2,789 | 0.72 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.15 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.236 W (17.50mm x 6.00mm) | 0.531 (13.50mm) | PC Pins | 0.591 (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
|
ECW-FE2J334KCAP FILM 0.33UF 10% 630VDC RAD |
2,770 | 0.74 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 0.33 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689 L x 0.335 W (17.50mm x 8.50mm) | 0.571 (14.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
