Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E2824JFCAP FILM 0.82UF 5% 250VDC RADIAL |
2,671 | 0.75 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.82 µF | ±5% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.256 W (18.50mm x 6.50mm) | 0.610 (15.50mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|

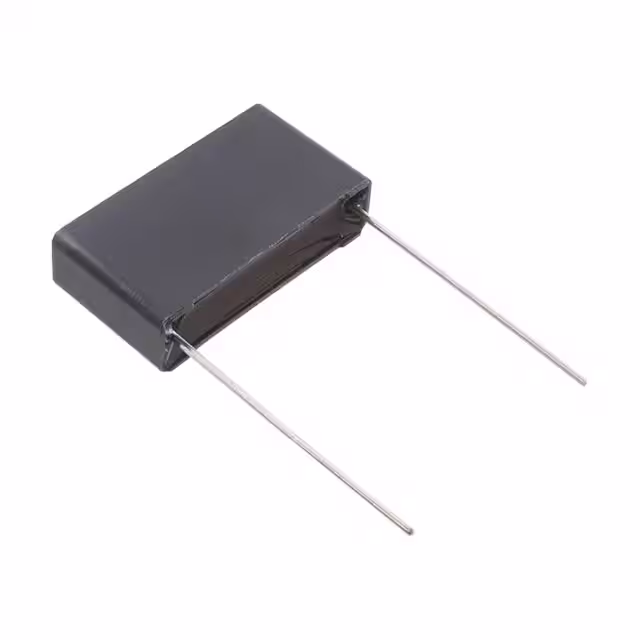

ECW-FE2J334Q5CAP FILM 0.33UF 10% 630VDC RAD |
3,166 | 0.77 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 0.33 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.276 W (26.00mm x 7.00mm) | 0.571 (14.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-FD2W125JCAP FILM 1.2UF 5% 450VDC RADIAL |
3,143 | 0.87 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 1.2 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.335 W (17.50mm x 8.50mm) | 0.457 (11.60mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
 Series Straight 18x9.jpg)
|
ECW-FA2J394JCAP FILM 0.39UF 5% 630VDC RADIAL |
2,351 | 0.87 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.39 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717 L x 0.362 W (18.20mm x 9.20mm) | 0.563 (14.30mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
ECW-FD2J333KQCAP FILM 0.033UF 10% 630VDC RAD |
3,122 | 0.76 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.033 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.496 L x 0.295 W (12.60mm x 7.50mm) | 0.413 (10.50mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-FD2J334JCAP FILM 0.33UF 5% 630VDC RADIAL |
2,388 | 0.79 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.33 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701 L x 0.260 W (17.80mm x 6.60mm) | 0.512 (13.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-E4823JFCAP FILM 0.082UF 5% 400VDC RAD |
3,953 | 0.82 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.082 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.228 W (12.00mm x 5.80mm) | 0.472 (12.00mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
|
ECW-FD2W564JCAP FILM 0.56UF 5% 450VDC RADIAL |
3,777 | 0.83 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.56 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.244 W (17.50mm x 6.20mm) | 0.370 (9.40mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
 Series.jpg)
|
ECW-FE2W684JCAP FILM 0.68UF 5% 450VDC RADIAL |
2,348 | 0.83 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 0.68 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689 L x 0.276 W (17.50mm x 7.00mm) | 0.492 (12.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-UAAF154TACAP FILM 0.15UF 10% 275VAC RAD |
3,096 | 0.83 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.15 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.236 W (17.50mm x 6.00mm) | 0.531 (13.50mm) | PC Pins | 0.591 (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
ECQ-E2824KBCAP FILM 0.82UF 10% 250VDC RAD |
3,842 | 0.84 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.82 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.602 L x 0.248 W (15.30mm x 6.30mm) | 0.567 (14.40mm) | PC Pins | 0.492 (12.50mm) | General Purpose | - |
 Series Style B.jpg)
|
ECW-F2W184JAQCAP FILM 0.18UF 5% 450VDC RADIAL |
2,999 | 0.86 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.18 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.240 W (13.00mm x 6.10mm) | 0.657 (16.70mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECQ-UAAF474T1CAP FILM 0.47UF 10% 275VAC RAD |
3,816 | 0.87 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.47 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.335 W (26.00mm x 8.50mm) | 0.610 (15.50mm) | PC Pins | 0.886 (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
ECQ-E1125JFCAP FILM 1.2UF 5% 100VDC RADIAL |
3,064 | 0.91 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1.2 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.217 W (18.50mm x 5.50mm) | 0.543 (13.80mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
ECQ-UAAF334TACAP FILM 0.33UF 10% 275VAC RAD |
2,622 | 0.91 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.33 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.354 W (17.50mm x 9.00mm) | 0.650 (16.50mm) | PC Pins | 0.591 (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
ECQ-E6154JFCAP FILM 0.15UF 5% 630VDC RADIAL |
2,302 | 0.98 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.15 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.295 W (18.50mm x 7.50mm) | 0.646 (16.40mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
ECQ-UAAF684SACAP FILM 0.68UF 20% 275VAC RAD |
990 | 1.07 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.68 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.394 W (26.00mm x 10.00mm) | 0.689 (17.50mm) | PC Pins | 0.886 (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
ECQ-E2155JBCAP FILM 1.5UF 5% 250VDC RADIAL |
2,677 | 1.10 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 1.5 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.602 L x 0.339 W (15.30mm x 8.60mm) | 0.657 (16.70mm) | PC Pins | 0.492 (12.50mm) | General Purpose | - |
|
|
ECW-FE2J105KCAP FILM 1UF 10% 630VDC RADIAL |
2,558 | 1.14 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 1 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.394 W (26.00mm x 10.00mm) | 0.669 (17.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-FD2J125JCAP FILM 1.2UF 5% 630VDC RADIAL |
3,125 | 1.22 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 1.2 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.996 L x 0.362 W (25.30mm x 9.20mm) | 0.622 (15.80mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
