Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E2335JFCAP FILM 3.3UF 5% 250VDC RADIAL |
2,654 | 1.28 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 3.3 µF | ±5% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.406 W (26.00mm x 10.30mm) | 0.768 (19.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
ECQ-E4684JFCAP FILM 0.68UF 5% 400VDC RADIAL |
2,780 | 1.29 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.68 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.276 W (26.00mm x 7.00mm) | 0.689 (17.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|

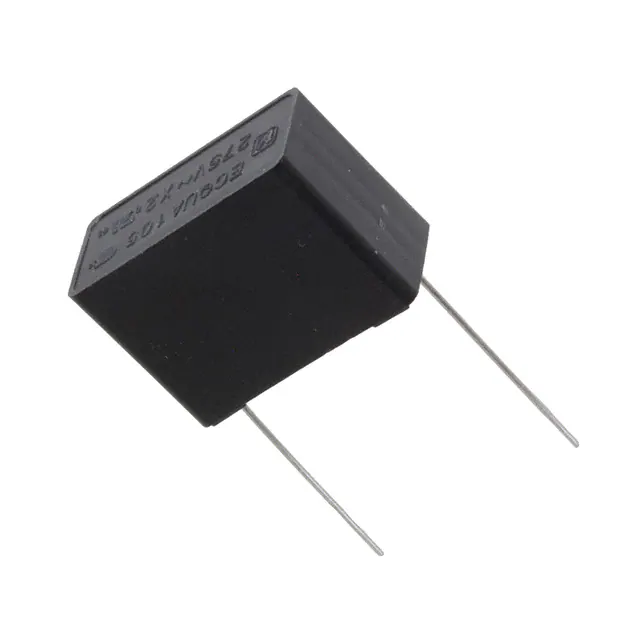

ECQ-UAAF105T1CAP FILM 1UF 10% 275VAC RAD |
600 | 1.29 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 1 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.472 W (26.00mm x 12.00mm) | 0.768 (19.50mm) | PC Pins | 0.886 (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
ECQ-E2275JFCAP FILM 2.7UF 5% 250VDC RADIAL |
2,608 | 1.31 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 2.7 µF | ±5% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.370 W (26.00mm x 9.40mm) | 0.709 (18.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|

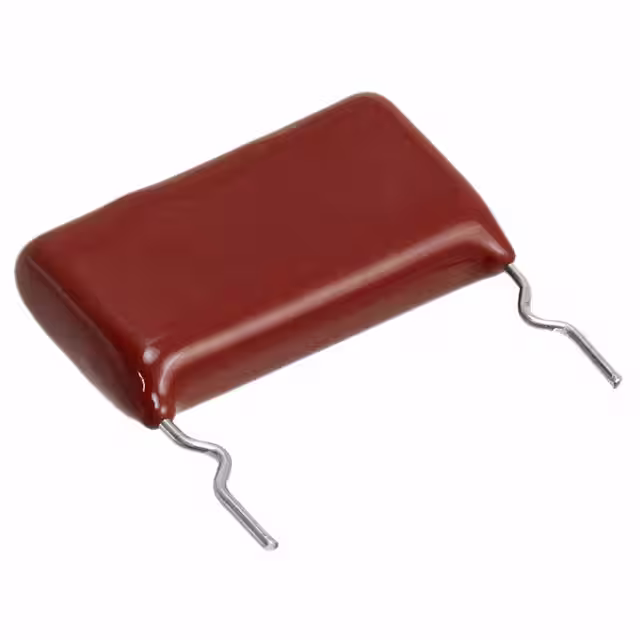

ECW-HC3F822JQCAP FILM 8200PF 5% 3KVDC RADIAL |
3,368 | 1.31 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(C) | Active | 8200 pF | ±5% | 1060V (1.06kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.016 L x 0.295 W (25.80mm x 7.50mm) | 0.878 (22.30mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
 Series.jpg)
|
ECW-FE2J155KCAP FILM 1.5UF 10% 630VDC RADIAL |
2,368 | 1.35 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 1.5 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.472 W (26.00mm x 12.00mm) | 0.748 (19.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-E2275KBCAP FILM 2.7UF 10% 250VDC RADIAL |
2,866 | 1.37 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 2.7 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.819 L x 0.366 W (20.80mm x 9.30mm) | 0.697 (17.70mm) | PC Pins | 0.689 (17.50mm) | General Purpose | - |
|
ECW-U1684KCVCAP FILM 0.68UF 10% 100VDC 3925 |
3,794 | 3.43 |
RFQ |
Datasheet |
3925 (9863 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.68 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.386 L x 0.248 W (9.80mm x 6.30mm) | 0.150 (3.80mm) | Solder Pads | - | General Purpose | - |
 Series Straight 26x13.jpg)
|
ECW-FA2J155JCAP FILM 1.5UF 5% 630VDC RADIAL |
540 | 1.48 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 1.5 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.531 W (26.00mm x 13.50mm) | 0.732 (18.60mm) | PC Pins | 0.886 (22.50mm) | High Frequency, Switching | - |
|
ECW-FG2J155QACAP FILM 1.5UF 10% 630VDC RADIAL |
2,237 | 1.49 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 1.5 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.063 L x 0.472 W (27.00mm x 12.00mm) | 0.846 (21.50mm) | PC Pins | 0.886 (22.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
ECW-H6114HCCCAP FILM 0.11UF 3% 630VDC RADIAL |
2,195 | 1.75 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(C) | Active | 0.11 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815 L x 0.354 W (20.70mm x 9.00mm) | 0.606 (15.40mm) | PC Pins | 0.689 (17.50mm) | General Purpose | - |
|
ECW-F6433JLCAP FILM 0.043UF 5% 630VDC RAD |
3,135 | 1.79 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.043 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.311 W (13.00mm x 7.90mm) | 0.480 (12.20mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
ECQ-E2335JBCAP FILM 3.3UF 5% 250VDC RADIAL |
2,546 | 1.83 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 3.3 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.819 L x 0.413 W (20.80mm x 10.50mm) | 0.744 (18.90mm) | PC Pins | 0.689 (17.50mm) | General Purpose | - |
|
ECW-F4114HLCAP FILM 0.11UF 3% 400VDC RADIAL |
3,614 | 1.94 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.11 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610 L x 0.268 W (15.50mm x 6.80mm) | 0.504 (12.80mm) | PC Pins | 0.492 (12.50mm) | High Frequency, Switching | - |
|
|
ECW-H6184HCBCAP FILM 0.18UF 3% 630VDC RADIAL |
3,989 | 1.94 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(C) | Active | 0.18 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815 L x 0.453 W (20.70mm x 11.50mm) | 0.839 (21.30mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
ECW-FG1B105JACAP FILM 1UF 5% 1.1KVDC RADIAL |
600 | 1.94 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 1 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.413 W (31.50mm x 10.50mm) | 0.846 (21.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
ECW-FG2J225PACAP FILM 2.2UF 5% 630VDC RADIAL |
2,138 | 2.00 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 2.2 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.063 L x 0.610 W (27.00mm x 15.50mm) | 0.965 (24.50mm) | PC Pins | 0.886 (22.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
ECW-FG2J225KCAP FILM 2.2UF 10% 630VDC RADIAL |
2,529 | 2.01 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 2.2 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.472 W (31.50mm x 12.00mm) | 0.984 (25.00mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
ECW-H6184HCCCAP FILM 0.18UF 3% 630VDC RADIAL |
2,589 | 2.09 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(C) | Active | 0.18 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815 L x 0.453 W (20.70mm x 11.50mm) | 0.701 (17.80mm) | PC Pins | 0.689 (17.50mm) | General Purpose | - |
|
|
ECW-FG2J305Q1CAP FILM 3UF 10% 630VDC RADIAL |
275 | 2.11 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 3 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.063 L x 0.689 W (27.00mm x 17.50mm) | 1.063 (27.00mm) | PC Pins | 0.886 (22.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
