Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

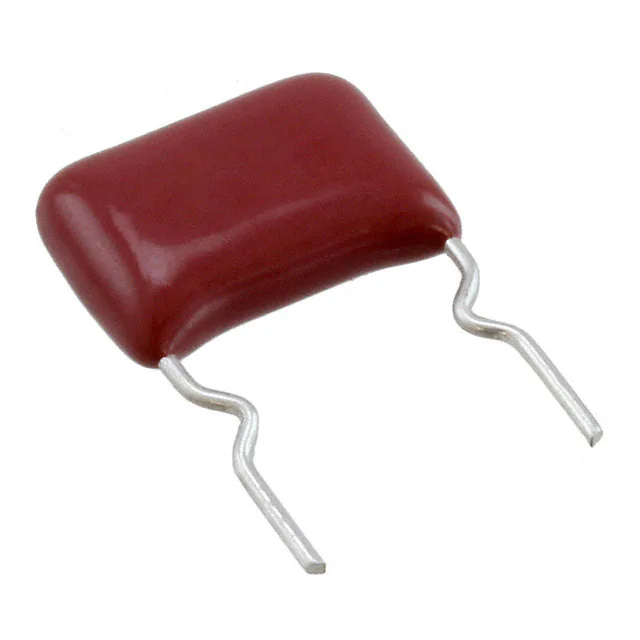

ECW-FD2W124KQCAP FILM 0.12UF 10% 450VDC RAD |
1,268 | 0.59 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.12 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.496 L x 0.181 W (12.60mm x 4.60mm) | 0.551 (14.00mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|

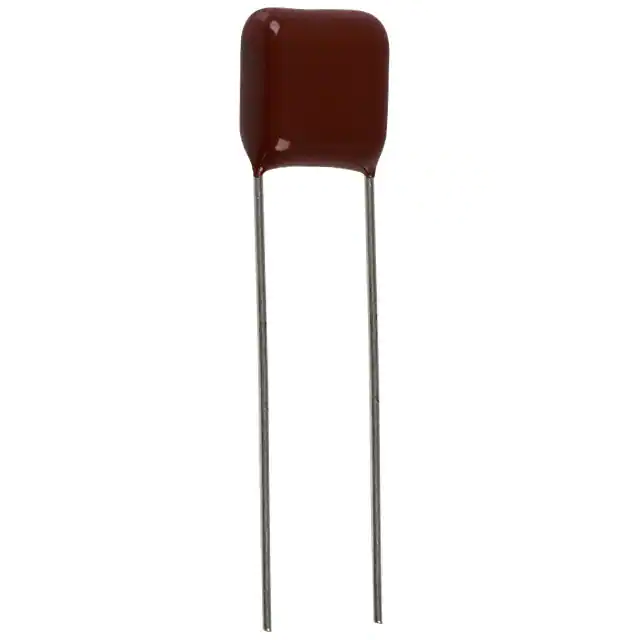

ECQ-E2274KBCAP FILM 0.27UF 10% 250VDC RAD |
2,580 | 0.61 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.27 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.232 W (10.30mm x 5.90mm) | 0.465 (11.80mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
ECQ-UAAF103MCAP FILM 0.01UF 20% 275VAC RADIA |
1,655 | 0.63 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 10000 pF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602 L x 0.197 W (15.30mm x 5.00mm) | 0.472 (12.00mm) | PC Pins | 0.492 (12.50mm) | EMI, RFI Suppression | X2 |
|
|
ECQ-UAAF822KCAP FILM 0.0082UF 10% 275VAC RAD |
1,956 | 0.64 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 8200 pF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602 L x 0.197 W (15.30mm x 5.00mm) | 0.472 (12.00mm) | PC Pins | 0.492 (12.50mm) | EMI, RFI Suppression | X2 |
|
ECQ-E6273KFCAP FILM 0.027UF 10% 630VDC RAD |
16,019 | 0.66 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.027 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.217 W (12.00mm x 5.50mm) | 0.469 (11.90mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
ECQ-E2274KFCAP FILM 0.27UF 10% 250VDC RAD |
4,900 | 0.65 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.27 µF | ±10% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.236 W (12.00mm x 6.00mm) | 0.492 (12.50mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
|
ECQ-UAAF223MCAP FILM 0.022UF 20% 275VAC RADI |
2,000 | 0.65 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.022 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602 L x 0.197 W (15.30mm x 5.00mm) | 0.472 (12.00mm) | PC Pins | 0.492 (12.50mm) | EMI, RFI Suppression | X2 |
|
|
ECQ-UAAF273MCAP FILM 0.027UF 20% 275VAC RADI |
1,880 | 0.65 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.027 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602 L x 0.197 W (15.30mm x 5.00mm) | 0.472 (12.00mm) | PC Pins | 0.492 (12.50mm) | EMI, RFI Suppression | X2 |
|
|
ECQ-UAAF333MCAP FILM 0.033UF 20% 275VAC RADI |
2,038 | 0.66 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.033 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602 L x 0.197 W (15.30mm x 5.00mm) | 0.472 (12.00mm) | PC Pins | 0.492 (12.50mm) | EMI, RFI Suppression | X2 |
 Series.jpg)
|
ECW-FE2W334KCAP FILM 0.33UF 10% 450VDC RAD |
1,488 | 0.66 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 0.33 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.236 W (13.00mm x 6.00mm) | 0.472 (12.00mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECH-U1563GC9CAP FILM 0.056UF 2% 100VDC 2416 |
3,490 | 1.79 |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(C) | Active | 0.056 µF | ±2% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.118 (3.00mm) | Solder Pads | - | General Purpose | - |
|
ECW-FD2W274KQCAP FILM 0.27UF 10% 450VDC RAD |
1,200 | 0.68 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.27 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.496 L x 0.209 W (12.60mm x 5.30mm) | 0.591 (15.00mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-E6154KFCAP FILM 0.15UF 10% 630VDC RAD |
3,800 | 0.69 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.15 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.295 W (18.50mm x 7.50mm) | 0.646 (16.40mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
ECQ-E6333JFCAP FILM 0.033UF 5% 630VDC RAD |
1,802 | 0.69 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.033 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.236 W (12.00mm x 6.00mm) | 0.508 (12.90mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
ECW-U2683KC9CAP FILM 0.068UF 10% 250VDC 2416 |
6,032 | 1.94 |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.068 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.134 (3.40mm) | Solder Pads | - | General Purpose | - |
|
ECW-U2683V16CAP FILM 0.068UF 5% 250VDC 2416 |
3,871 | 1.94 |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(V16) | Active | 0.068 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.138 (3.50mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - |
|

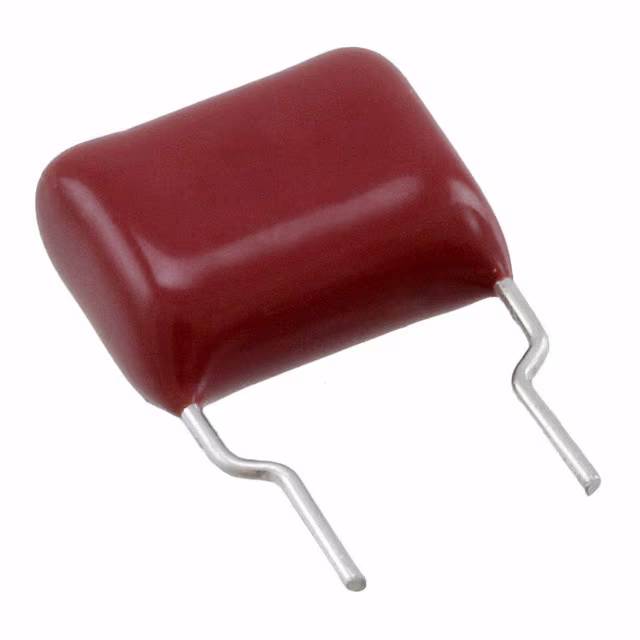

ECW-FD2W394JBCAP FILM 0.39UF 5% 450VDC RADIAL |
1,291 | 0.72 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.39 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.496 L x 0.236 W (12.60mm x 6.00mm) | 0.618 (15.70mm) | PC Pins | 0.295 (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|

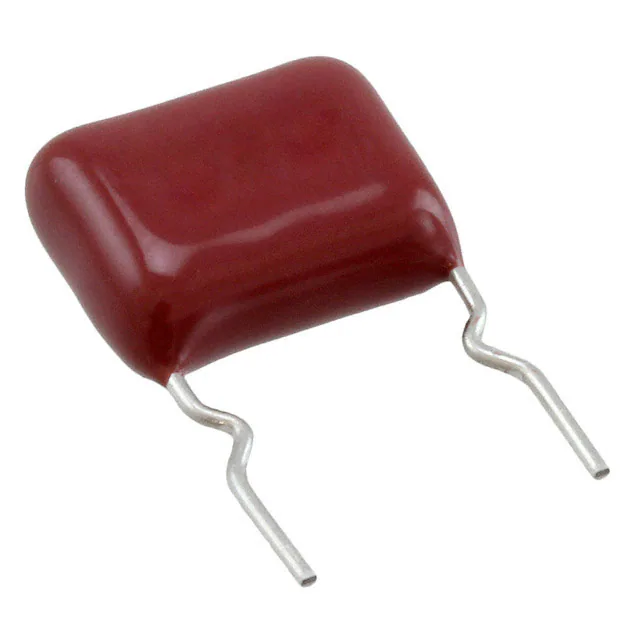

ECW-FD2W334KQCAP FILM 0.33UF 10% 450VDC RAD |
1,080 | 0.72 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.33 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.496 L x 0.220 W (12.60mm x 5.60mm) | 0.606 (15.40mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECQ-UAAF274KCAP FILM 0.27UF 10% 275VAC RADIA |
1,022 | 0.72 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.27 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.354 W (17.50mm x 9.00mm) | 0.650 (16.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
|
ECQ-E1564KFCAP FILM 0.56UF 10% 100VDC RAD |
1,452 | 0.73 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.56 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.217 W (12.00mm x 5.50mm) | 0.469 (11.90mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
