Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECH-U1H183JB5CAP FILM 0.018UF 5% 50VDC 1210 |
24,144 | 1.11 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 0.018 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.098 W (3.20mm x 2.50mm) | 0.063 (1.60mm) | Solder Pads | - | General Purpose | - |
|
ECW-U1333KC9CAP FILM 0.033UF 10% 100VDC 1913 |
4,820 | 1.11 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.033 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.063 (1.60mm) | Solder Pads | - | General Purpose | - |
|
ECH-U1H392GB5CAP FILM 3900PF 2% 50VDC 1206 |
3,690 | 1.12 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 3900 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
ECW-FD2W105K4CAP FILM 1UF 10% 450VDC RADIAL |
3,743 | 0.84 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | ECW-F(D) | Active | 1 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.307 W (17.50mm x 7.80mm) | 0.433 (11.00mm) | PC Pins | 0.295 (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECW-U2102KC9CAP FILM 1000PF 10% 250VDC 1913 |
4,705 | 1.08 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 1000 pF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.063 (1.60mm) | Solder Pads | - | General Purpose | - |
|
|
ECW-U1333JC9CAP FILM 0.033UF 5% 100VDC 1913 |
3,940 | 1.09 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.033 µF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.063 (1.60mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1H472GB5CAP FILM 4700PF 2% 50VDC 1206 |
563,148 | 1.09 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 4700 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
|
ECW-U2472KC9CAP FILM 4700PF 10% 250VDC 1913 |
12,975 | 1.18 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 4700 pF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.063 (1.60mm) | Solder Pads | - | General Purpose | - |
|
|
ECW-FD2W105J4CAP FILM 1UF 5% 450VDC RADIAL |
5,020 | 0.93 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | ECW-F(D) | Active | 1 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.307 W (17.50mm x 7.80mm) | 0.433 (11.00mm) | PC Pins | 0.295 (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-E2153KBCAP FILM 0.015UF 10% 250VDC RAD |
3,350 | 0.43 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.015 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.311 L x 0.165 W (7.90mm x 4.20mm) | 0.319 (8.10mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
ECQ-E4123KFCAP FILM 0.012UF 10% 400VDC RAD |
1,956 | 0.43 |
RFQ |
Datasheet |

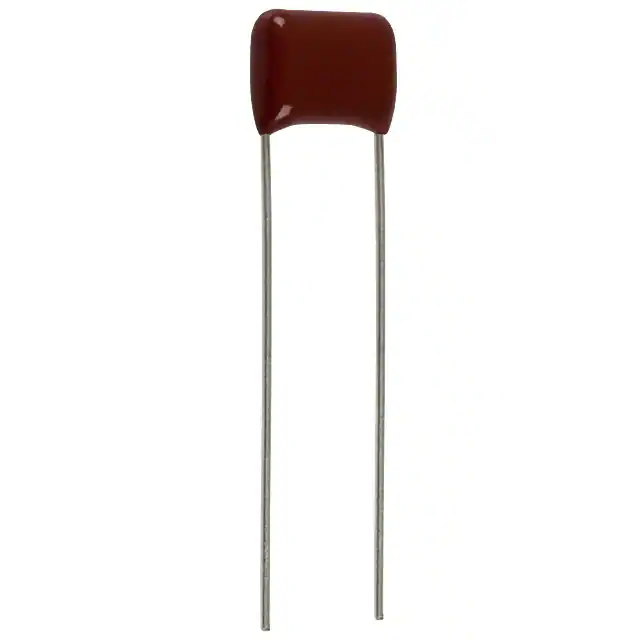

Radial | Bulk | ECQ-E(F) | Active | 0.012 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.173 W (10.30mm x 4.40mm) | 0.335 (8.50mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
ECQ-E2123KBCAP FILM 0.012UF 10% 250VDC RAD |
1,863 | 0.43 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.012 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.311 L x 0.165 W (7.90mm x 4.20mm) | 0.319 (8.10mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
ECQ-E2823KFCAP FILM 0.082UF 10% 250VDC RAD |
12,716 | 0.44 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.082 µF | ±10% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.193 W (10.30mm x 4.90mm) | 0.354 (9.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
ECQ-E2563KFCAP FILM 0.056UF 10% 250VDC RAD |
1,941 | 0.44 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.056 µF | ±10% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.189 W (10.30mm x 4.80mm) | 0.350 (8.90mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
ECQ-E2183JFCAP FILM 0.018UF 5% 250VDC RAD |
1,794 | 0.44 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.018 µF | ±5% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.173 W (10.30mm x 4.40mm) | 0.335 (8.50mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
ECQ-E2153JFCAP FILM 0.015UF 5% 250VDC RAD |
1,751 | 0.44 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.015 µF | ±5% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.173 W (10.30mm x 4.40mm) | 0.335 (8.50mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
ECW-U2122JC9CAP FILM 1200PF 5% 250VDC 1913 |
14,965 | 1.21 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 1200 pF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.067 (1.70mm) | Solder Pads | - | General Purpose | - |
|
|
ECW-U2222JC9CAP FILM 2200PF 5% 250VDC 1913 |
7,859 | 1.21 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 2200 pF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.067 (1.70mm) | Solder Pads | - | General Purpose | - |
|
|
ECW-U2332V16CAP FILM 3300PF 5% 250VDC 1913 |
10,147 | 1.21 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(V16) | Active | 3300 pF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.067 (1.70mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECW-U2273KC9CAP FILM 0.027UF 10% 250VDC 1913 |
4,848 | 1.33 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.027 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.102 (2.60mm) | Solder Pads | - | General Purpose | - |
