Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-UAAF225KCAP FILM 2.2UF 10% 275VAC RADIAL |
3,385 | 2.02 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 2.2 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220 L x 0.571 W (31.00mm x 14.50mm) | 0.984 (25.00mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
ECW-F6333HLCAP FILM 0.033UF 3% 630VDC RAD |
19,123 | 2.06 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.033 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.280 W (13.00mm x 7.10mm) | 0.441 (11.20mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|

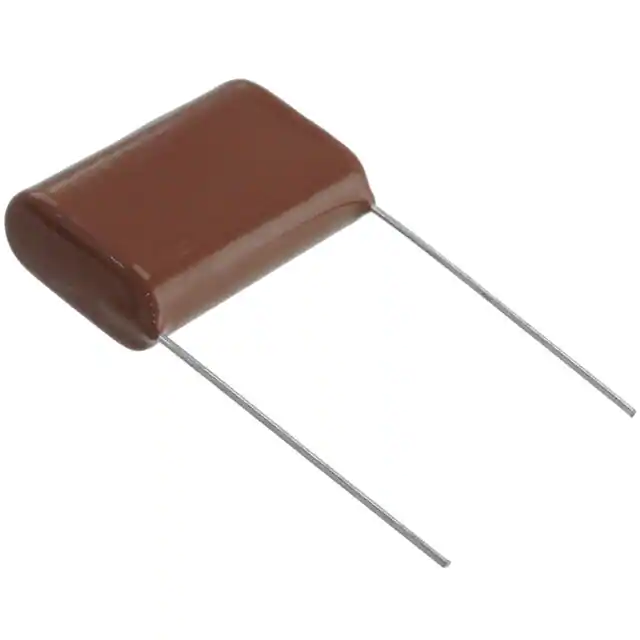

ECQ-E4225KFCAP FILM 2.2UF 10% 400VDC RADIAL |
2,170 | 2.19 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 2.2 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.433 W (31.00mm x 11.00mm) | 0.906 (23.00mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
ECW-F4105JLCAP FILM 1UF 5% 400VDC RADIAL |
1,930 | 2.60 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 1 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906 L x 0.512 W (23.00mm x 13.00mm) | 0.839 (21.30mm) | PC Pins | 0.787 (20.00mm) | High Frequency, Switching | - |
|
ECQ-E6225KFCAP FILM 2.2UF 10% 630VDC RADIAL |
1,570 | 3.70 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 2.2 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.768 W (31.00mm x 19.50mm) | 1.181 (30.00mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
ECQ-E1106JFCAP FILM 10UF 5% 100VDC RADIAL |
749 | 4.35 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 10 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.453 W (26.00mm x 11.50mm) | 0.886 (22.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
|
ECQ-E2106JFCAP FILM 10UF 5% 250VDC RADIAL |
297 | 4.41 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 10 µF | ±5% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.626 W (31.00mm x 15.90mm) | 1.075 (27.30mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|

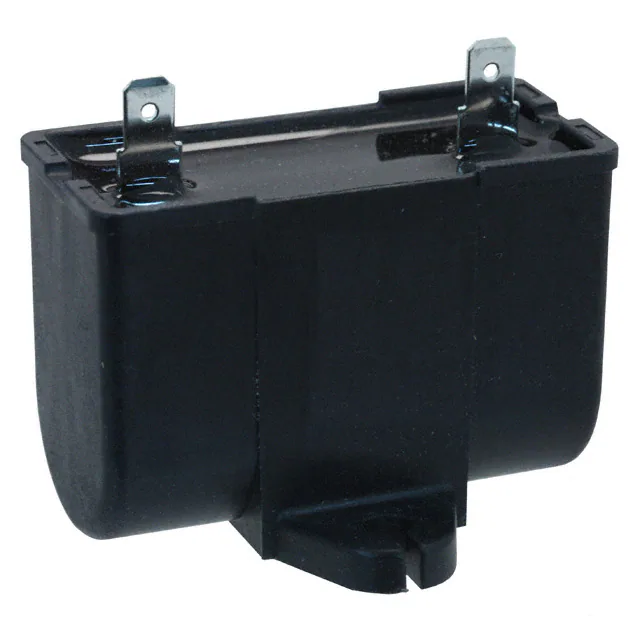

JS251106-BACAP FILM 10UF 10% 250VAC CHAS MT |
1,077 | 6.74 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMF | Active | 10 µF | ±10% | 250V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount | 1.957 L x 0.945 W (49.70mm x 24.00mm) | 1.378 (35.00mm) | Quick Connect - 0.187 (4.7mm) | - | Motor Run | - |
|
DS371456-CACAP FILM 45UF 10% 370VAC RADIAL |
215 | 7.97 |
RFQ |
Datasheet |
Radial, Can | Bulk | DMF | Not For New Designs | 45 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 1.988 Dia (50.50mm) | 4.016 (102.00mm) | Quick Connect, Disconnect | 0.709 (18.00mm) | Motor Run | - |
|

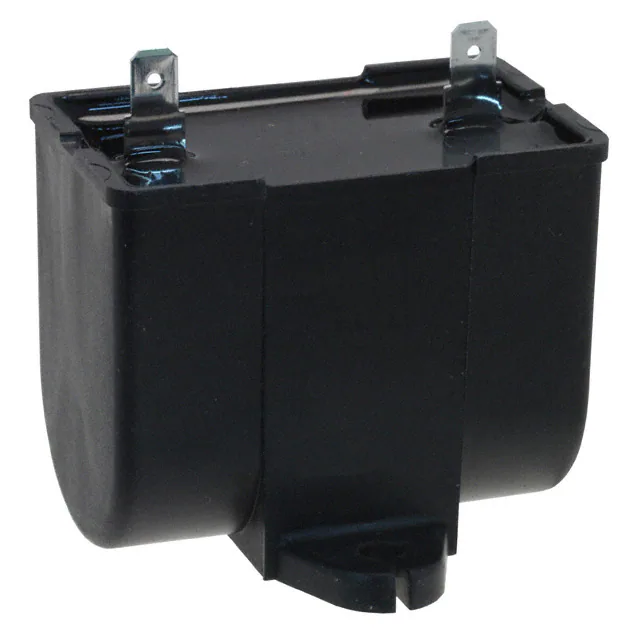

JS251156-BACAP FILM 15UF 10% 250VAC CHAS MT |
893 | 9.07 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMF | Active | 15 µF | ±10% | 250V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount | 1.969 L x 1.201 W (50.00mm x 30.50mm) | 1.654 (42.00mm) | Quick Connect - 0.187 (4.7mm) | - | Motor Run | - |
.jpg)
|
ECH-U1C221JX5CAP FILM 220PF 5% 16VDC 0603 |
8,282 | 0.51 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 220 pF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0.033 (0.85mm) | Solder Pads | - | General Purpose | - |
|
ECH-U1C271JX5CAP FILM 270PF 5% 16VDC 0603 |
7,590 | 0.56 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 270 pF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0.033 (0.85mm) | Solder Pads | - | General Purpose | - |
 J1.jpg)
|

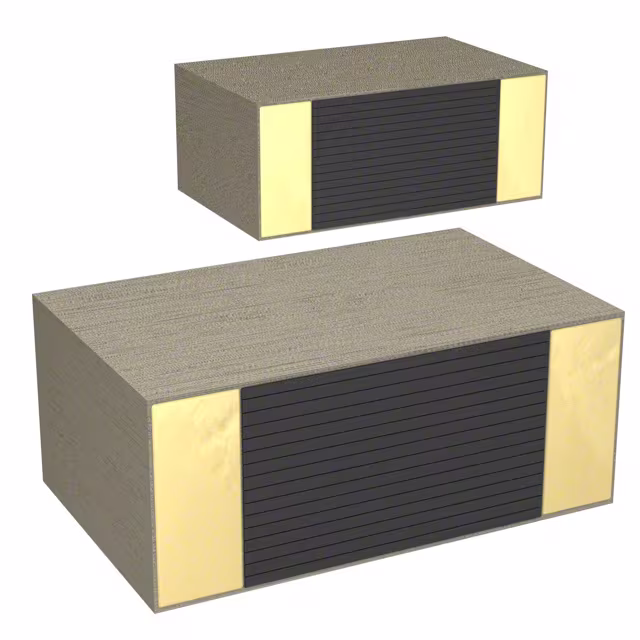

ECH-U1C562JB5CAP FILM 5600PF 5% 16VDC 0805 |
5,631 | 0.86 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 5600 pF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
 H1.jpg)
|

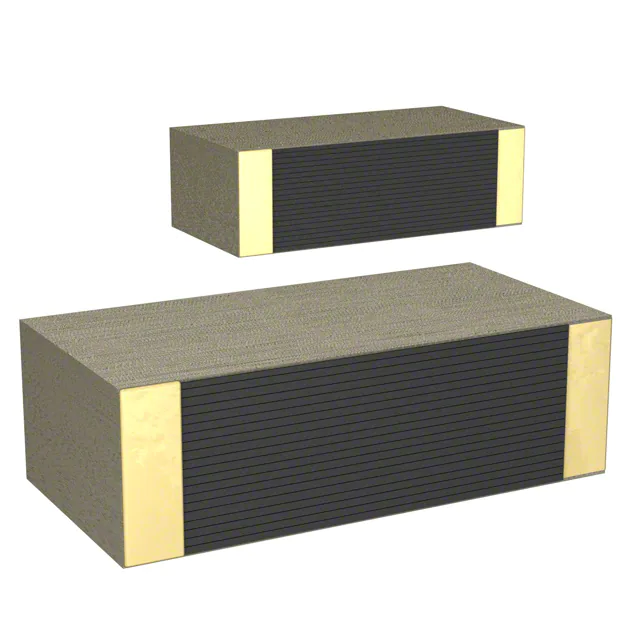

ECH-U1C123JB5CAP FILM 0.012UF 5% 16VDC 1206 |
30,062 | 0.86 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 0.012 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
ECH-U1H472JB5CAP FILM 4700PF 5% 50VDC 1206 |
3,637 | 0.92 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 4700 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
ECH-U1H271GB5CAP FILM 270PF 2% 50VDC 0805 |
33,296 | 0.94 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 270 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1H122GB5CAP FILM 1200PF 2% 50VDC 0805 |
11,445 | 0.94 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 1200 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1C121JX5CAP FILM 120PF 5% 16VDC 0603 |
11,926 | 0.50 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 120 pF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0.033 (0.85mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1C561JX5CAP FILM 560PF 5% 16VDC 0603 |
10,547 | 0.50 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 560 pF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0.033 (0.85mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1C222JX5CAP FILM 2200PF 5% 16VDC 0603 |
4,553 | 0.51 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 2200 pF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0.033 (0.85mm) | Solder Pads | - | General Purpose | - |
