Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-U4273V17CAP FILM 0.027UF 5% 400VDC 2420 |
2,914 | 1.59 |
RFQ |
Datasheet |
2420 (6050 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-UC(V17) | Active | 0.027 µF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.236 L x 0.197 W (6.00mm x 5.00mm) | 0.134 (3.40mm) | Solder Pads | - | DC Link, DC Filtering | - |
|
ECW-U1C184JC9CAP FILM 0.18UF 5% 16VDC 1913 |
3,992 | 1.71 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.18 µF | ±5% | 8V | 16V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.087 (2.20mm) | Solder Pads | - | General Purpose | - |
|

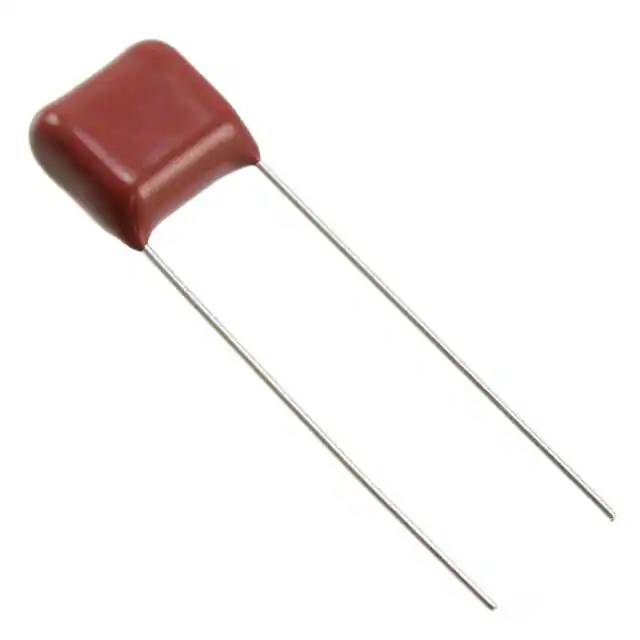

ECQ-E6333KFCAP FILM 0.033UF 10% 630VDC RAD |
6,314 | 0.63 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.033 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.236 W (12.00mm x 6.00mm) | 0.508 (12.90mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|

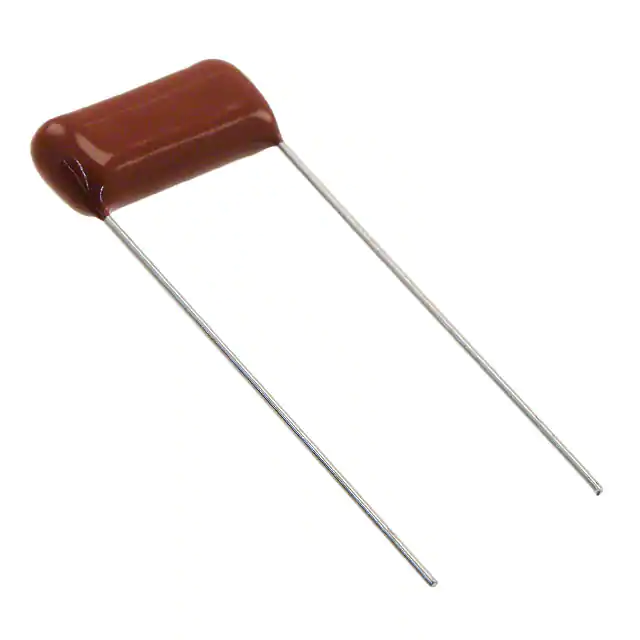

ECW-HA3C472JCAP FILM 4700PF 5% 1.6KVDC RAD |
3,698 | 0.63 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(A) | Active | 4700 pF | ±5% | 700V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701 L x 0.252 W (17.80mm x 6.40mm) | 0.358 (9.10mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECW-U1C224JC9CAP FILM 0.22UF 5% 16VDC 1913 |
4,755 | 1.72 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.22 µF | ±5% | 8V | 16V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.102 (2.60mm) | Solder Pads | - | General Purpose | - |
|
ECQ-E4563KFCAP FILM 0.056UF 10% 400VDC RAD |
10,339 | 0.64 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.056 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.197 W (12.00mm x 5.00mm) | 0.433 (11.00mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
ECQ-E6473KFCAP FILM 0.047UF 10% 630VDC RAD |
6,885 | 0.64 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.047 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.256 W (12.00mm x 6.50mm) | 0.571 (14.50mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
ECW-FD2W225K4CAP FILM 2.2UF 10% 450VDC RADIAL |
1,980 | 1.10 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | ECW-F(D) | Active | 2.2 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.437 W (17.50mm x 11.10mm) | 0.563 (14.30mm) | PC Pins | 0.295 (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-E2224JBCAP FILM 0.22UF 5% 250VDC RADIAL |
1,622 | 0.66 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.22 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.213 W (10.30mm x 5.40mm) | 0.437 (11.10mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
ECW-U4473V17CAP FILM 0.047UF 5% 400VDC 2820 |
35,322 | 1.69 |
RFQ |
Datasheet |
2820 (7150 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-UC(V17) | Active | 0.047 µF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.280 L x 0.197 W (7.10mm x 5.00mm) | 0.165 (4.20mm) | Solder Pads | - | DC Link, DC Filtering | - |
|
|
ECW-HA3C472HCAP FILM 4700PF 3% 1.6KVDC RAD |
716 | 0.67 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(A) | Active | 4700 pF | ±3% | 700V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701 L x 0.252 W (17.80mm x 6.40mm) | 0.358 (9.10mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECQ-E6103JFCAP FILM 10000PF 5% 630VDC RAD |
8,589 | 0.69 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 10000 pF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.177 W (12.00mm x 4.50mm) | 0.335 (8.50mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
|
ECQ-E6123JFCAP FILM 0.012UF 5% 630VDC RAD |
63,952 | 0.73 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.012 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.177 W (12.00mm x 4.50mm) | 0.346 (8.80mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|

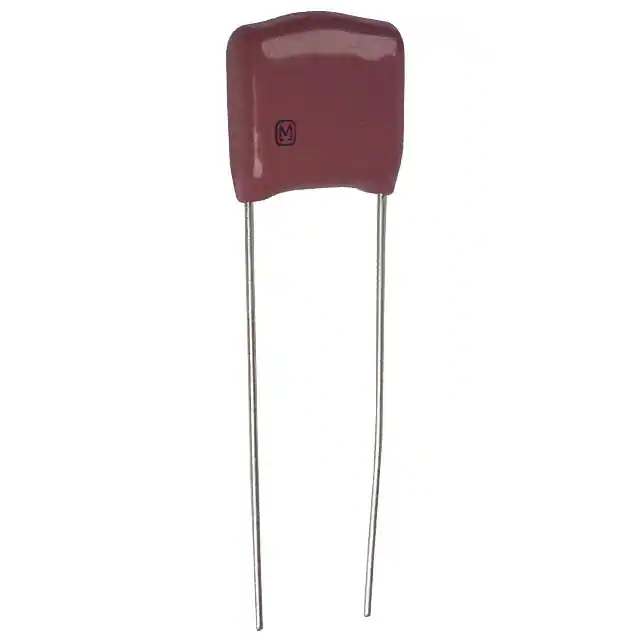

ECQ-E2684KFCAP FILM 0.68UF 10% 250VDC RAD |
27,300 | 0.73 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.68 µF | ±10% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.236 W (18.50mm x 6.00mm) | 0.571 (14.50mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
ECQ-E6223JFCAP FILM 0.022UF 5% 630VDC RAD |
7,073 | 0.81 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.022 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.209 W (12.00mm x 5.30mm) | 0.453 (11.50mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
 Series Style B.jpg)
|
ECW-F2W104JAQCAP FILM 0.1UF 5% 450VDC RADIAL |
1,454 | 0.74 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.1 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.201 W (13.00mm x 5.10mm) | 0.622 (15.80mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
ECW-U1C334JC9CAP FILM 0.33UF 5% 16VDC 2416 |
12,705 | 2.01 |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.33 µF | ±5% | 8V | 16V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.087 (2.20mm) | Solder Pads | - | General Purpose | - |
|

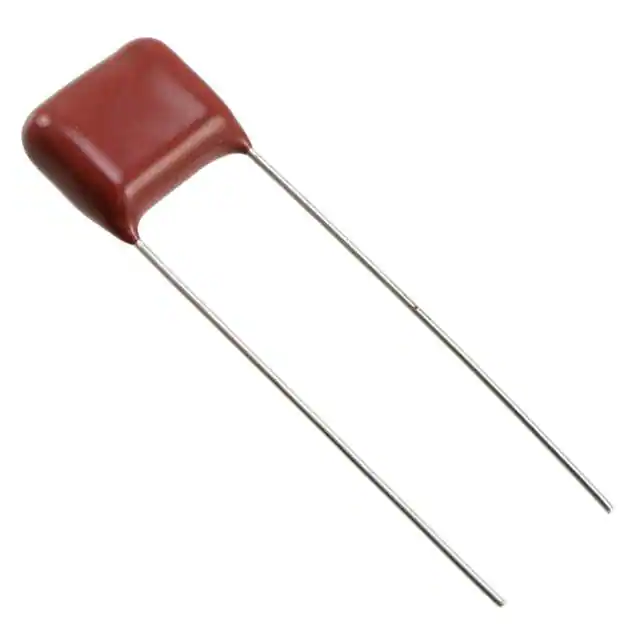

ECQ-E4104JFCAP FILM 0.1UF 5% 400VDC RADIAL |
11,967 | 0.77 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.1 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.248 W (12.00mm x 6.30mm) | 0.512 (13.00mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
ECQ-UAAF334KCAP FILM 0.33UF 10% 275VAC RAD |
3,959 | 0.77 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.33 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.354 W (17.50mm x 9.00mm) | 0.650 (16.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|

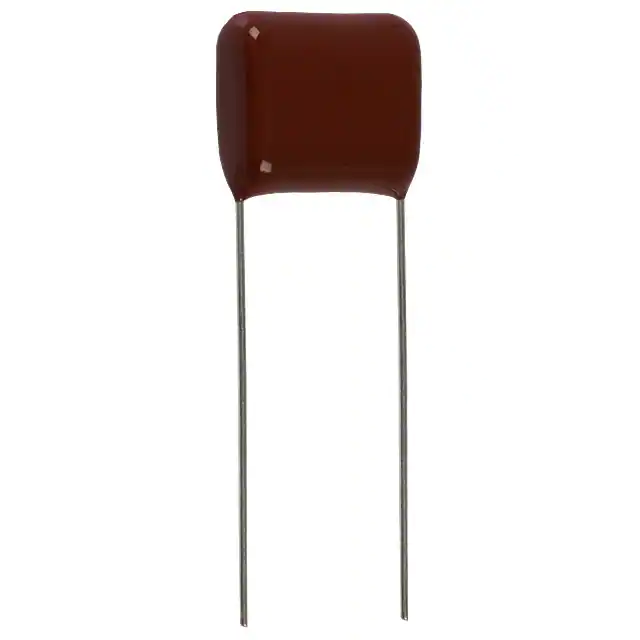

ECQ-E2105JBCAP FILM 1UF 5% 250VDC RADIAL |
1,537 | 0.77 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 1 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.602 L x 0.276 W (15.30mm x 7.00mm) | 0.591 (15.00mm) | PC Pins | 0.492 (12.50mm) | General Purpose | - |
