Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E2225JFCAP FILM 2.2UF 5% 250VDC RADIAL |
4,068 | 1.20 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 2.2 µF | ±5% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.335 W (26.00mm x 8.50mm) | 0.681 (17.30mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
ECW-H12102JVCAP FILM 1000PF 5% 1.25KVDC RAD |
2,537 | 1.12 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 1000 pF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.256 W (18.00mm x 6.50mm) | 0.591 (15.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|

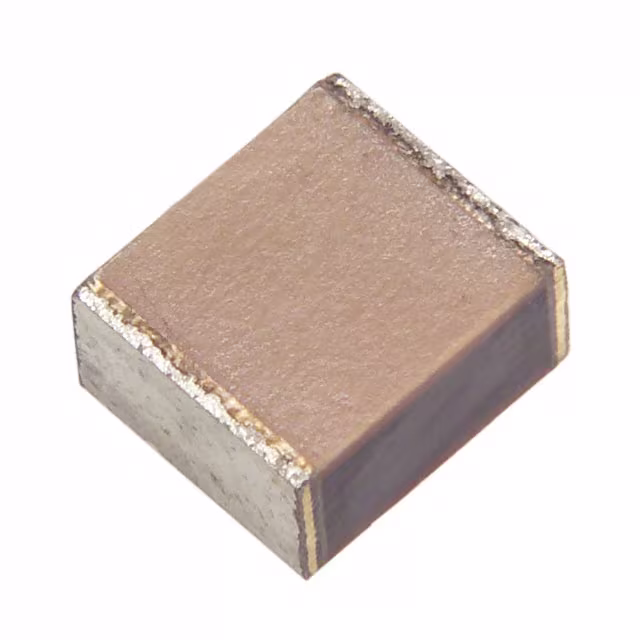

ECH-U1224JCVCAP FILM 0.22UF 5% 100VDC 2825 |
2,985 | 2.77 |
RFQ |
Datasheet |
2825 (7163 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(C) | Active | 0.22 µF | ±5% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.280 L x 0.248 W (7.10mm x 6.30mm) | 0.201 (5.10mm) | Solder Pads | - | General Purpose | - |
|

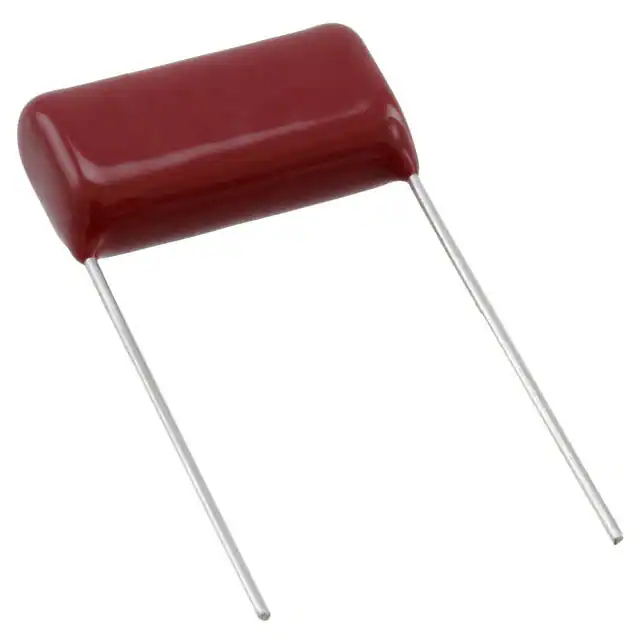

ECW-FD2W275JCAP FILM 2.7UF 5% 450VDC RADIAL |
1,073 | 1.16 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 2.7 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.996 L x 0.354 W (25.30mm x 9.00mm) | - | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECH-U1104GC9CAP FILM 0.1UF 2% 100VDC 2820 |
3,876 | 2.86 |
RFQ |
Datasheet |
2820 (7150 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(C) | Active | 0.1 µF | ±2% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.280 L x 0.197 W (7.10mm x 5.00mm) | 0.130 (3.30mm) | Solder Pads | - | General Purpose | - |
|

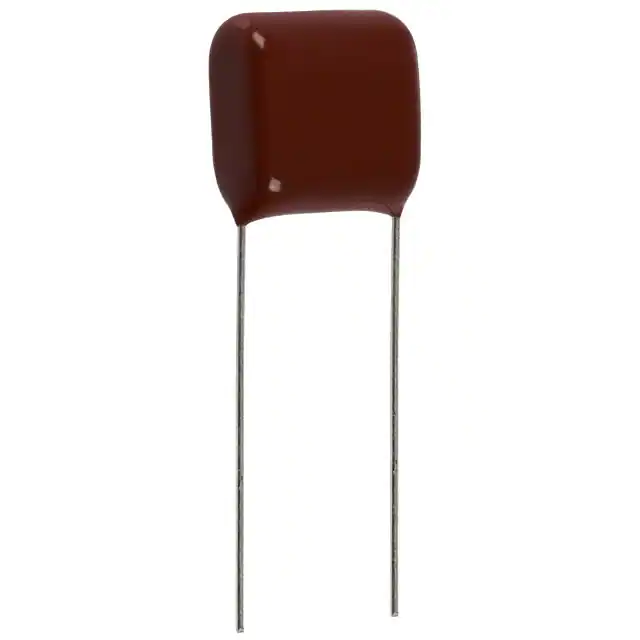

ECQ-E2155KBCAP FILM 1.5UF 10% 250VDC RADIAL |
12,984 | 1.18 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 1.5 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.602 L x 0.339 W (15.30mm x 8.60mm) | 0.657 (16.70mm) | PC Pins | 0.492 (12.50mm) | General Purpose | - |
|

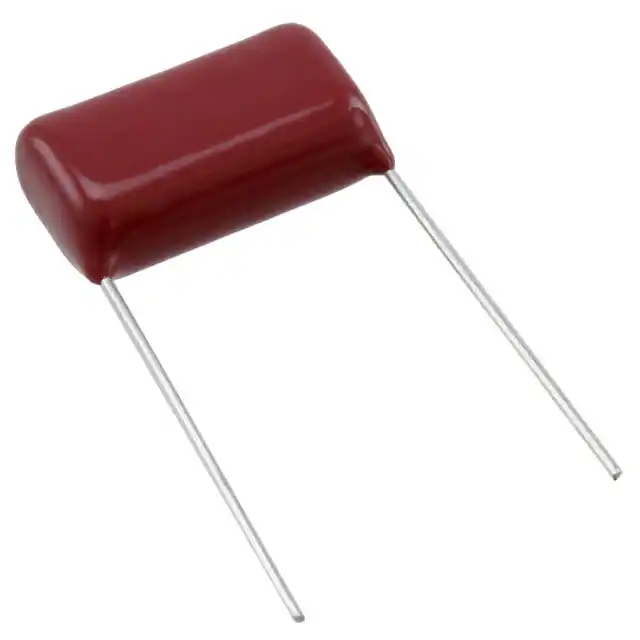

ECW-FD2W335KCAP FILM 3.3UF 10% 450VDC RADIAL |
6,380 | 1.18 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 3.3 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.996 L x 0.386 W (25.30mm x 9.80mm) | 0.575 (14.60mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|

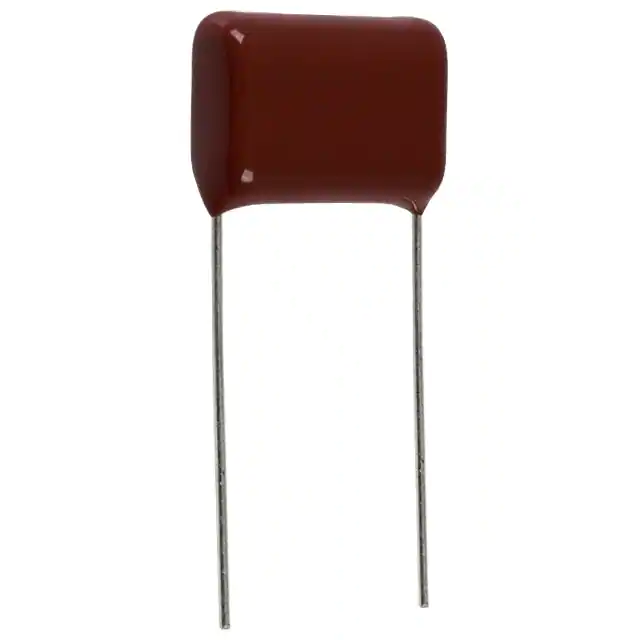

ECQ-E2225KBCAP FILM 2.2UF 10% 250VDC RADIAL |
2,000 | 1.26 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 2.2 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.819 L x 0.331 W (20.80mm x 8.40mm) | 0.654 (16.60mm) | PC Pins | 0.689 (17.50mm) | General Purpose | - |
|

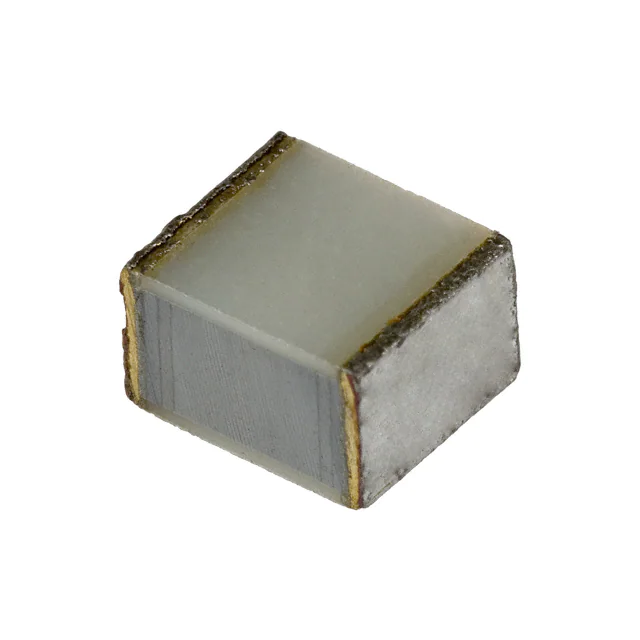

ECW-U2224KCVCAP FILM 0.22UF 10% 250VDC 2825 |
3,865 | 3.45 |
RFQ |
Datasheet |
2825 (7163 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.22 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.280 L x 0.248 W (7.10mm x 6.30mm) | 0.209 (5.30mm) | Solder Pads | - | General Purpose | - |
|
ECW-F6103JLCAP FILM 10000PF 5% 630VDC RAD |
1,795 | 1.43 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 10000 pF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.205 W (12.50mm x 5.20mm) | 0.374 (9.50mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
ECQ-E1225KFCAP FILM 2.2UF 10% 100VDC RADIAL |
2,284 | 1.46 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 2.2 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.276 W (18.50mm x 7.00mm) | 0.630 (16.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|

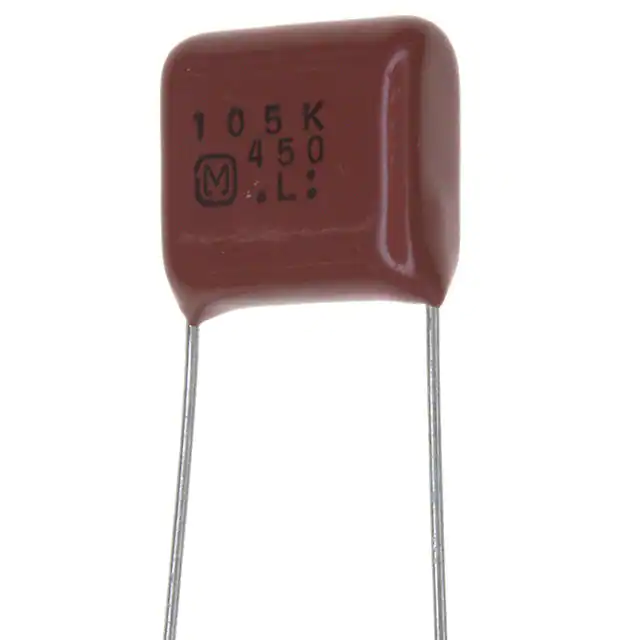

ECQ-E2W105KHCAP FILM 1UF 10% 450VDC RADIAL |
12,122 | 1.72 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(H) | Active | 1 µF | ±10% | - | 450V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.717 L x 0.335 W (18.20mm x 8.50mm) | 0.705 (17.90mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | - |
|
|
ECW-F6333JLCAP FILM 0.033UF 5% 630VDC RAD |
1,800 | 1.72 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.033 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.280 W (13.00mm x 7.10mm) | 0.441 (11.20mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECW-F6223HLCAP FILM 0.022UF 3% 630VDC RAD |
8,477 | 1.80 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.022 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.244 W (12.50mm x 6.20mm) | 0.413 (10.50mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
 Series Straight 18x9.jpg)
|
ECW-F2W125JACAP FILM 1.2UF 5% 450VDC RADIAL |
1,400 | 1.82 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 1.2 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.740 L x 0.382 W (18.80mm x 9.70mm) | 0.638 (16.20mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
 Series.jpg)
|
ECW-FE2J225KCAP FILM 2.2UF 10% 630VDC RADIAL |
5,548 | 1.83 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 2.2 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.630 W (26.00mm x 16.00mm) | 0.906 (23.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
 Series Straight 26x16x21.jpg)
|

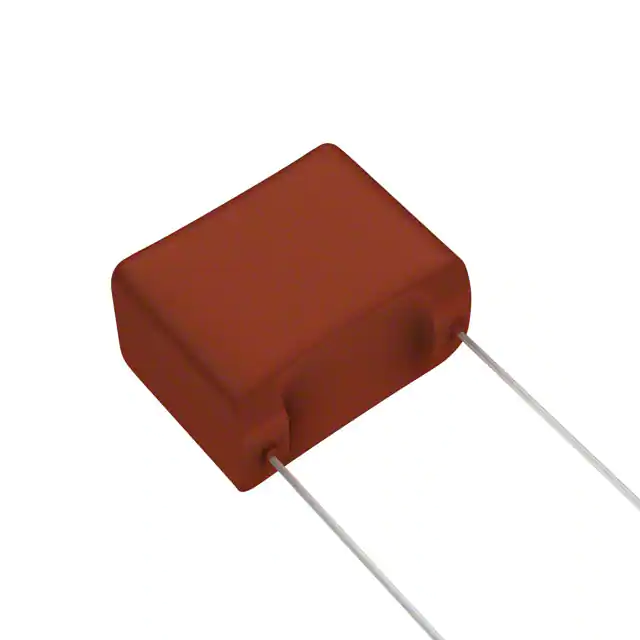

ECW-FA2J225JCAP FILM 2.2UF 5% 630VDC RADIAL |
6,991 | 1.95 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 2.2 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.642 W (26.00mm x 16.30mm) | 0.843 (21.40mm) | PC Pins | 0.886 (22.50mm) | High Frequency, Switching | - |
|
ECW-F4105JBCAP FILM 1UF 5% 400VDC RADIAL |
3,010 | 2.86 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(B) | Active | 1 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 1.102 L x 0.591 W (28.00mm x 15.00mm) | 0.925 (23.50mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
|

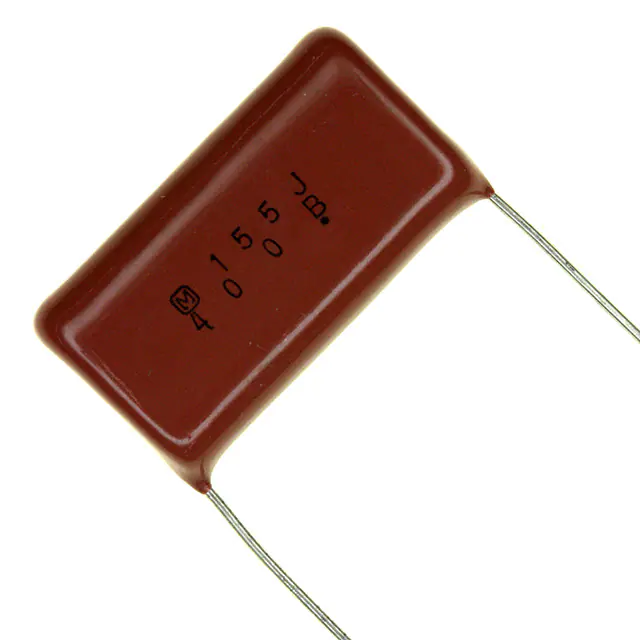

ECQ-E4155KFCAP FILM 1.5UF 10% 400VDC RADIAL |
1,397 | 1.95 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1.5 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.374 W (31.00mm x 9.50mm) | 0.787 (20.00mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
ECQ-E1335KFCAP FILM 3.3UF 10% 100VDC RADIAL |
13,679 | 1.96 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 3.3 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.335 W (18.50mm x 8.50mm) | 0.689 (17.50mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
