Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E1684KFCAP FILM 0.68UF 10% 100VDC RAD |
3,611 | 0.77 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.68 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.236 W (12.00mm x 6.00mm) | 0.508 (12.90mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
ECW-HA3C622HCAP FILM 6200PF 3% 1.6KVDC RAD |
3,522 | 0.80 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(A) | Active | 6200 pF | ±3% | 700V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701 L x 0.280 W (17.80mm x 7.10mm) | 0.386 (9.80mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
ECQ-E6104JFCAP FILM 0.1UF 5% 630VDC RADIAL |
2,838 | 0.83 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.1 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.248 W (18.50mm x 6.30mm) | 0.591 (15.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
ECW-U4154V17CAP FILM 0.15UF 5% 400VDC 3931 |
4,453 | 2.10 |
RFQ |
Datasheet |
3931 (9880 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-UC(V17) | Active | 0.15 µF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.386 L x 0.315 W (9.80mm x 8.00mm) | 0.197 (5.00mm) | Solder Pads | - | DC Link, DC Filtering | - |
|
ECQ-E6224KFCAP FILM 0.22UF 10% 630VDC RAD |
7,808 | 0.86 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.22 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.354 W (18.50mm x 9.00mm) | 0.689 (17.50mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
ECQ-E4224KFCAP FILM 0.22UF 10% 400VDC RAD |
5,908 | 0.86 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.22 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.232 W (18.50mm x 5.90mm) | 0.551 (14.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
 Series Style B.jpg)
|
ECW-F2W154JAQCAP FILM 0.15UF 5% 450VDC RADIAL |
4,529 | 0.86 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.15 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.224 W (13.00mm x 5.70mm) | 0.646 (16.40mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECQ-E2155KFCAP FILM 1.5UF 10% 250VDC RADIAL |
11,038 | 0.88 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1.5 µF | ±10% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.354 W (18.50mm x 9.00mm) | 0.701 (17.80mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |

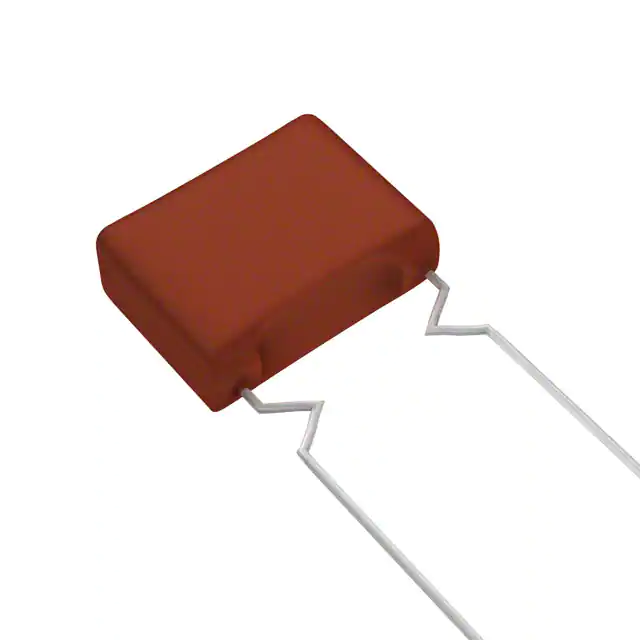

 Series Style D 6-W.jpg)
|
ECW-F2224JAQCAP FILM 0.22UF 5% 250VDC RADIAL |
2,539 | 0.89 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.22 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.248 W (13.00mm x 6.30mm) | 0.665 (16.90mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
ECQ-E4684KFCAP FILM 0.68UF 10% 400VDC RAD |
9,686 | 0.90 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.68 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.276 W (26.00mm x 7.00mm) | 0.689 (17.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
ECW-FD2J474KCAP FILM 0.47UF 10% 630VDC RAD |
3,094 | 0.90 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.47 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701 L x 0.307 W (17.80mm x 7.80mm) | 0.559 (14.20mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-E4334KFCAP FILM 0.33UF 10% 400VDC RAD |
12,597 | 0.92 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.33 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.276 W (18.50mm x 7.00mm) | 0.626 (15.90mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|

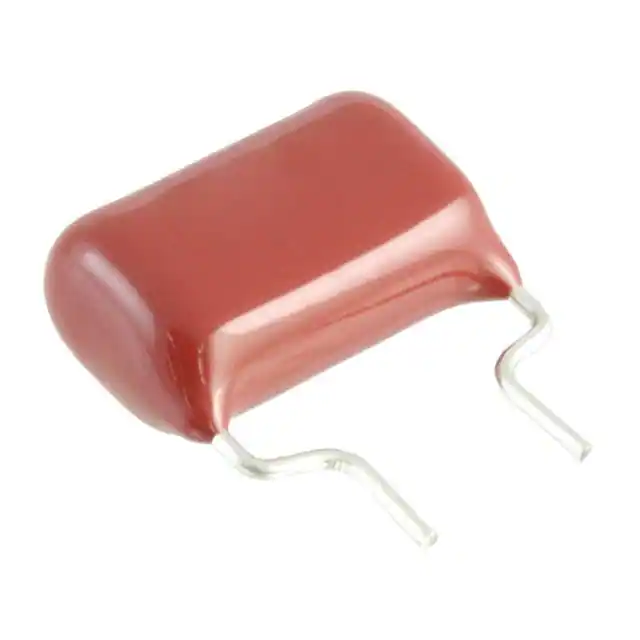

ECW-FD2W105JBCAP FILM 1UF 5% 450VDC RADIAL |
1,878 | 0.93 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 1 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.307 W (17.50mm x 7.80mm) | 0.630 (16.00mm) | PC Pins | 0.295 (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-U2104V16CAP FILM 0.1UF 5% 250VDC 2420 |
5,902 | 2.29 |
RFQ |
Datasheet |
2420 (6050 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(V16) | Active | 0.1 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.236 L x 0.197 W (6.00mm x 5.00mm) | 0.161 (4.10mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECQ-E2105JFCAP FILM 1UF 5% 250VDC RADIAL |
10,515 | 0.95 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1 µF | ±5% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.291 W (18.50mm x 7.40mm) | 0.630 (16.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |

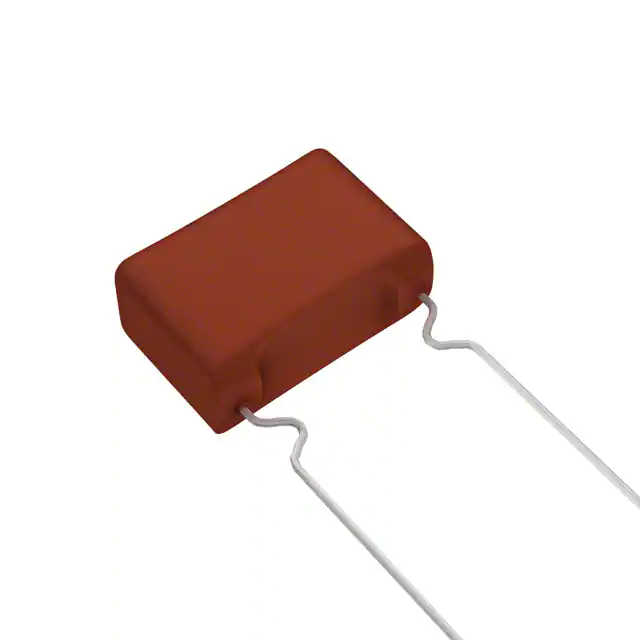

 Series Style B 8-W.jpg)
|
ECW-F2W474JAQCAP FILM 0.47UF 5% 450VDC RADIAL |
24,426 | 0.96 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.47 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.343 W (13.00mm x 8.70mm) | 0.764 (19.40mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|

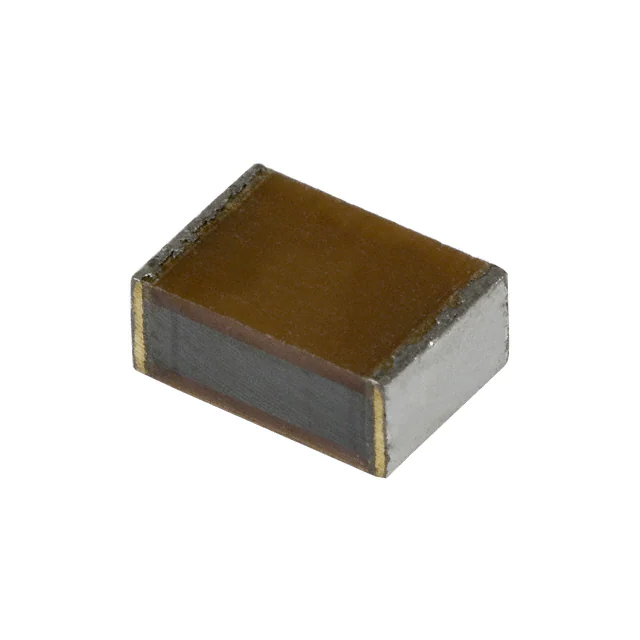

ECH-U1823GC9CAP FILM 0.082UF 2% 100VDC 2820 |
11,353 | 2.40 |
RFQ |
Datasheet |
2820 (7150 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(C) | Active | 0.082 µF | ±2% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.280 L x 0.197 W (7.10mm x 5.00mm) | 0.122 (3.10mm) | Solder Pads | - | General Purpose | - |
|
ECW-U1334KC9CAP FILM 0.33UF 10% 100VDC 2820 |
13,838 | 2.50 |
RFQ |
Datasheet |
2820 (7150 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.33 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.280 L x 0.197 W (7.10mm x 5.00mm) | 0.146 (3.70mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1104JC9CAP FILM 0.1UF 5% 100VDC 2820 |
4,437 | 2.63 |
RFQ |
Datasheet |
2820 (7150 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(C) | Active | 0.1 µF | ±5% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.280 L x 0.197 W (7.10mm x 5.00mm) | 0.130 (3.30mm) | Solder Pads | - | General Purpose | - |
|
|
ECQ-E2185KFCAP FILM 1.8UF 10% 250VDC RADIAL |
2,445 | 1.10 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1.8 µF | ±10% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.295 W (26.00mm x 7.50mm) | 0.650 (16.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
