Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Series.jpg)
|
ECW-FE2W334JCAP FILM 0.33UF 5% 450VDC RADIAL |
1,398 | 0.73 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 0.33 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.236 W (13.00mm x 6.00mm) | 0.472 (12.00mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|

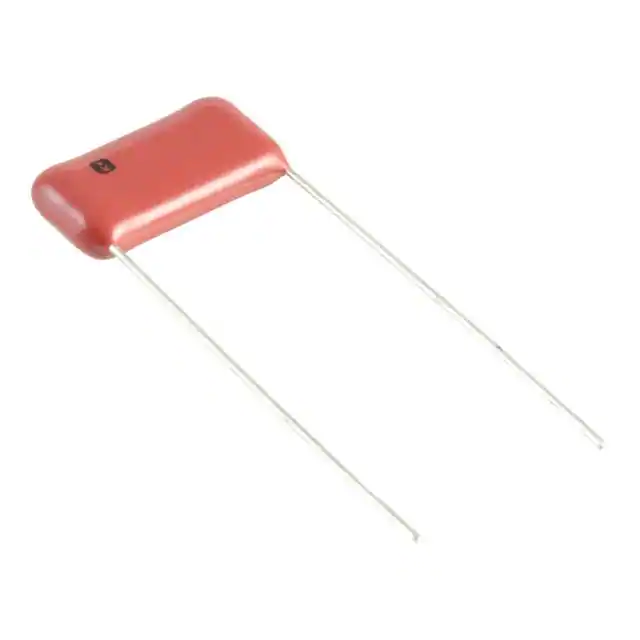

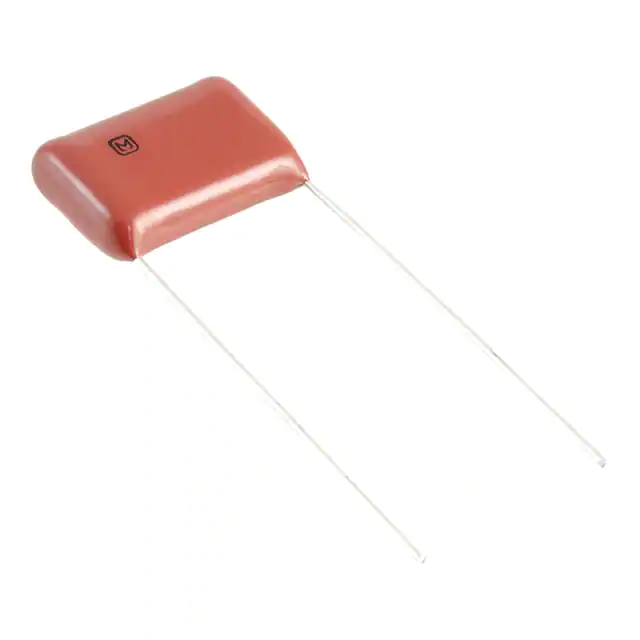

ECQ-E4154KFCAP FILM 0.15UF 10% 400VDC RAD |
1,018 | 0.73 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.15 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.197 W (18.50mm x 5.00mm) | 0.528 (13.40mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|

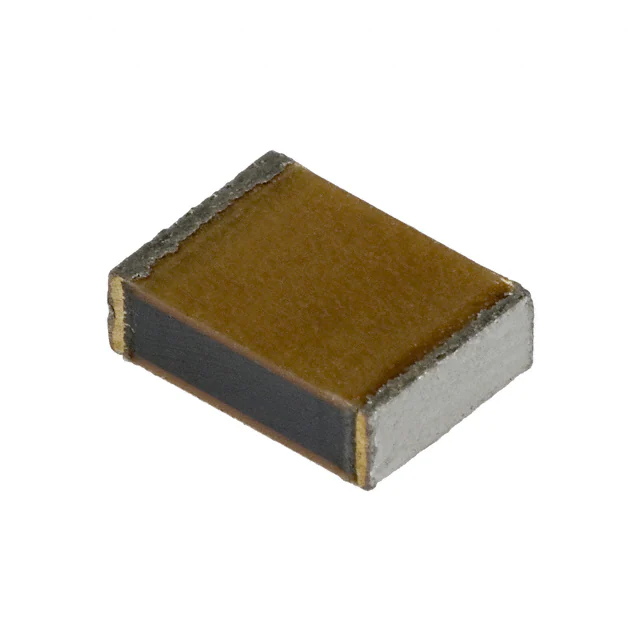

ECH-U1683JC9CAP FILM 0.068UF 5% 100VDC 2416 |
4,616 | 2.00 |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(C) | Active | 0.068 µF | ±5% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.142 (3.60mm) | Solder Pads | - | General Purpose | - |
|

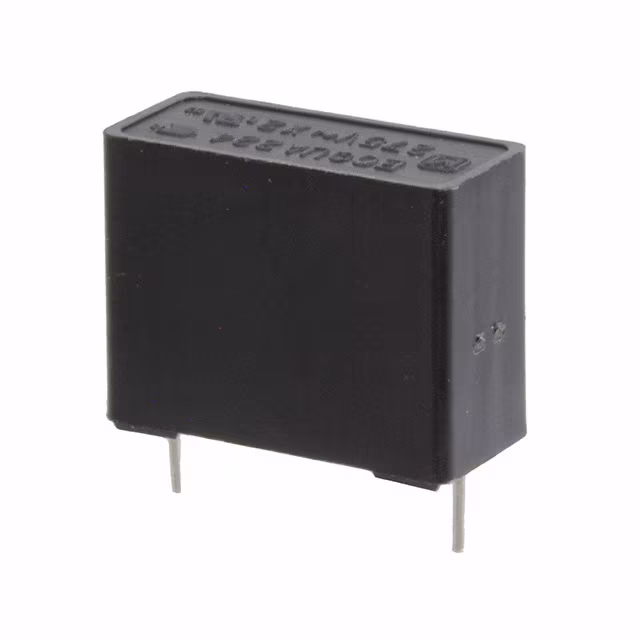

ECQ-UAAF224SACAP FILM 0.22UF 20% 275VAC RAD |
1,940 | 0.74 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.22 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.295 W (17.50mm x 7.50mm) | 0.571 (14.50mm) | PC Pins | 0.591 (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|

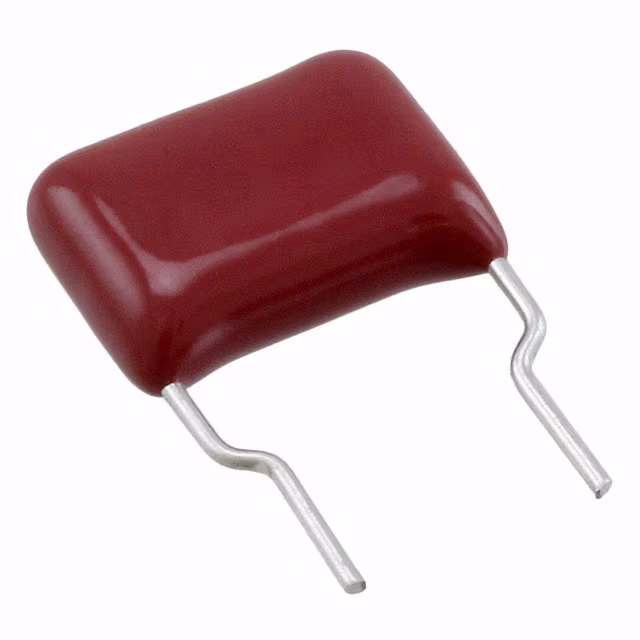

ECW-FD2W274JQCAP FILM 0.27UF 5% 450VDC RADIAL |
1,542 | 0.75 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.27 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.496 L x 0.209 W (12.60mm x 5.30mm) | 0.591 (15.00mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-U2473JC9CAP FILM 0.047UF 5% 250VDC 2416 |
4,494 | 1.89 |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.047 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.102 (2.60mm) | Solder Pads | - | General Purpose | - |
|
|
ECW-U1154JC9CAP FILM 0.15UF 5% 100VDC 2416 |
2,302 | 2.05 |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.15 µF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.118 (3.00mm) | Solder Pads | - | General Purpose | - |
|

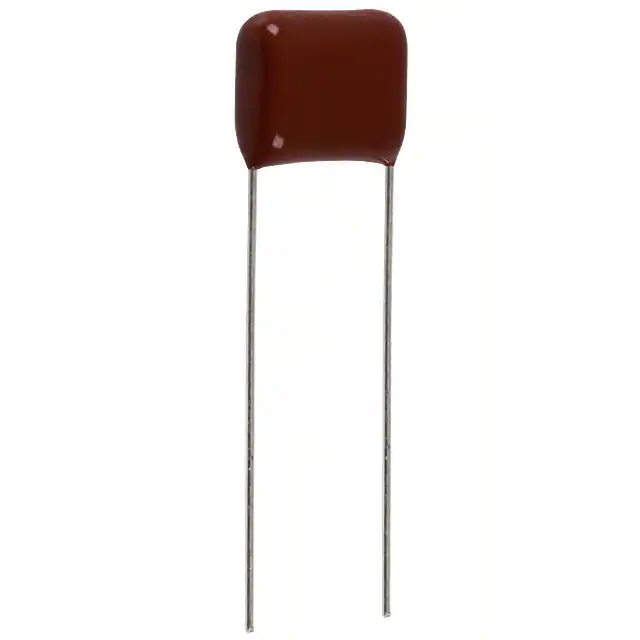

ECQ-E4823KFCAP FILM 0.082UF 10% 400VDC RAD |
6,900 | 0.76 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.082 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.228 W (12.00mm x 5.80mm) | 0.472 (12.00mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
ECQ-E6563KFCAP FILM 0.056UF 10% 630VDC RAD |
1,985 | 0.76 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.056 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.213 W (18.50mm x 5.40mm) | 0.453 (11.50mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
ECW-FE2J104PDCAP FILM 0.1UF 5% 630VDC RADIAL |
1,180 | 0.76 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 0.1 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.236 W (26.00mm x 6.00mm) | 0.531 (13.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|

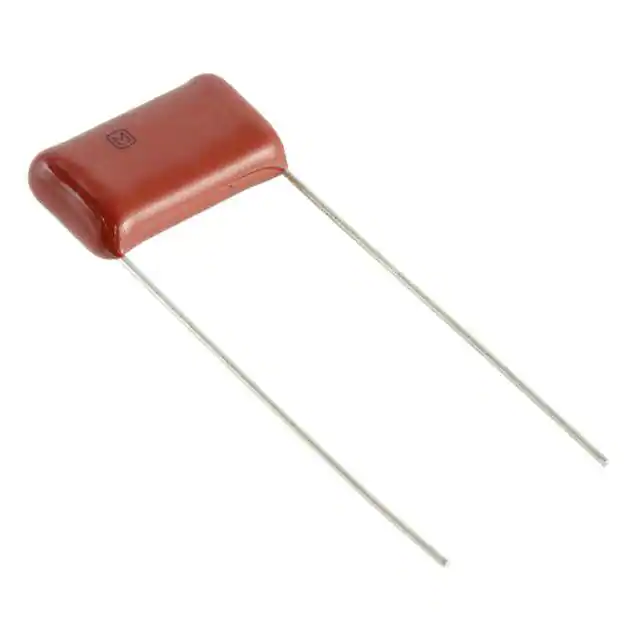

ECQ-E2824KFCAP FILM 0.82UF 10% 250VDC RAD |
2,308 | 0.77 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.82 µF | ±10% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.256 W (18.50mm x 6.50mm) | 0.591 (15.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
ECQ-E2334JFCAP FILM 0.33UF 5% 250VDC RADIAL |
1,900 | 0.83 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.33 µF | ±5% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.256 W (12.00mm x 6.50mm) | 0.512 (13.00mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|

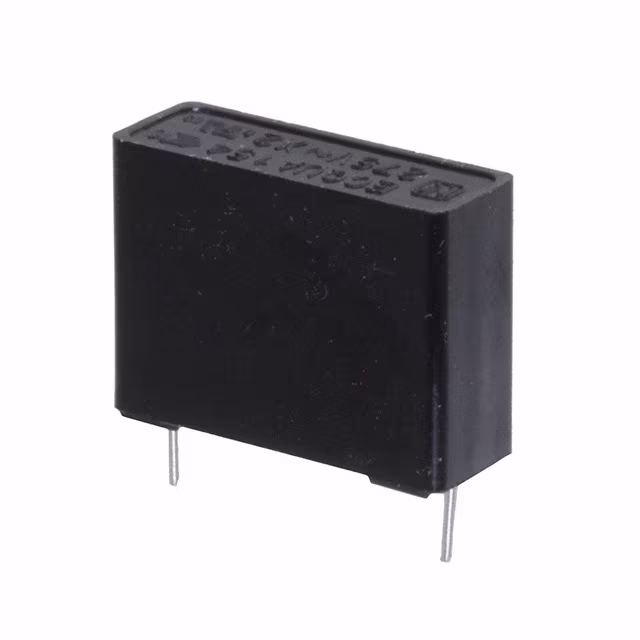

ECQ-UAAF154SACAP FILM 0.15UF 20% 275VAC RAD |
1,879 | 0.79 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.15 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.236 W (17.50mm x 6.00mm) | 0.531 (13.50mm) | PC Pins | 0.591 (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
ECW-FD2J223JBCAP FILM 0.022UF 5% 630VDC RAD |
1,437 | 0.79 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.022 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.496 L x 0.252 W (12.60mm x 6.40mm) | 0.370 (9.40mm) | PC Pins | 0.295 (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|

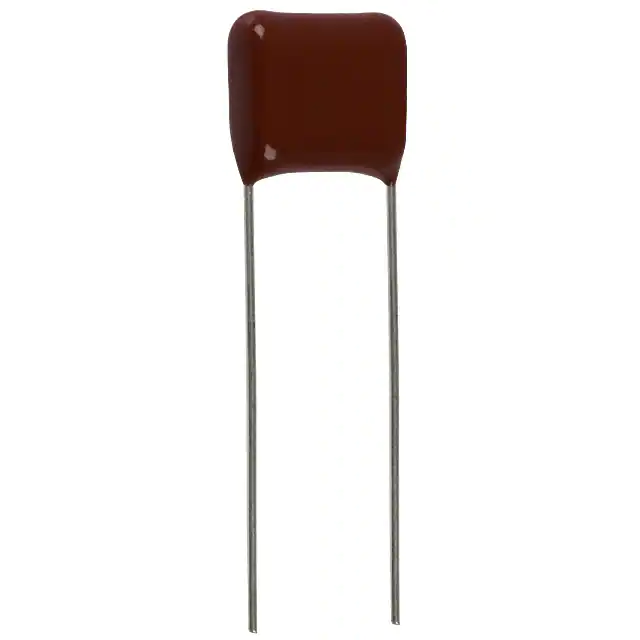

ECQ-E2394JBCAP FILM 0.39UF 5% 250VDC RADIAL |
1,719 | 0.80 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.39 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.484 L x 0.224 W (12.30mm x 5.70mm) | 0.469 (11.90mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
 Series Straight 18x8.jpg)
|

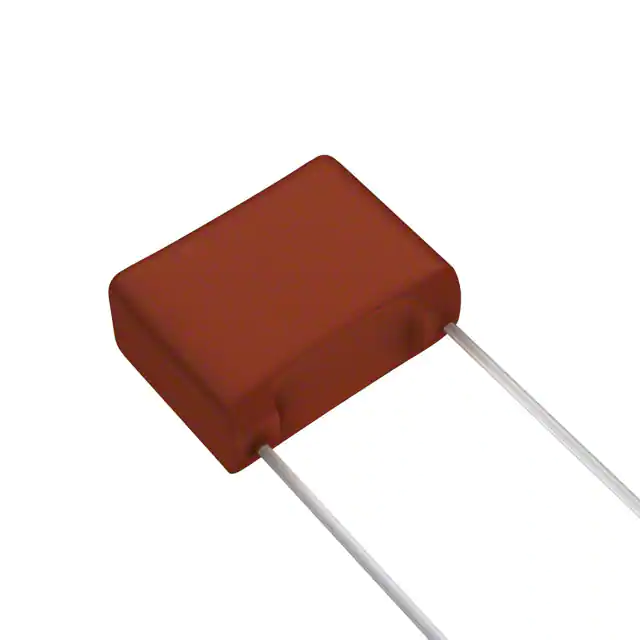

ECW-FA2J334JCAP FILM 0.33UF 5% 630VDC RADIAL |
2,702 | 0.81 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.33 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717 L x 0.335 W (18.20mm x 8.50mm) | 0.535 (13.60mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|

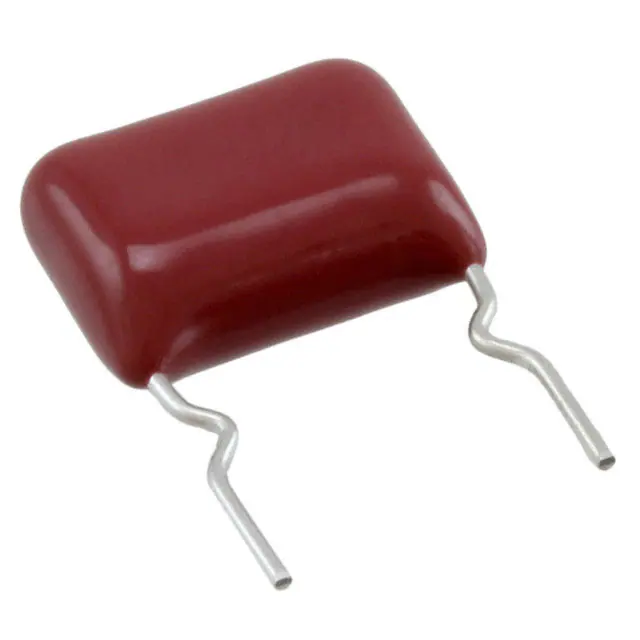

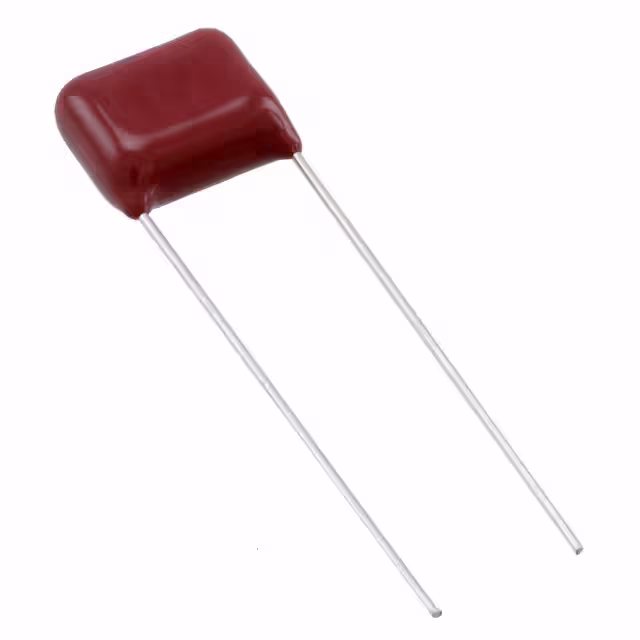

ECW-FD2W474Q1CAP FILM 0.47UF 10% 450VDC RAD |
1,210 | 0.81 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.47 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.228 W (17.50mm x 5.80mm) | 0.638 (16.20mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECW-FE2W105JCAP FILM 1UF 5% 450VDC RADIAL |
3,816 | 0.85 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 1 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689 L x 0.276 W (17.50mm x 7.00mm) | 0.512 (13.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-E6274KFCAP FILM 0.27UF 10% 630VDC RAD |
2,222 | 0.92 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.27 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.276 W (26.00mm x 7.00mm) | 0.689 (17.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|

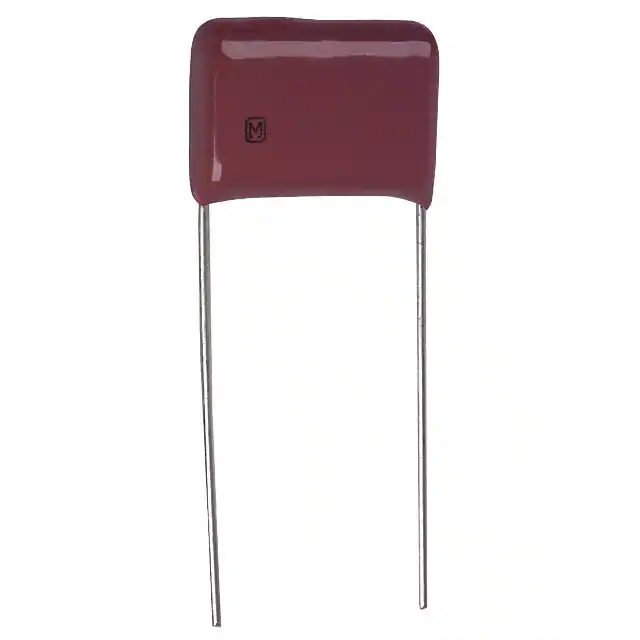

ECQ-E1125KFCAP FILM 1.2UF 10% 100VDC RADIAL |
4,349 | 1.00 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1.2 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.217 W (18.50mm x 5.50mm) | 0.543 (13.80mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
