Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

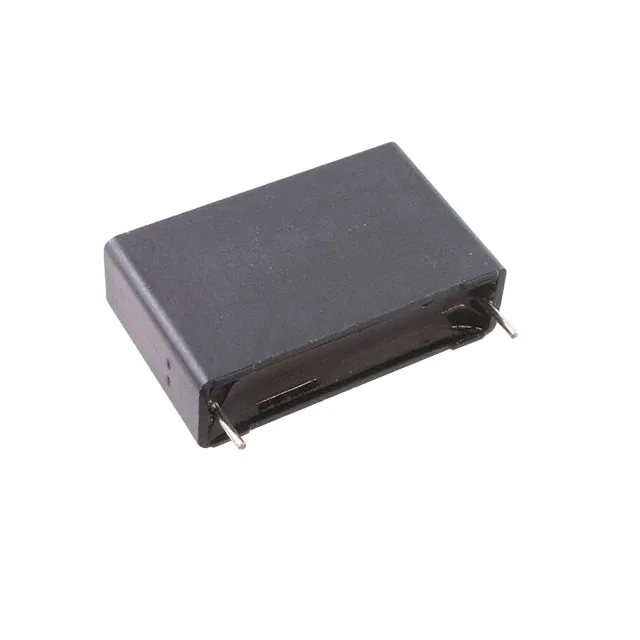

ECW-FE2J224QDCAP FILM 0.22UF 10% 630VDC RAD |
1,363 | 0.82 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 0.22 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.236 W (26.00mm x 6.00mm) | 0.531 (13.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-U2124KC9CAP FILM 0.12UF 10% 250VDC 2420 |
3,385 | 2.10 |
RFQ |
Datasheet |
2420 (6050 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.12 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236 L x 0.197 W (6.00mm x 5.00mm) | 0.185 (4.70mm) | Solder Pads | - | General Purpose | - |

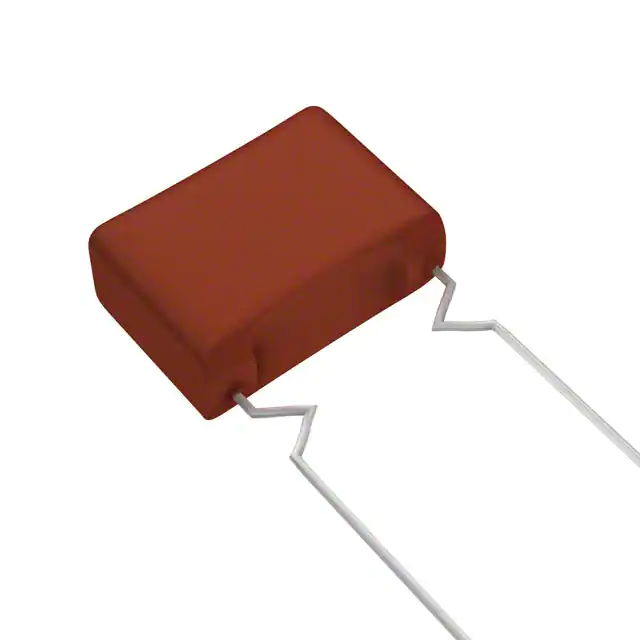

 Series Style D 7-W.jpg)
|
ECW-F2334JAQCAP FILM 0.33UF 5% 250VDC RADIAL |
300 | 0.89 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.33 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.287 W (13.00mm x 7.30mm) | 0.705 (17.90mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
ECW-U2124V16CAP FILM 0.12UF 5% 250VDC 2420 |
3,259 | 2.26 |
RFQ |
Datasheet |
2420 (6050 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(V16) | Active | 0.12 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.236 L x 0.197 W (6.00mm x 5.00mm) | 0.189 (4.80mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECW-U2124JC9CAP FILM 0.12UF 5% 250VDC 2420 |
2,990 | 2.38 |
RFQ |
Datasheet |
2420 (6050 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.12 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236 L x 0.197 W (6.00mm x 5.00mm) | 0.185 (4.70mm) | Solder Pads | - | General Purpose | - |
|
ECH-U1124JC9CAP FILM 0.12UF 5% 100VDC 2820 |
4,472 | 2.41 |
RFQ |
Datasheet |
2820 (7150 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(C) | Active | 0.12 µF | ±5% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.280 L x 0.197 W (7.10mm x 5.00mm) | 0.146 (3.70mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1124GC9CAP FILM 0.12UF 2% 100VDC 2820 |
4,500 | 2.63 |
RFQ |
Datasheet |
2820 (7150 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(C) | Active | 0.12 µF | ±2% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.280 L x 0.197 W (7.10mm x 5.00mm) | 0.146 (3.70mm) | Solder Pads | - | General Purpose | - |
|
ECW-HC3F562JQCAP FILM 5600PF 5% 3KVDC RADIAL |
1,400 | 1.18 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(C) | Active | 5600 pF | ±5% | 1060V (1.06kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.016 L x 0.283 W (25.80mm x 7.20mm) | 0.748 (19.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
ECW-FG2J105PACAP FILM 1UF 5% 630VDC RADIAL |
2,440 | 1.24 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 1 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.063 L x 0.413 W (27.00mm x 10.50mm) | 0.768 (19.50mm) | PC Pins | 0.886 (22.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
ECH-U1184GCVCAP FILM 0.18UF 2% 100VDC 2825 |
2,387 | 3.44 |
RFQ |
Datasheet |
2825 (7163 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(C) | Active | 0.18 µF | ±2% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.280 L x 0.248 W (7.10mm x 6.30mm) | 0.169 (4.30mm) | Solder Pads | - | General Purpose | - |
|
ECW-U2394KCVCAP FILM 0.39UF 10% 250VDC 3931 |
9,213 | 4.26 |
RFQ |
Datasheet |
3931 (9880 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.39 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.386 L x 0.315 W (9.80mm x 8.00mm) | 0.181 (4.60mm) | Solder Pads | - | General Purpose | - |
|
ECW-FE2J225QDCAP FILM 2.2UF 10% 630VDC RADIAL |
1,200 | 1.91 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 2.2 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.512 W (31.00mm x 13.00mm) | 0.925 (23.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-E6684JFCAP FILM 0.68UF 5% 630VDC RADIAL |
2,873 | 2.09 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.68 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.453 W (26.00mm x 11.50mm) | 0.886 (22.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
ECW-F6753HLCAP FILM 0.075UF 3% 630VDC RAD |
1,042 | 2.11 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.075 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610 L x 0.303 W (15.50mm x 7.70mm) | 0.535 (13.60mm) | PC Pins | 0.492 (12.50mm) | High Frequency, Switching | - |
|
ECW-F6394JLCAP FILM 0.39UF 5% 630VDC RADIAL |
2,055 | 2.23 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.39 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807 L x 0.488 W (20.50mm x 12.40mm) | 0.807 (20.50mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
|
ECW-F4564JLCAP FILM 0.56UF 5% 400VDC RADIAL |
1,118 | 2.26 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.56 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807 L x 0.421 W (20.50mm x 10.70mm) | 0.740 (18.80mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
ECW-U2684KCZCAP FILM 0.68UF 10% 250VDC 6031 |
846 | 4.59 |
RFQ |
Datasheet |
6031 (1580 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.68 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.598 L x 0.315 W (15.20mm x 8.00mm) | 0.181 (4.60mm) | Solder Pads | - | General Purpose | - |
|
|
ECW-F6394HLCAP FILM 0.39UF 3% 630VDC RADIAL |
1,601 | 2.60 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.39 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807 L x 0.488 W (20.50mm x 12.40mm) | 0.807 (20.50mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
ECQ-E6185KFCAP FILM 1.8UF 10% 630VDC RADIAL |
1,003 | 2.61 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1.8 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.661 W (31.00mm x 16.80mm) | 1.102 (28.00mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
|
ECW-F4564HLCAP FILM 0.56UF 3% 400VDC RADIAL |
2,792 | 2.66 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.56 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807 L x 0.421 W (20.50mm x 10.70mm) | 0.740 (18.80mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
