Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-UAAF183MCAP FILM 0.018UF 20% 275VAC RADI |
2,000 | 0.64 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.018 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602 L x 0.197 W (15.30mm x 5.00mm) | 0.472 (12.00mm) | PC Pins | 0.492 (12.50mm) | EMI, RFI Suppression | X2 |
 Series.jpg)
|
ECW-FE2W154QDCAP FILM 0.15UF 10% 450VDC RAD |
1,998 | 0.64 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 0.15 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689 L x 0.197 W (17.50mm x 5.00mm) | 0.433 (11.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECQ-UAAF123KCAP FILM 0.012UF 10% 275VAC RADI |
1,972 | 0.64 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.012 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602 L x 0.197 W (15.30mm x 5.00mm) | 0.472 (12.00mm) | PC Pins | 0.492 (12.50mm) | EMI, RFI Suppression | X2 |
|

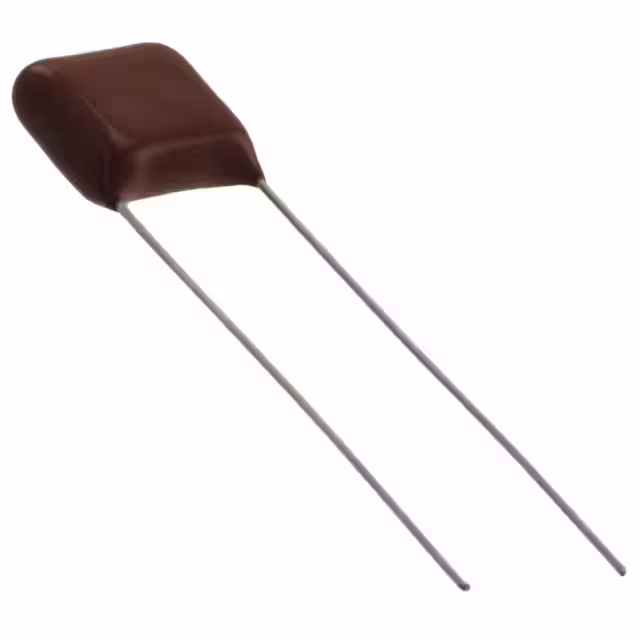

ECQ-E2184JBCAP FILM 0.18UF 5% 250VDC RADIAL |
1,825 | 0.64 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.18 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.197 W (10.30mm x 5.00mm) | 0.421 (10.70mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
ECQ-UAAF184KCAP FILM 0.18UF 10% 275VAC RADIA |
1,982 | 0.65 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.18 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.295 W (17.50mm x 7.50mm) | 0.571 (14.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
ECH-U1563JC9CAP FILM 0.056UF 5% 100VDC 2416 |
2,481 | 1.79 |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(C) | Active | 0.056 µF | ±5% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.118 (3.00mm) | Solder Pads | - | General Purpose | - |
|
ECW-U2563V16CAP FILM 0.056UF 5% 250VDC 2416 |
2,649 | 1.85 |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(V16) | Active | 0.056 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.122 (3.10mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECW-U1C274JC9CAP FILM 0.27UF 5% 16VDC 2416 |
7,900 | 1.87 |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.27 µF | ±5% | 8V | 16V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.079 (2.00mm) | Solder Pads | - | General Purpose | - |
|
|
ECW-U2393JC9CAP FILM 0.039UF 5% 250VDC 2416 |
3,000 | 1.88 |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.039 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.087 (2.20mm) | Solder Pads | - | General Purpose | - |
|
|
ECQ-UAAF393KCAP FILM 0.039UF 10% 275VAC RADI |
1,997 | 0.70 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.039 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602 L x 0.197 W (15.30mm x 5.00mm) | 0.472 (12.00mm) | PC Pins | 0.492 (12.50mm) | EMI, RFI Suppression | X2 |
|
|
ECW-U1124KC9CAP FILM 0.12UF 10% 100VDC 2416 |
6,582 | 1.90 |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.12 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.102 (2.60mm) | Solder Pads | - | General Purpose | - |
|
ECQ-E2274JFCAP FILM 0.27UF 5% 250VDC RADIAL |
2,000 | 0.72 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.27 µF | ±5% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.236 W (12.00mm x 6.00mm) | 0.492 (12.50mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
ECW-HA3C332HBCAP FILM 3300PF 3% 1.6KVDC RAD |
3,849 | 0.74 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(A) | Active | 3300 pF | ±3% | 700V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701 L x 0.220 W (17.80mm x 5.60mm) | 0.528 (13.40mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECW-FE2W684KCAP FILM 0.68UF 10% 450VDC RAD |
1,400 | 0.75 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 0.68 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689 L x 0.276 W (17.50mm x 7.00mm) | 0.492 (12.50mm) | PC Pins | - | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|

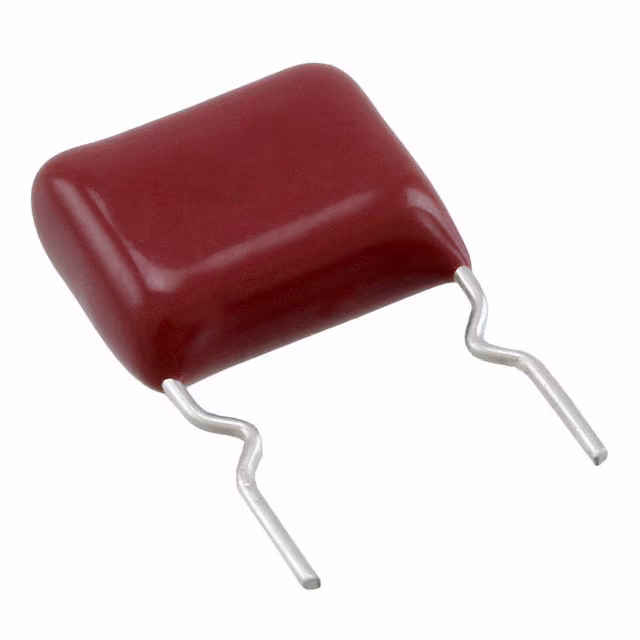

ECW-FD2W394KQCAP FILM 0.39UF 10% 450VDC RAD |
1,932 | 0.76 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.39 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.496 L x 0.236 W (12.60mm x 6.00mm) | 0.618 (15.70mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-FE2J104QDCAP FILM 0.1UF 10% 630VDC RADIAL |
1,360 | 0.76 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 0.1 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.236 W (26.00mm x 6.00mm) | 0.531 (13.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-U2823KC9CAP FILM 0.082UF 10% 250VDC 2420 |
8,879 | 1.94 |
RFQ |
Datasheet |
2420 (6050 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.082 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236 L x 0.197 W (6.00mm x 5.00mm) | 0.134 (3.40mm) | Solder Pads | - | General Purpose | - |
|

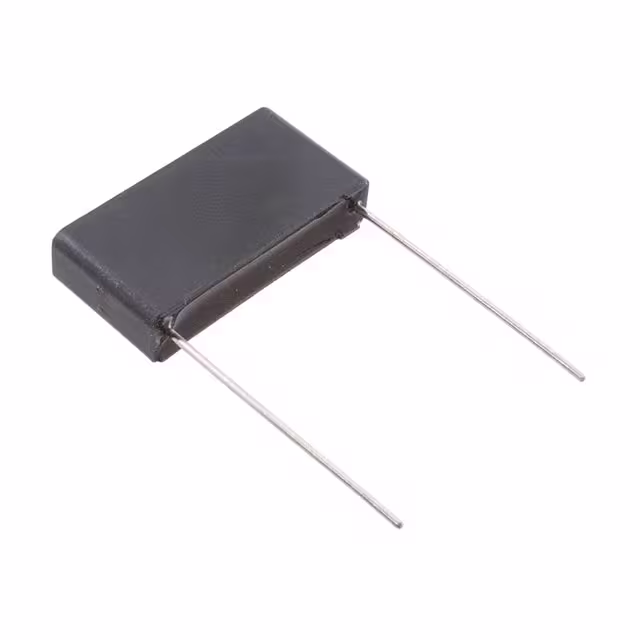

ECW-FE2J104Q5CAP FILM 0.1UF 10% 630VDC RADIAL |
1,090 | 0.78 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 0.1 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.236 W (26.00mm x 6.00mm) | 0.531 (13.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|

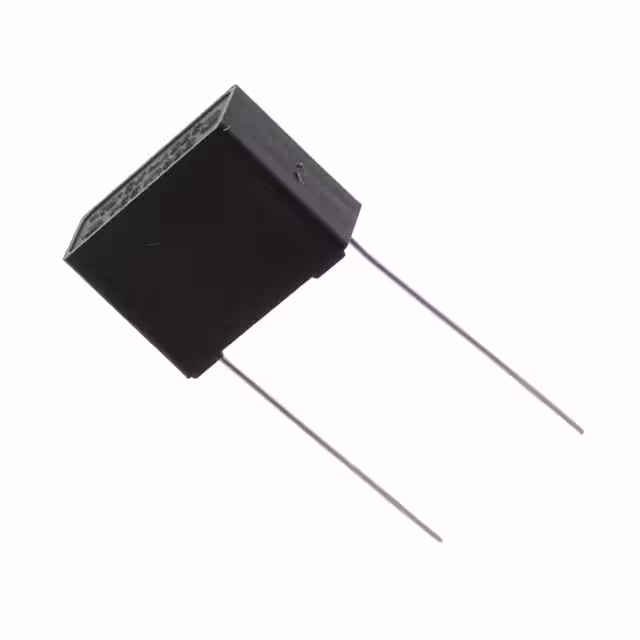

ECQ-UAAF224S1CAP FILM 0.22UF 20% 275VAC RAD |
1,549 | 0.79 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.22 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.295 W (17.50mm x 7.50mm) | 0.571 (14.50mm) | PC Pins | 0.591 (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
ECW-FE2J154PDCAP FILM 0.15UF 5% 630VDC RAD |
1,400 | 0.79 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 0.15 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.236 W (26.00mm x 6.00mm) | 0.531 (13.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
