Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

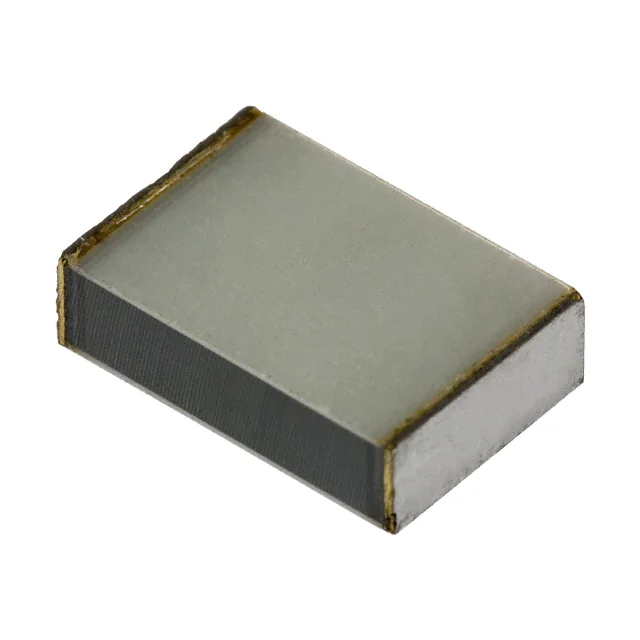

ECW-U2824KCZCAP FILM 0.82UF 10% 250VDC 6039 |
5,432 | 4.98 |
RFQ |
Datasheet |
6039 (1510 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.82 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.598 L x 0.394 W (15.20mm x 10.00mm) | 0.173 (4.40mm) | Solder Pads | - | General Purpose | - |
|
ECW-F6564HLCAP FILM 0.56UF 3% 630VDC RADIAL |
1,795 | 2.83 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.56 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.457 W (28.00mm x 11.60mm) | 0.760 (19.30mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
|
|
ECW-F6125JLCAP FILM 1.2UF 5% 630VDC RADIAL |
1,131 | 2.95 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 1.2 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.669 W (28.00mm x 17.00mm) | 0.992 (25.20mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
|
ECW-F4914HLCAP FILM 0.91UF 3% 400VDC RADIAL |
1,644 | 2.98 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.91 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906 L x 0.488 W (23.00mm x 12.40mm) | 0.815 (20.70mm) | PC Pins | 0.787 (20.00mm) | High Frequency, Switching | - |
|
|
ECW-F6125HLCAP FILM 1.2UF 3% 630VDC RADIAL |
1,077 | 3.62 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 1.2 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.669 W (28.00mm x 17.00mm) | 0.992 (25.20mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
|
ECQ-UAAF475SACAP FILM 4.7UF 20% 275VAC RAD |
181 | 3.83 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 4.7 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220 L x 0.906 W (31.00mm x 23.00mm) | 1.319 (33.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
ECW-FG1B475JCAP FILM 4.7UF 5% 1.1KVDC RAD |
180 | 3.88 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 4.7 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.728 W (31.50mm x 18.50mm) | 1.398 (35.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
ECW-FG80565JCAP FILM 5.6UF 800VDC RADIAL |
274 | 3.94 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 5.6 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.630 W (31.50mm x 16.00mm) | 1.181 (30.00mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
ECQ-UAAF475TACAP FILM 4.7UF 10% 275VAC RAD |
280 | 4.03 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 4.7 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220 L x 0.906 W (31.00mm x 23.00mm) | 1.319 (33.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
|
ECW-FG1B475JACAP FILM 4.7UF 5% 1.1KVDC RAD |
400 | 4.08 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 4.7 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.728 W (31.50mm x 18.50mm) | 1.398 (35.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
ECW-FG1B505JACAP FILM 5UF 5% 1.1KVDC RADIAL |
200 | 4.28 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 5 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.728 W (31.50mm x 18.50mm) | 1.398 (35.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
ECQ-UAAF475LDCAP FILM 4.7UF 20% 275VAC RADIAL |
172 | 4.34 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 4.7 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614 L x 0.709 W (41.00mm x 18.00mm) | 1.319 (33.50mm) | PC Pins | 1.476 (37.50mm) | EMI, RFI Suppression | X2 |
|
ECQ-E6225JFCAP FILM 2.2UF 5% 630VDC RADIAL |
880 | 4.41 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 2.2 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.768 W (31.00mm x 19.50mm) | 1.201 (30.50mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
EZP-Q38255LTBCAP FILM 2.5UF 5% 380VAC RADIAL |
287 | 4.44 |
RFQ |
Datasheet |
Radial | Bulk | EZPQ | Active | 2.5 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 29.2 mOhms | -40°C ~ 105°C | Through Hole | 1.614 L x 0.591 W (41.00mm x 15.00mm) | 1.161 (29.50mm) | PC Pins | 1.476 (37.50mm) | General Purpose | - |
|
|
ECW-FG80685JCAP FILM 6.8UF 800VDC RADIAL |
119 | 4.62 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 6.8 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.689 W (31.50mm x 17.50mm) | 1.299 (33.00mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
EZP-Q38105LTACAP FILM 1UF 5% 380VAC RADIAL |
299 | 4.67 |
RFQ |
Datasheet |
Radial | Bulk | EZPQ | Active | 1 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 71.6 mOhms | -40°C ~ 105°C | Through Hole | 1.614 L x 0.591 W (41.00mm x 15.00mm) | 1.161 (29.50mm) | PC Pins | 1.476 (37.50mm) | General Purpose | - |
|
|
ECQ-UAAF335LDCAP FILM 3.3UF 20% 275VAC RADIAL |
177 | 4.72 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 3.3 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220 L x 0.748 W (31.00mm x 19.00mm) | 1.161 (29.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
EZP-V1B905MTTCAP FILM 9UF 10% 1100V RADIAL |
128 | 8.45 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | EZPV | Active | 9 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 12.4 mOhms | -40°C ~ 105°C | Through Hole | 1.614 L x 0.866 W (41.00mm x 22.00mm) | 1.457 (37.00mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
EZP-Q38705LTACAP FILM 7UF 5% 380VAC RADIAL |
150 | 8.59 |
RFQ |
Datasheet |
Radial | Bulk | EZPQ | Active | 7 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 12.2 mOhms | -40°C ~ 105°C | Through Hole | 1.614 L x 1.024 W (41.00mm x 26.00mm) | 1.614 (41.00mm) | PC Pins | 1.476 (37.50mm) | General Purpose | - |
|
|
EZP-V1B126MTBCAP FILM 12UF 10% 1100V RADIAL |
140 | 10.30 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | EZPV | Active | 12 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 10.4 mOhms | -40°C ~ 105°C | Through Hole | 1.614 L x 1.024 W (41.00mm x 26.00mm) | 1.634 (41.50mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
