Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-U2184KCVCAP FILM 0.18UF 10% 250VDC 2825 |
1,143 | 3.24 |
RFQ |
Datasheet |
2825 (7163 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.18 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.280 L x 0.248 W (7.10mm x 6.30mm) | 0.169 (4.30mm) | Solder Pads | - | General Purpose | - |
|
ECW-F2395JBCAP FILM 3.9UF 5% 250VDC RADIAL |
1,796 | 2.50 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(B) | Obsolete | 3.9 µF | ±5% | - | 250V | Polypropylene (PP), Metallized | - | -25°C ~ 105°C | Through Hole | 1.299 L x 0.650 W (33.00mm x 16.50mm) | 1.063 (27.00mm) | PC Pins | 1.181 (30.00mm) | High Frequency, Switching | - |
|

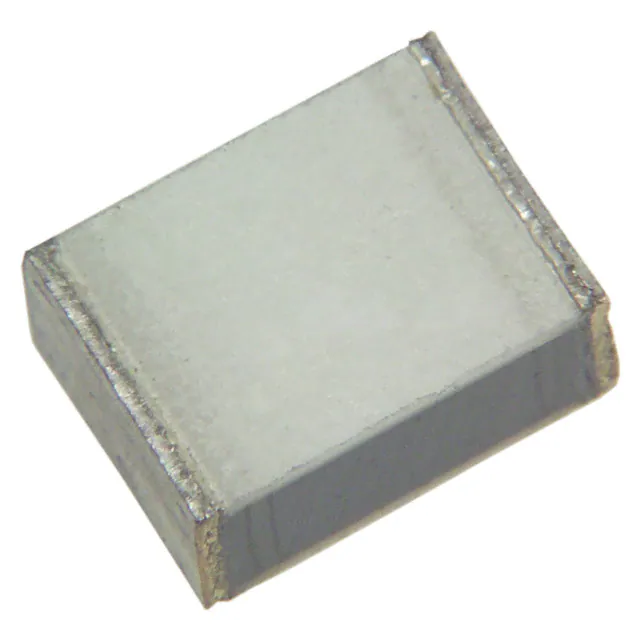

ECW-U1394KCVCAP FILM 0.39UF 10% 100VDC 3022 |
1,831 | 2.83 |
RFQ |
Datasheet |
3022 (7755 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.39 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.303 L x 0.217 W (7.70mm x 5.50mm) | 0.142 (3.60mm) | Solder Pads | - | General Purpose | - |
|
ECW-U1824KCVCAP FILM 0.82UF 10% 100VDC 3925 |
1,997 | 3.70 |
RFQ |
Datasheet |
3925 (9863 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.82 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.386 L x 0.248 W (9.80mm x 6.30mm) | 0.177 (4.50mm) | Solder Pads | - | General Purpose | - |
|
JS211126-AACAP FILM 12UF 10% 210VAC CHAS MT |
2,003 | 6.22 |
RFQ |
Datasheet |
Rectangular Box | Tray | SMF | Obsolete | 12 µF | ±10% | 210V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount | 1.555 L x 1.051 W (39.50mm x 26.70mm) | 1.280 (32.50mm) | Quick Connect - 0.187 (4.7mm) | - | Motor Run | - |
|
ECW-HA3C332JBCAP FILM 3300PF 5% 1.6KVDC RAD |
244 | 0.64 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(A) | Active | 3300 pF | ±5% | 700V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701 L x 0.220 W (17.80mm x 5.60mm) | 0.528 (13.40mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
ECQ-E2223JFCAP FILM 0.022UF 5% 250VDC RAD |
680 | 0.46 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.022 µF | ±5% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.173 W (10.30mm x 4.40mm) | 0.335 (8.50mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|

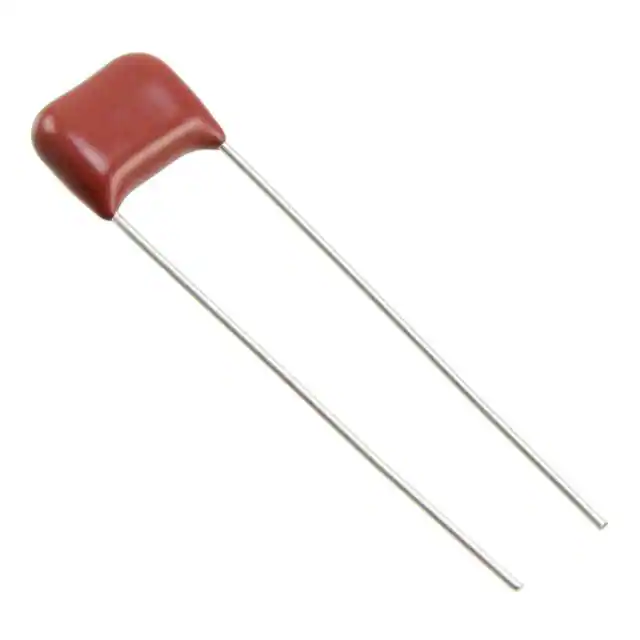

ECQ-E4223JFCAP FILM 0.022UF 5% 400VDC RAD |
798 | 0.47 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.022 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.189 W (10.30mm x 4.80mm) | 0.350 (8.90mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
ECQ-E6472JFCAP FILM 4700PF 5% 630VDC RAD |
410 | 0.56 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 4700 pF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.177 W (12.00mm x 4.50mm) | 0.394 (10.00mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
|
ECQ-E6222JFCAP FILM 2200PF 5% 630VDC RAD |
404 | 0.56 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 2200 pF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.394 L x 0.177 W (10.00mm x 4.50mm) | 0.394 (10.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
ECQ-E6332JFCAP FILM 3300PF 5% 630VDC RAD |
256 | 0.56 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 3300 pF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.394 L x 0.177 W (10.00mm x 4.50mm) | 0.394 (10.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
ECQ-E6152JFCAP FILM 1500PF 5% 630VDC RADIAL |
202 | 0.60 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1500 pF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.394 L x 0.177 W (10.00mm x 4.50mm) | 0.433 (11.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
ECQ-E6392JFCAP FILM 3900PF 5% 630VDC RADIAL |
964 | 0.64 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 3900 pF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.394 L x 0.177 W (10.00mm x 4.50mm) | 0.433 (11.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|

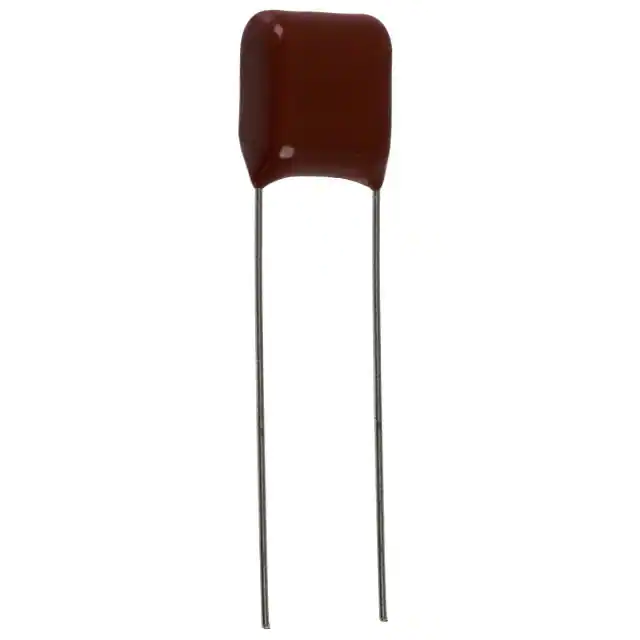

ECQ-E2334KBCAP FILM 0.33UF 10% 250VDC RAD |
517 | 0.66 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.33 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.252 W (10.30mm x 6.40mm) | 0.484 (12.30mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|

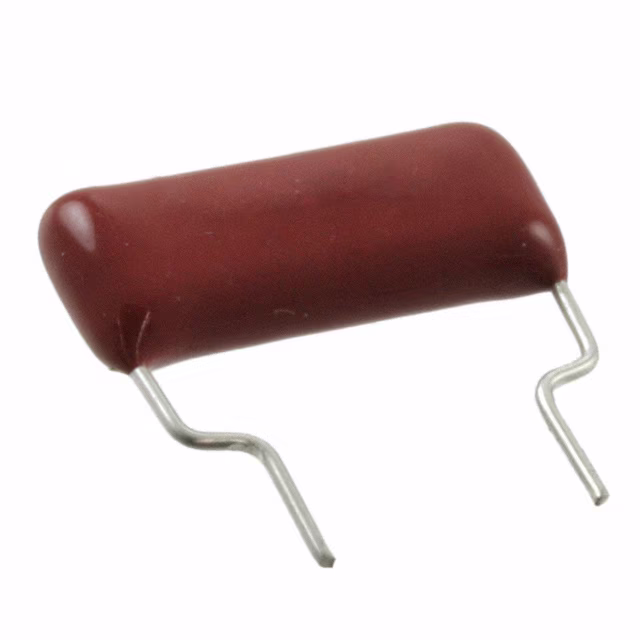

ECW-HA3C102JBCAP FILM 1000PF 5% 1.6KVDC RAD |
490 | 0.66 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(A) | Active | 1000 pF | ±5% | 700V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701 L x 0.205 W (17.80mm x 5.20mm) | 0.512 (13.00mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|

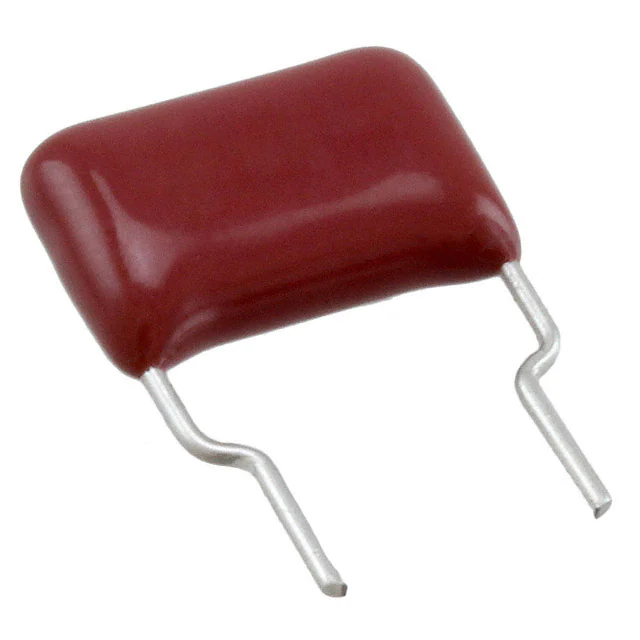

ECW-FD2W104JBCAP FILM 0.1UF 5% 450VDC RADIAL |
662 | 0.68 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.1 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.496 L x 0.177 W (12.60mm x 4.50mm) | 0.547 (13.90mm) | PC Pins | 0.295 (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-UBAF103MCAP FILM 0.01UF 20% 300VAC RADIA |
5,694 | 0.72 |
RFQ |
Datasheet |
Radial | Bulk | ECQUB | Active | 10000 pF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.728 L x 0.197 W (18.50mm x 5.00mm) | 0.394 (10.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X1 |
|
ECW-FD2J473KQCAP FILM 0.047UF 10% 630VDC RAD |
150 | 0.72 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.047 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.496 L x 0.173 W (12.60mm x 4.40mm) | 0.504 (12.80mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECQ-UBAF103KCAP FILM 0.01UF 10% 300VAC RADIA |
144 | 0.73 |
RFQ |
Datasheet |
Radial | Bulk | ECQUB | Active | 10000 pF | ±10% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.728 L x 0.197 W (18.50mm x 5.00mm) | 0.394 (10.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X1 |

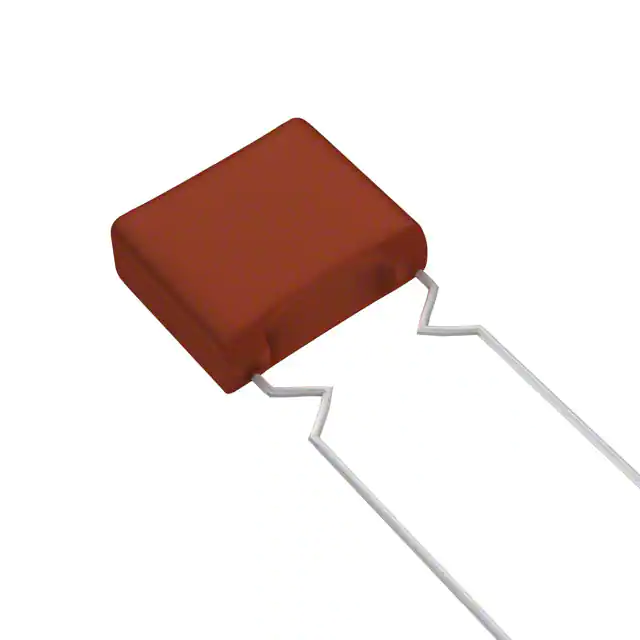

 Series Style D.jpg)
|
ECW-F2154JAQCAP FILM 0.15UF 5% 250VDC RADIAL |
294 | 0.81 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.15 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.220 W (13.00mm x 5.60mm) | 0.638 (16.20mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
