Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E6155KFCAP FILM 1.5UF 10% 630VDC RADIAL |
191 | 2.17 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1.5 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.602 W (31.00mm x 15.30mm) | 1.012 (25.70mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
ECQ-E4225JFCAP FILM 2.2UF 5% 400VDC RADIAL |
333 | 2.31 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 2.2 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.433 W (31.00mm x 11.00mm) | 0.925 (23.50mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
ECW-F4474JBCAP FILM 0.47UF 5% 400VDC RADIAL |
149 | 2.35 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(B) | Active | 0.47 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 0.906 L x 0.571 W (23.00mm x 14.50mm) | 0.906 (23.00mm) | PC Pins | 0.787 (20.00mm) | High Frequency, Switching | - |
|
|
ECW-F4105HLCAP FILM 1UF 3% 400VDC RADIAL |
3,160 | 3.07 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 1 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906 L x 0.512 W (23.00mm x 13.00mm) | 0.839 (21.30mm) | PC Pins | 0.787 (20.00mm) | High Frequency, Switching | - |
|
ECQ-E2825JFCAP FILM 8.2UF 5% 250VDC RADIAL |
991 | 3.34 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 8.2 µF | ±5% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.563 W (31.00mm x 14.30mm) | 0.984 (25.00mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
ECW-F6105HLCAP FILM 1UF 3% 630VDC RADIAL |
586 | 3.36 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 1 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.610 W (28.00mm x 15.50mm) | 0.937 (23.80mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
|
DS371256-CACAP FILM 25UF 370VAC QC TERM |
2,732 | 6.16 |
RFQ |
Datasheet |
Radial, Can | Bulk | DMF | Not For New Designs | 25 µF | -5%, +10% | 370V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 1.614 Dia (41.00mm) | 4.016 (102.00mm) | Quick Connect, Disconnect | 0.630 (16.00mm) | Motor Run | - |
.jpg)
|
ECH-U1H183GX5CAP FILM 0.018UF 2% 50VDC 1210 |
513 | 0.87 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 0.018 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.098 W (3.20mm x 2.50mm) | 0.067 (1.70mm) | Solder Pads | - | General Purpose | - |
|

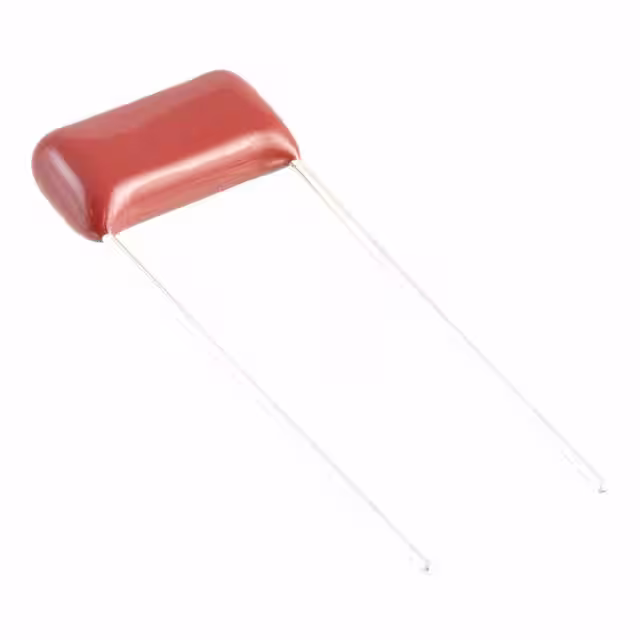

ECW-FD2W564K4CAP FILM 0.56UF 10% 450VDC RAD |
500 | 0.79 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | ECW-F(D) | Active | 0.56 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.244 W (17.50mm x 6.20mm) | 0.370 (9.40mm) | PC Pins | 0.295 (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|

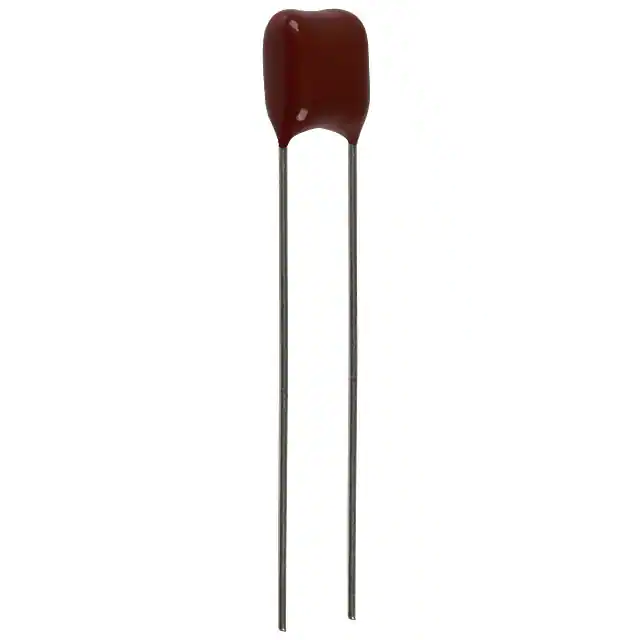

ECQ-E2683KBCAP FILM 0.068UF 10% 250VDC RAD |
876 | 0.43 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.068 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.311 L x 0.201 W (7.90mm x 5.10mm) | 0.354 (9.00mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
ECQ-E2393KBCAP FILM 0.039UF 10% 250VDC RAD |
170 | 0.43 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.039 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.311 L x 0.177 W (7.90mm x 4.50mm) | 0.331 (8.40mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
ECQ-E2273JFCAP FILM 0.027UF 5% 250VDC RAD |
654 | 0.44 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.027 µF | ±5% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.173 W (10.30mm x 4.40mm) | 0.335 (8.50mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
ECQ-E2393JFCAP FILM 0.039UF 5% 250VDC RAD |
600 | 0.44 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.039 µF | ±5% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.177 W (10.30mm x 4.50mm) | 0.335 (8.50mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
ECQ-E2333JFCAP FILM 0.033UF 5% 250VDC RAD |
536 | 0.44 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.033 µF | ±5% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.177 W (10.30mm x 4.50mm) | 0.335 (8.50mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
ECQ-E2124JFCAP FILM 0.12UF 5% 250VDC RADIAL |
513 | 0.46 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.12 µF | ±5% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.236 W (10.30mm x 6.00mm) | 0.394 (10.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
ECQ-E2153JBCAP FILM 0.015UF 5% 250VDC RAD |
564 | 0.48 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.015 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.311 L x 0.165 W (7.90mm x 4.20mm) | 0.319 (8.10mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
|
ECQ-E2393JBCAP FILM 0.039UF 5% 250VDC RAD |
777 | 0.48 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.039 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.311 L x 0.177 W (7.90mm x 4.50mm) | 0.331 (8.40mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
ECQ-E2183JBCAP FILM 0.018UF 5% 250VDC RAD |
648 | 0.48 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.018 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.311 L x 0.169 W (7.90mm x 4.30mm) | 0.323 (8.20mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
|
ECQ-E2683JBCAP FILM 0.068UF 5% 250VDC RAD |
553 | 0.48 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.068 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.311 L x 0.201 W (7.90mm x 5.10mm) | 0.354 (9.00mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
ECQ-E2563JBCAP FILM 0.056UF 5% 250VDC RAD |
453 | 0.48 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.056 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.311 L x 0.185 W (7.90mm x 4.70mm) | 0.343 (8.70mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
