Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-FD2J103JQCAP FILM 10000PF 5% 630VDC RAD |
867 | 0.83 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 10000 pF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.496 L x 0.193 W (12.60mm x 4.90mm) | 0.315 (8.00mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-H8183HACAP FILM 0.018UF 3% 800VDC RAD |
787 | 0.86 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(A) | Active | 0.018 µF | ±3% | 283V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.618 L x 0.260 W (15.70mm x 6.60mm) | 0.492 (12.50mm) | PC Pins | 0.492 (12.50mm) | High Frequency, Switching | - |
|

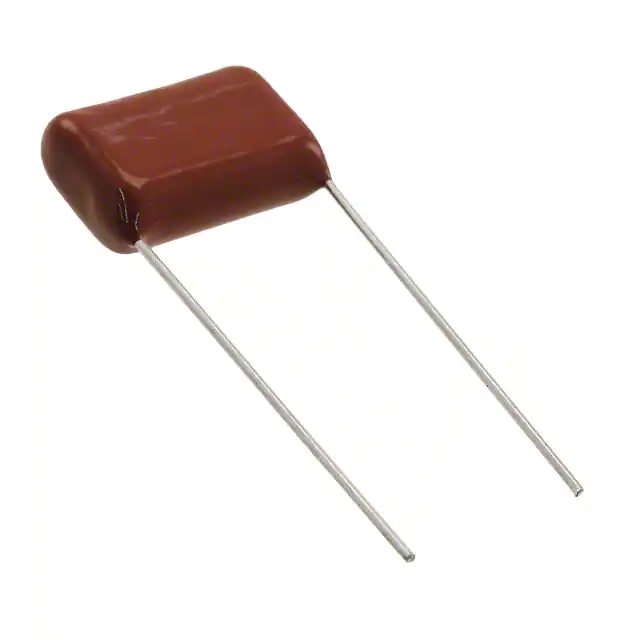

ECW-HA3C223JCAP FILM 0.022UF 5% 1.6KVDC RAD |
371 | 0.91 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(A) | Active | 0.022 µF | ±5% | 700V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.811 L x 0.358 W (20.60mm x 9.10mm) | 0.591 (15.00mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
 Series Style D 8-W.jpg)
|
ECW-F2474JAQCAP FILM 0.47UF 5% 250VDC RADIAL |
608 | 1.05 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.47 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.331 W (13.00mm x 8.40mm) | 0.752 (19.10mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
ECW-H16562JVCAP FILM 5600PF 5% 1.6KVDC RAD |
543 | 1.07 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 5600 pF | ±5% | 424V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906 L x 0.256 W (23.00mm x 6.50mm) | 0.650 (16.50mm) | PC Pins | 0.787 (20.00mm) | High Frequency, Switching | - |
|
ECW-HC3F562JCAP FILM 5600PF 5% 3KVDC RADIAL |
448 | 1.07 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(C) | Active | 5600 pF | ±5% | 1060V (1.06kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.016 L x 0.283 W (25.80mm x 7.20mm) | 0.472 (12.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
ECW-FD2J105JCAP FILM 1UF 5% 630VDC RADIAL |
669 | 1.08 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 1 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.996 L x 0.331 W (25.30mm x 8.40mm) | 0.591 (15.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-E6684KFCAP FILM 0.68UF 10% 630VDC RAD |
6,136 | 1.15 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.68 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.453 W (26.00mm x 11.50mm) | 0.866 (22.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
ECQ-E4185KFCAP FILM 1.8UF 10% 400VDC RADIAL |
243 | 1.18 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1.8 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.433 W (31.00mm x 11.00mm) | 0.846 (21.50mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
ECW-HC3F822JCAP FILM 8200PF 5% 3KVDC RADIAL |
155 | 1.19 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(C) | Active | 8200 pF | ±5% | 1060V (1.06kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.016 L x 0.295 W (25.80mm x 7.50mm) | 0.602 (15.30mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
 Series Straight 26x11.jpg)
|

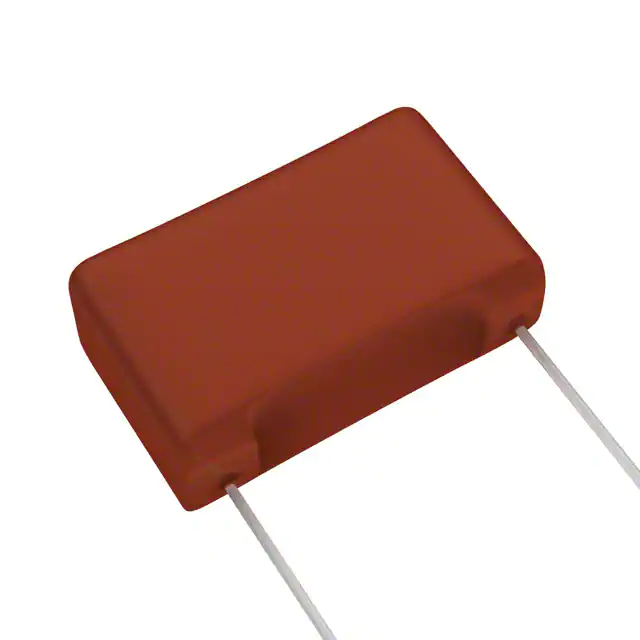

ECW-FA2J105JCAP FILM 1UF 5% 630VDC RADIAL |
613 | 1.22 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 1 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.437 W (26.00mm x 11.10mm) | 0.638 (16.20mm) | PC Pins | 0.886 (22.50mm) | High Frequency, Switching | - |
|
ECQ-E2395KFCAP FILM 3.9UF 10% 250VDC RADIAL |
372 | 1.32 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 3.9 µF | ±10% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.433 W (26.00mm x 11.00mm) | 0.846 (21.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
 Series Straight 18x8.jpg)
|
ECW-F2105JACAP FILM 1UF 5% 250VDC RADIAL |
501 | 1.33 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 1 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.713 L x 0.335 W (18.10mm x 8.50mm) | 0.583 (14.80mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
ECW-F4224JBCAP FILM 0.22UF 5% 400VDC RADIAL |
115 | 2.02 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(B) | Active | 0.22 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 0.787 L x 0.374 W (20.00mm x 9.50mm) | 0.709 (18.00mm) | PC Pins | 0.669 (17.00mm) | High Frequency, Switching | - |
|
ECW-HA3C473JCAP FILM 0.047UF 5% 1.6KVDC RAD |
138 | 1.48 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(A) | Active | 0.047 µF | ±5% | 700V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.811 L x 0.528 W (20.60mm x 13.40mm) | 0.756 (19.20mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
ECW-F6203JLCAP FILM 0.02UF 5% 630VDC RADIAL |
223 | 1.50 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.02 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.256 W (12.50mm x 6.50mm) | 0.425 (10.80mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
 Series.jpg)
|
ECW-FE2W475JCAP FILM 4.7UF 5% 450VDC RADIAL |
222 | 1.55 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 4.7 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.472 W (26.00mm x 12.00mm) | 0.748 (19.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECW-F4513JLCAP FILM 0.051UF 5% 400VDC RAD |
620 | 1.67 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.051 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.252 W (12.50mm x 6.40mm) | 0.421 (10.70mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECW-F6203HLCAP FILM 0.02UF 3% 630VDC RADIAL |
454 | 1.80 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.02 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.256 W (12.50mm x 6.50mm) | 0.425 (10.80mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECW-F4104HLCAP FILM 0.1UF 3% 400VDC RADIAL |
226 | 1.90 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.1 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610 L x 0.256 W (15.50mm x 6.50mm) | 0.492 (12.50mm) | PC Pins | 0.492 (12.50mm) | High Frequency, Switching | - |
