Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
ECH-U1H121GX5CAP FILM 120PF 2% 50VDC 0805 |
673 | 0.56 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 120 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.043 (1.10mm) | Solder Pads | - | General Purpose | - |
|
ECQ-E1274KZCAP FILM 0.27UF 10% 100VDC RAD |
112 | 0.56 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(K) | Obsolete | 0.27 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 0.669 L x 0.177 W (17.00mm x 4.50mm) | 0.354 (9.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
ECH-U1H272JX5CAP FILM 2700PF 5% 50VDC 0805 |
874 | 0.57 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 2700 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.043 (1.10mm) | Solder Pads | - | General Purpose | - |
|
ECQ-M2273KZCAP FILM 0.027UF 10% 200VDC RAD |
795 | 0.60 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-M | Obsolete | 0.027 µF | ±10% | - | 200V | Polyester | - | -40°C ~ 85°C | Through Hole | - | - | PC Pins | 0.492 (12.50mm) | General Purpose | - |
|

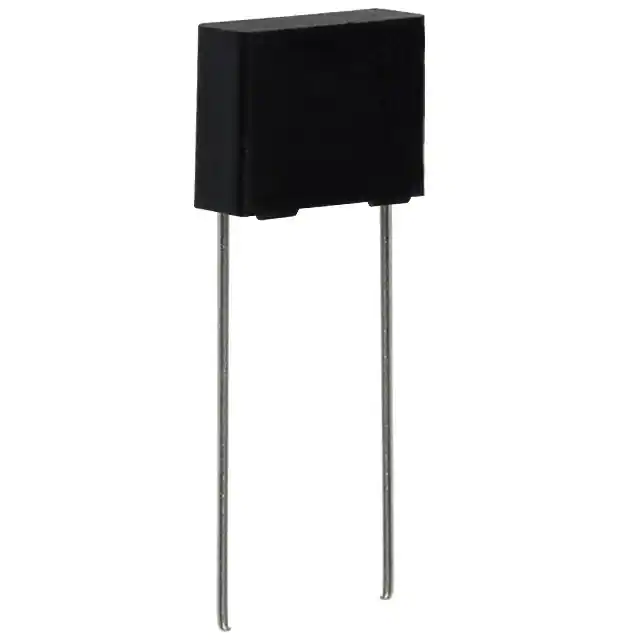

ECQ-U3A153MGCAP FILM 0.015UF 20% 300VAC RAD |
616 | 0.61 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UG | Obsolete | 0.015 µF | ±20% | 300V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 0.591 L x 0.197 W (15.00mm x 5.00mm) | 0.472 (12.00mm) | PC Pins | 0.492 (12.50mm) | EMI, RFI Suppression | X1 |
.jpg)
|
ECH-U1C183JX5CAP FILM 0.018UF 5% 16VDC 1206 |
941 | 0.62 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 0.018 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.043 (1.10mm) | Solder Pads | - | General Purpose | - |
|
ECW-FD2W274K4CAP FILM 0.27UF 10% 450VDC RAD |
990 | 0.72 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | ECW-F(D) | Active | 0.27 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.496 L x 0.209 W (12.60mm x 5.30mm) | 0.591 (15.00mm) | PC Pins | 0.295 (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-F2394JBCAP FILM 0.39UF 5% 250VDC RADIAL |
317 | 0.89 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(B) | Obsolete | 0.39 µF | ±5% | - | 250V | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 0.709 L x 0.354 W (18.00mm x 9.00mm) | 0.689 (17.50mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
ECQ-E6104JF3CAP FILM 0.1UF 5% 630VDC RADIAL |
480 | 0.90 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | ECQ-E(F) | Active | 0.1 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.248 W (18.50mm x 6.30mm) | 0.748 (19.00mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
ECW-FD2J104K4CAP FILM 0.1UF 10% 630VDC RADIAL |
874 | 0.63 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | ECW-F(D) | Active | 0.1 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.496 L x 0.228 W (12.60mm x 5.80mm) | 0.362 (9.20mm) | PC Pins | 0.295 (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECQ-E4563KZCAP FILM 0.056UF 10% 400VDC RAD |
703 | 0.66 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(K) | Obsolete | 0.056 µF | ±10% | - | 400V | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 0.650 L x 0.236 W (16.50mm x 6.00mm) | 0.472 (12.00mm) | PC Pins | 0.531 (13.50mm) | General Purpose | - |
|
|
ECW-FD2J104J4CAP FILM 0.1UF 5% 630VDC RADIAL |
990 | 0.67 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | ECW-F(D) | Active | 0.1 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.496 L x 0.228 W (12.60mm x 5.80mm) | 0.362 (9.20mm) | PC Pins | 0.295 (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECQ-E4224RKFCAP FILM 0.22UF 10% 400VDC RAD |
490 | 0.68 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | ECQ-E(F) | Active | 0.22 µF | ±10% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.232 W (18.50mm x 5.90mm) | 0.709 (18.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
ECH-U1C223GX5CAP FILM 0.022UF 2% 16VDC 1206 |
217 | 0.70 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 0.022 µF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.043 (1.10mm) | Solder Pads | - | General Purpose | - |
|
ECW-FD2W684K4CAP FILM 0.68UF 10% 450VDC RAD |
177 | 0.70 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | ECW-F(D) | Active | 0.68 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.264 W (17.50mm x 6.70mm) | 0.390 (9.90mm) | PC Pins | 0.295 (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-FD2J473J4CAP FILM 0.047UF 5% 630VDC RAD |
952 | 0.76 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | ECW-F(D) | Active | 0.047 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.496 L x 0.173 W (12.60mm x 4.40mm) | 0.307 (7.80mm) | PC Pins | 0.295 (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECH-U1C103JB5CAP FILM 10000PF 5% 16VDC 0805 |
706 | 0.78 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 10000 pF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.047 (1.20mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1H182JB5CAP FILM 1800PF 5% 50VDC 0805 |
371 | 0.79 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 1800 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
-H-1.jpg)
|
ECW-U1392JX5CAP FILM 3900PF 5% 100VDC 1206 |
869 | 0.80 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(X) | Active | 3900 pF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.067 (1.70mm) | Solder Pads | - | General Purpose | - |
|
|
ECW-HA3C202J4CAP FILM 2000PF 5% 1.6KVDC RAD |
313 | 0.80 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | ECW-H(A) | Active | 2000 pF | ±5% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701 L x 0.260 W (17.80mm x 6.60mm) | 0.563 (14.30mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
