Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECH-U1H221JB5CAP FILM 220PF 5% 50VDC 0805 |
838 | 0.84 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 220 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1H681JB5CAP FILM 680PF 5% 50VDC 0805 |
600 | 0.84 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 680 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1H471JB5CAP FILM 470PF 5% 50VDC 0805 |
583 | 0.84 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 470 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
ECW-HA3C752H4CAP FILM 7500PF 3% 1.6KVDC RAD |
380 | 0.84 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | ECW-H(A) | Active | 7500 pF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701 L x 0.256 W (17.80mm x 6.50mm) | 0.488 (12.40mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
-H-2.jpg)
|
ECW-U1682JX5CAP FILM 6800PF 5% 100VDC 1210 |
800 | 0.89 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(X) | Active | 6800 pF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.126 L x 0.098 W (3.20mm x 2.50mm) | 0.067 (1.70mm) | Solder Pads | - | General Purpose | - |
|
ECH-U1C223JB5CAP FILM 0.022UF 5% 16VDC 1206 |
478 | 0.92 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 0.022 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1H151GB5CAP FILM 150PF 2% 50VDC 0805 |
887 | 0.94 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 150 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
ECQ-U2A152MVCAP FILM 1500PF 20% 250VAC RAD |
781 | 0.94 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UV | Obsolete | 1500 pF | ±20% | 250V | - | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 0.689 L x 0.157 W (17.50mm x 4.00mm) | 0.433 (11.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
ECW-U4332V17CAP FILM 3300PF 5% 400VDC 1913 |
880 | 0.95 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-UC(V17) | Active | 3300 pF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.055 (1.40mm) | Solder Pads | - | DC Link, DC Filtering | - |
|
|
ECW-U4222V17CAP FILM 2200PF 5% 400VDC 1913 |
132 | 0.95 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-UC(V17) | Active | 2200 pF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.063 (1.60mm) | Solder Pads | - | DC Link, DC Filtering | - |
|

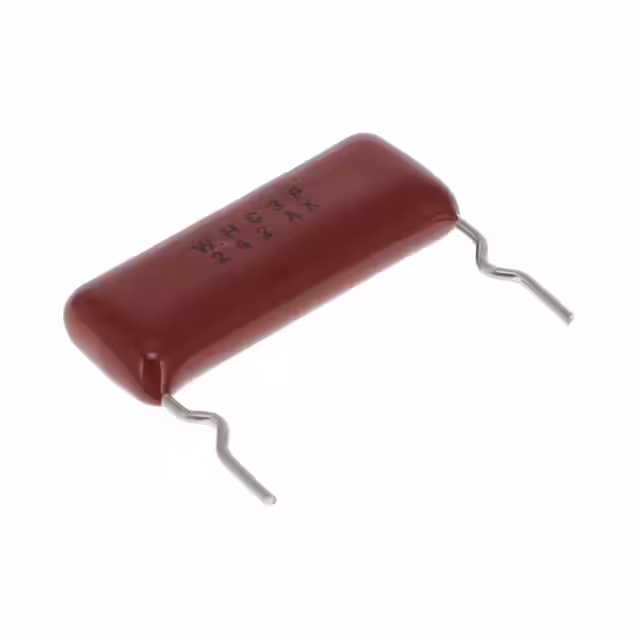

ECW-HC3F242JQCAP FILM 2400PF 5% 3KVDC RADIAL |
398 | 0.97 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(C) | Active | 2400 pF | ±5% | - | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.016 L x 0.240 W (25.80mm x 6.10mm) | 0.429 (10.90mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
|
ECW-U2123V16CAP FILM 0.012UF 5% 250VDC 1913 |
715 | 1.20 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(V16) | Active | 0.012 µF | ±5% | - | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.067 (1.70mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECW-U1473KC9CAP FILM 0.047UF 10% 100VDC 1913 |
495 | 1.21 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.047 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.087 (2.20mm) | Solder Pads | - | General Purpose | - |
.jpg)
|
ECH-U1H563JX9CAP FILM 0.056UF 5% 50VDC 1913 |
768 | 1.22 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 0.056 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.067 (1.70mm) | Solder Pads | - | General Purpose | - |
|

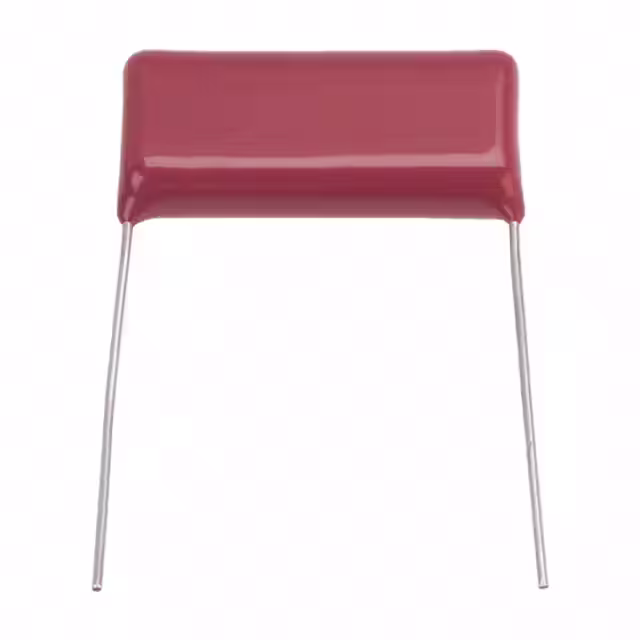

ECQ-E2125KSCAP FILM 1.2UF 10% 250VDC RADIAL |
932 | 1.02 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(K) | Obsolete | 1.2 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 1.220 L x 0.295 W (31.00mm x 7.50mm) | 0.650 (16.50mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
ECQ-U2A564MVCAP FILM 0.56UF 20% 250VAC RAD |
2,381 | 1.07 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UV | Obsolete | 0.56 µF | ±20% | 250V | - | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 1.201 L x 0.531 W (30.50mm x 13.50mm) | 0.945 (24.00mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
|
ECW-U2182KC9CAP FILM 1800PF 10% 250VDC 1913 |
796 | 1.08 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 1800 pF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.063 (1.60mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1H562GB5CAP FILM 5600PF 2% 50VDC 1206 |
169 | 1.08 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 5600 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
ECH-U1C823JB5CAP FILM 0.082UF 5% 16VDC 1210 |
712 | 1.15 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 0.082 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.098 W (3.20mm x 2.50mm) | 0.087 (2.20mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1H333JB5CAP FILM 0.033UF 5% 50VDC 1210 |
227 | 1.15 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 0.033 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.098 W (3.20mm x 2.50mm) | 0.087 (2.20mm) | Solder Pads | - | General Purpose | - |
