Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

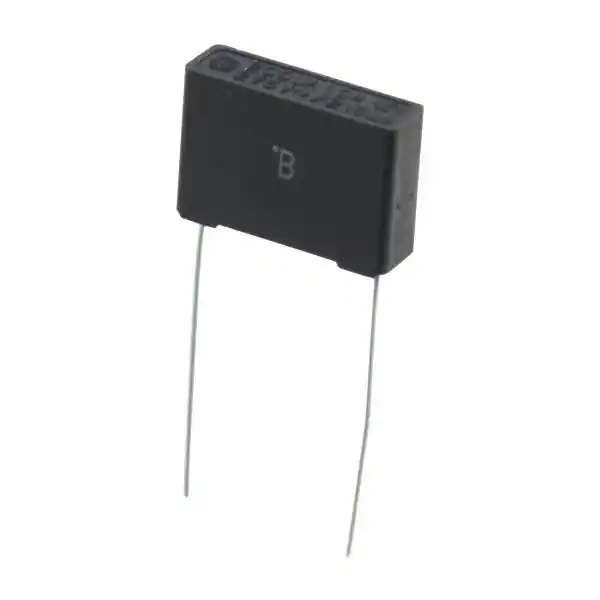

ECQ-UAAF104MCAP FILM 0.1UF 20% 275VAC RADIAL |
2,868 | 0.48 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.1 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.197 W (17.50mm x 5.00mm) | 0.492 (12.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|

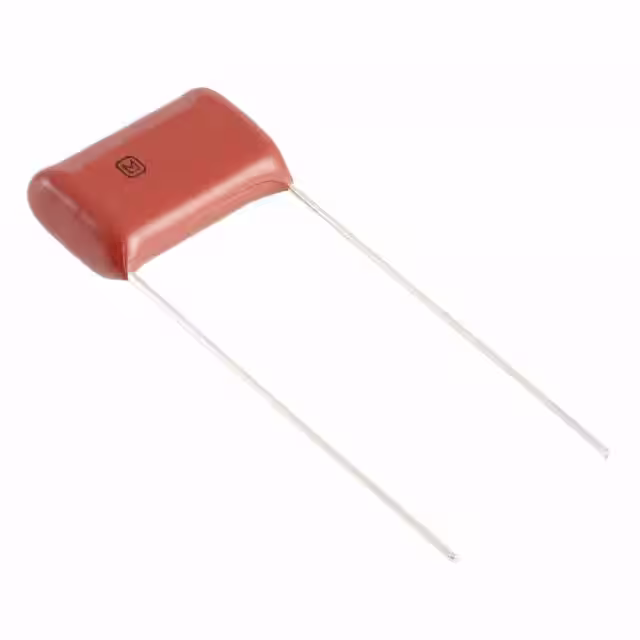

ECQ-E6103KFCAP FILM 10000PF 10% 630VDC RAD |
3,517 | 0.52 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 10000 pF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.177 W (12.00mm x 4.50mm) | 0.335 (8.50mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|

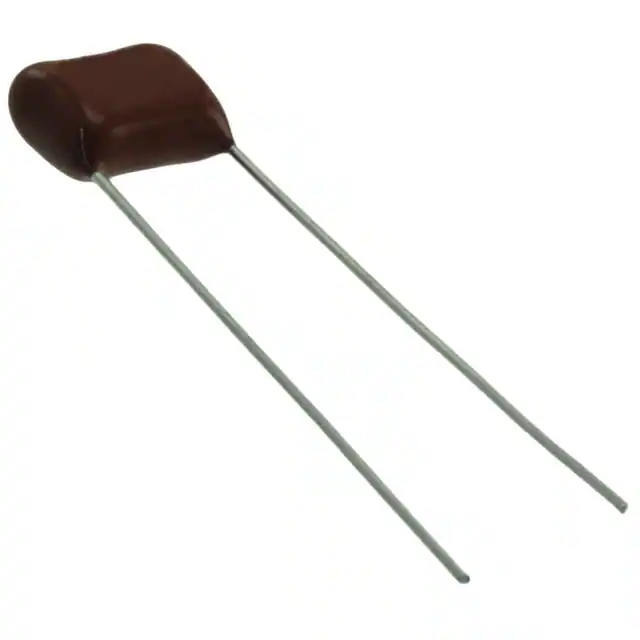

ECQ-E2104JFCAP FILM 0.1UF 5% 250VDC RADIAL |
3,632 | 0.53 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.1 µF | ±5% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.228 W (10.30mm x 5.80mm) | 0.370 (9.40mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
ECW-U2273V16CAP FILM 0.027UF 5% 250VDC 1913 |
2,260 | 1.47 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(V16) | Active | 0.027 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.106 (2.70mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - |
 Series Style Straight.jpg)
|

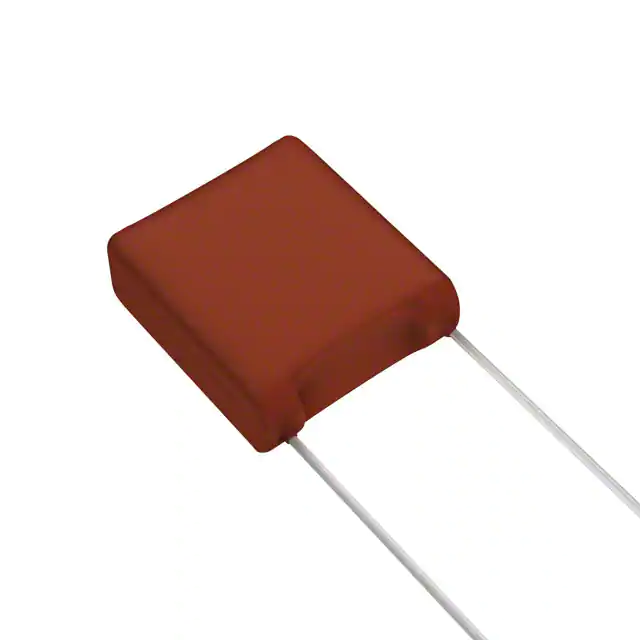

ECW-FA2J104JCAP FILM 0.1UF 5% 630VDC RADIAL |
2,700 | 0.64 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.1 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717 L x 0.205 W (18.20mm x 5.20mm) | 0.409 (10.40mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|

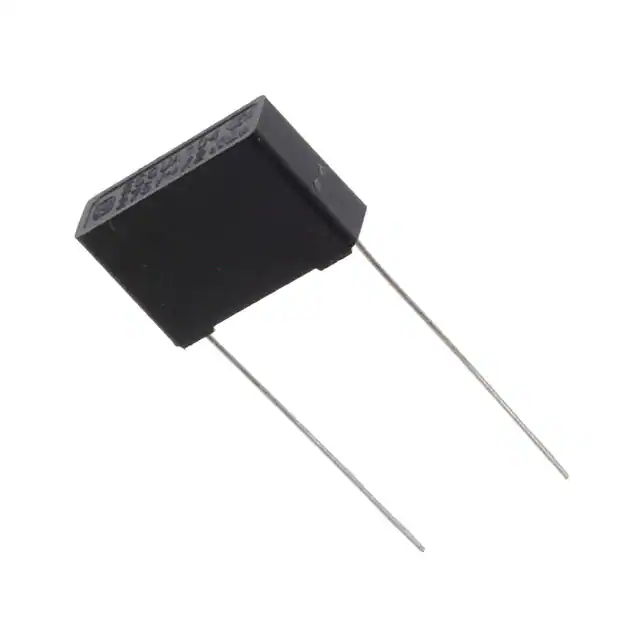

ECQ-UAAF104S1CAP FILM 0.1UF 20% 275VAC RAD |
3,350 | 0.64 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.1 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.197 W (17.50mm x 5.00mm) | 0.492 (12.50mm) | PC Pins | 0.591 (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
ECW-FD2W224KQCAP FILM 0.22UF 10% 450VDC RAD |
3,994 | 0.65 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.22 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.496 L x 0.197 W (12.60mm x 5.00mm) | 0.575 (14.60mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-UBAF103V2CAP FILM 0.01UF 20% 300VAC RADIA |
3,349 | 0.66 |
RFQ |
Datasheet |
Radial | Bulk | ECQUB | Active | 10000 pF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.728 L x 0.197 W (18.50mm x 5.00mm) | 0.591 (15.00mm) | PC Pins | 0.492 (12.50mm) | EMI, RFI Suppression | X1 |
|

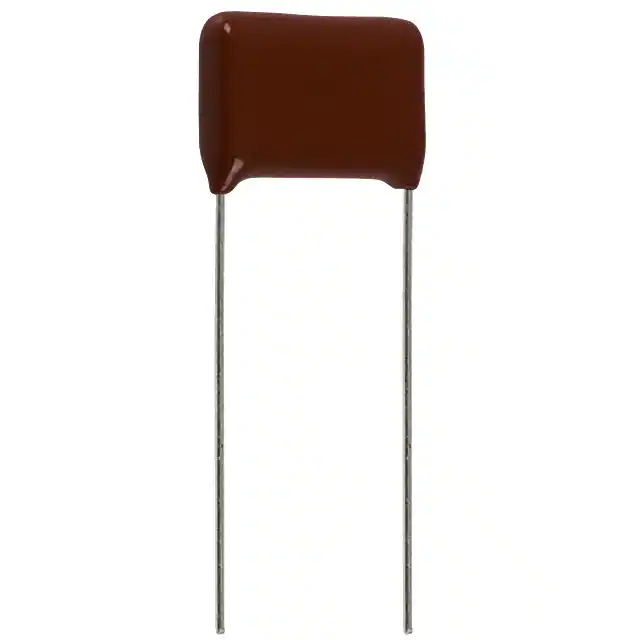

ECQ-E2474KFCAP FILM 0.47UF 10% 250VDC RAD |
3,818 | 0.68 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.47 µF | ±10% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.209 W (18.50mm x 5.30mm) | 0.532 (13.50mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|

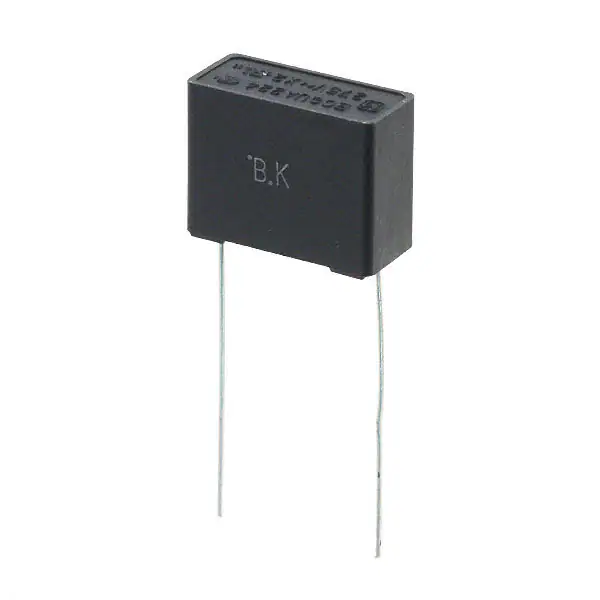

ECQ-UAAF224KCAP FILM 0.22UF 10% 275VAC RAD |
2,762 | 0.68 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.22 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.295 W (17.50mm x 7.50mm) | 0.571 (14.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
ECW-FD2J223KQCAP FILM 0.022UF 10% 630VDC RAD |
2,734 | 0.69 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.022 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.496 L x 0.252 W (12.60mm x 6.40mm) | 0.370 (9.40mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|

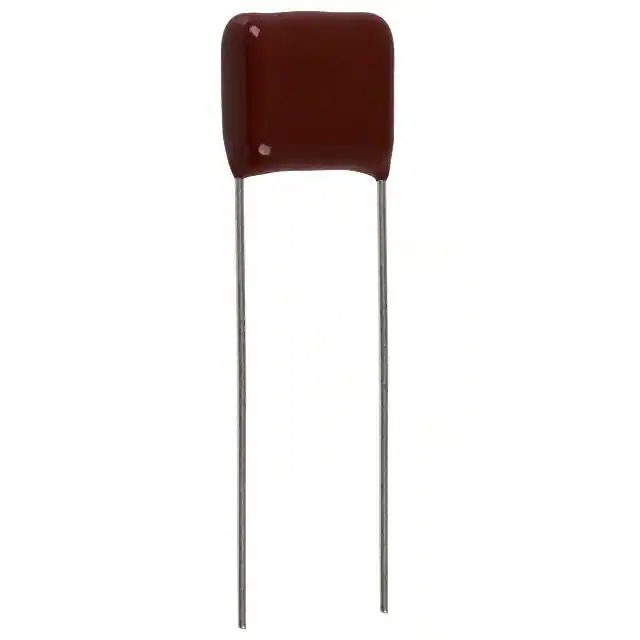

ECQ-E2474KBCAP FILM 0.47UF 10% 250VDC RAD |
2,069 | 0.69 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.47 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.484 L x 0.244 W (12.30mm x 6.20mm) | 0.488 (12.40mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|

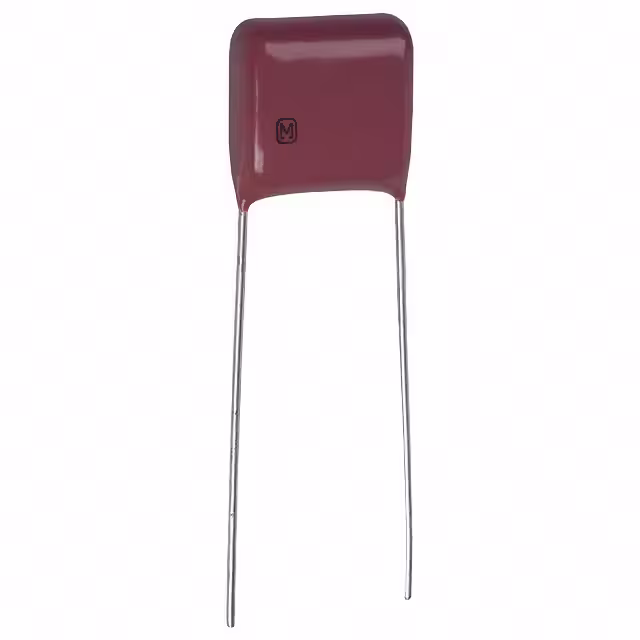

ECQ-E2564KBCAP FILM 0.56UF 10% 250VDC RAD |
2,803 | 0.69 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.56 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.484 L x 0.264 W (12.30mm x 6.70mm) | 0.508 (12.90mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
ECQ-E2105KBCAP FILM 1UF 10% 250VDC RADIAL |
2,550 | 0.70 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 1 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.602 L x 0.276 W (15.30mm x 7.00mm) | 0.591 (15.00mm) | PC Pins | 0.492 (12.50mm) | General Purpose | - |
 Series Style D.jpg)
|
ECW-F2104JAQCAP FILM 0.1UF 5% 250VDC RADIAL |
3,211 | 0.71 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.1 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.197 W (13.00mm x 5.00mm) | 0.614 (15.60mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|

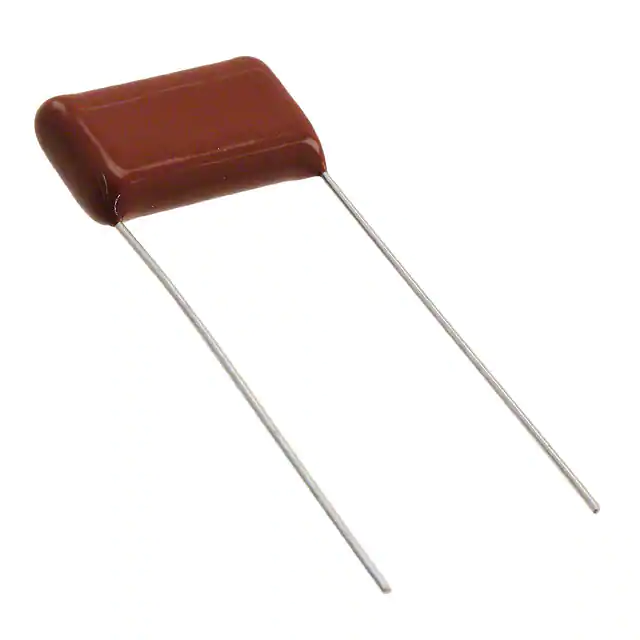

ECW-HA3C103HCAP FILM 10000PF 3% 1.6KVDC RAD |
3,038 | 0.71 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(A) | Active | 10000 pF | ±3% | 700V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.799 L x 0.252 W (20.30mm x 6.40mm) | 0.484 (12.30mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
ECQ-E6683KFCAP FILM 0.068UF 10% 630VDC RAD |
3,333 | 0.72 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.068 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.228 W (18.50mm x 5.80mm) | 0.472 (12.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
ECW-FD2W224JQCAP FILM 0.22UF 5% 450VDC RADIAL |
3,180 | 0.72 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.22 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.496 L x 0.197 W (12.60mm x 5.00mm) | 0.575 (14.60mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECQ-E2474JBCAP FILM 0.47UF 5% 250VDC RADIAL |
3,524 | 0.74 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.47 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.484 L x 0.244 W (12.30mm x 6.20mm) | 0.488 (12.40mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
ECW-U4104V17CAP FILM 0.1UF 5% 400VDC 3925 |
2,088 | 1.93 |
RFQ |
Datasheet |
3925 (9863 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-UC(V17) | Active | 0.1 µF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.386 L x 0.248 W (9.80mm x 6.30mm) | 0.173 (4.40mm) | Solder Pads | - | DC Link, DC Filtering | - |
