Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

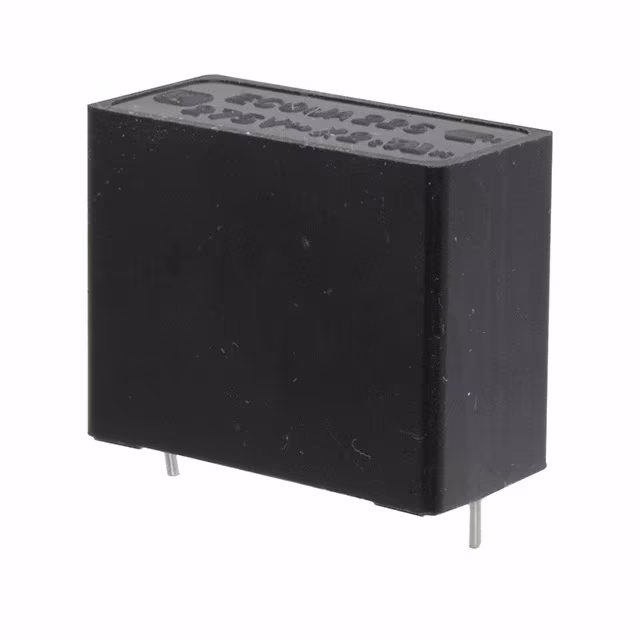

ECQ-UAAF225SACAP FILM 2.2UF 20% 275VAC RAD |
3,786 | 2.47 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 2.2 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220 L x 0.571 W (31.00mm x 14.50mm) | 0.984 (25.00mm) | PC Pins | 1.083 (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
ECQ-E6105JFCAP FILM 1UF 5% 630VDC RADIAL |
2,524 | 2.74 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.492 W (31.00mm x 12.50mm) | 0.921 (23.40mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
ECQ-E2825KFCAP FILM 8.2UF 10% 250VDC RADIAL |
3,459 | 2.77 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 8.2 µF | ±10% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.563 W (31.00mm x 14.30mm) | 0.965 (24.50mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
ECW-H12104JVCAP FILM 0.1UF 5% 1.25KVDC RAD |
3,026 | 2.89 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.1 µF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.610 W (28.00mm x 15.50mm) | 1.004 (25.50mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
|
ECQ-E2W225KHCAP FILM 2.2UF 10% 450VDC RADIAL |
2,835 | 3.04 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(H) | Active | 2.2 µF | ±10% | - | 450V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.012 L x 0.370 W (25.70mm x 9.40mm) | 0.815 (20.70mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | - |
 Series Straight 23x14.jpg)
|
ECW-F2475JACAP FILM 4.7UF 5% 250VDC RADIAL |
3,184 | 4.39 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 4.7 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937 L x 0.583 W (23.80mm x 14.80mm) | 0.870 (22.10mm) | PC Pins | 0.787 (20.00mm) | High Frequency, Switching | - |
|
DS371206-CACAP FILM 20UF 10% 370VAC RADIAL |
2,909 | 5.48 |
RFQ |
Datasheet |
Radial, Can | Bulk | DMF | Active | 20 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 1.614 Dia (41.00mm) | 3.622 (92.00mm) | Quick Connect, Disconnect | 0.630 (16.00mm) | Motor Run | - |
|

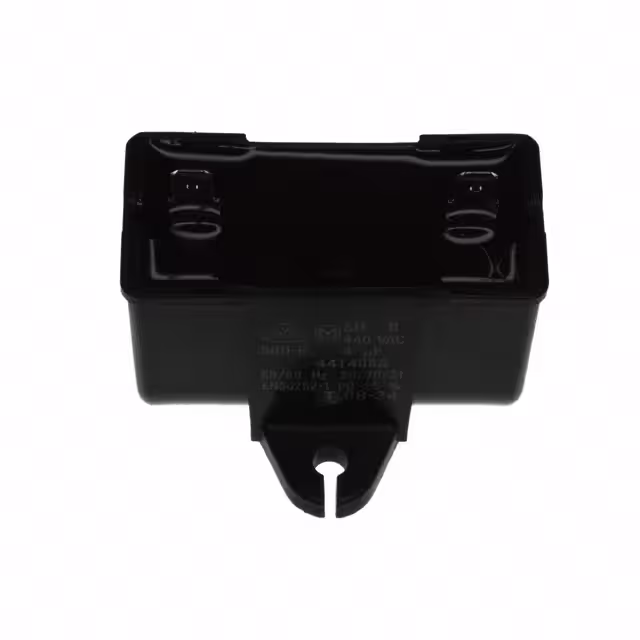

DS441405-BACAP FILM 4UF 10% 440VAC CHAS MT |
2,964 | 7.84 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMF | Active | 4 µF | ±10% | 440V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount | 1.957 L x 0.945 W (49.70mm x 24.00mm) | 1.378 (35.00mm) | Quick Connect - 0.187 (4.7mm) | - | Motor Run | - |
.jpg)
|
ECH-U1H561JX5CAP FILM 560PF 5% 50VDC 0805 |
3,992 | 0.55 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 560 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.043 (1.10mm) | Solder Pads | - | General Purpose | - |
.jpg)
|
ECH-U1C822JX5CAP FILM 8200PF 5% 16VDC 0805 |
3,928 | 0.57 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 8200 pF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.051 (1.30mm) | Solder Pads | - | General Purpose | - |
|
EZP-E50306MTACAP FILM 30UF 10% 500VDC RADIAL |
3,258 | 11.46 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | EZPE | Active | 30 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 85°C | Through Hole | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 2.028 (51.50mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering | - |
|
|
EZP-E50506MTACAP FILM 50UF 10% 500VDC RADIAL |
2,989 | 15.50 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | EZPE | Active | 50 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 4.4 mOhms | -40°C ~ 85°C | Through Hole | 1.634 L x 1.181 W (41.50mm x 30.00mm) | 2.028 (51.50mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering | - |
|
|
EZP-E50606MTACAP FILM 60UF 10% 500VDC RADIAL |
3,800 | 17.87 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | EZPE | Active | 60 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 3.9 mOhms | -40°C ~ 85°C | Through Hole | 1.634 L x 1.181 W (41.50mm x 30.00mm) | 2.028 (51.50mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering | - |
|
EZP-V1B406MTCCAP FILM 40UF 10% 1100V RADIAL |
3,164 | 19.62 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | EZPV | Active | 40 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 7.8 mOhms | -40°C ~ 105°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 2.244 (57.00mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
.jpg)
|
ECH-U1C181JX5CAP FILM 180PF 5% 16VDC 0603 |
2,124 | 0.51 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 180 pF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0.033 (0.85mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1C181GX5CAP FILM 180PF 2% 16VDC 0603 |
2,841 | 0.53 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 180 pF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0.033 (0.85mm) | Solder Pads | - | General Purpose | - |
.jpg)
|
ECH-U1C393JX5CAP FILM 0.039UF 5% 16VDC 1206 |
3,718 | 0.72 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 0.039 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.067 (1.70mm) | Solder Pads | - | General Purpose | - |
|
ECH-U1H123GX5CAP FILM 0.012UF 2% 50VDC 1210 |
2,601 | 0.72 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 0.012 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.098 W (3.20mm x 2.50mm) | 0.051 (1.30mm) | Solder Pads | - | General Purpose | - |
|
ECW-FD2W474K4CAP FILM 0.47UF 10% 450VDC RAD |
3,395 | 0.73 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | ECW-F(D) | Active | 0.47 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.228 W (17.50mm x 5.80mm) | 0.354 (9.00mm) | PC Pins | 0.295 (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-FD2W564J4CAP FILM 0.56UF 5% 450VDC RADIAL |
2,737 | 0.71 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | ECW-F(D) | Active | 0.56 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.244 W (17.50mm x 6.20mm) | 0.370 (9.40mm) | PC Pins | 0.295 (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
