Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECH-U1H471GB5CAP FILM 470PF 2% 50VDC 0805 |
100 | 0.94 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 470 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
ECH-U1H223JB5CAP FILM 0.022UF 5% 50VDC 1210 |
3,499 | 1.12 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 0.022 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.098 W (3.20mm x 2.50mm) | 0.063 (1.60mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1H123JB5CAP FILM 0.012UF 5% 50VDC 1210 |
3,047 | 1.05 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 0.012 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.098 W (3.20mm x 2.50mm) | 0.047 (1.20mm) | Solder Pads | - | General Purpose | - |
|
ECW-FD2W684J4CAP FILM 0.68UF 5% 450VDC RADIAL |
3,417 | 0.78 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | ECW-F(D) | Active | 0.68 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.264 W (17.50mm x 6.70mm) | 0.390 (9.90mm) | PC Pins | 0.295 (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-E2333KBCAP FILM 0.033UF 10% 250VDC RAD |
3,156 | 0.43 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.033 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.311 L x 0.169 W (7.90mm x 4.30mm) | 0.323 (8.20mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
ECQ-E2123JFCAP FILM 0.012UF 5% 250VDC RAD |
2,999 | 0.44 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.012 µF | ±5% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.173 W (10.30mm x 4.40mm) | 0.335 (8.50mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
.jpg)
|
ECH-U1H563GX9CAP FILM 0.056UF 2% 50VDC 1913 |
2,900 | 1.22 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 0.056 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.067 (1.70mm) | Solder Pads | - | General Purpose | - |
|
ECQ-E2154JFCAP FILM 0.15UF 5% 250VDC RADIAL |
3,854 | 0.45 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.15 µF | ±5% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.236 W (10.30mm x 6.00mm) | 0.465 (11.80mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
ECQ-E2124KFCAP FILM 0.12UF 10% 250VDC RAD |
2,000 | 0.47 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.12 µF | ±10% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.236 W (10.30mm x 6.00mm) | 0.394 (10.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
ECQ-E2333JBCAP FILM 0.033UF 5% 250VDC RAD |
2,768 | 0.48 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.033 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.311 L x 0.169 W (7.90mm x 4.30mm) | 0.323 (8.20mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
|
ECH-U1H273GB5CAP FILM 0.027UF 2% 50VDC 1210 |
3,554 | 1.35 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 0.027 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.098 W (3.20mm x 2.50mm) | 0.063 (1.60mm) | Solder Pads | - | General Purpose | - |
|
ECQ-E2123JBCAP FILM 0.012UF 5% 250VDC RAD |
3,845 | 0.48 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.012 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.311 L x 0.165 W (7.90mm x 4.20mm) | 0.319 (8.10mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
 Series.jpg)
|
ECW-FE2W224Q5CAP FILM 0.22UF 10% 450VDC RAD |
3,706 | 0.63 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 0.22 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689 L x 0.197 W (17.50mm x 5.00mm) | 0.433 (11.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|

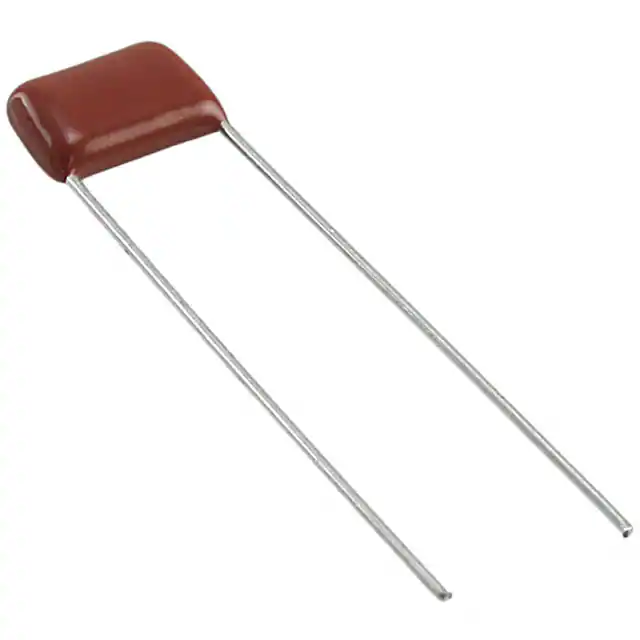

ECQ-E4103JFCAP FILM 10000PF 5% 400VDC RAD |
2,669 | 0.51 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 10000 pF | ±5% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.169 W (10.30mm x 4.30mm) | 0.331 (8.40mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|

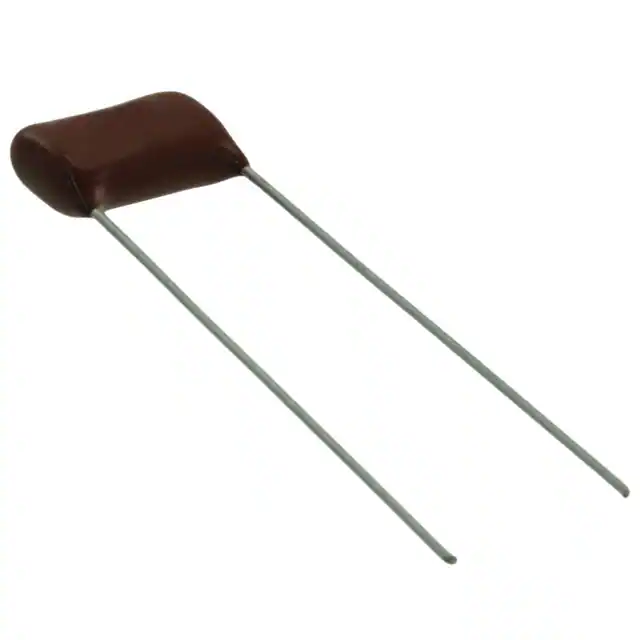

ECQ-E4473JFCAP FILM 0.047UF 5% 400VDC RAD |
2,466 | 0.51 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.047 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.197 W (12.00mm x 5.00mm) | 0.366 (9.30mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
ECQ-E2224JFCAP FILM 0.22UF 5% 250VDC RADIAL |
2,323 | 0.52 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.22 µF | ±5% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.217 W (12.00mm x 5.50mm) | 0.453 (11.50mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
ECQ-E2154JBCAP FILM 0.15UF 5% 250VDC RADIAL |
3,647 | 0.53 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.15 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.311 L x 0.248 W (7.90mm x 6.30mm) | 0.480 (12.20mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|

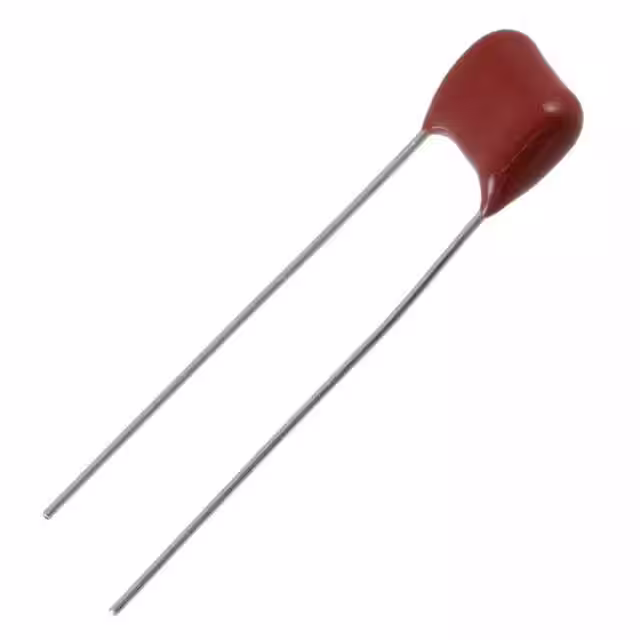

ECQ-E2823JFCAP FILM 0.082UF 5% 250VDC RAD |
2,218 | 0.53 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.082 µF | ±5% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.193 W (10.30mm x 4.90mm) | 0.354 (9.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
ECW-U1823JC9CAP FILM 0.082UF 5% 100VDC 1913 |
3,339 | 1.44 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.082 µF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.118 (3.00mm) | Solder Pads | - | General Purpose | - |
|
|
ECW-FE2W104KCAP FILM 0.1UF 10% 450VDC RADIAL |
2,960 | 0.54 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 0.1 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.197 W (13.00mm x 5.00mm) | 0.413 (10.50mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
