Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E2394KFCAP FILM 0.39UF 10% 250VDC RAD |
2,141 | 0.74 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.39 µF | ±10% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.193 W (18.50mm x 4.90mm) | 0.512 (13.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
ECW-FD2W684JCAP FILM 0.68UF 5% 450VDC RADIAL |
2,397 | 0.74 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.68 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.264 W (17.50mm x 6.70mm) | 0.390 (9.90mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-FD2J103KQCAP FILM 10000PF 10% 630VDC RAD |
3,572 | 0.75 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 10000 pF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.496 L x 0.193 W (12.60mm x 4.90mm) | 0.315 (8.00mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-E4563JFCAP FILM 0.056UF 5% 400VDC RAD |
2,079 | 0.75 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.056 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.197 W (12.00mm x 5.00mm) | 0.433 (11.00mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
ECQ-E6273JFCAP FILM 0.027UF 5% 630VDC RAD |
2,339 | 0.75 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.027 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.217 W (12.00mm x 5.50mm) | 0.469 (11.90mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
ECW-FD2W564KCAP FILM 0.56UF 10% 450VDC RAD |
2,418 | 0.75 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.56 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.244 W (17.50mm x 6.20mm) | 0.370 (9.40mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|

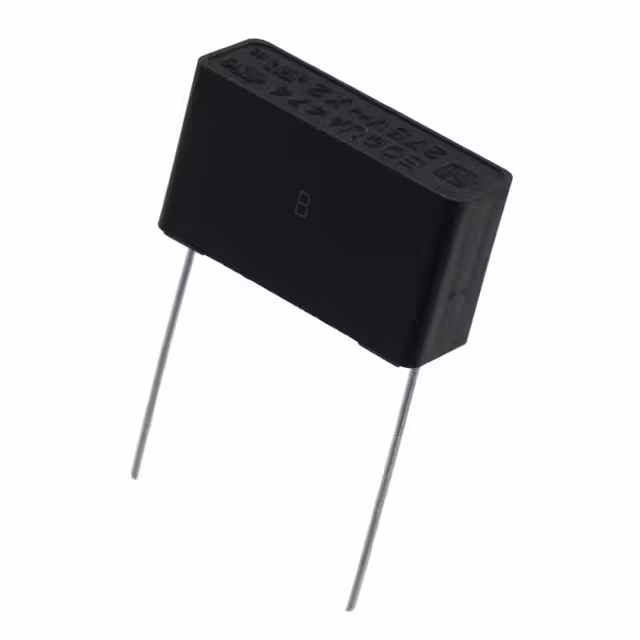

ECQ-UAAF474MCAP FILM 0.47UF 20% 275VAC RAD |
3,346 | 0.76 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.47 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.335 W (26.00mm x 8.50mm) | 0.610 (15.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
 Series.jpg)
|
ECW-FE2W334P5CAP FILM 0.33UF 5% 450VDC RADIAL |
3,149 | 0.76 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 0.33 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689 L x 0.197 W (17.50mm x 5.00mm) | 0.433 (11.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|

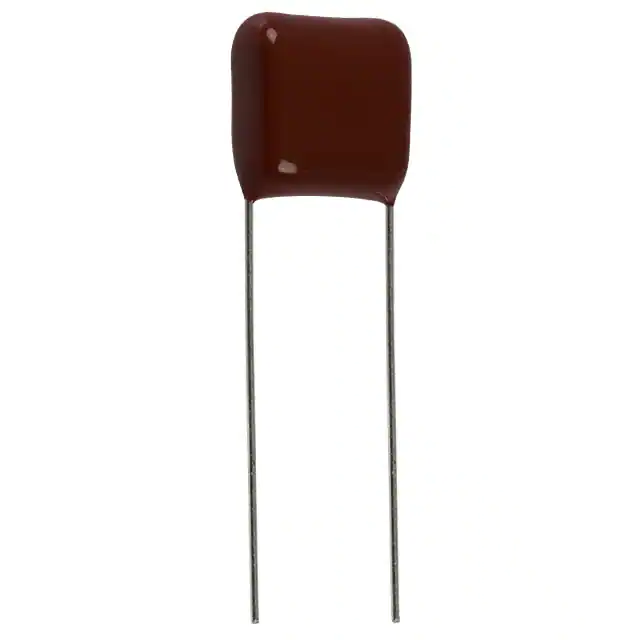

ECQ-E2684KBCAP FILM 0.68UF 10% 250VDC RAD |
2,598 | 0.76 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.68 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.484 L x 0.287 W (12.30mm x 7.30mm) | - | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
|
ECQ-E2474JFCAP FILM 0.47UF 5% 250VDC RADIAL |
3,933 | 0.76 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.47 µF | ±5% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.209 W (18.50mm x 5.30mm) | 0.532 (13.50mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
ECW-FD2W474JCAP FILM 0.47UF 5% 450VDC RADIAL |
3,986 | 0.77 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.47 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.228 W (17.50mm x 5.80mm) | 0.354 (9.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-FD2J153KQCAP FILM 0.015UF 10% 630VDC RAD |
3,235 | 0.78 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.015 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.496 L x 0.220 W (12.60mm x 5.60mm) | 0.339 (8.60mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-UAAF394MCAP FILM 0.39UF 20% 275VAC RADIA |
2,236 | 0.79 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.39 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.335 W (26.00mm x 8.50mm) | 0.610 (15.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
|
ECQ-UAAF394KCAP FILM 0.39UF 10% 275VAC RADIA |
3,065 | 0.80 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.39 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.335 W (26.00mm x 8.50mm) | 0.610 (15.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
 Series Style D.jpg)
|
ECW-F2184JAQCAP FILM 0.18UF 5% 250VDC RADIAL |
2,641 | 0.81 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.18 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.232 W (13.00mm x 5.90mm) | 0.654 (16.60mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECW-F2124JAQCAP FILM 0.12UF 5% 250VDC RADIAL |
3,063 | 0.81 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.12 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.209 W (13.00mm x 5.30mm) | 0.626 (15.90mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|

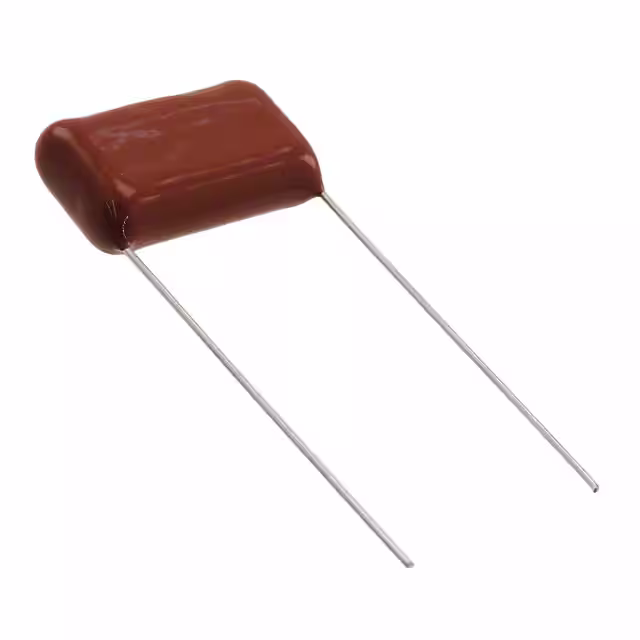

ECW-HA3C153JCAP FILM 0.015UF 5% 1.6KVDC RAD |
2,120 | 0.81 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(A) | Active | 0.015 µF | ±5% | 700V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.799 L x 0.299 W (20.30mm x 7.60mm) | 0.532 (13.50mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
|
ECQ-E2684JBCAP FILM 0.68UF 5% 250VDC RADIAL |
3,973 | 0.83 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.68 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.484 L x 0.287 W (12.30mm x 7.30mm) | - | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
ECW-HA3C103JCAP FILM 10000PF 5% 1.6KVDC RAD |
2,244 | 0.83 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(A) | Active | 10000 pF | ±5% | 700V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.799 L x 0.252 W (20.30mm x 6.40mm) | 0.484 (12.30mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
|
ECW-FD2W684KCAP FILM 0.68UF 10% 450VDC RAD |
2,087 | 0.82 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.68 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.264 W (17.50mm x 6.70mm) | 0.390 (9.90mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
