Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E6124KFCAP FILM 0.12UF 10% 630VDC RAD |
3,389 | 0.82 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.12 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.248 W (18.50mm x 6.30mm) | 0.610 (15.50mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
ECQ-E1824KFCAP FILM 0.82UF 10% 100VDC RAD |
3,163 | 0.82 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.82 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.236 W (12.00mm x 6.00mm) | 0.571 (14.50mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
 Series Style Straight 18x7.jpg)
|
ECW-FA2J224JCAP FILM 0.22UF 5% 630VDC RADIAL |
3,320 | 0.82 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.22 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717 L x 0.280 W (18.20mm x 7.10mm) | 0.484 (12.30mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
 Series.jpg)
|
ECW-FE2J334JCAP FILM 0.33UF 5% 630VDC RADIAL |
2,371 | 0.82 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 0.33 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689 L x 0.335 W (17.50mm x 8.50mm) | 0.571 (14.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-UAAF224T1CAP FILM 0.22UF 10% 275VAC RAD |
3,111 | 0.83 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.22 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.295 W (17.50mm x 7.50mm) | 0.571 (14.50mm) | PC Pins | 0.591 (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
ECQ-UAAF334S1CAP FILM 0.33UF 20% 275VAC RAD |
3,343 | 0.83 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.33 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.354 W (17.50mm x 9.00mm) | 0.650 (16.50mm) | PC Pins | 0.591 (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
ECW-FD2J273JBCAP FILM 0.027UF 5% 630VDC RAD |
3,385 | 0.83 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.027 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.496 L x 0.272 W (12.60mm x 6.90mm) | 0.390 (9.90mm) | PC Pins | 0.295 (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-E6683JFCAP FILM 0.068UF 5% 630VDC RAD |
2,868 | 0.84 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.068 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.228 W (18.50mm x 5.80mm) | 0.472 (12.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
 Series Style B.jpg)
|
ECW-F2W124JAQCAP FILM 0.12UF 5% 450VDC RADIAL |
2,033 | 0.86 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.12 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.213 W (13.00mm x 5.40mm) | 0.630 (16.00mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
ECQ-E6823JFCAP FILM 0.082UF 5% 630VDC RAD |
2,536 | 0.87 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.082 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.256 W (18.50mm x 6.50mm) | 0.512 (13.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
ECQ-UAAF334T1CAP FILM 0.33UF 10% 275VAC RAD |
3,298 | 0.87 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.33 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.354 W (17.50mm x 9.00mm) | 0.650 (16.50mm) | PC Pins | 0.591 (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|

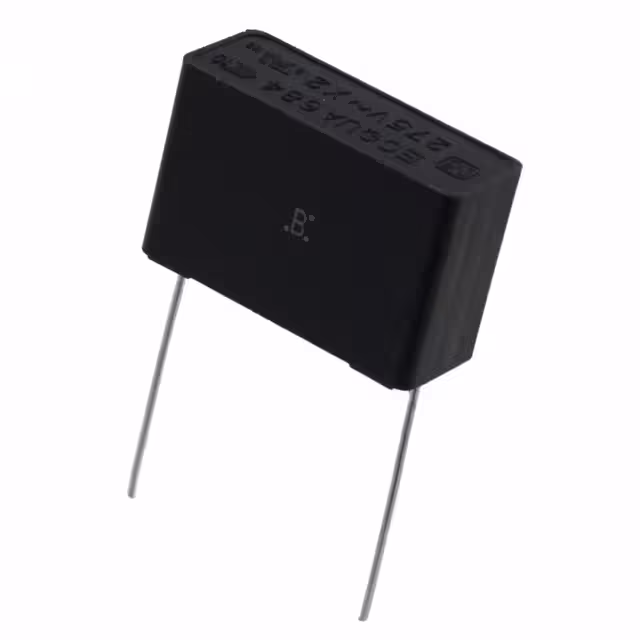

ECQ-UAAF684MCAP FILM 0.68UF 20% 275VAC RAD |
2,928 | 0.86 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.68 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.394 W (26.00mm x 10.00mm) | 0.689 (17.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
ECW-FD2J154JQCAP FILM 0.15UF 5% 630VDC RADIAL |
3,219 | 0.86 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.15 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.496 L x 0.268 W (12.60mm x 6.80mm) | 0.598 (15.20mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-H8153HACAP FILM 0.015UF 3% 800VDC RAD |
3,206 | 0.87 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(A) | Active | 0.015 µF | ±3% | 283V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.606 L x 0.244 W (15.40mm x 6.20mm) | 0.476 (12.10mm) | PC Pins | 0.492 (12.50mm) | High Frequency, Switching | - |
|
|
ECW-H16122JVCAP FILM 1200PF 5% 1.6KVDC RAD |
2,705 | 0.89 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 1200 pF | ±5% | 424V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.276 W (18.00mm x 7.00mm) | 0.591 (15.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECW-H16182JVCAP FILM 1800PF 5% 1.6KVDC RAD |
3,003 | 0.89 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 1800 pF | ±5% | 424V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.276 W (18.00mm x 7.00mm) | 0.610 (15.50mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECW-H16272JVCAP FILM 2700PF 5% 1.6KVDC RAD |
2,901 | 0.89 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 2700 pF | ±5% | 424V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.276 W (18.00mm x 7.00mm) | 0.610 (15.50mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECW-H16332JVCAP FILM 3300PF 5% 1.6KVDC RAD |
3,495 | 0.89 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 3300 pF | ±5% | 424V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.295 W (18.00mm x 7.50mm) | 0.630 (16.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
ECQ-UAAF334SACAP FILM 0.33UF 20% 275VAC RAD |
3,381 | 0.89 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.33 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.354 W (17.50mm x 9.00mm) | 0.650 (16.50mm) | PC Pins | 0.591 (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|

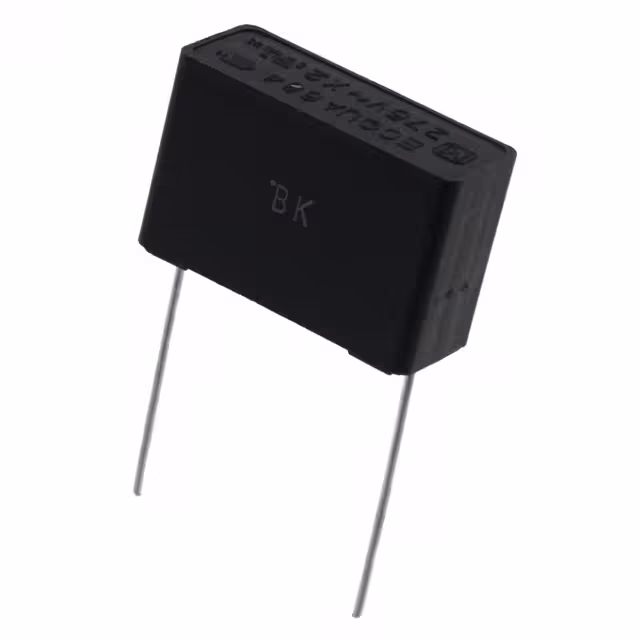

ECQ-UAAF684KCAP FILM 0.68UF 10% 275VAC RAD |
2,162 | 0.90 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.68 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.394 W (26.00mm x 10.00mm) | 0.689 (17.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
