Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E2125KFCAP FILM 1.2UF 10% 250VDC RADIAL |
3,427 | 0.91 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1.2 µF | ±10% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.315 W (18.50mm x 8.00mm) | 0.665 (16.90mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
ECQ-E6124JFCAP FILM 0.12UF 5% 630VDC RADIAL |
2,972 | 0.91 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.12 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.248 W (18.50mm x 6.30mm) | 0.610 (15.50mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
ECQ-UAAF474S1CAP FILM 0.47UF 20% 275VAC RAD |
3,616 | 0.92 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.47 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.335 W (26.00mm x 8.50mm) | 0.610 (15.50mm) | PC Pins | 0.886 (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
|
ECQ-E1155KFCAP FILM 1.5UF 10% 100VDC RADIAL |
3,301 | 0.93 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1.5 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.236 W (18.50mm x 6.00mm) | 0.567 (14.40mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|

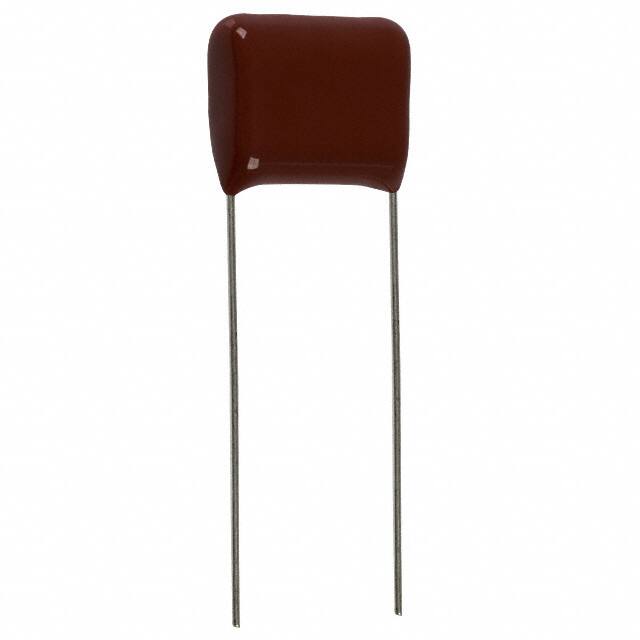

ECQ-E2824JBCAP FILM 0.82UF 5% 250VDC RADIAL |
3,660 | 0.93 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.82 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.602 L x 0.248 W (15.30mm x 6.30mm) | 0.563 (14.30mm) | PC Pins | 0.492 (12.50mm) | General Purpose | - |
|
ECQ-E4274JFCAP FILM 0.27UF 5% 400VDC RADIAL |
3,861 | 0.94 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.27 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.256 W (18.50mm x 6.50mm) | 0.602 (15.30mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
ECQ-E4224JFCAP FILM 0.22UF 5% 400VDC RADIAL |
2,847 | 0.94 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.22 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.232 W (18.50mm x 5.90mm) | 0.551 (14.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
 Series.jpg)
|
ECW-FE2W155KCAP FILM 1.5UF 10% 450VDC RADIAL |
3,300 | 0.94 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 1.5 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689 L x 0.394 W (17.50mm x 10.00mm) | 0.610 (15.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-FD2J224JQCAP FILM 0.22UF 5% 630VDC RADIAL |
3,958 | 0.94 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.22 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.496 L x 0.319 W (12.60mm x 8.10mm) | 0.646 (16.40mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|

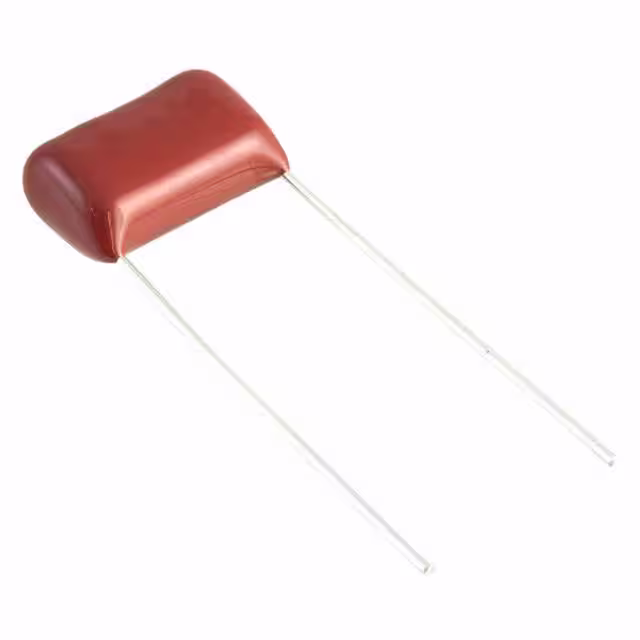

ECW-FD2J564JCAP FILM 0.56UF 5% 630VDC RADIAL |
3,278 | 0.95 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.56 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701 L x 0.331 W (17.80mm x 8.40mm) | 0.583 (14.80mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-UAAF474SACAP FILM 0.47UF 20% 275VAC RAD |
3,197 | 0.95 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.47 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.335 W (26.00mm x 8.50mm) | 0.610 (15.50mm) | PC Pins | 0.886 (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
 Series Straight 18x10.jpg)
|
ECW-FA2J564JCAP FILM 0.56UF 5% 630VDC RADIAL |
941 | 1.07 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.56 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717 L x 0.429 W (18.20mm x 10.90mm) | 0.630 (16.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECQ-E6184JFCAP FILM 0.18UF 5% 630VDC RADIAL |
3,310 | 0.98 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.18 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.315 W (18.50mm x 8.00mm) | 0.669 (17.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
ECW-FE2J684KCAP FILM 0.68UF 10% 630VDC RAD |
2,389 | 1.02 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 0.68 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689 L x 0.433 W (17.50mm x 11.00mm) | 0.433 (11.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-H12122JVCAP FILM 1200PF 5% 1.25KVDC RAD |
3,476 | 1.12 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 1200 pF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.276 W (18.00mm x 7.00mm) | 0.591 (15.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECW-H12272JVCAP FILM 2700PF 5% 1.25KVDC RAD |
3,222 | 1.12 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 2700 pF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.276 W (18.00mm x 7.00mm) | 0.610 (15.50mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|

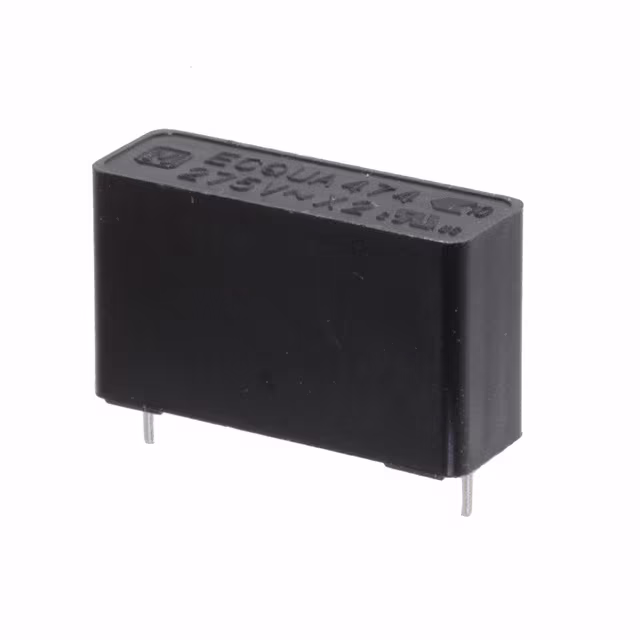

ECQ-UAAF474TACAP FILM 0.47UF 10% 275VAC RAD |
3,565 | 1.00 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.47 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.335 W (26.00mm x 8.50mm) | 0.610 (15.50mm) | PC Pins | 0.886 (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|

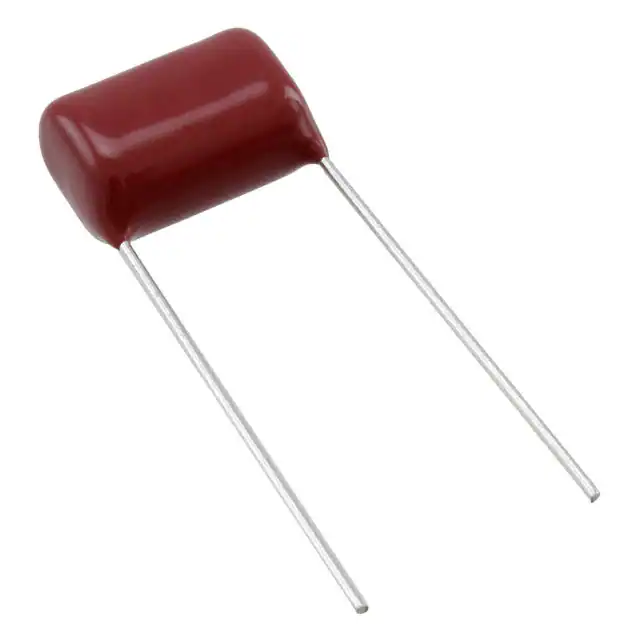

ECW-FD2W155JCAP FILM 1.5UF 5% 450VDC RADIAL |
3,968 | 1.01 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 1.5 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.366 W (17.50mm x 9.30mm) | 0.492 (12.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-UAAF824KCAP FILM 0.82UF 10% 275VAC RADIA |
2,998 | 1.01 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.82 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.472 W (26.00mm x 12.00mm) | 0.768 (19.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
ECW-FD2W155JBCAP FILM 1.5UF 5% 450VDC RADIAL |
2,377 | 1.06 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 1.5 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.366 W (17.50mm x 9.30mm) | 0.689 (17.50mm) | PC Pins | 0.295 (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
