Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Series.jpg)
|
ECW-FE2W475KCAP FILM 4.7UF 10% 450VDC RADIAL |
2,379 | 1.41 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 4.7 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.472 W (26.00mm x 12.00mm) | 0.748 (19.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-H12103JVCAP FILM 10000PF 5% 1.25KVDC RAD |
3,282 | 1.42 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 10000 pF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.315 W (18.00mm x 8.00mm) | 0.650 (16.50mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
ECW-F4223JLCAP FILM 0.022UF 5% 400VDC RAD |
3,273 | 1.42 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.022 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.228 W (12.50mm x 5.80mm) | 0.398 (10.10mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|

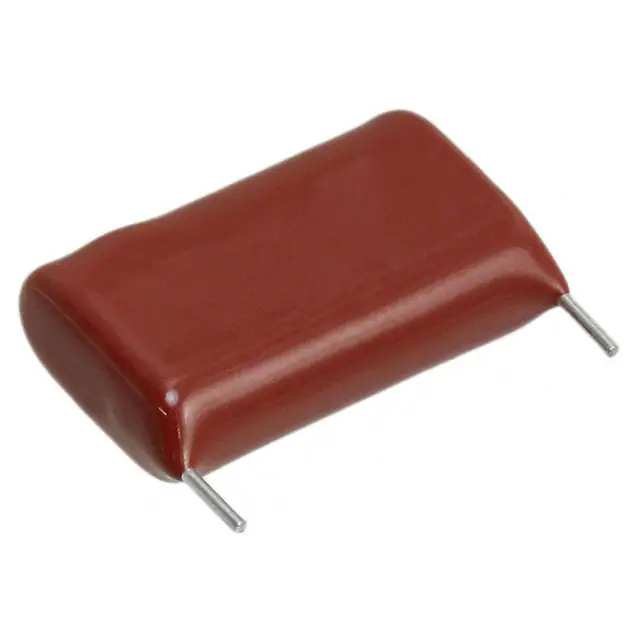

ECW-HC3F103JDCAP FILM 10000PF 5% 3KVDC RADIAL |
2,491 | 1.43 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(C) | Active | 10000 pF | ±5% | 1060V (1.06kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.016 L x 0.323 W (25.80mm x 8.20mm) | 0.634 (16.10mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
|
ECW-F6163JLCAP FILM 0.016UF 5% 630VDC RAD |
3,212 | 1.43 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.016 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.236 W (12.50mm x 6.00mm) | 0.409 (10.40mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
ECW-FD2J155JCAP FILM 1.5UF 5% 630VDC RADIAL |
2,584 | 1.44 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 1.5 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.996 L x 0.406 W (25.30mm x 10.30mm) | 0.669 (17.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-E4185JFCAP FILM 1.8UF 5% 400VDC RADIAL |
3,905 | 1.45 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1.8 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.433 W (31.00mm x 11.00mm) | 0.866 (22.00mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
ECQ-E2395JFCAP FILM 3.9UF 5% 250VDC RADIAL |
3,003 | 1.45 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 3.9 µF | ±5% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.433 W (26.00mm x 11.00mm) | 0.866 (22.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
ECQ-E1395JFCAP FILM 3.9UF 5% 100VDC RADIAL |
2,753 | 1.45 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 3.9 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.276 W (26.00mm x 7.00mm) | 0.685 (17.40mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
|
ECW-F4273JLCAP FILM 0.027UF 5% 400VDC RAD |
3,288 | 1.48 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.027 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.244 W (12.50mm x 6.20mm) | 0.413 (10.50mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
ECQ-UAAF155MCAP FILM 1.5UF 20% 275VAC RADIAL |
2,610 | 1.49 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 1.5 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220 L x 0.472 W (31.00mm x 12.00mm) | 0.886 (22.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
|
ECW-F6183JLCAP FILM 0.018UF 5% 630VDC RAD |
2,366 | 1.50 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.018 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.244 W (12.50mm x 6.20mm) | 0.417 (10.60mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
ECW-FD2W475KCAP FILM 4.7UF 10% 450VDC RADIAL |
3,896 | 1.53 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 4.7 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.996 L x 0.421 W (25.30mm x 10.70mm) | 0.646 (16.40mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|

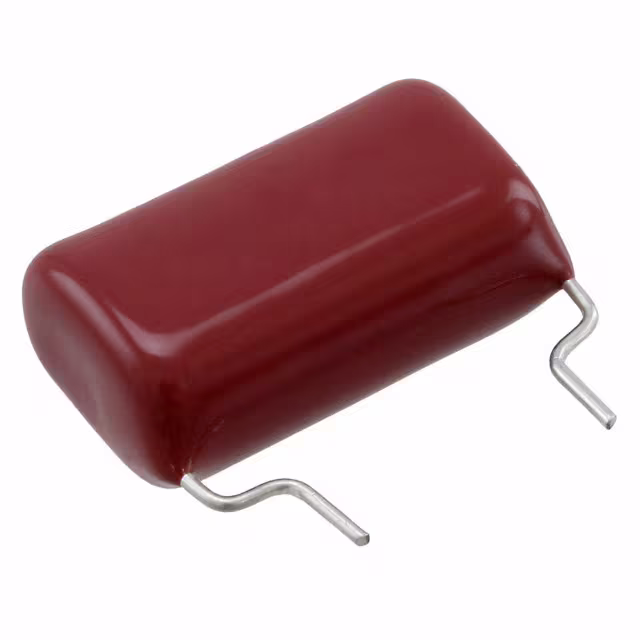

ECW-FD2W395JBCAP FILM 3.9UF 5% 450VDC RADIAL |
2,117 | 1.54 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 3.9 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.996 L x 0.421 W (25.30mm x 10.70mm) | 0.803 (20.40mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECW-F4333JLCAP FILM 0.033UF 5% 400VDC RAD |
2,292 | 1.55 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.033 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.264 W (12.50mm x 6.70mm) | 0.433 (11.00mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECW-F4363JLCAP FILM 0.036UF 5% 400VDC RAD |
2,673 | 1.55 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.036 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.224 W (12.50mm x 5.70mm) | 0.386 (9.80mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECW-F6223JLCAP FILM 0.022UF 5% 630VDC RAD |
2,427 | 1.57 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.022 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.244 W (12.50mm x 6.20mm) | 0.413 (10.50mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECQ-UAAF155KCAP FILM 1.5UF 10% 275VAC RADIAL |
2,548 | 1.72 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 1.5 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220 L x 0.472 W (31.00mm x 12.00mm) | 0.886 (22.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
ECQ-E1225JFCAP FILM 2.2UF 5% 100VDC RADIAL |
3,039 | 1.62 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 2.2 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.276 W (18.50mm x 7.00mm) | 0.630 (16.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
ECW-F4473JLCAP FILM 0.047UF 5% 400VDC RAD |
2,097 | 1.67 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.047 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.244 W (12.50mm x 6.20mm) | 0.413 (10.50mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
